Analyzers and testers are how a battery program turns an electrode recipe into a defensible cycle-life claim — and how a pilot line proves a module will survive the field before it ships. This collection brings together the cyclers, environmental chambers, and integrated test stations used across the full battery development workflow, from coin-cell screening through pack-level validation.
The instruments here cover three workflow phases:
-
Cell-level cyclers — high-channel-count, low-current systems for coin cells, small pouches, and supercapacitors during materials and formulation R&D. Multi-range current architectures and 4-wire Kelvin sensing keep accuracy honest across the full SOC window, and high-speed sampling variants resolve the fast transients that matter for pulse and DCIR work.
-

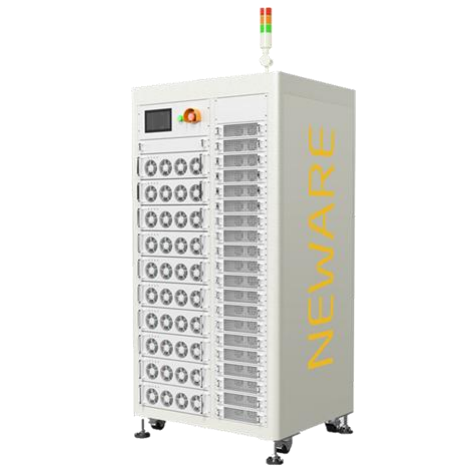

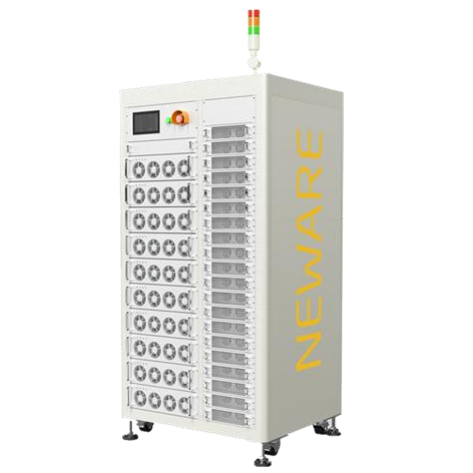

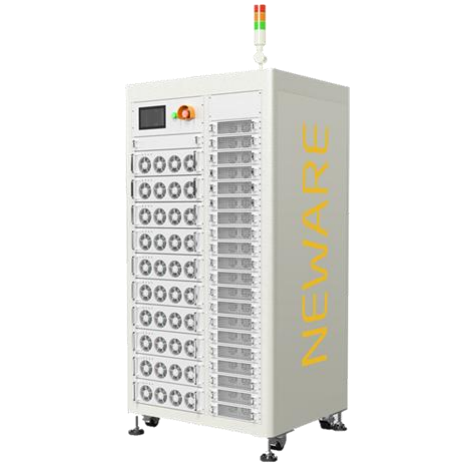

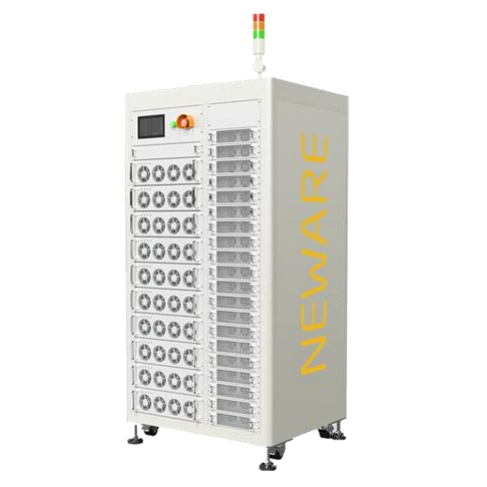

Module-level testers — mid-voltage, high-current regenerative systems that bridge the gap between cell R&D and pack validation. Regenerative power electronics return discharge energy to the grid rather than dumping it as heat, which matters once you are running long cycles on tens of kilowatts.
-

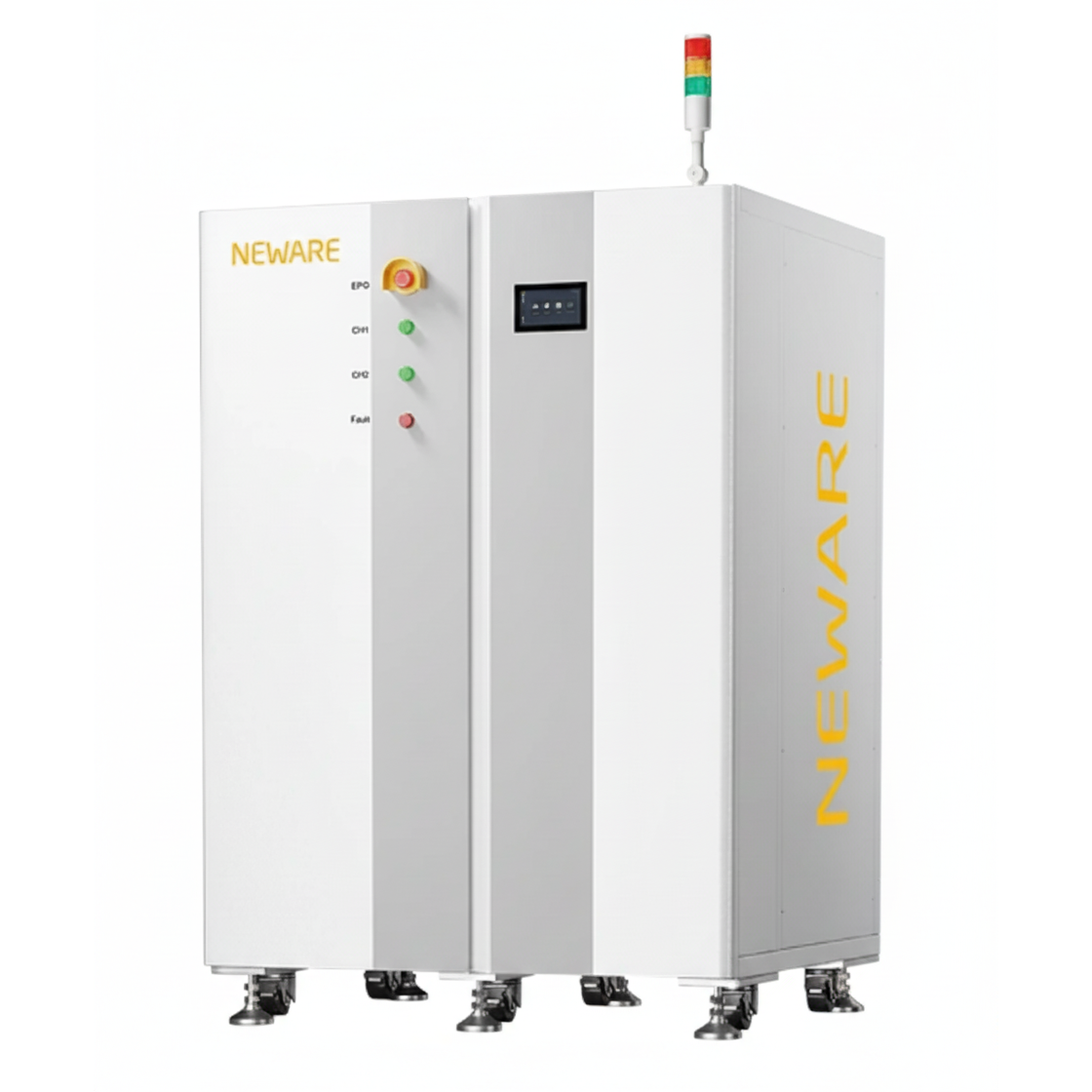

Pack-level testers — high-voltage IGBT-based systems for EV pack and stationary-storage validation, with the dynamic response needed for drive-cycle profiles and HIL-style integration with vehicle BMS.

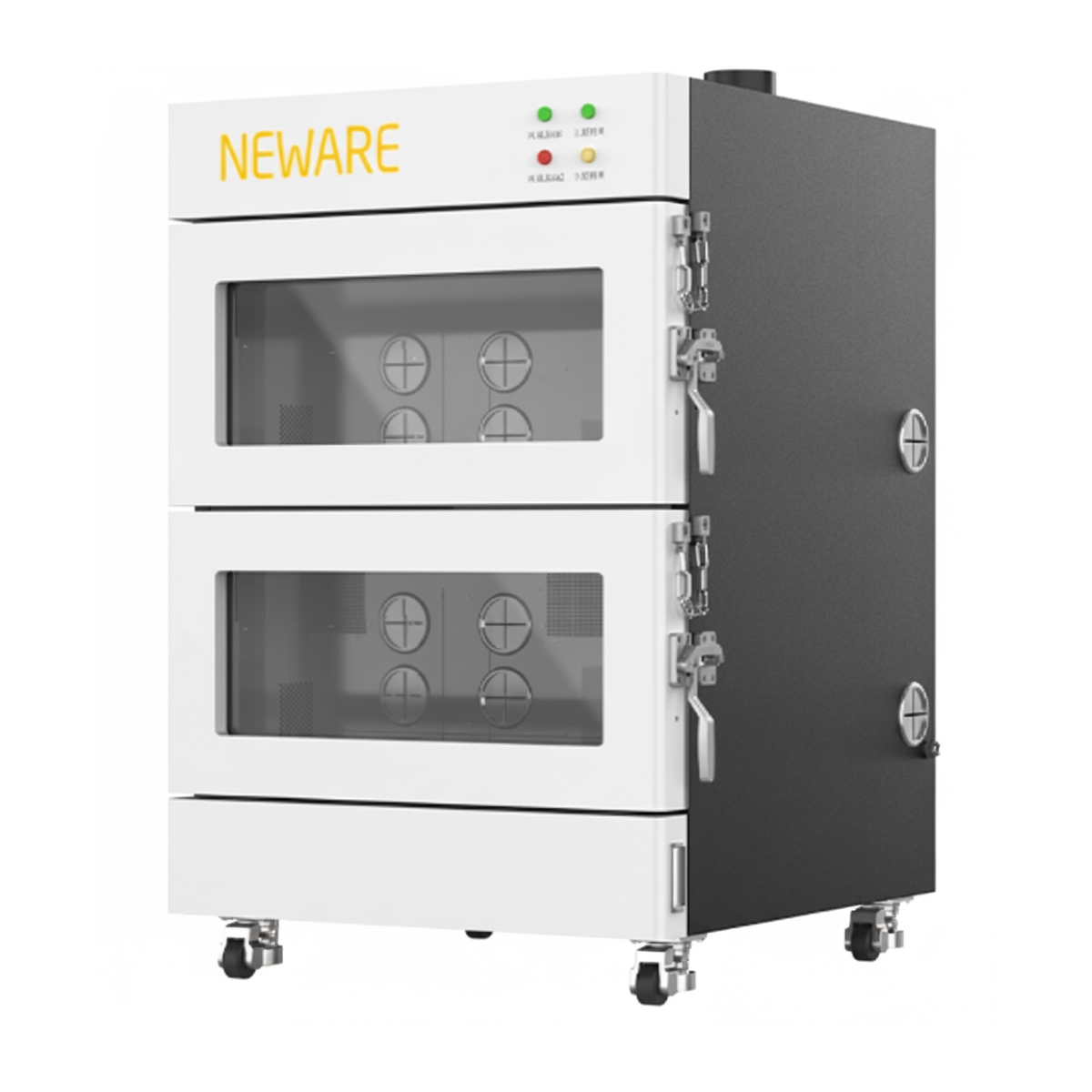

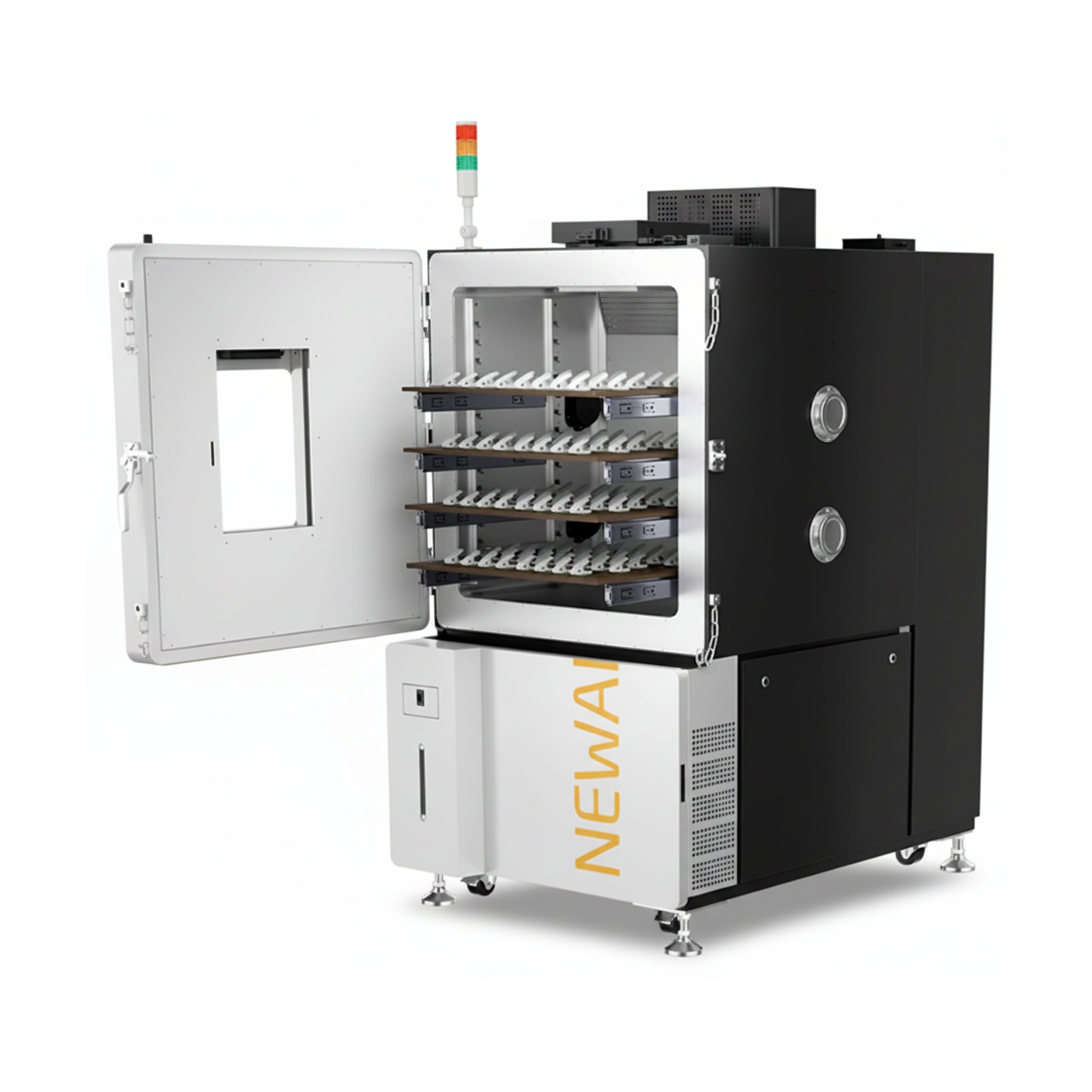

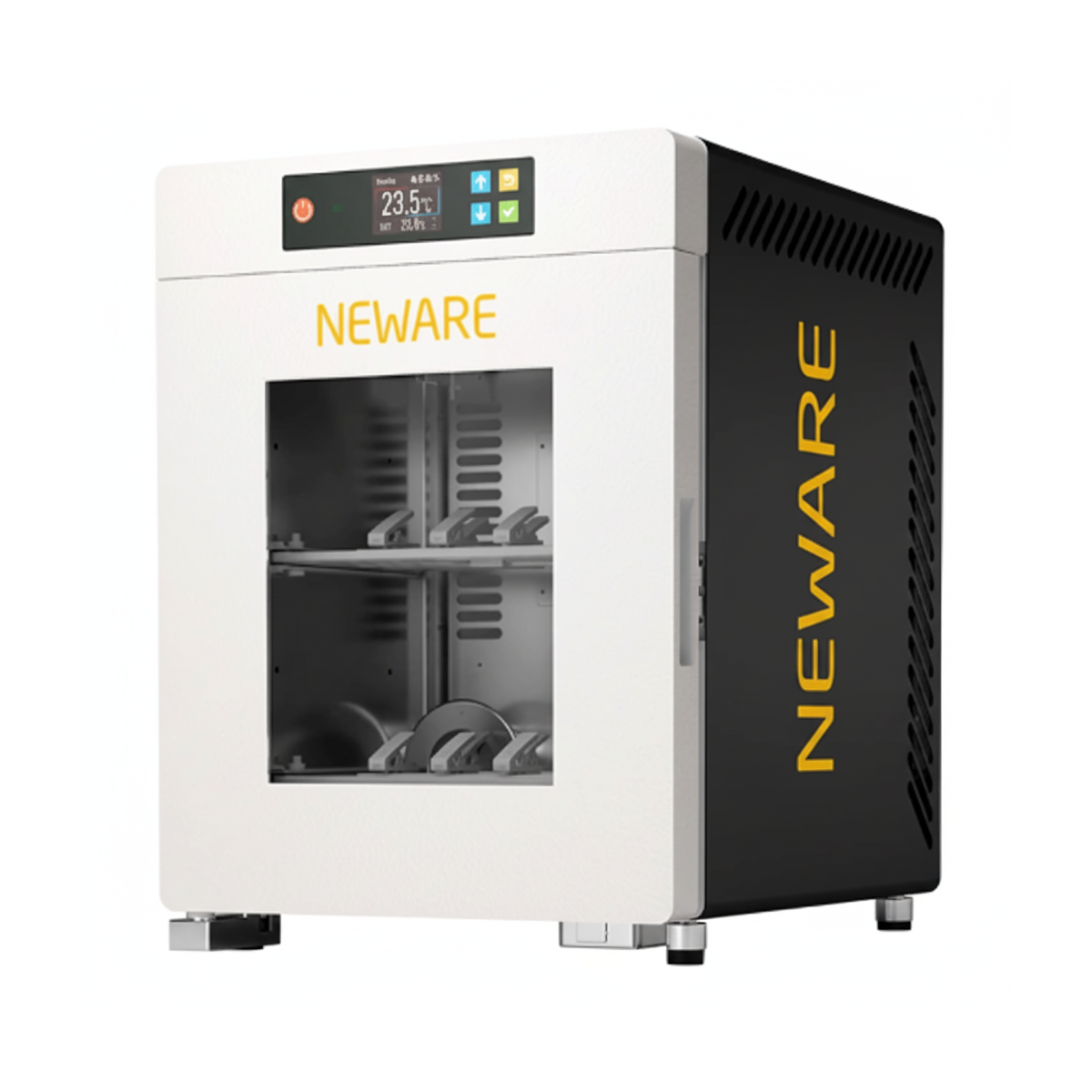

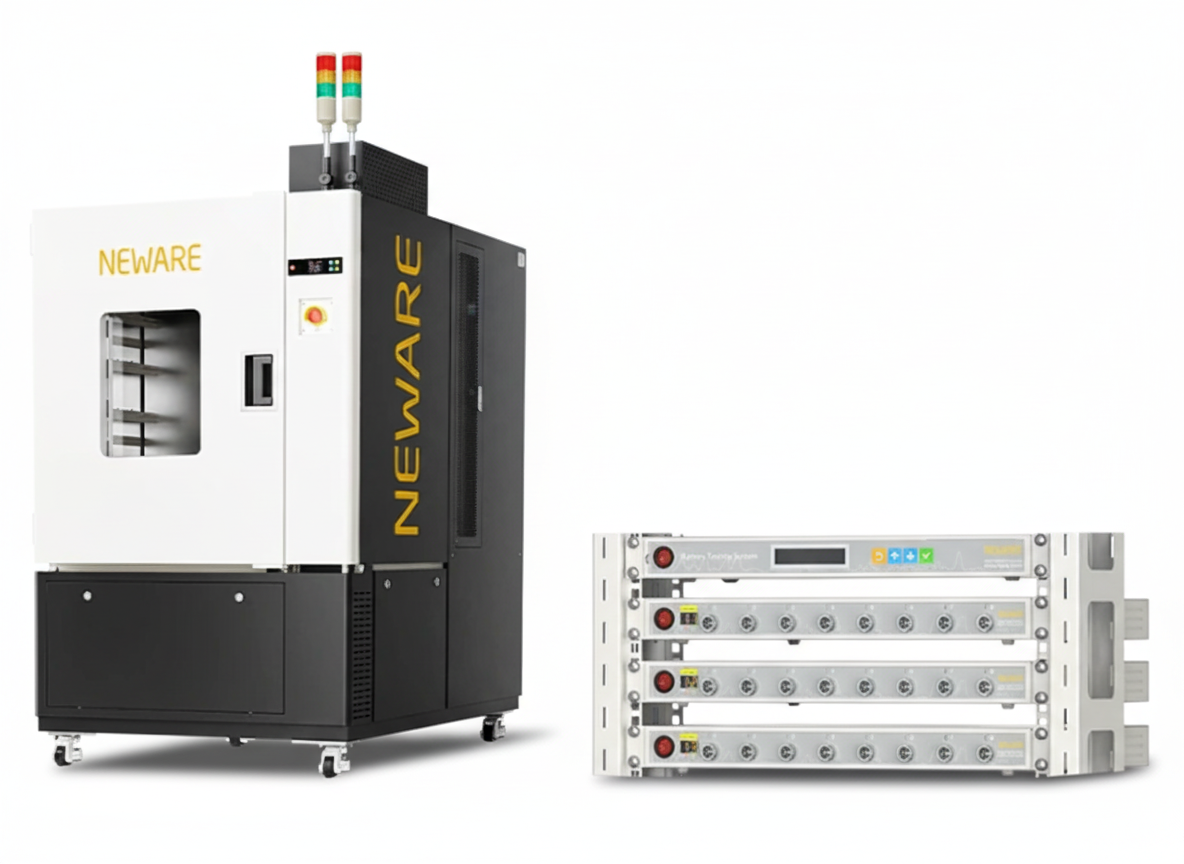

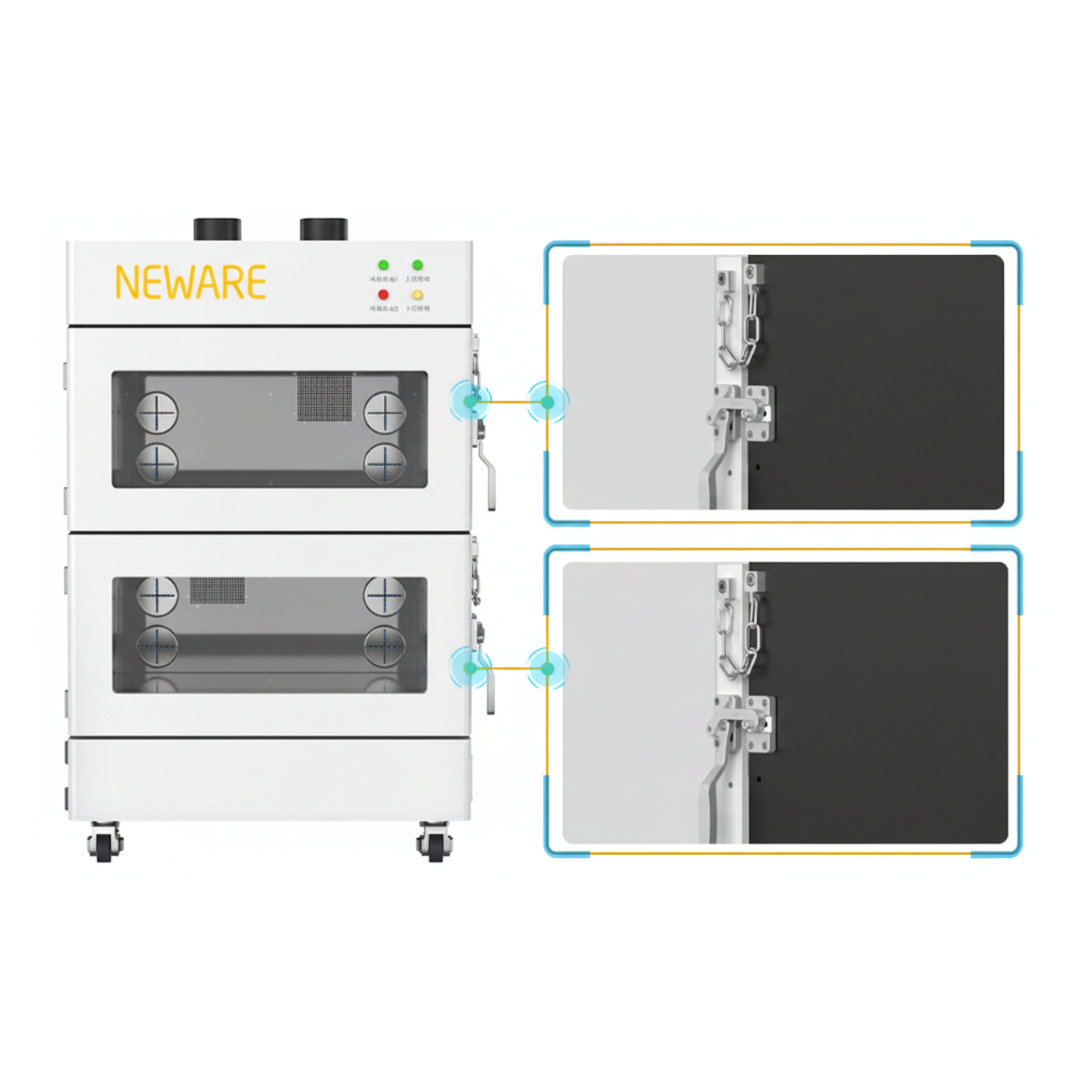

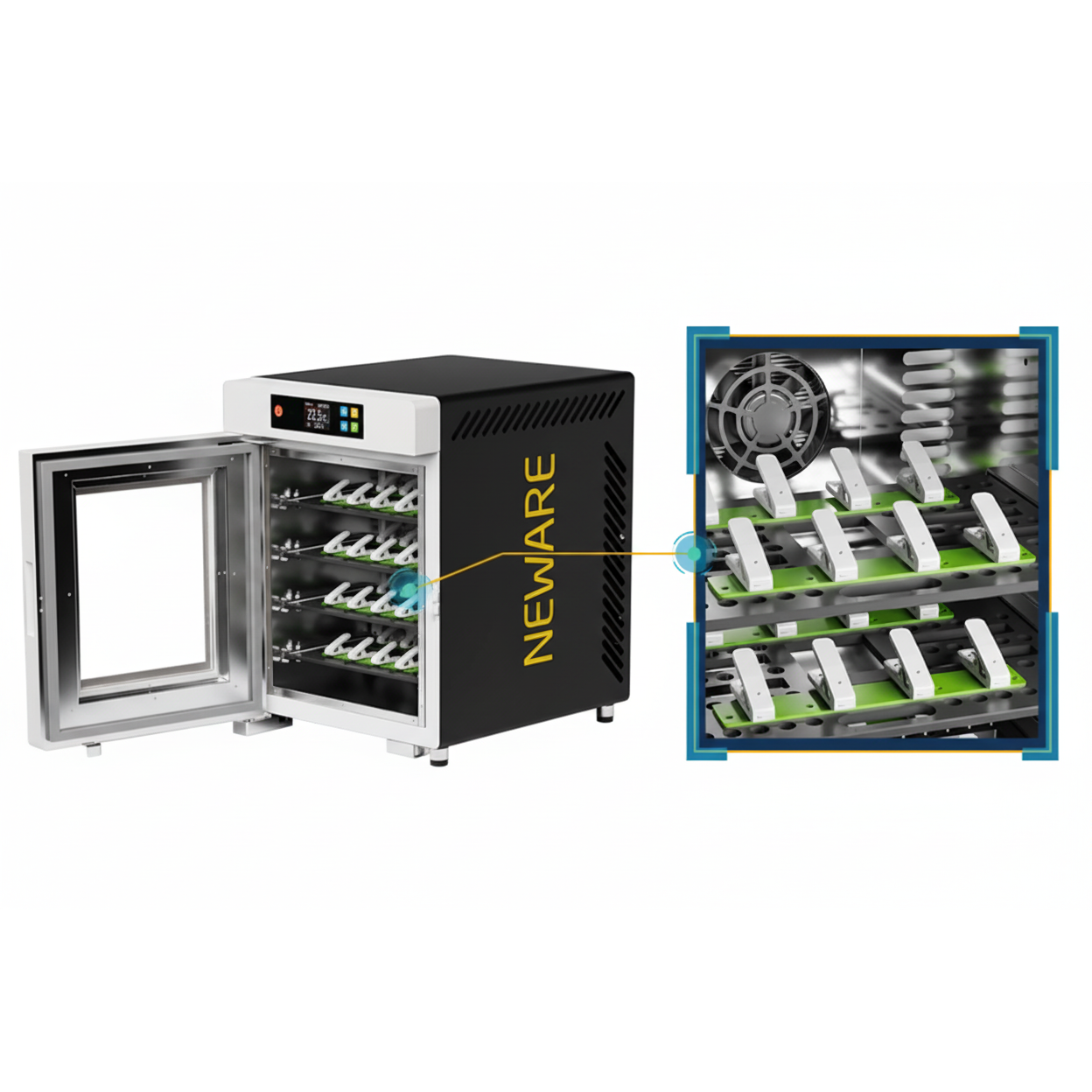

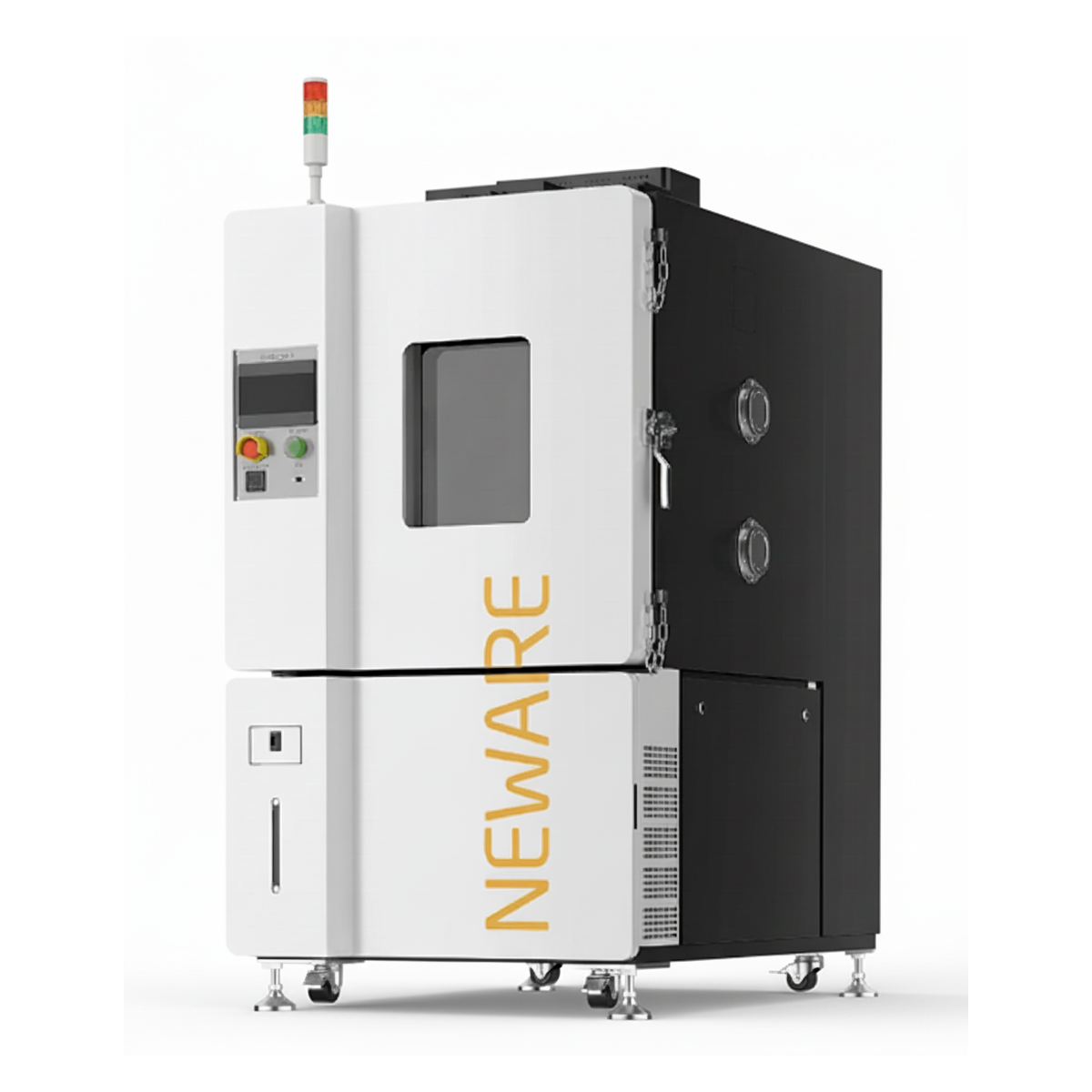

Environmental control is the other half of the story. Constant-temperature chambers — from compact desktop units to multi-zone cabinets — let you cycle cells at a controlled set point so that capacity-fade and impedance-growth data are not contaminated by ambient drift. All-in-one systems integrate the cycler hardware directly into the chamber, eliminating the wiring runs between cabinets that pick up noise on low-current channels and turning a temperature sweep into a pure software sequence. For abuse and safety work, explosion-proof chambers with reinforced enclosures and observation ports contain the consequences of overcharge, forced discharge, and short-circuit tests where thermal runaway is an expected outcome.
Communication-layer features matter as cells get smarter: SMBus and I2C support let a tester read a battery's internal fuel-gauge and BMS state alongside the external V/I traces, which is essential for consumer-electronics qualification.
If you are screening new active materials in coin or small pouch format, start with cell-level cyclers paired with a compact temperature chamber; for module scale-up and regenerative pilot runs, see the mid-power testers; for full-pack and EV validation, see the high-voltage IGBT systems. Safety-critical abuse testing belongs in the explosion-proof chambers. For matching cells, separators, and electrolytes, see Battery Equipment and the broader Energy Storage catalog.
