Gloveboxes are the non-negotiable workstation for lithium-metal, sodium-metal, sulfide solid electrolytes, and any chemistry that fails the moment it sees ambient O2 or H2O. The systems in this collection are built around a sealed inert-atmosphere chamber (typically argon, sometimes nitrogen for less reactive work) coupled to a regenerable purification loop, so battery researchers can assemble coin cells, pouch cells, and reference electrodes under conditions where moisture and oxygen stay below the parts-per-million range that lithium chemistry actually requires.

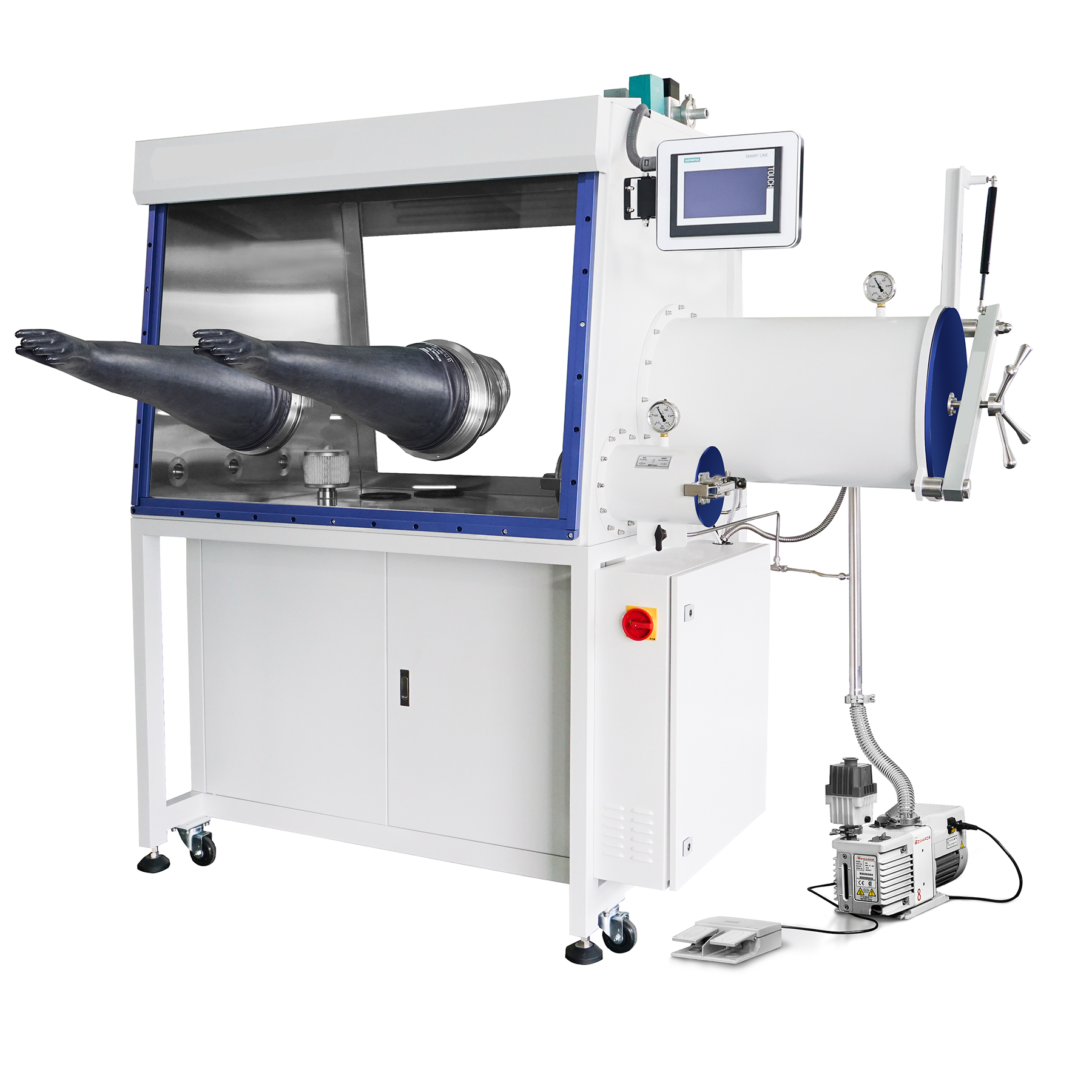

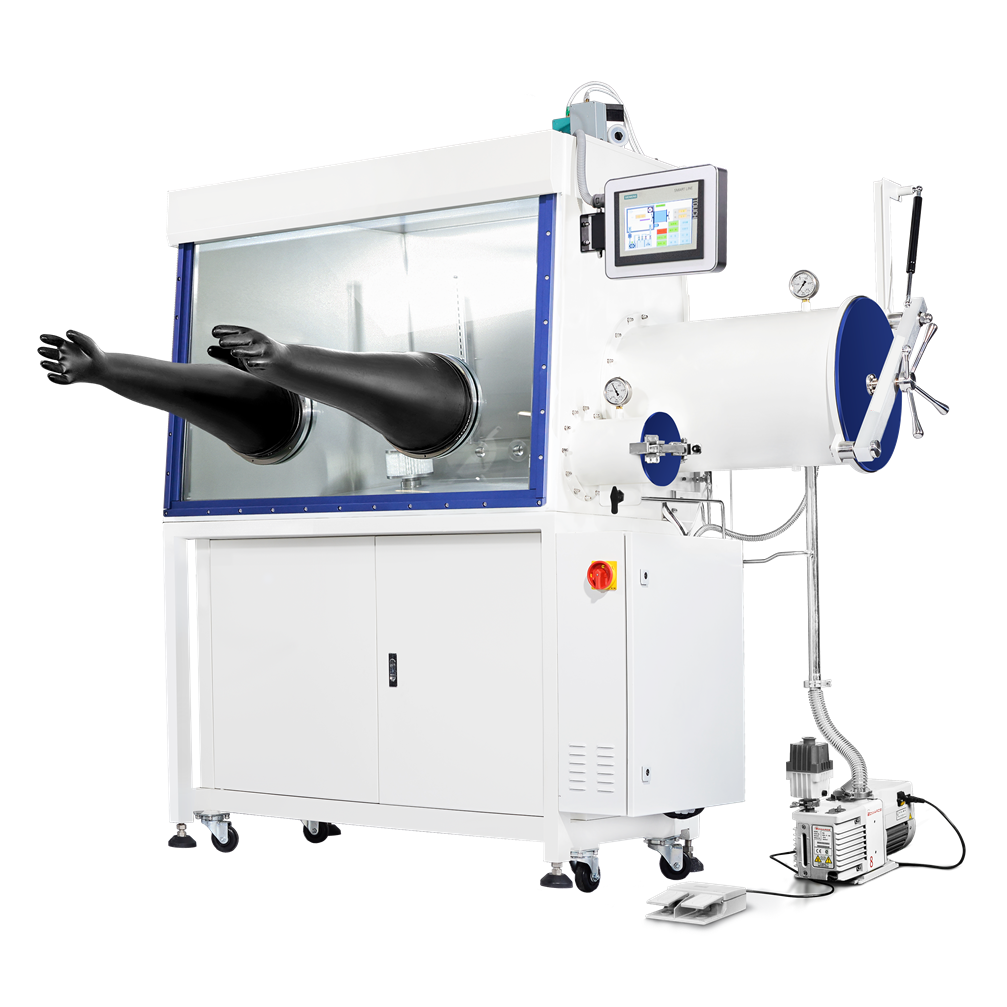

A research-grade single-chamber glovebox is a system, not just a box. Selection comes down to four coupled subsystems:
-
Atmosphere purification. A copper-catalyst column scavenges O2 and a molecular-sieve column adsorbs H2O. Both regenerate in place with a forming-gas cycle, so the box is a long-term workstation rather than a consumable.
-
Antechambers. One large and one mini transfer chamber let you cycle bulky equipment (vacuum ovens, crimpers, calendering tools) without disturbing the main atmosphere, while the mini port handles vials and electrode discs with minimal argon loss.
-
Pressure and gas control. Automatic working-pressure regulation and a foot-pedal purge valve keep the chamber stable during glove movement and sample transfer, which is what protects the catalyst bed from accidental air ingress.
-
Integration ports. Feedthroughs for power, vacuum, and signal cabling let you operate cell crimpers, hot plates, balances, and electrochemical workstations entirely inside the inert envelope.

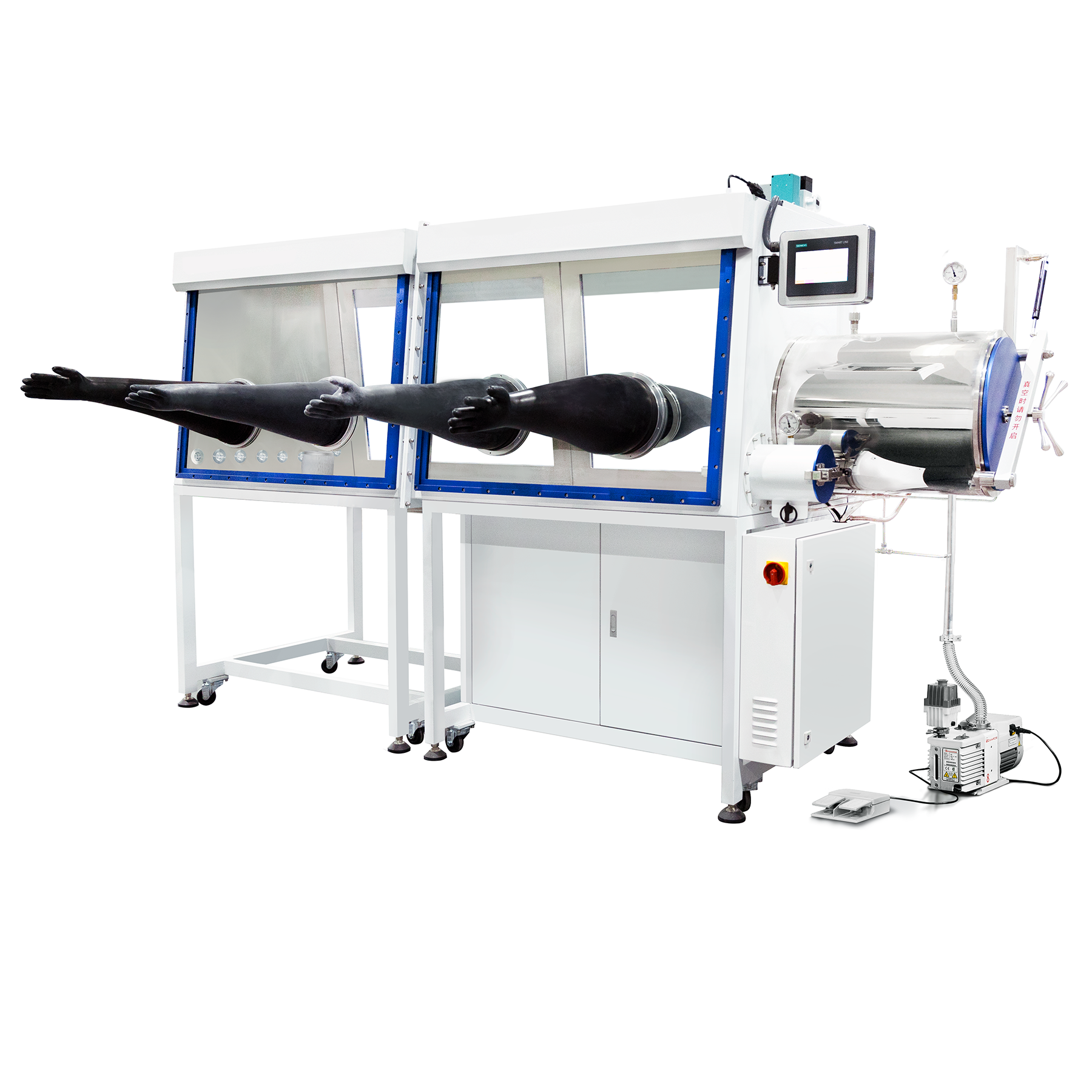

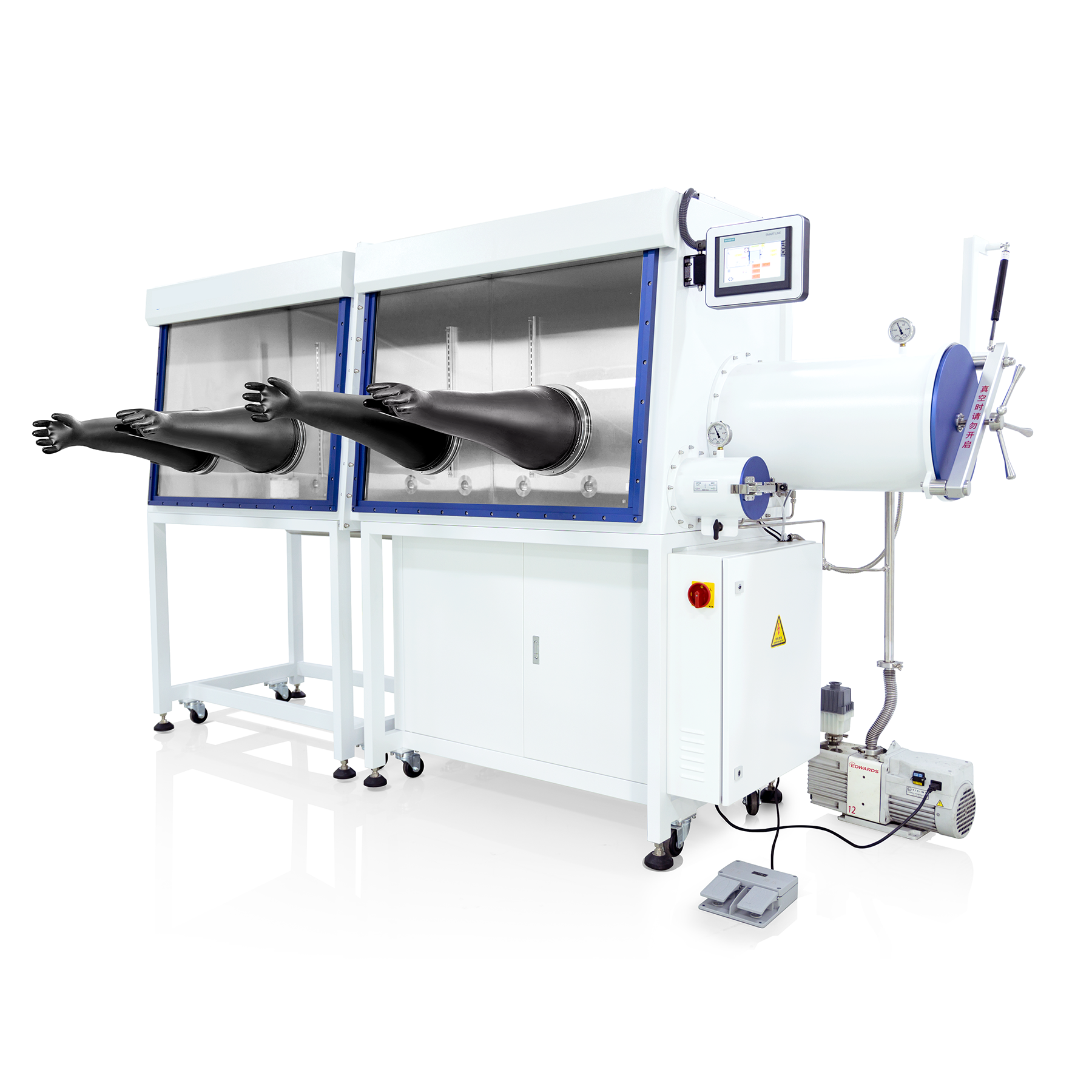

For most lithium-ion, lithium-metal, and sulfide solid-state workflows, a single-chamber system with integrated purification is the right starting point: it covers electrode punching, electrolyte dispensing, coin-cell assembly, and short-term storage in one footprint. Multi-chamber and pass-through configurations become relevant when a lab needs to isolate sulfide handling from carbonate electrolytes, or to pair an inert workstation with a dedicated dry room or vacuum line.
If you are setting up a new battery lab, start here and pair the glovebox with downstream cell assembly equipment and electrolytes; for broader inert-atmosphere infrastructure, see controlled atmosphere systems.
