Accessories for Col Battery Equipment

Battery-equipment accessories are where contamination control, throughput, and measurement repeatability are actually won or lost. The main instrument sets the headline specs, but the jar liner, the die lip, the welding horn, and the fixture contact surface decide whether your data is publishable and whether your electrodes are reusable across cell builds.

This collection groups the consumables and add-on modules that pair with mills, presses, coaters, welders, and cell-test fixtures. Most parts are wear items or application-specific tooling — pick them with the same care you give to active material selection.

Mill jars and grinding media

Milling-jar liner choice drives wear-debris contamination. Zirconia (ZrO2) is the default for cathode and graphite R&D where any iron pickup would skew electrochemistry. Alumina (Al2O3) suits oxide-ceramic and SOFC/SOEC powders. Stainless 304/316 is economical for non-battery feedstocks but is a contamination risk for Li-ion actives. Agate is reserved for soft, low-volume samples. Vacuum-sealed jars extend the same selection to oxygen- and moisture-sensitive systems without dedicating a glovebox to the mill.

Coater tooling

For roll-to-roll and tape-casting lines, slot-die heads, doctor-blade film applicators, and R2R tension/handling units are the parts that touch the slurry and the foil. Slot-die manifold geometry and lip finish set the cross-web uniformity; adjustable-gap blades let you compensate for slurry shrinkage when targeting a specific dry-film loading.

Cell-build and test fixtures

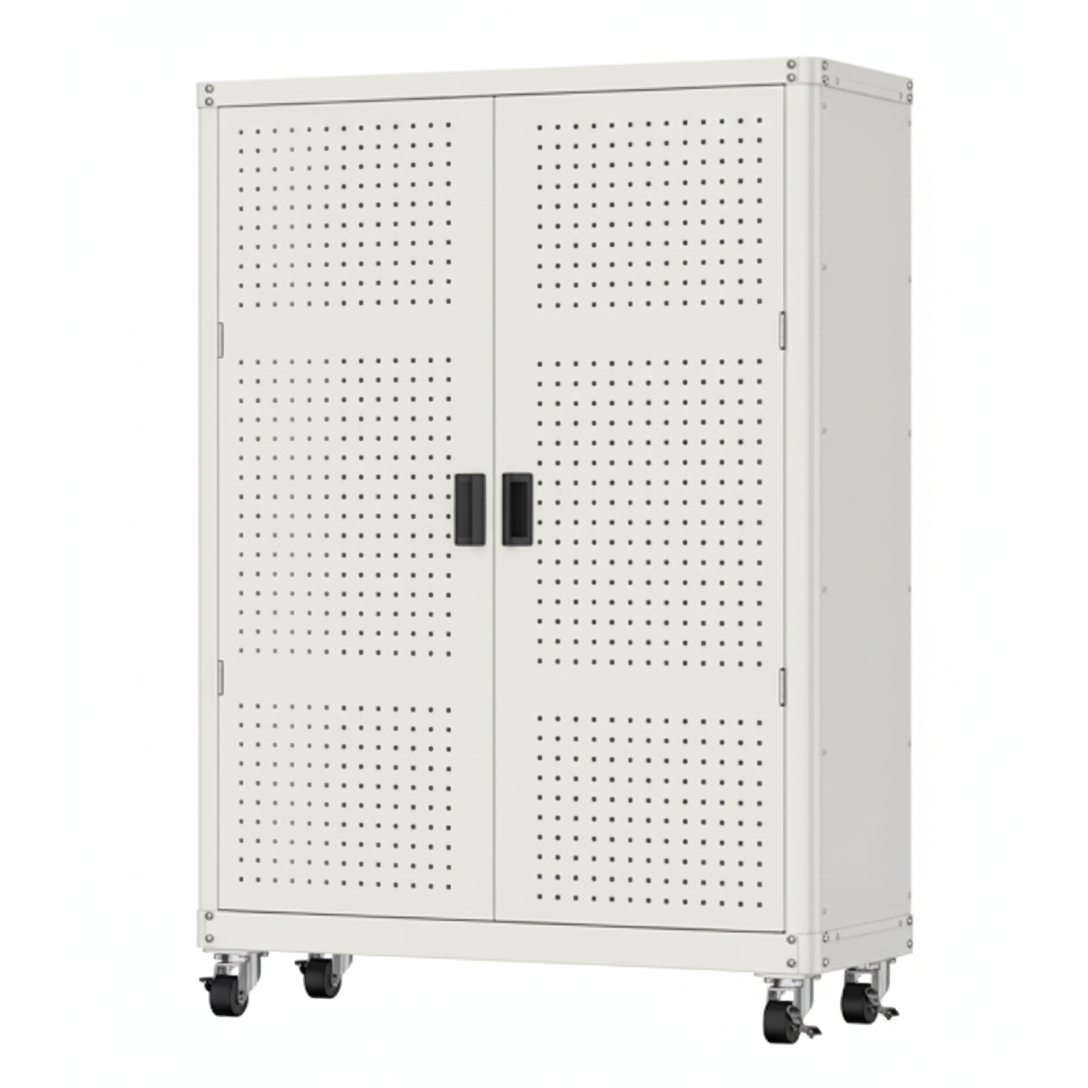

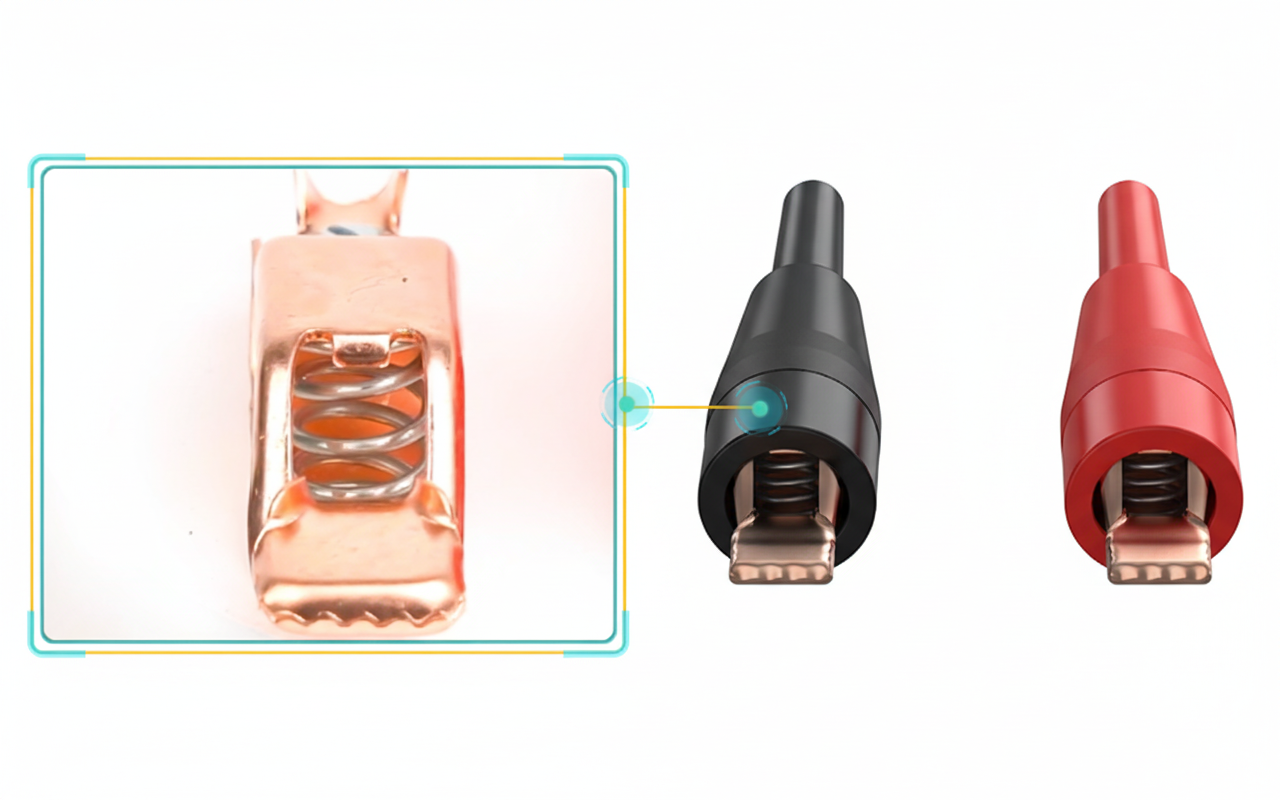

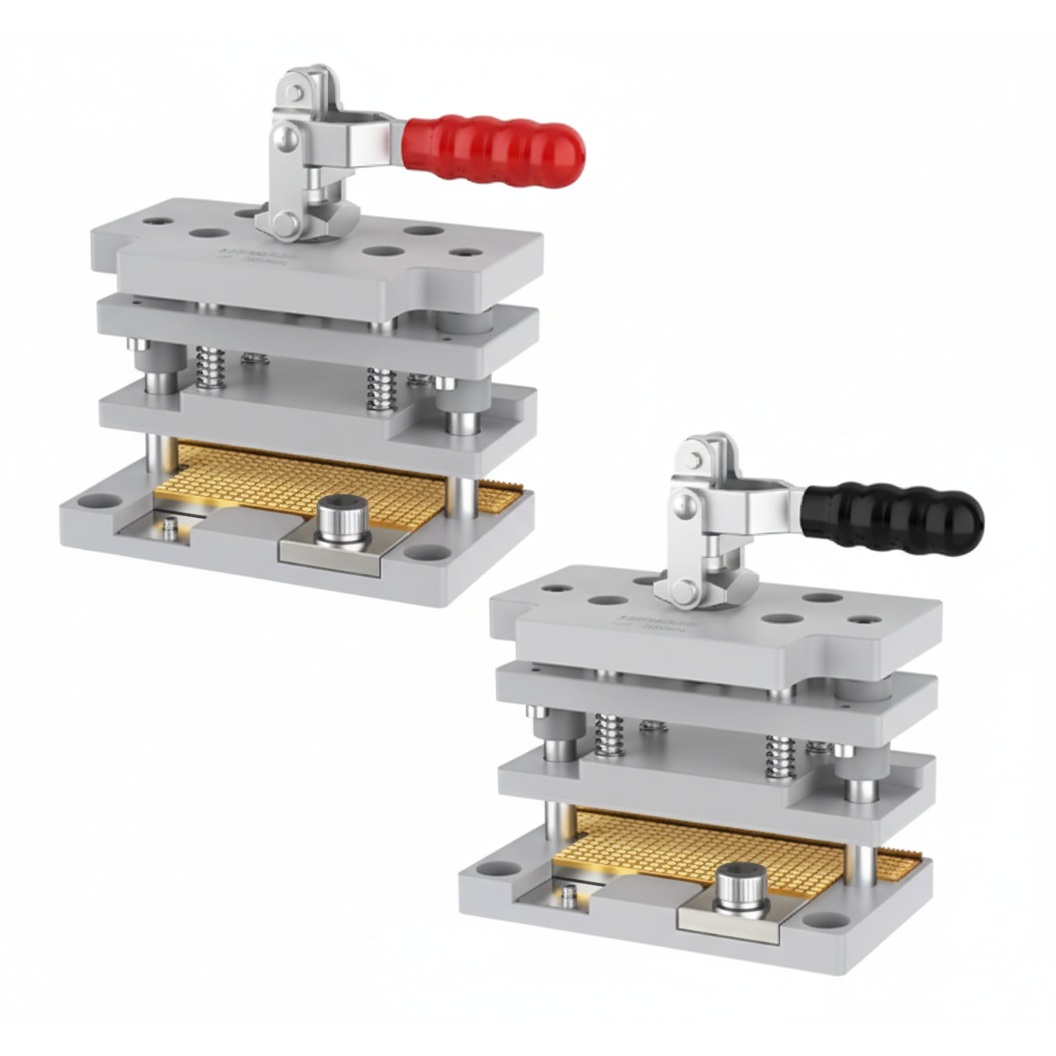

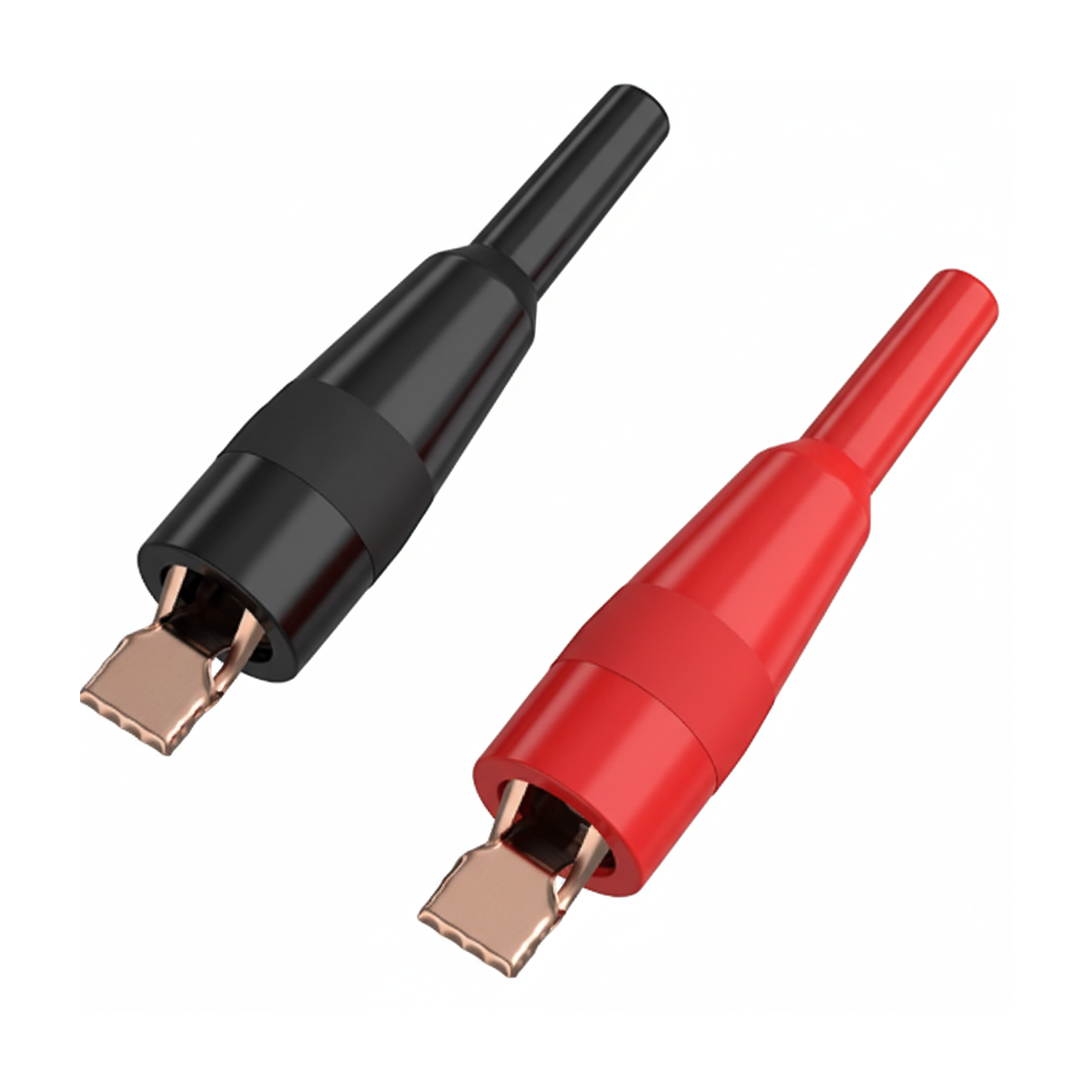

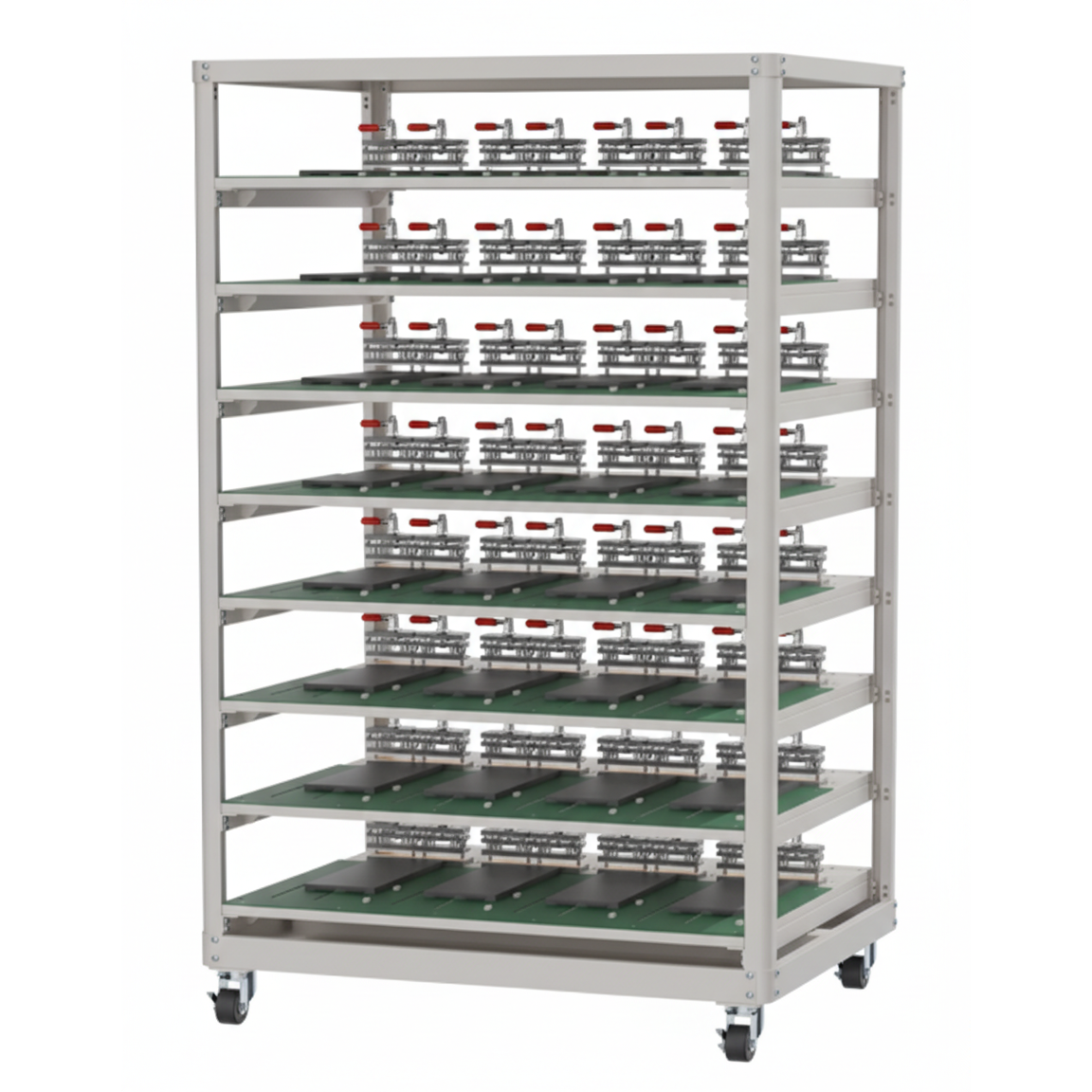

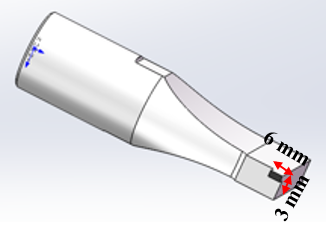

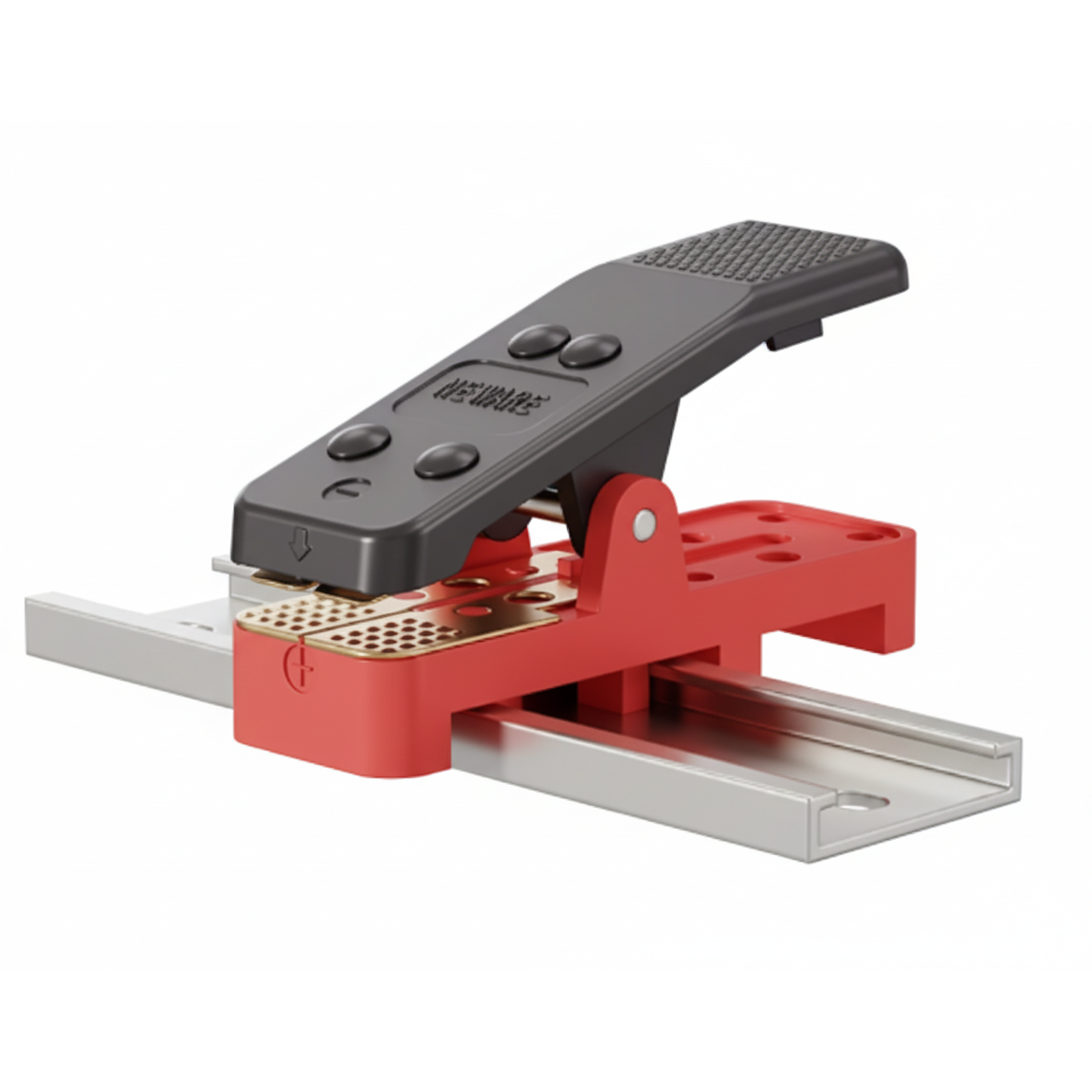

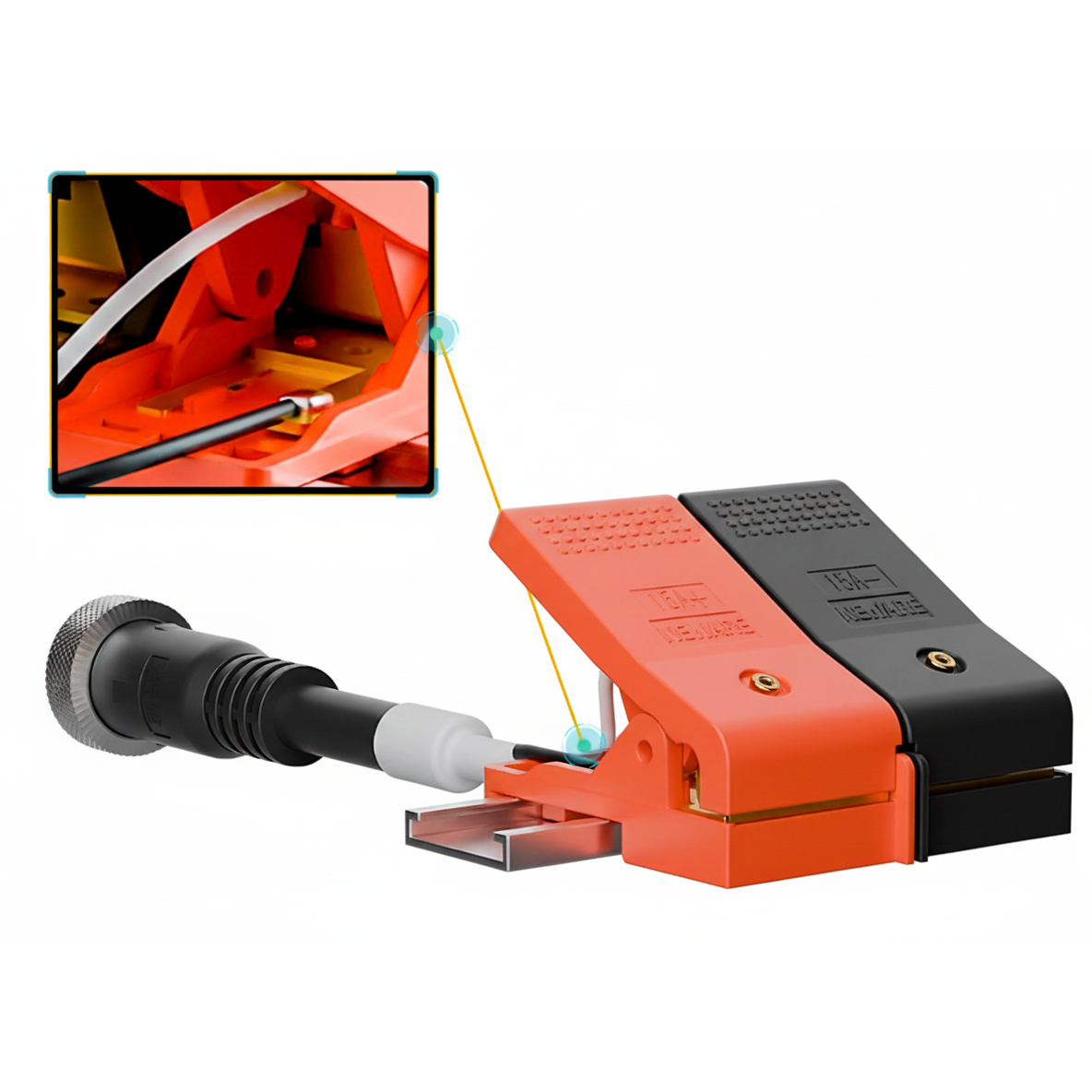

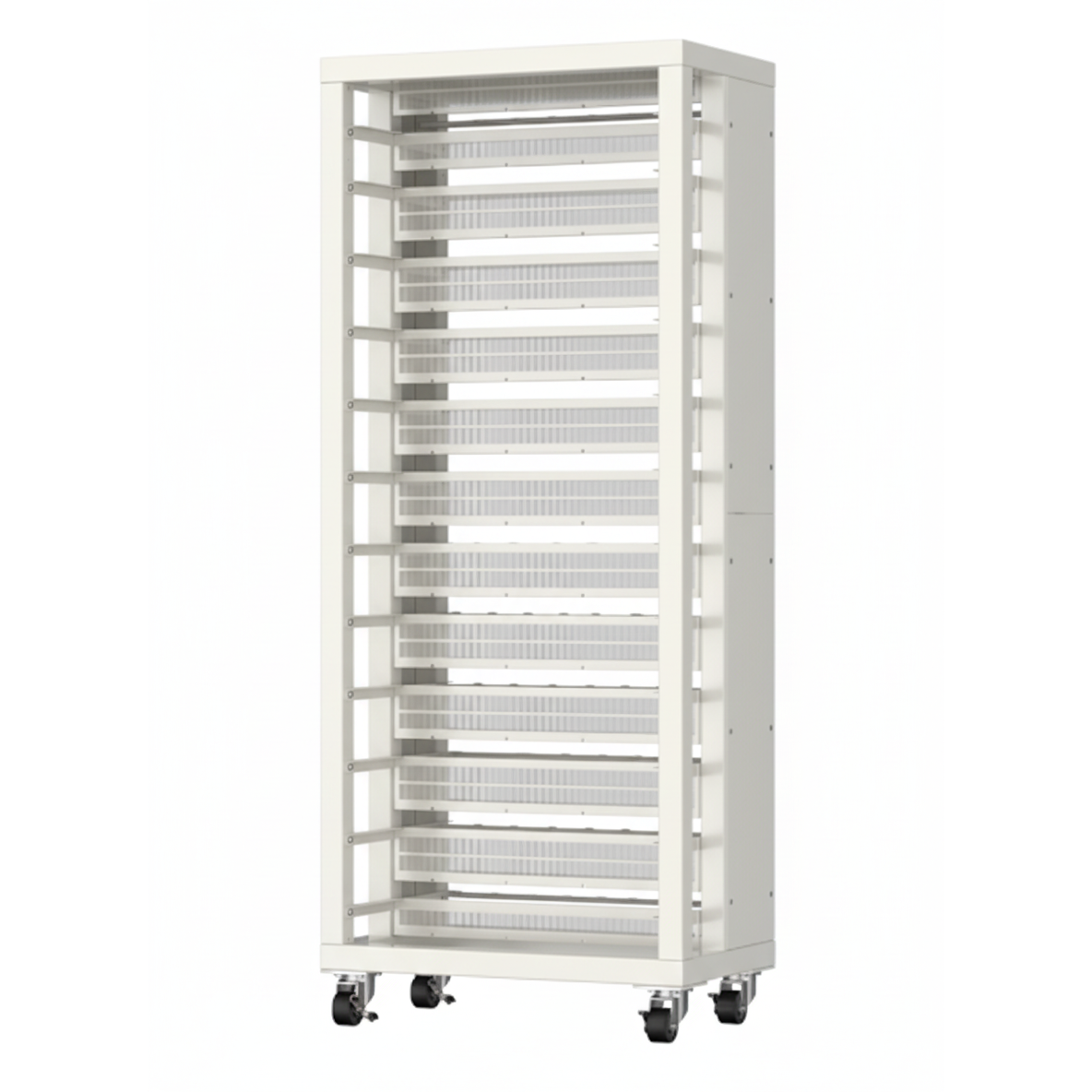

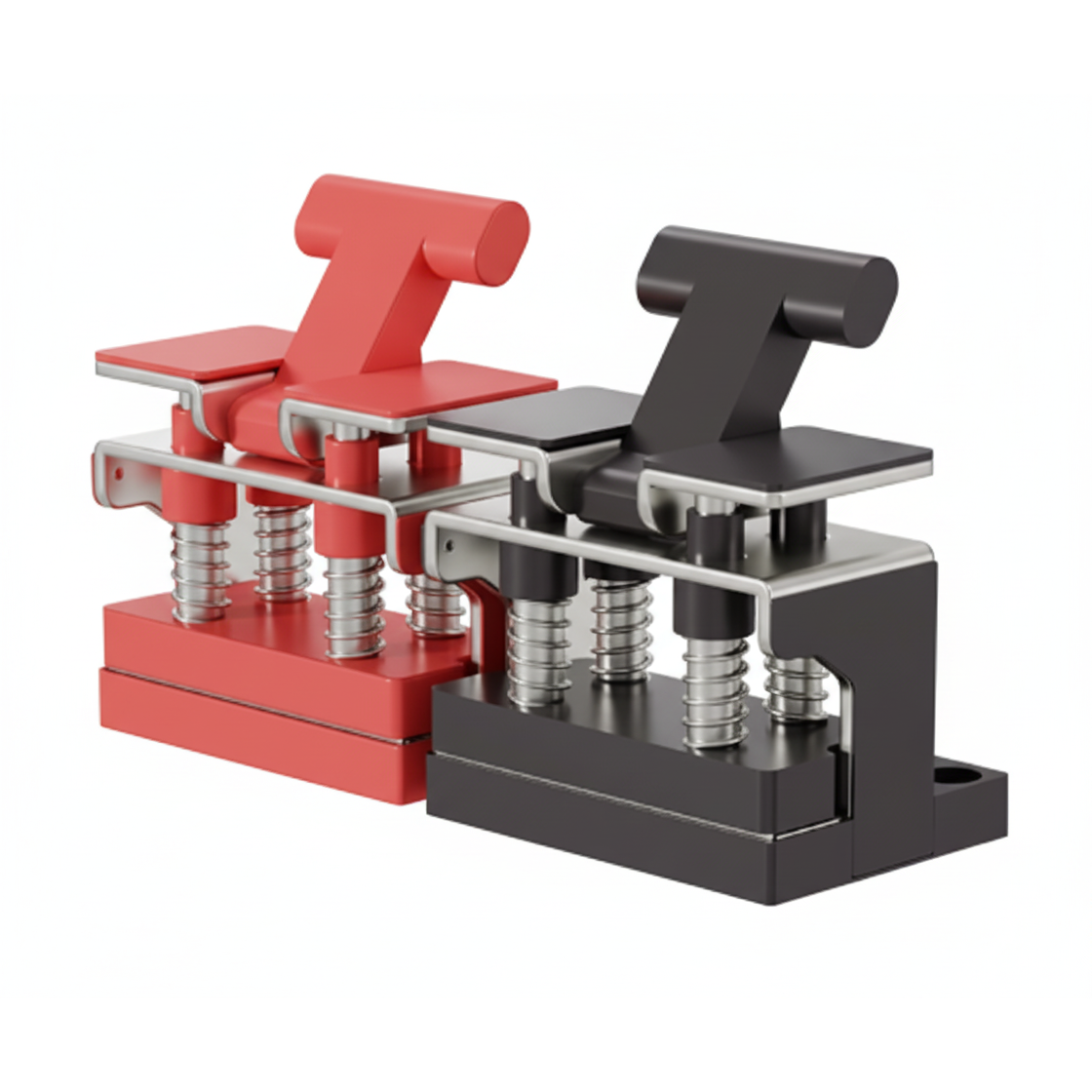

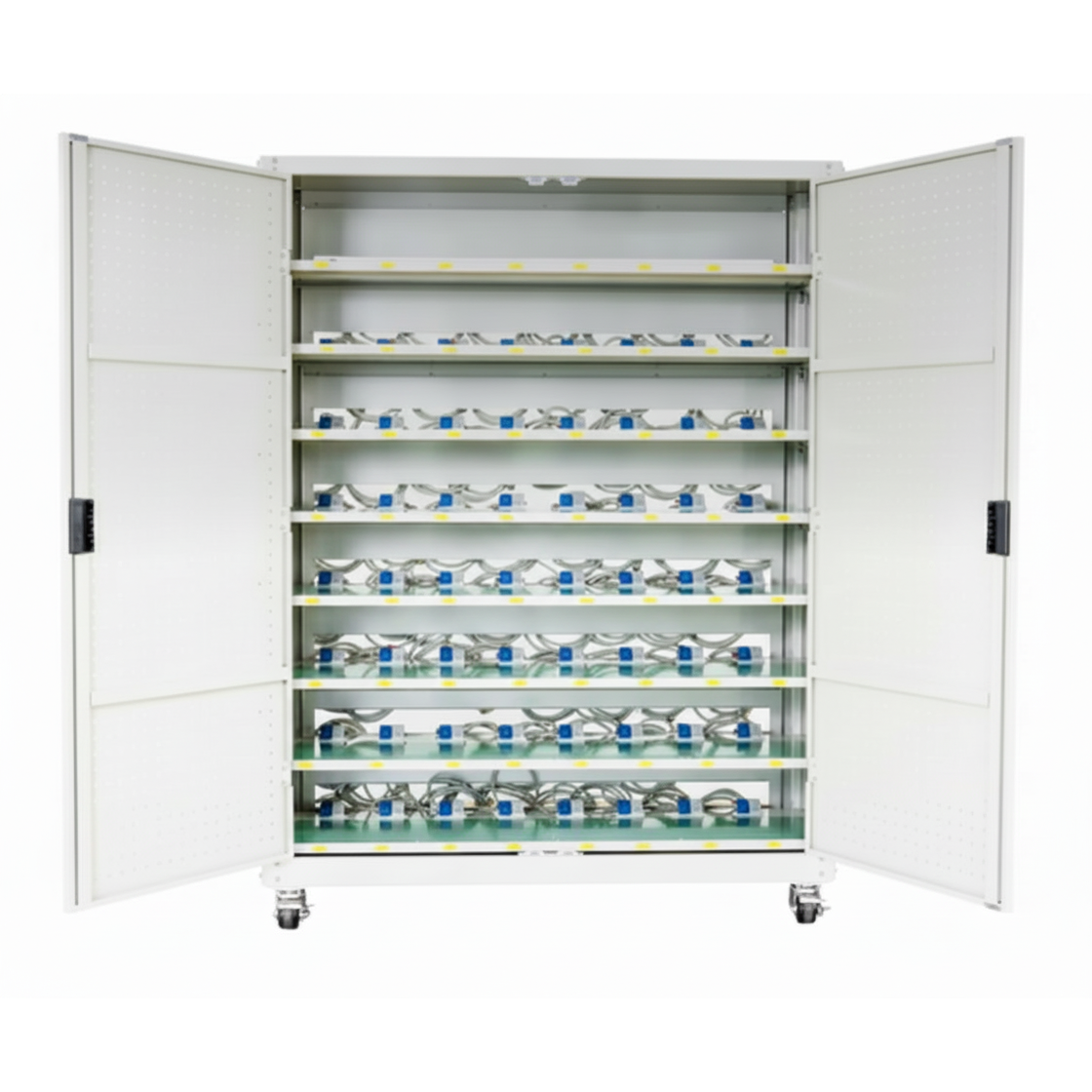

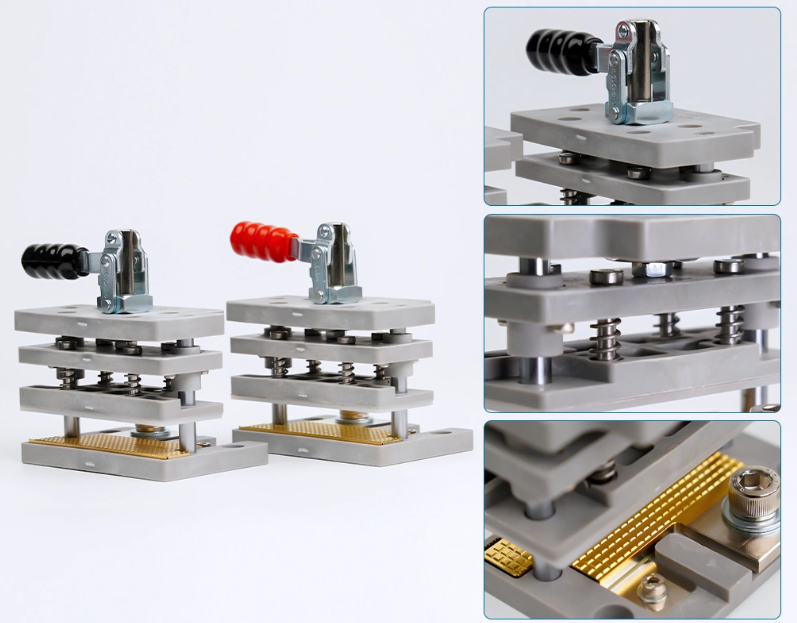

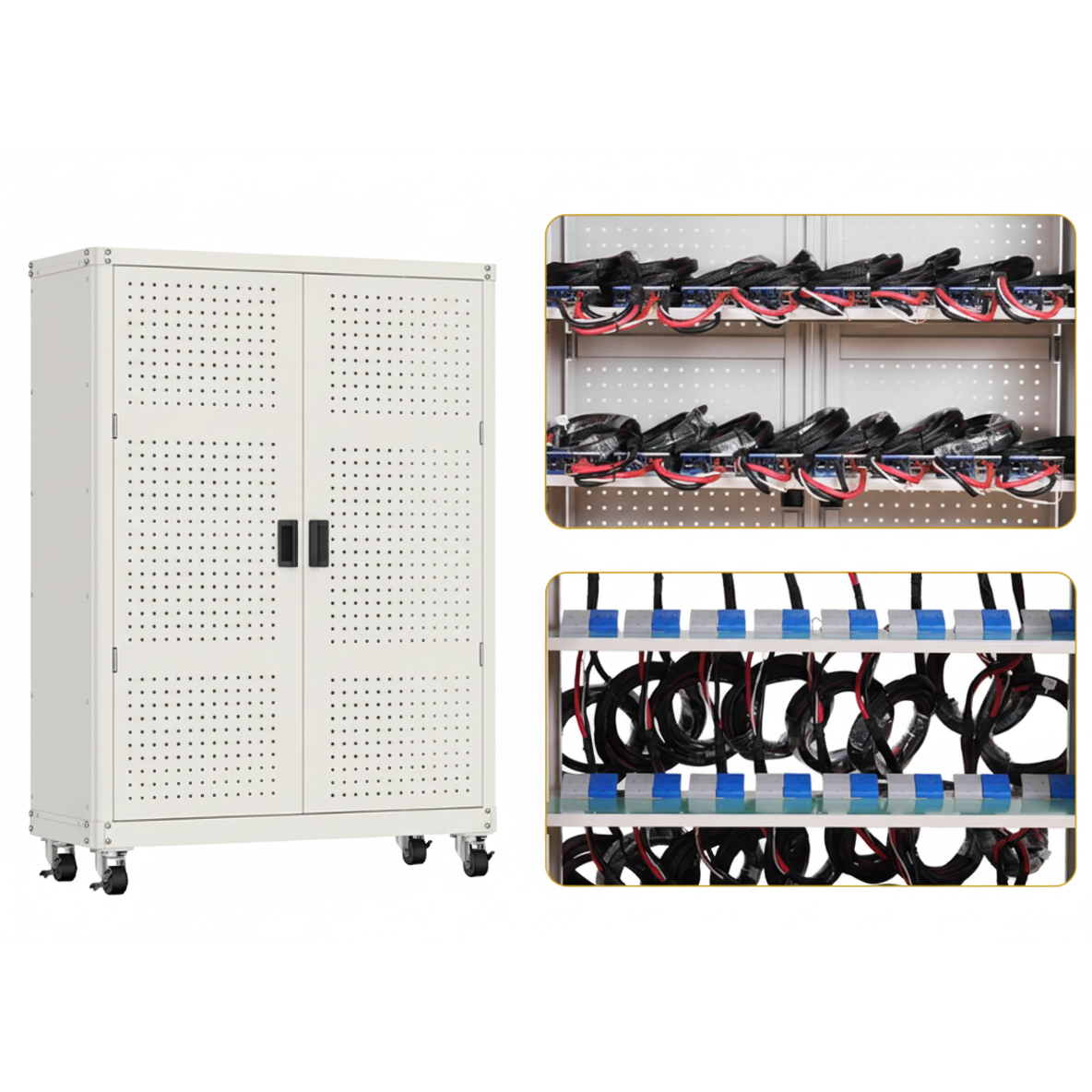

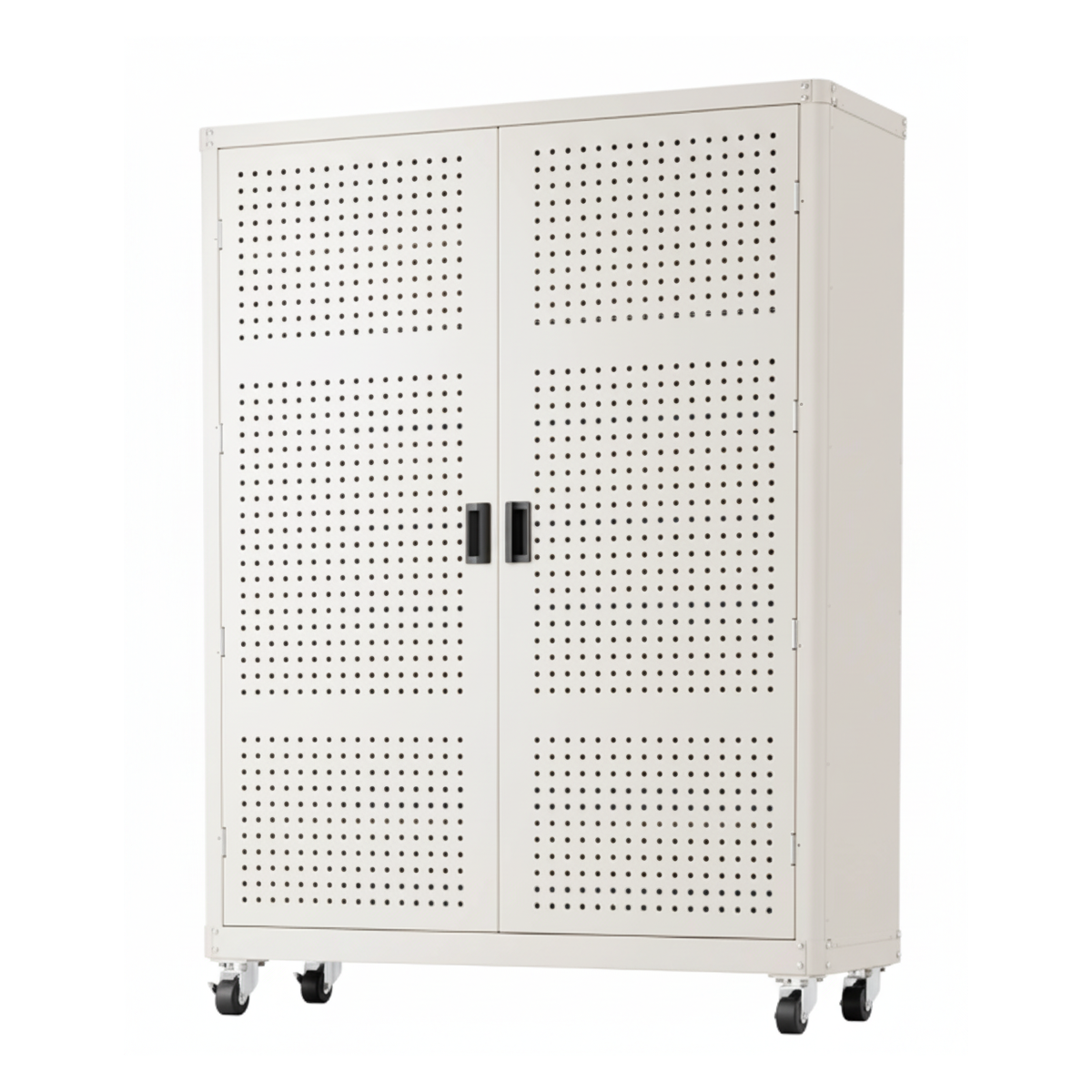

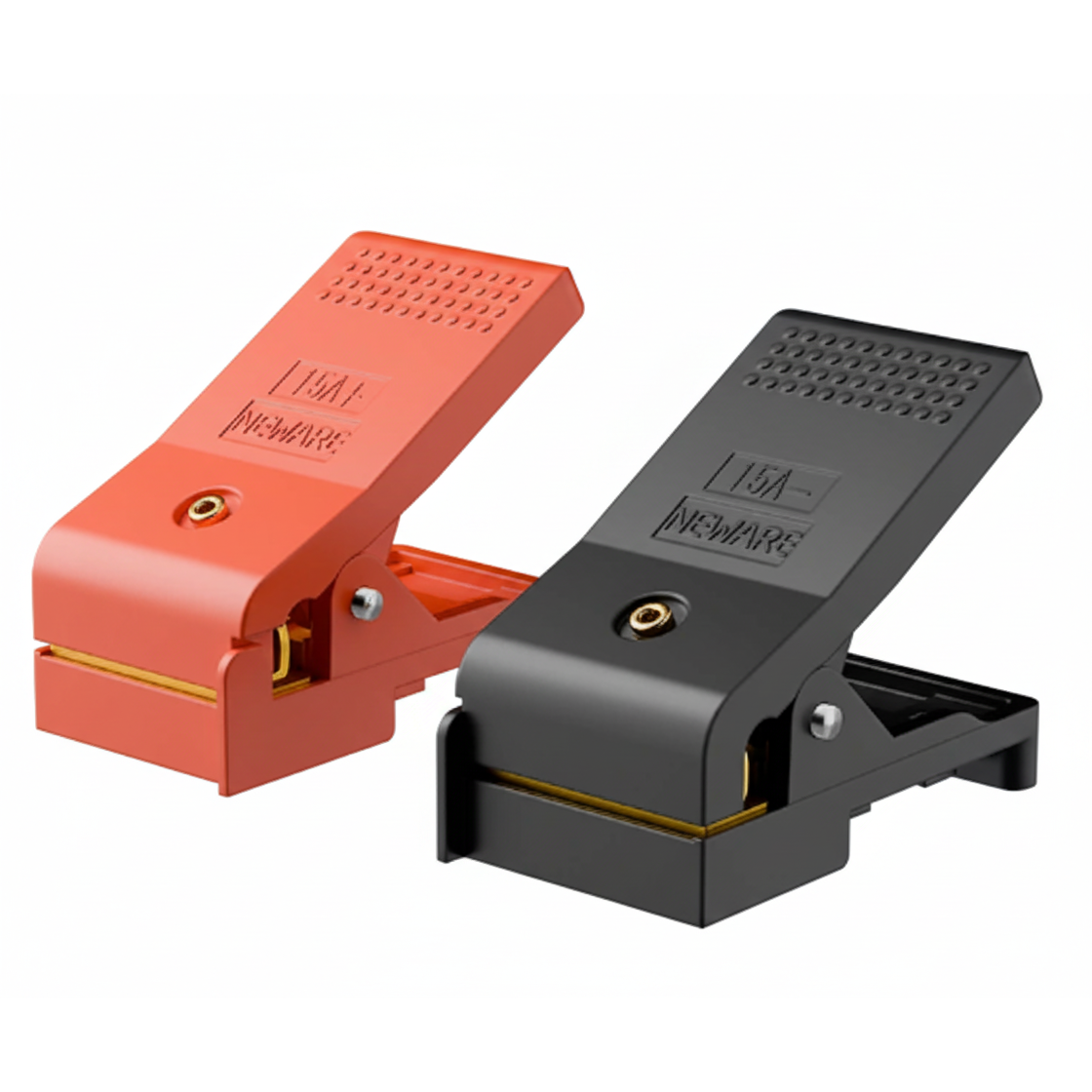

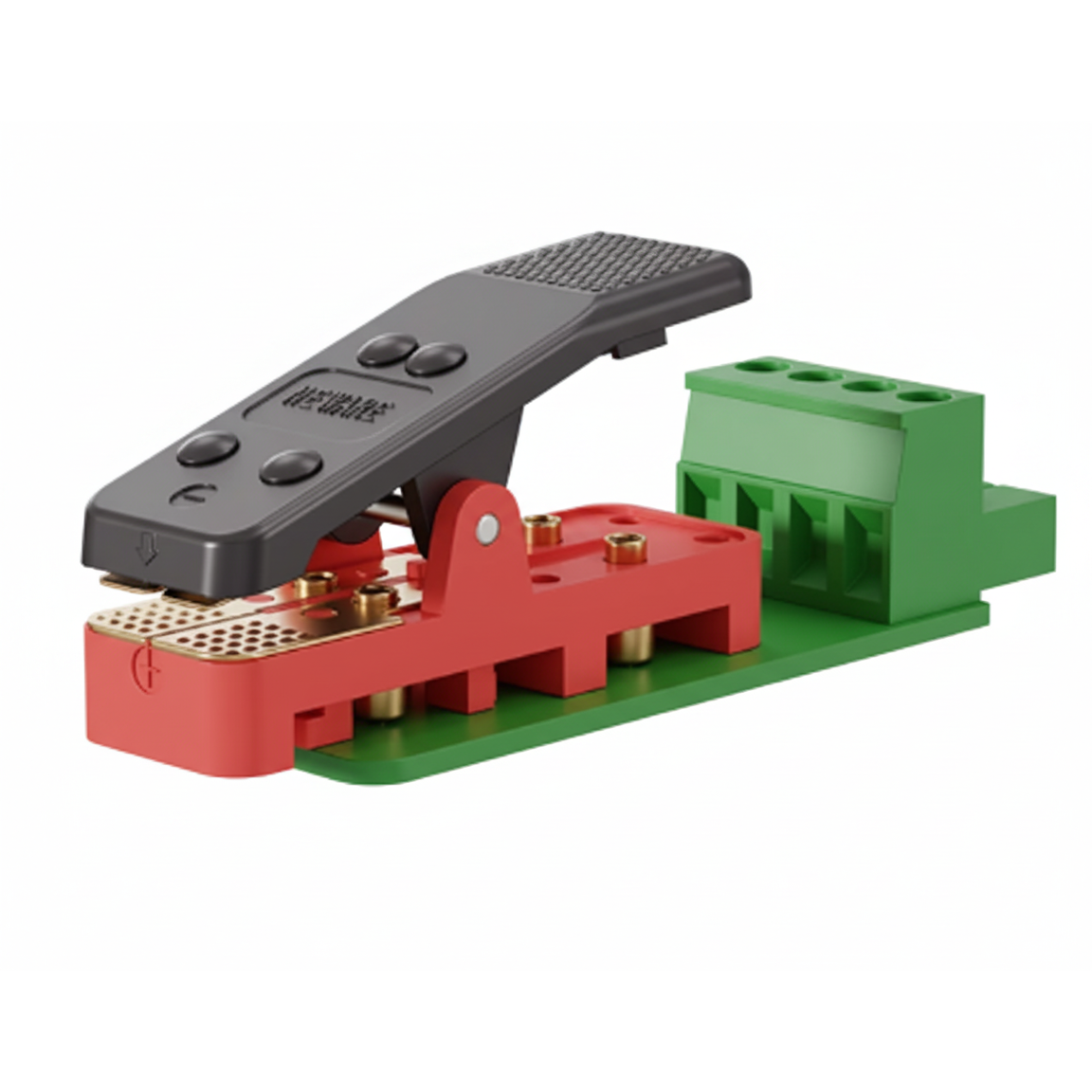

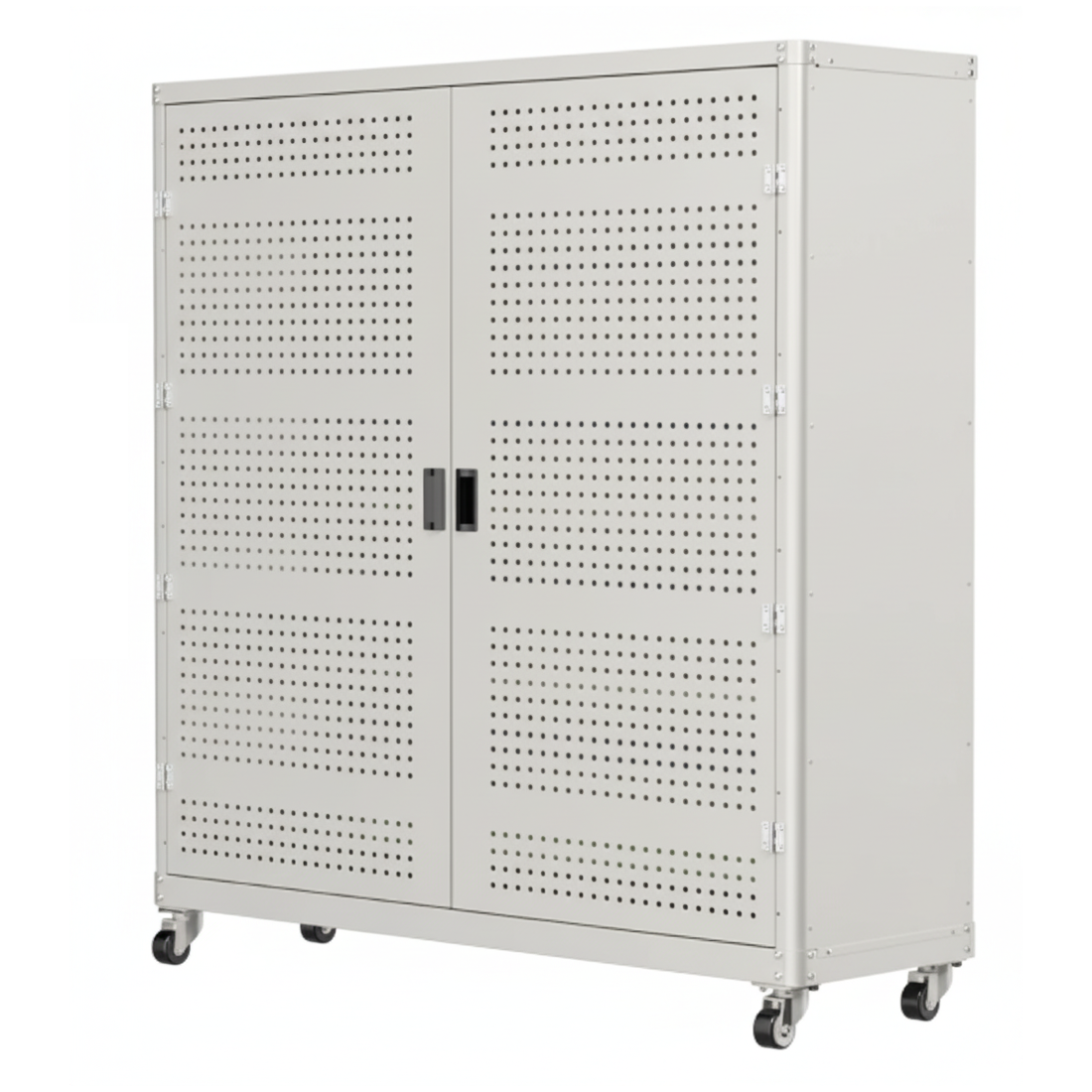

Pouch-cell racks, quick-press pouch fixtures, coin-cell PCB clamps, and ultrasonic welding heads cover the assembly-to-test handoff. Gold-plated, four-wire Kelvin contacts and knurled welding tips are matched to tab metallurgy (Cu vs Al) and current rating, so specify by cell format and continuous-current target rather than by frame size alone.

If you are scaling slurry mixing, start with Mixers & Mills and pick liners here. For electrode coating, pair these die heads and applicators with Coaters, then move to Rolling Presses for calendering. For cell-level cycling and tab joining, see Battery Equipment.
