Solid-State Synthesis

Solid-state synthesis is the dry-route family of equipment that turns precursor powders into the crystalline cathodes, anodes, and ceramic electrolytes that battery and fuel-cell research depends on — without ever passing through a solvent stage. This section groups the platforms our customers use to mix, react, and densify oxide, polyanion, and sulfide powders end-to-end, from room-temperature mechanical activation through millisecond flash pulses to multi-hour high-temperature dwells under controlled atmosphere.

The collection is organized by how energy is delivered into the powder, because that choice sets which phases, particle sizes, and densities you can reach:

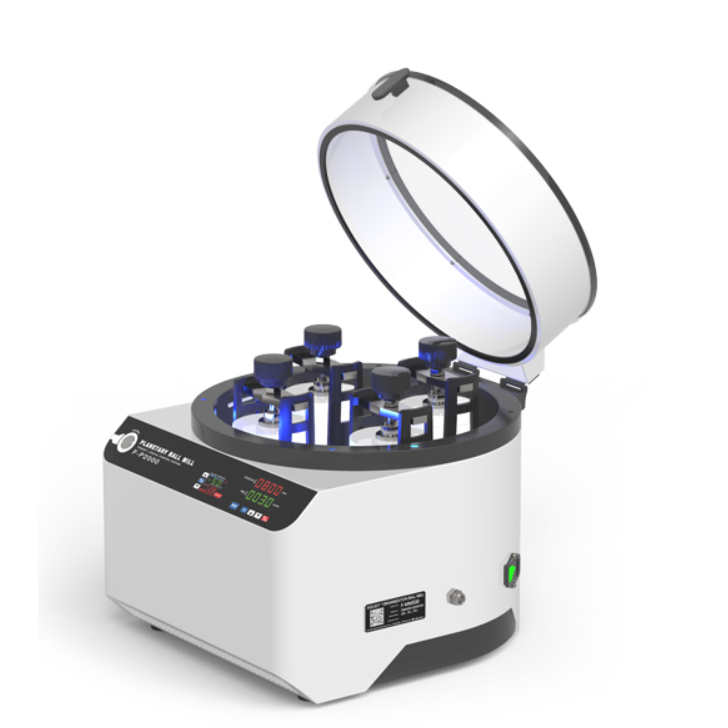

• Mechanochemistry — planetary ball mills that drive reactions through repeated impact and shear, the workhorse route to sulfide superionics, halide conductors, and air-sensitive composite electrodes prepared in a glovebox.

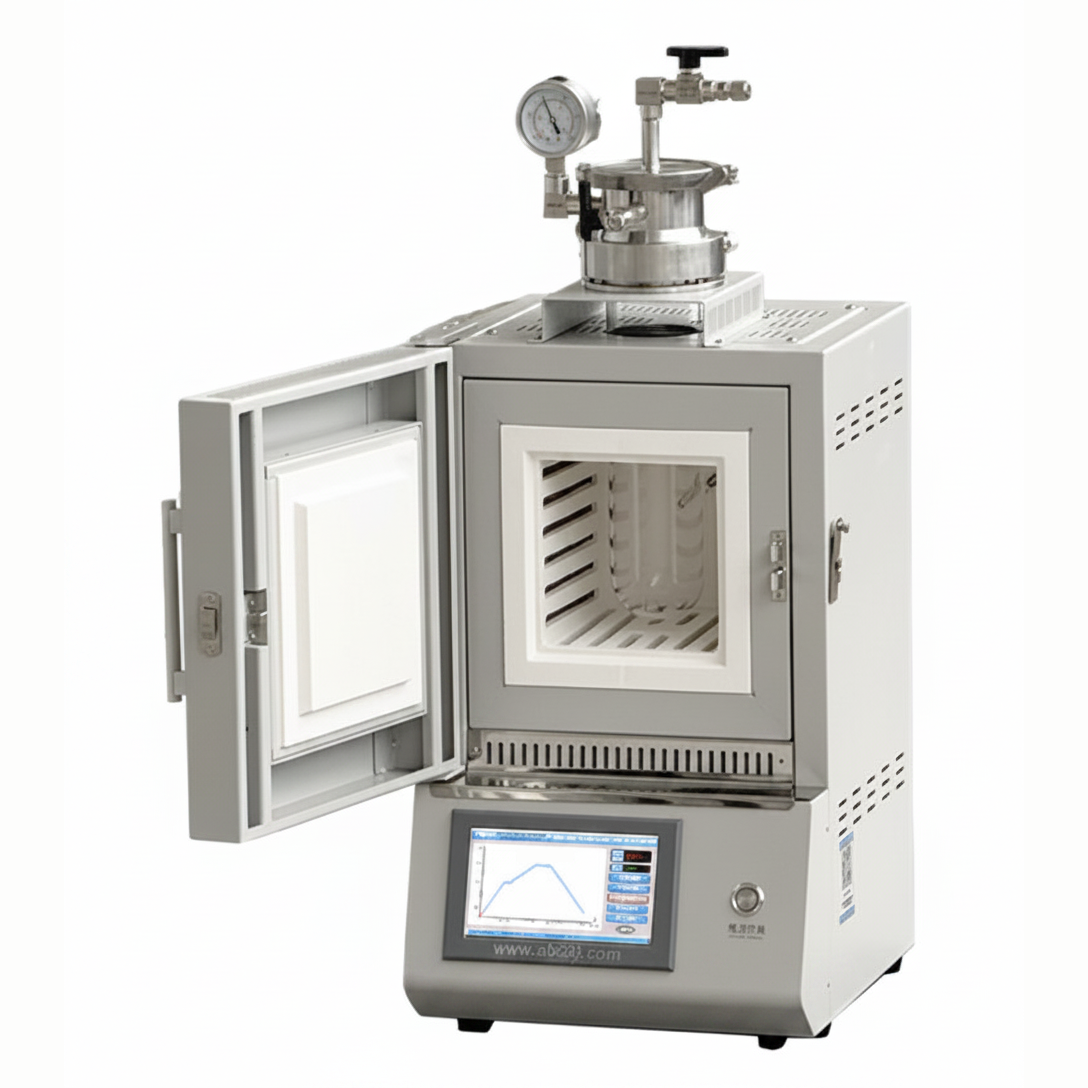

• Furnace Sintering — box, tube, vacuum, and high-temperature furnaces for calcining layered oxide and polyanion precursors and densifying garnet, perovskite, and NASICON pellets under air, inert, or reducing atmospheres.

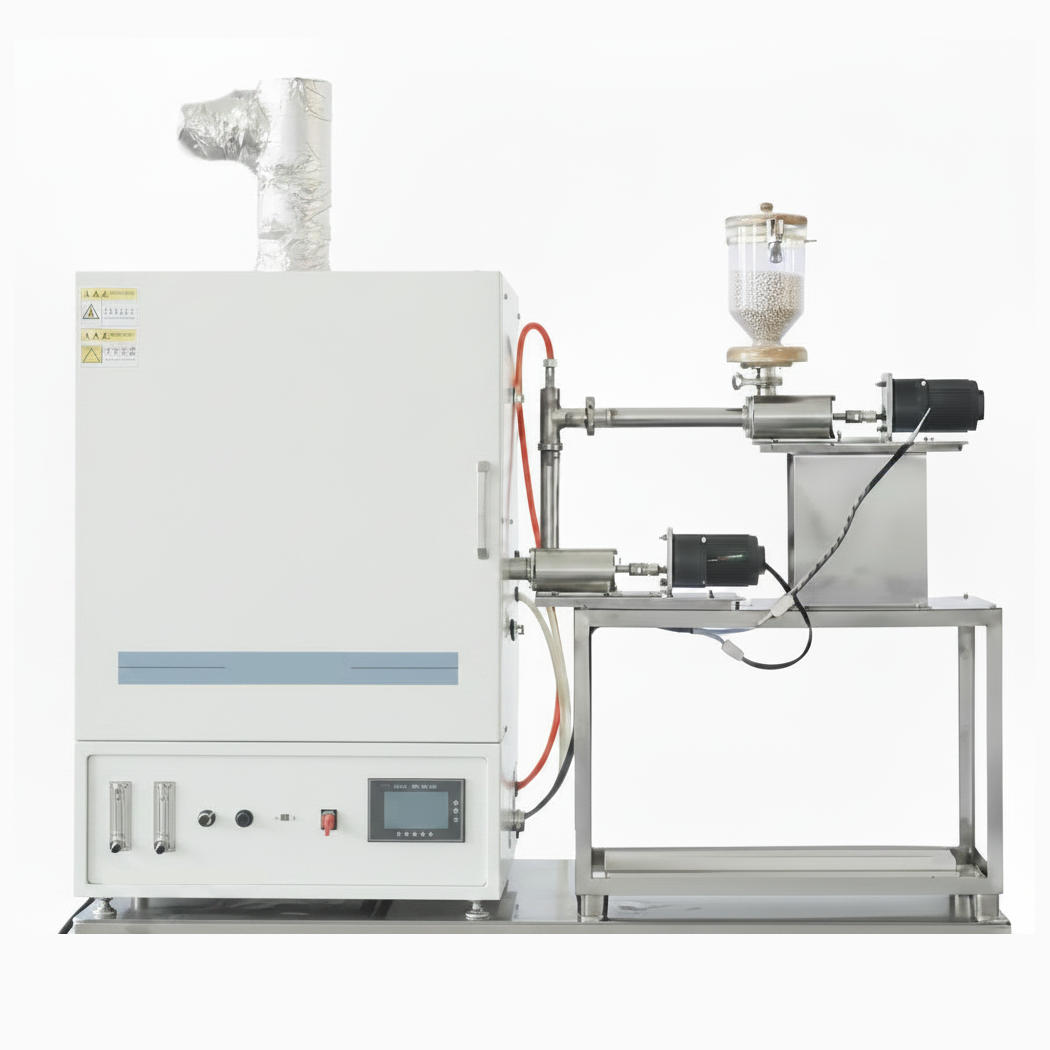

• Microwave Sintering — volumetric heating that shortens the high-temperature dwell to minutes, useful when grain coarsening, lithium loss, or cation mixing must be limited in layered, spinel, olivine, or solid-electrolyte ceramics.
• Spark Plasma Sintering — pulsed DC current and uniaxial pressure through a graphite die for near-theoretical density in minutes, the standard route to bulk impedance specimens of garnet, NASICON, and sulfide electrolytes.

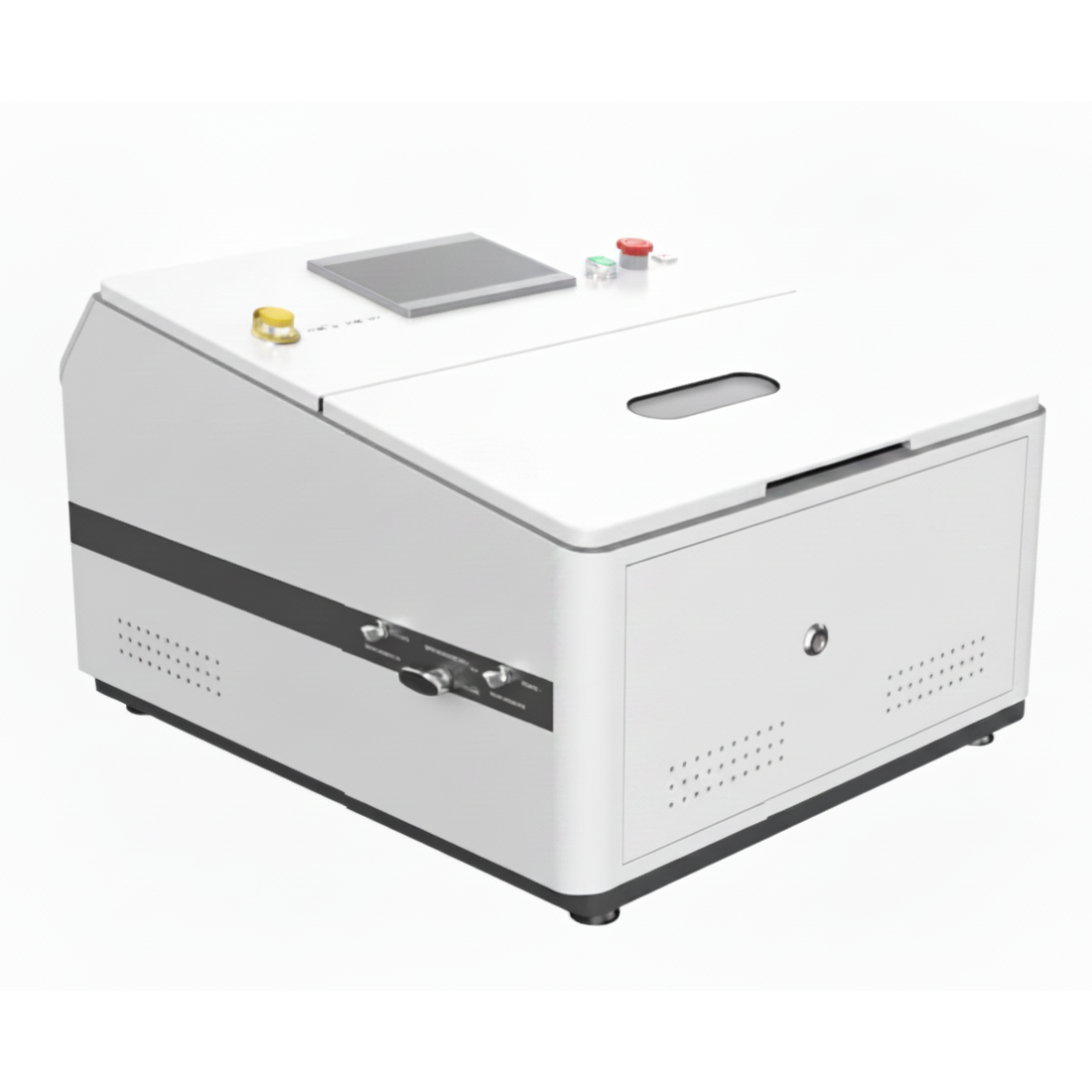

• Joule Heating — flash, hot-press, plasma-coupled, and tube-mode systems that drive current through the sample itself, reaching ramp rates and peak temperatures that conventional furnaces cannot touch and opening up metastable and high-entropy phases.

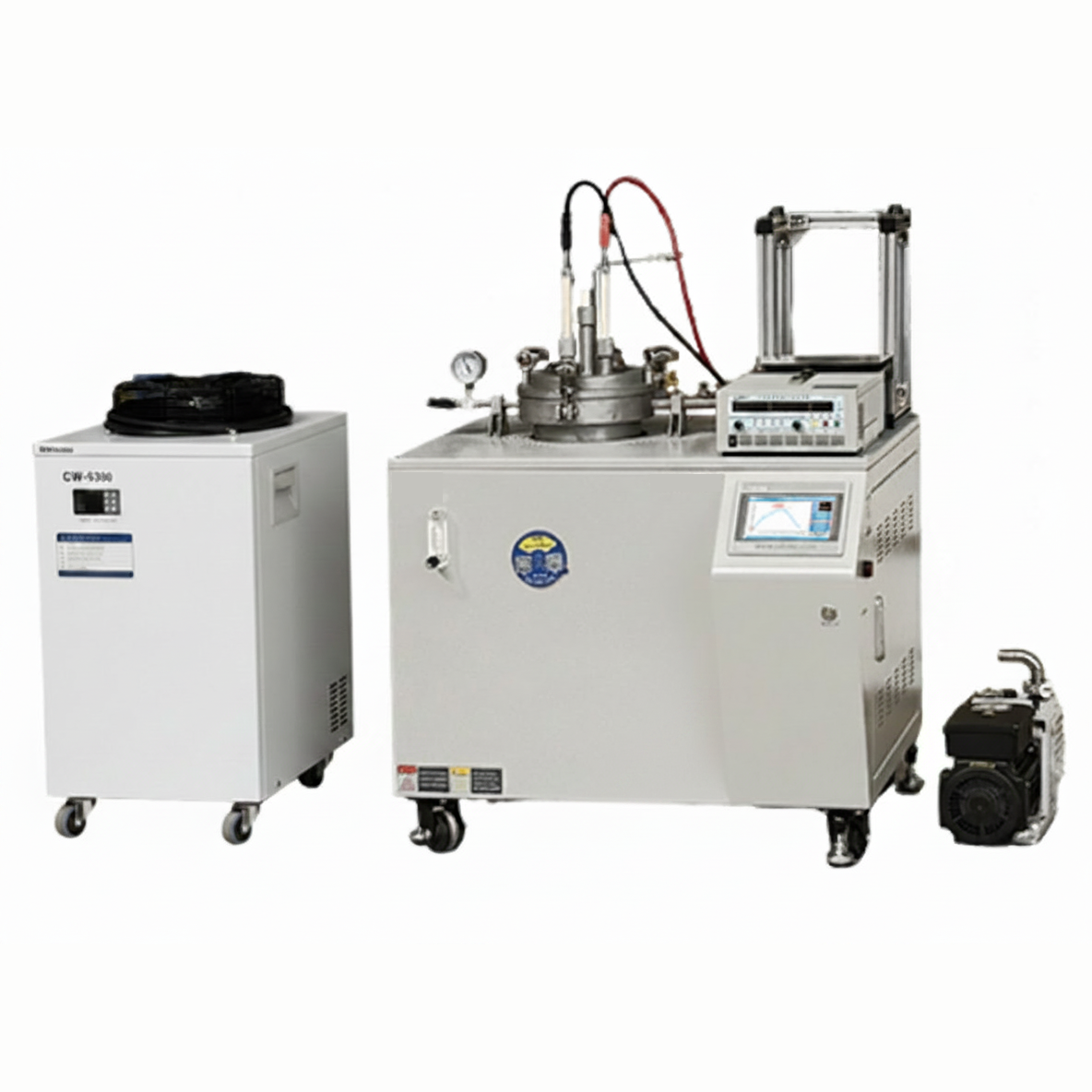

• Molten Salt Synthesis — chloride, carbonate, hydroxide, and fluoride flux routes that accelerate diffusion in a liquid medium hundreds of degrees below conventional firing, with crucible furnaces, sealed cells, and atmosphere control for the full workflow.

If you are activating or pre-mixing precursors, start with mechanochemistry; for the high-temperature dwell that locks in the target phase, choose furnace, microwave, or molten-salt routes by atmosphere and chemistry; for dense pellets in a single shot, see SPS or hot-press Joule heating. For the broader equipment context, see Synthesis Equipment.
