Sieving machines define the upper and lower particle-size cuts of every powder that enters a battery, fuel-cell, or catalyst workflow — and the wrong drive mechanism turns a 30-minute classification into a clogged mesh and a contaminated lot. This collection covers laboratory and pilot-scale sieve shakers used to scalp oversize, de-dust fines, and produce narrow size fractions from active materials, conductive carbons, ceramic precursors, and recovered black mass.
The units listed here group into four mechanical families, each suited to a different sample behavior:
-

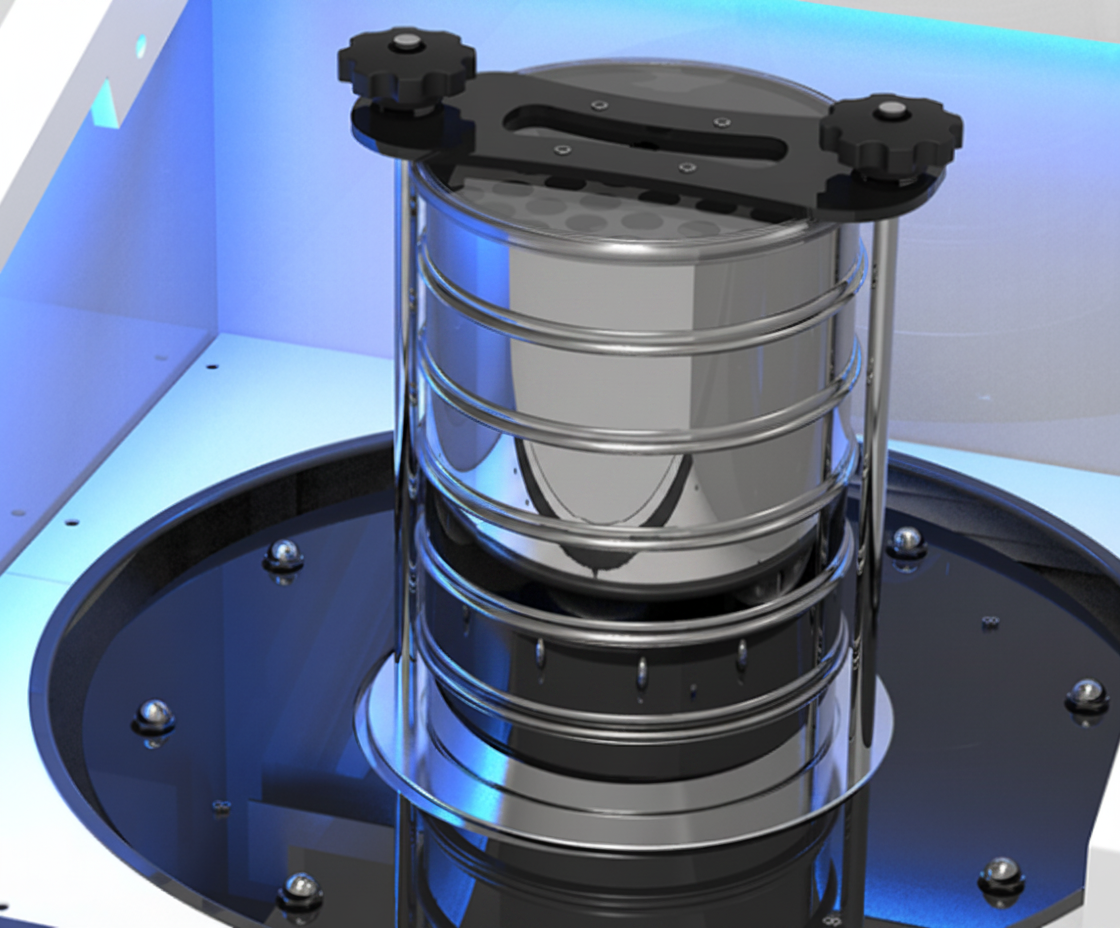

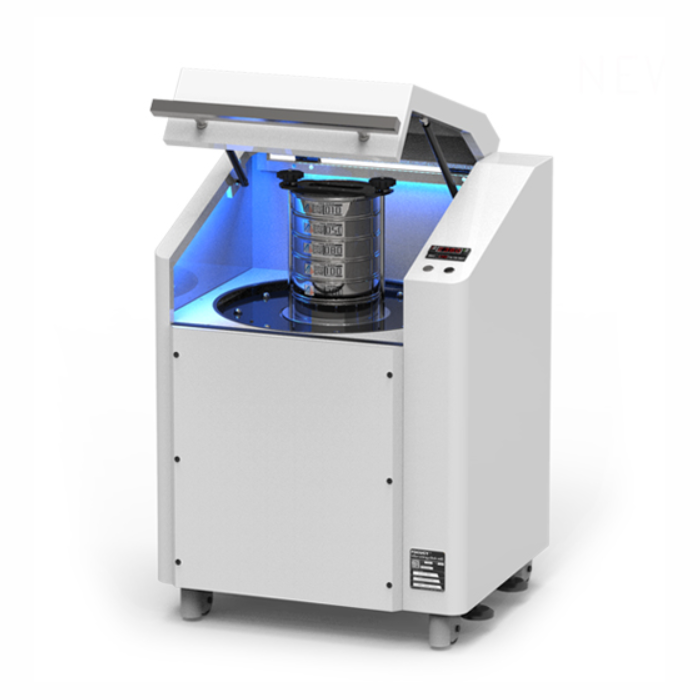

3D rotary vibratory (motor-driven) — vertical motor with eccentric weights at top and bottom of the shaft. The top weight drives horizontal circular motion across the mesh; the bottom weight adds a vertical and inclined component. Best general-purpose choice for free-flowing dry powders, granules, and slurries where throughput matters more than the finest cut.
-

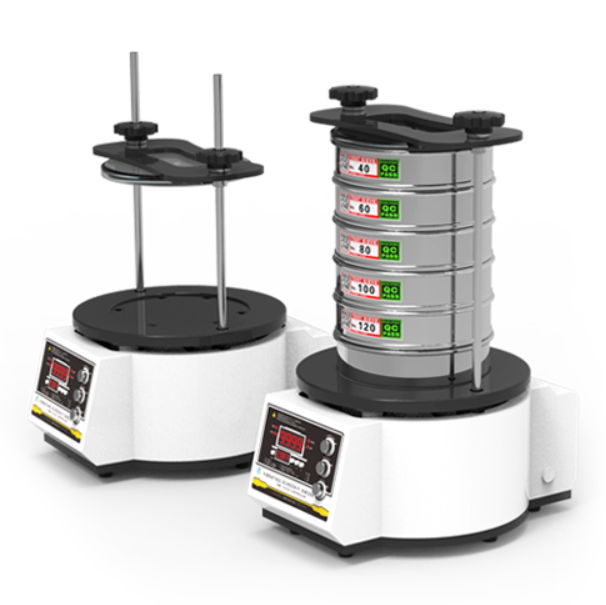

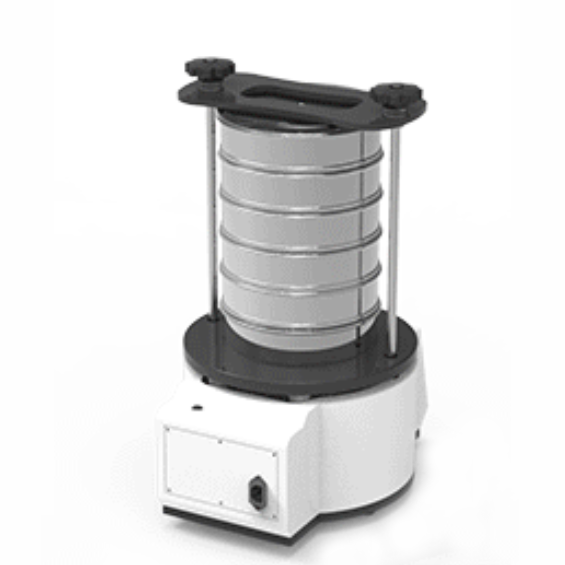

3D electromagnetic vibration — an electromagnetic coil pulses a spring-loaded sieve stack at high frequency, converting that vertical pulse into a controlled 3D motion. The lack of rotating mechanical parts gives the most reproducible motion profile, which is why this family is preferred for sub-sieve fractions and quantitative particle-size analysis.
-

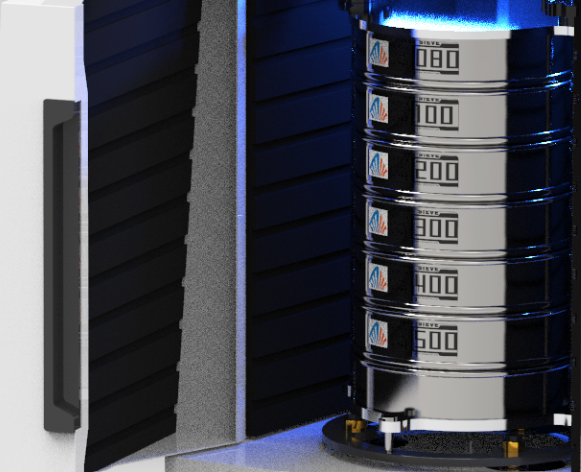

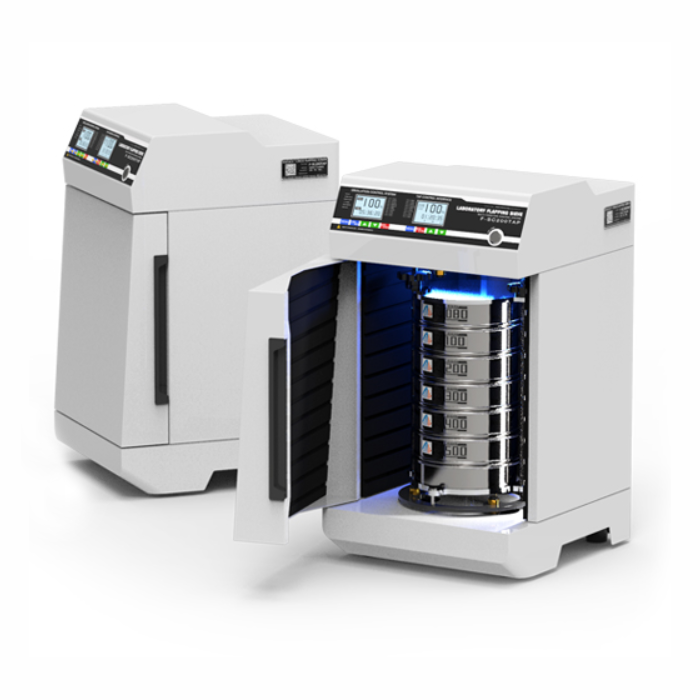

Tapping & horizontal oscillation — the sieve stack oscillates back and forth in a horizontal plane while a vertical hammer taps the column from above. This dual action mimics hand sieving and is the standard reference method when comparing results against pharmacopoeial or ASTM-style protocols.
-

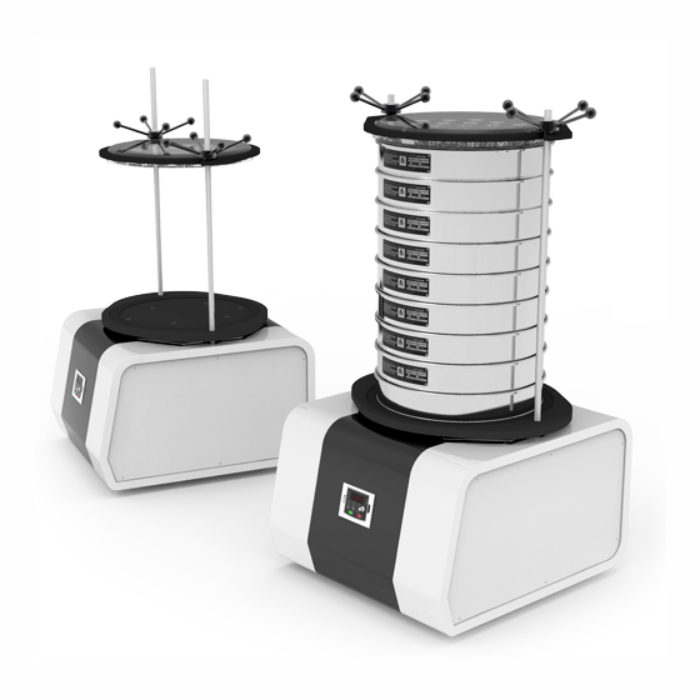

Heavy-duty 3D vibratory — high-torque vertical vibration motor with adjustable eccentric weights, sized for continuous operation on abrasive or high-load powders. Use when sample mass moves from grams to kilograms per run, or when classifying recycled cathode powders and graphite fines.

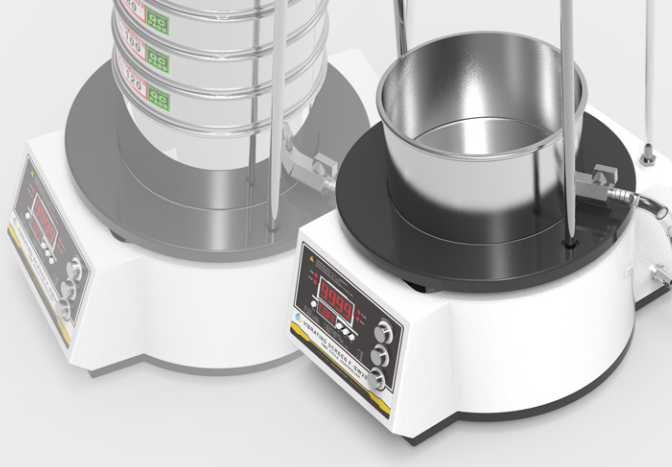

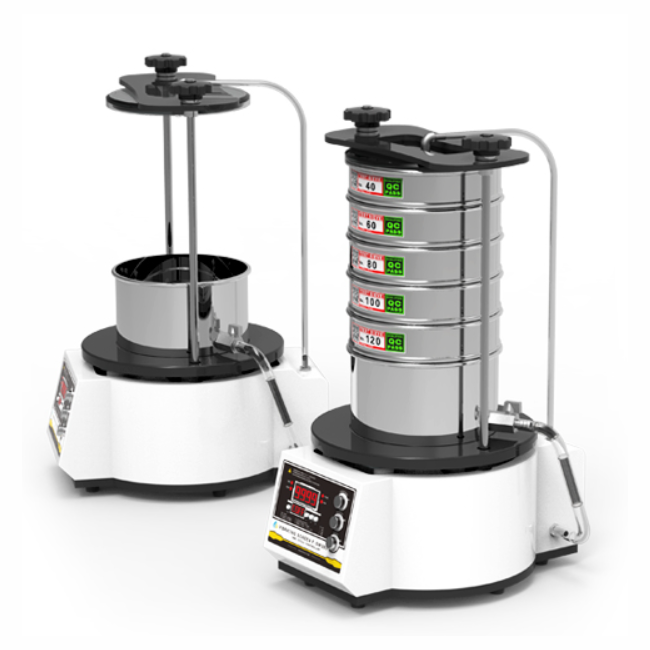

Wet versus dry sieving is the other axis. Dry units handle the majority of electrode-grade powders. Wet 3D vibratory machines are used when fines agglomerate, when the powder is hygroscopic and tends to bridge across the mesh, or when an aqueous slurry must be classified before spray drying or coating.
If you are classifying small analytical samples and need reproducible cut points, start with the electromagnetic 3D shaker. For routine QC of free-flowing powders, the rotary 3D vibratory family is the workhorse. For pilot-line throughput on cathode or anode powders, look at the heavy-duty 3D vibratory units. For broader sample-prep equipment, see Mixers & Mills.
