Mortar mills automate the classic mortar-and-pestle motion so a single operator can produce gram-scale composite powders with the gentle, low-shear action that high-energy ball mills cannot deliver. They sit between manual hand-grinding and planetary or attritor milling: programmable rpm and dwell time give run-to-run consistency, while the wide bowl footprint and adjustable pestle pressure keep heat input low and crystal structure intact. For electrochemistry labs that work with shear-sensitive or temperature-sensitive materials, this is often the only viable comminution route.
Typical electrochemistry uses of an automatic mortar mill include:
- Homogenizing cathode masterbatches (NCM, LFP, LMFP, LNMO) with conductive additives before slurry casting, without fracturing primary particles or stripping carbon coatings
- Pre-blending solid-state electrolyte precursors — sulfides, halides, oxide garnets — where ball-mill impact would amorphize the lattice or trigger early reaction
- Gentle grinding of SPAN (sulfurized polyacrylonitrile) and other sulfur-rich Li-S cathode materials that lose capacity when over-milled
- De-agglomerating recovered black mass and recycled active material for analytical sub-sampling
- Mixing reference electrode pastes, pellet precursors for pressed-pellet conductivity cells, and small batches of catalyst inks
Bowl and pestle materials
Bowl/pestle pairings are chosen to balance hardness against contamination risk. Agate is the default for most cathode and electrolyte work — hard, low-porosity, and chemically inert to typical Li-ion chemistries. Alumina is used where higher abrasion resistance is needed and trace Al pickup is acceptable. Hardened steel and tungsten carbide are reserved for tough recycling feeds where the small Fe or W contamination is tolerable.
Glovebox-compatible configurations

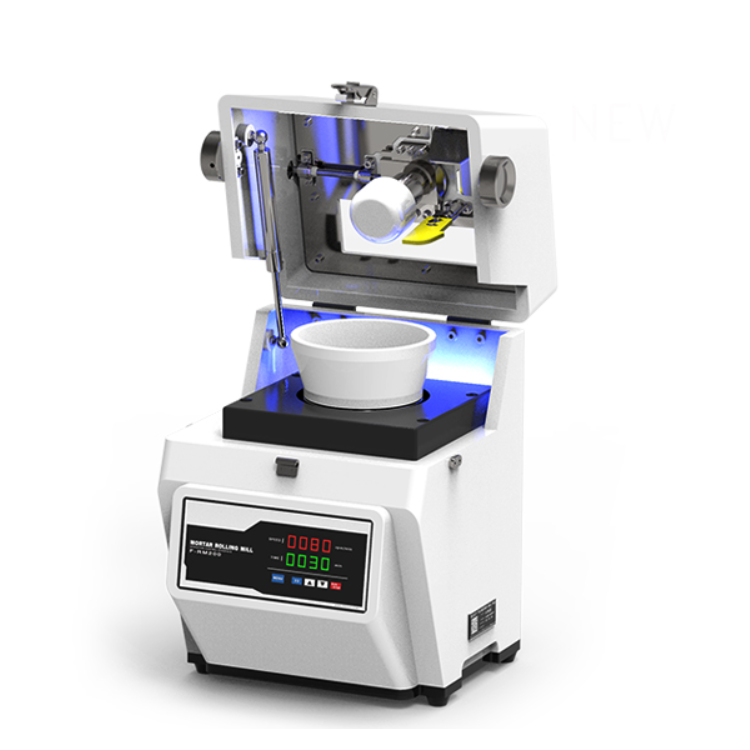

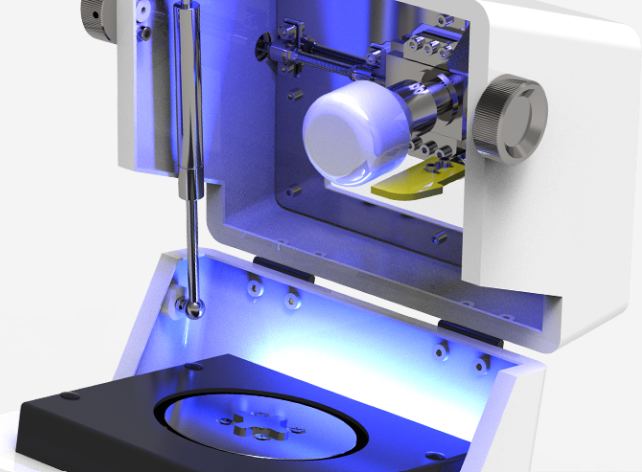

Air- and moisture-sensitive workflows — sulfide solid electrolytes (Li6PS5Cl, Li3PS4), lithium-metal anode powders, and many halide systems — require a mortar mill that fits through an antechamber and runs reliably in an Ar-filled glovebox. Compact 700 mL-class mills are sized specifically for this; larger 2 L benchtop units stay outside the glovebox for ambient-stable powders.
If you are scaling from hand-grinding to a few hundred grams per batch, start with a benchtop automatic mortar mill in agate. If your work is in solid-state electrolytes or air-sensitive cathodes, choose a glovebox-compatible model. For higher-energy comminution and alloying, see Mixers & Mills.
