Screen print coaters lay down the thick, high-viscosity slurries that define SOFC/SOEC electrolytes, fuel-cell electrodes, thick-film sensors, and many advanced battery cathodes — turning a paste recipe into a reproducible layer with controlled thickness, footprint, and edge definition. Compared with doctor-blade or slot-die methods, screen printing is the right tool when you need patterned deposition (defined active areas, busbars, current-collector geometries) on rigid substrates such as YSZ/GDC tapes, alumina, metallic interconnects, or pre-sintered half cells.
This collection brings together manual, semi-automatic, and specialty curved-substrate coaters used across electrochemistry R&D and pilot lines. They share a common working principle — squeegee, mesh screen, emulsion stencil, vacuum chuck — but differ in throughput, repeatability, and the substrate geometry they accept.
Manual screen printers

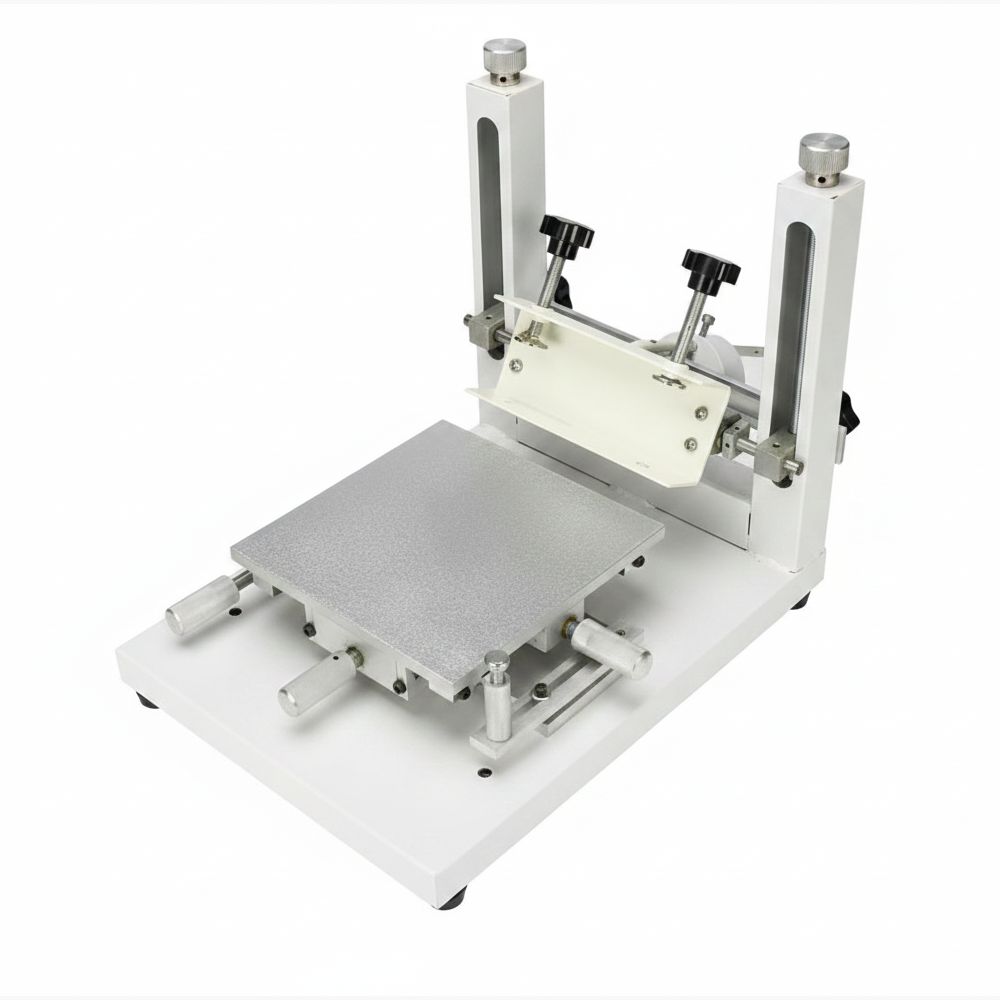

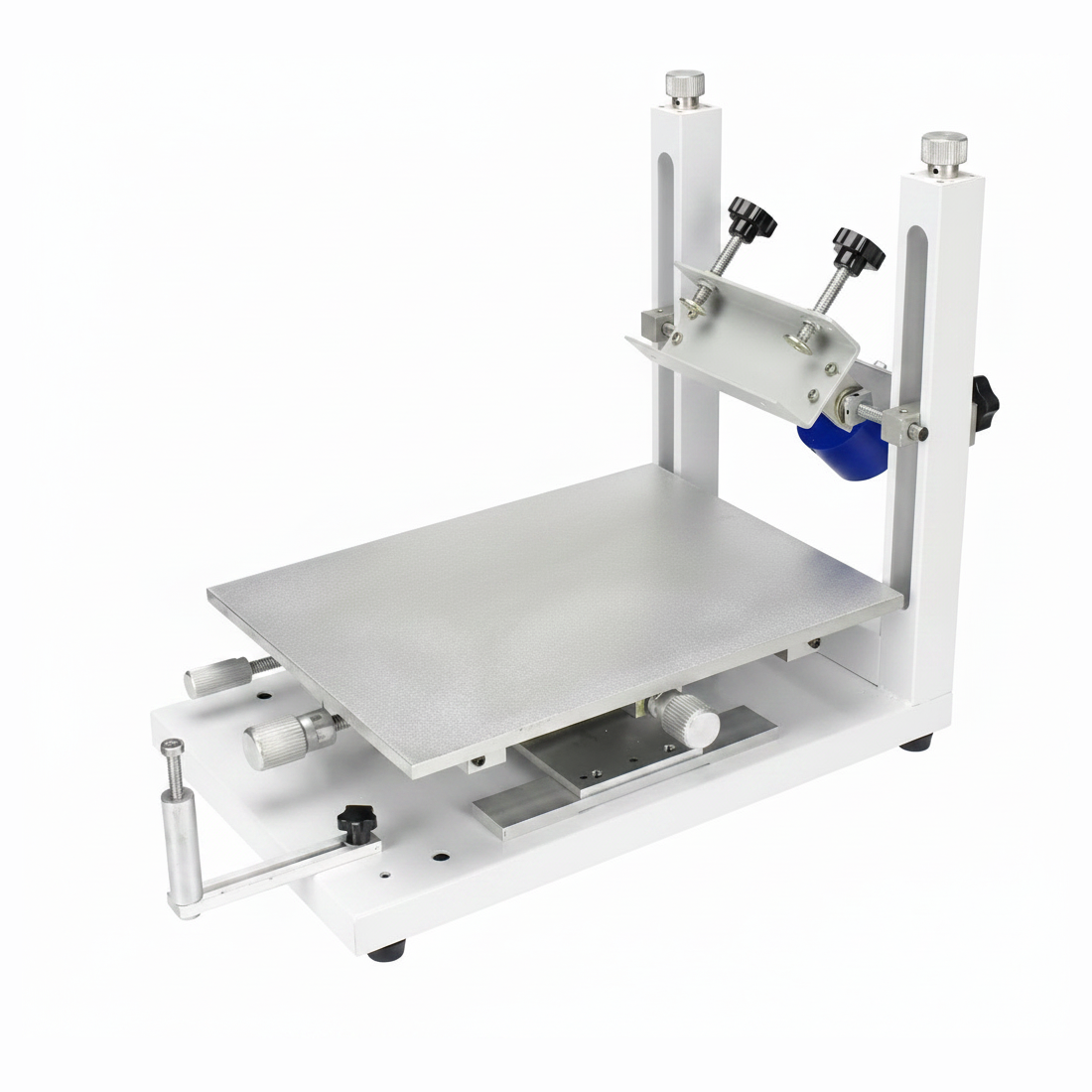

Manual coaters are the entry point for groups moving from drop-casting or hand-painting to controlled electrode fabrication. A fixed frame, alignment stops, and a vacuum chuck give layer-to-layer registration that free-hand methods cannot reach. They are well suited to single-cell SOFC button cells, prototype thick-film electrodes, and screen-printed reference/working electrodes for sensor work. High-precision manual variants add finer screen-to-substrate gap (snap-off) and squeegee-angle adjustment for thinner, more uniform deposits.
Semi-automatic flat-bed printers

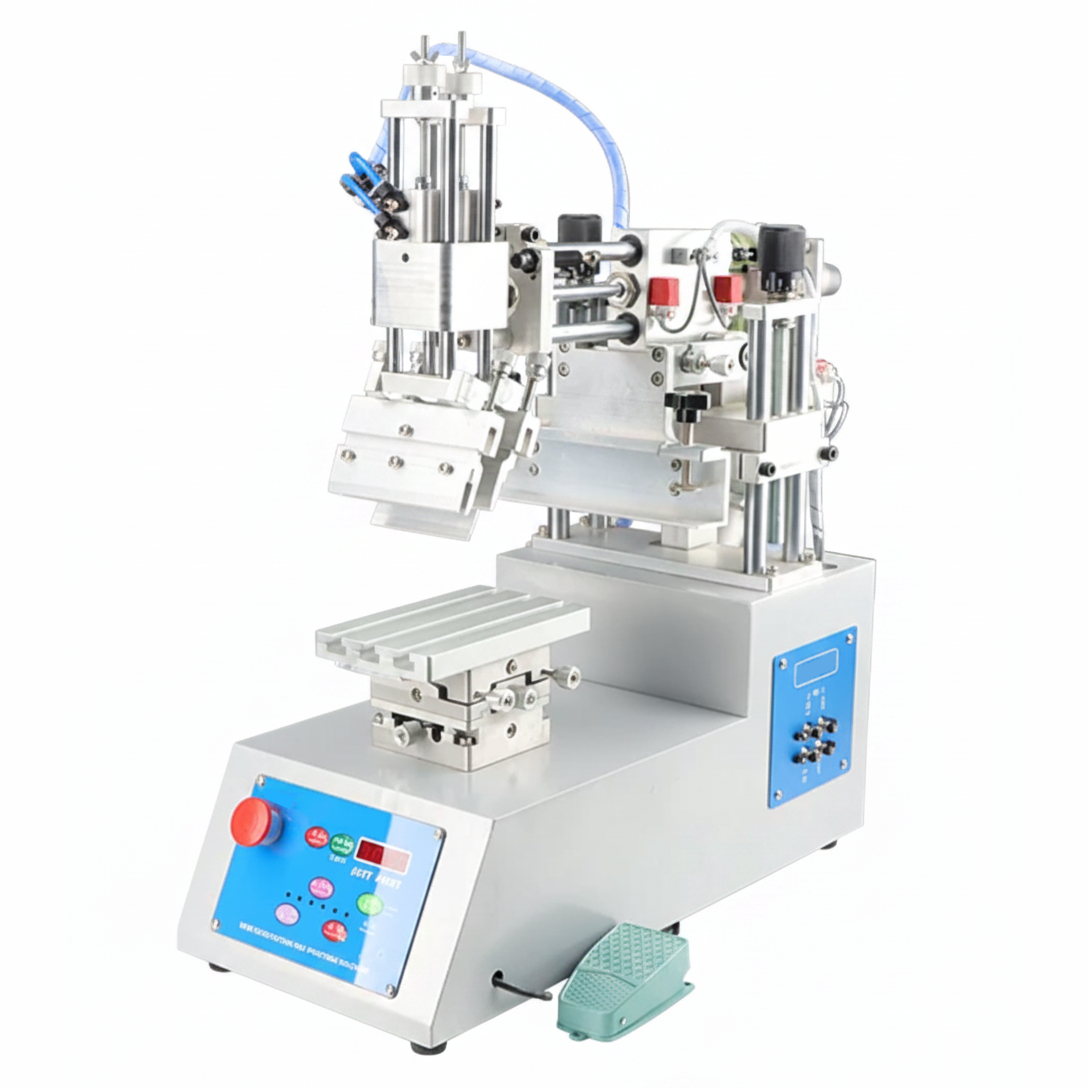

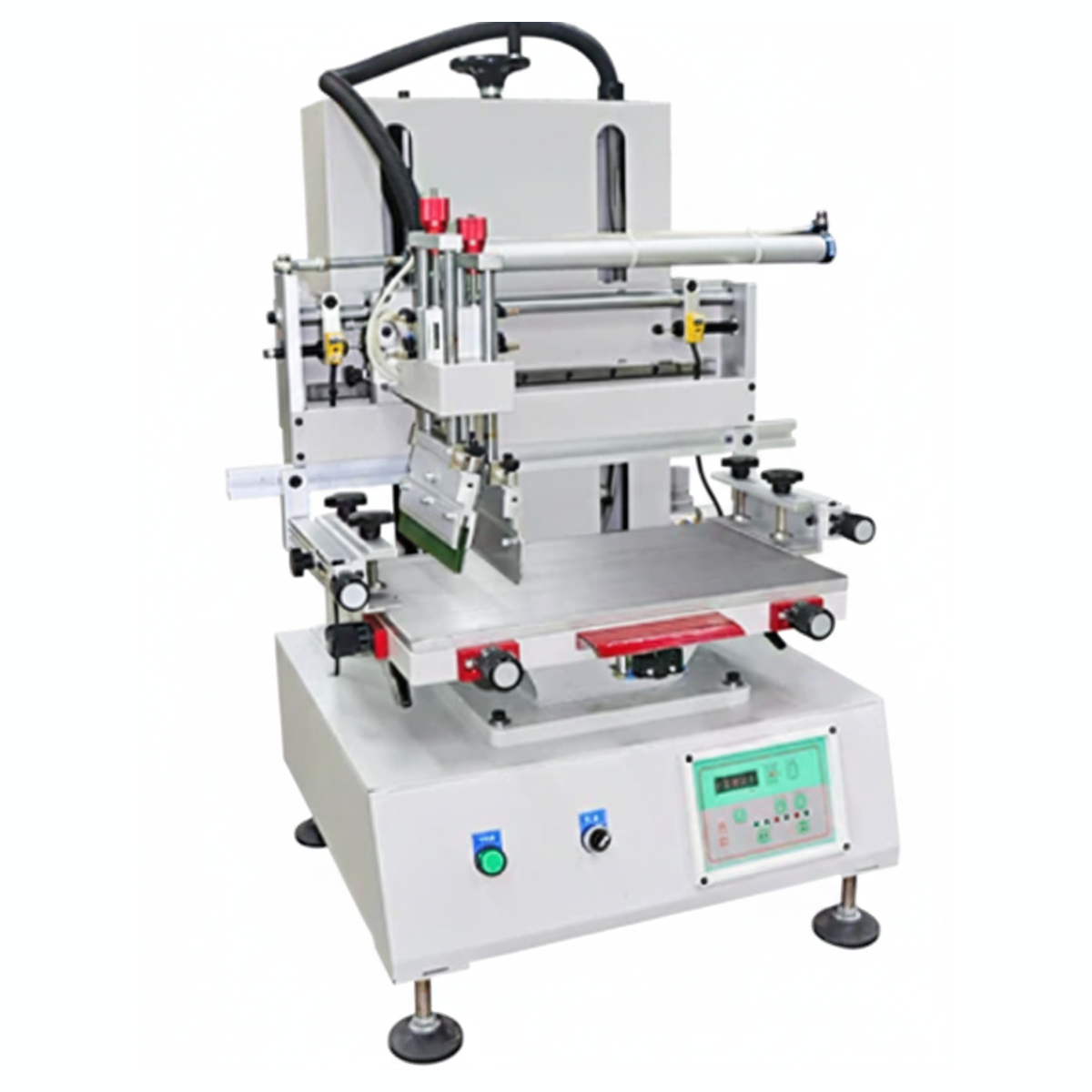

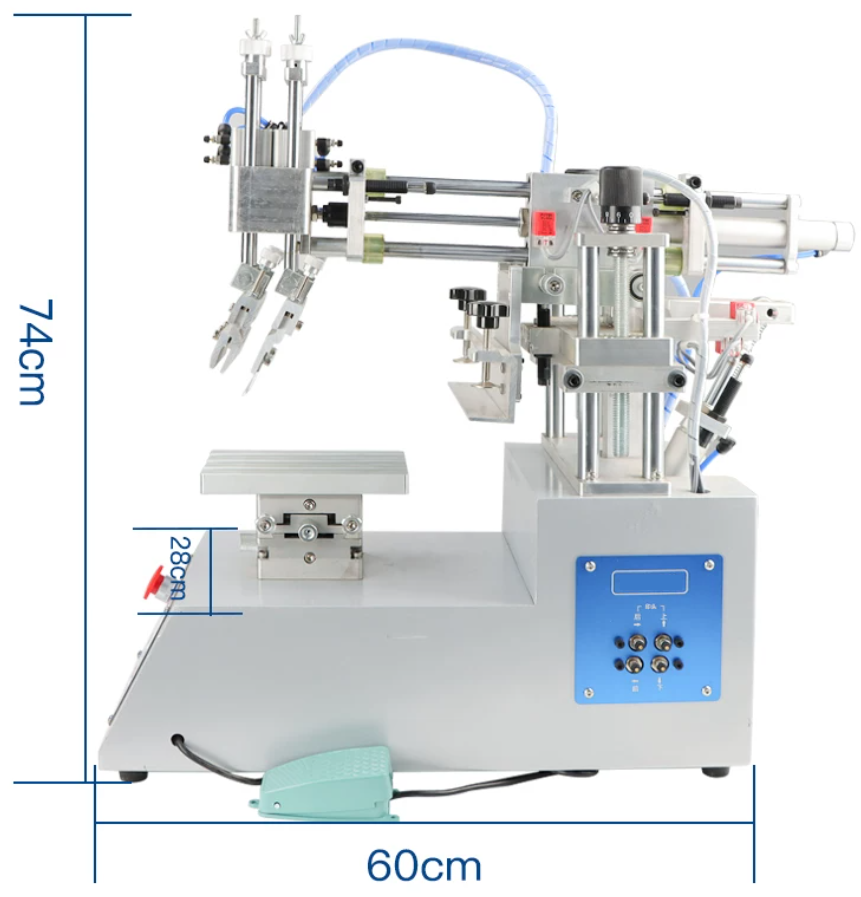

Swing-arm and horizontal-squeegee semi-automatic coaters remove operator-induced variability in stroke speed and pressure. The swing-arm geometry pivots the screen frame upward between strokes, giving easy access for cleaning and alignment — a practical fit for R&D batches of planar SOFC/SOEC cells, SPAN and other thick cathode prototypes, and multi-layer electrode stacks. Horizontal-squeegee machines, in which the squeegee carriage travels in a fixed linear path, push repeatability further and are typically chosen when the same recipe must be printed across a tray of cells.
Curved-substrate printers

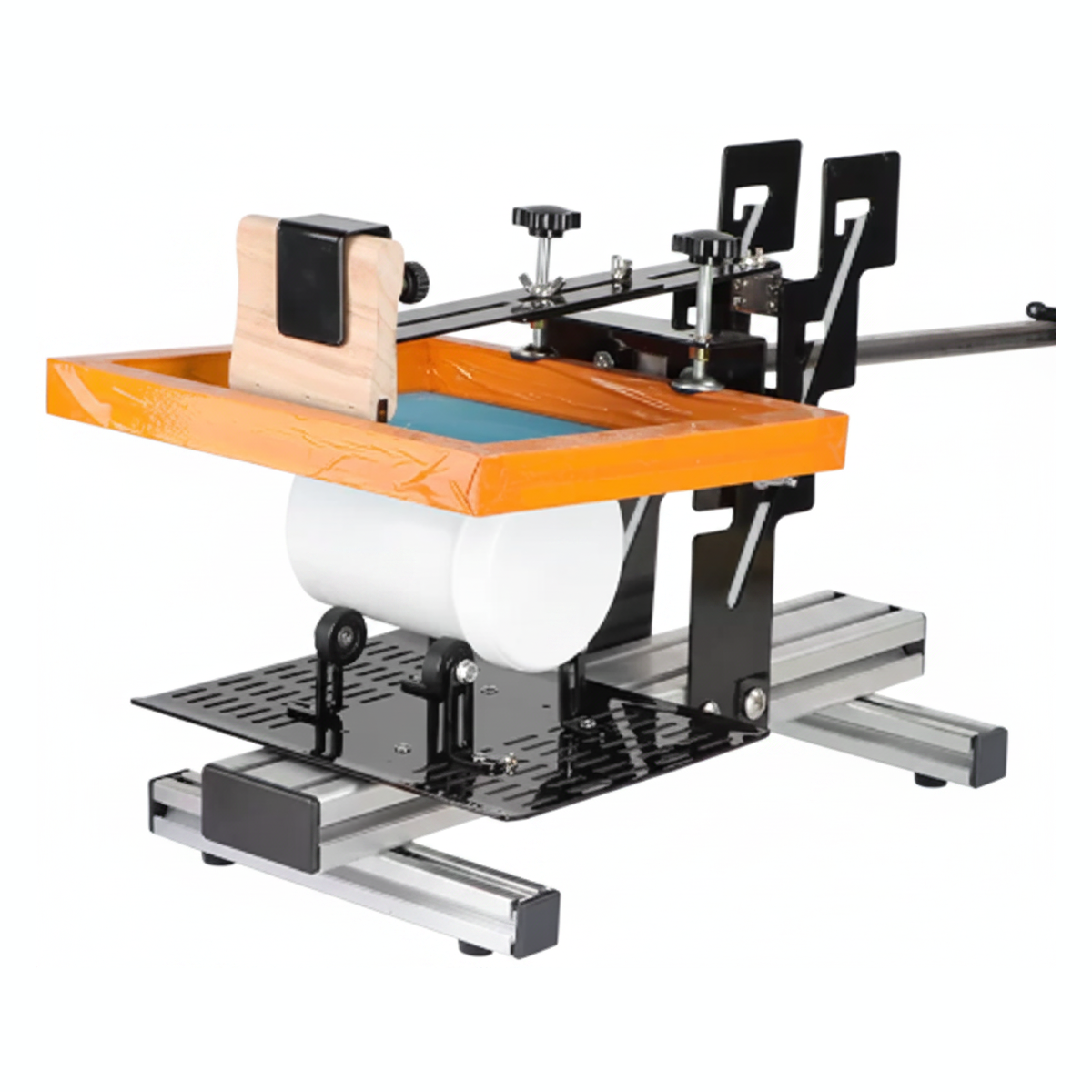

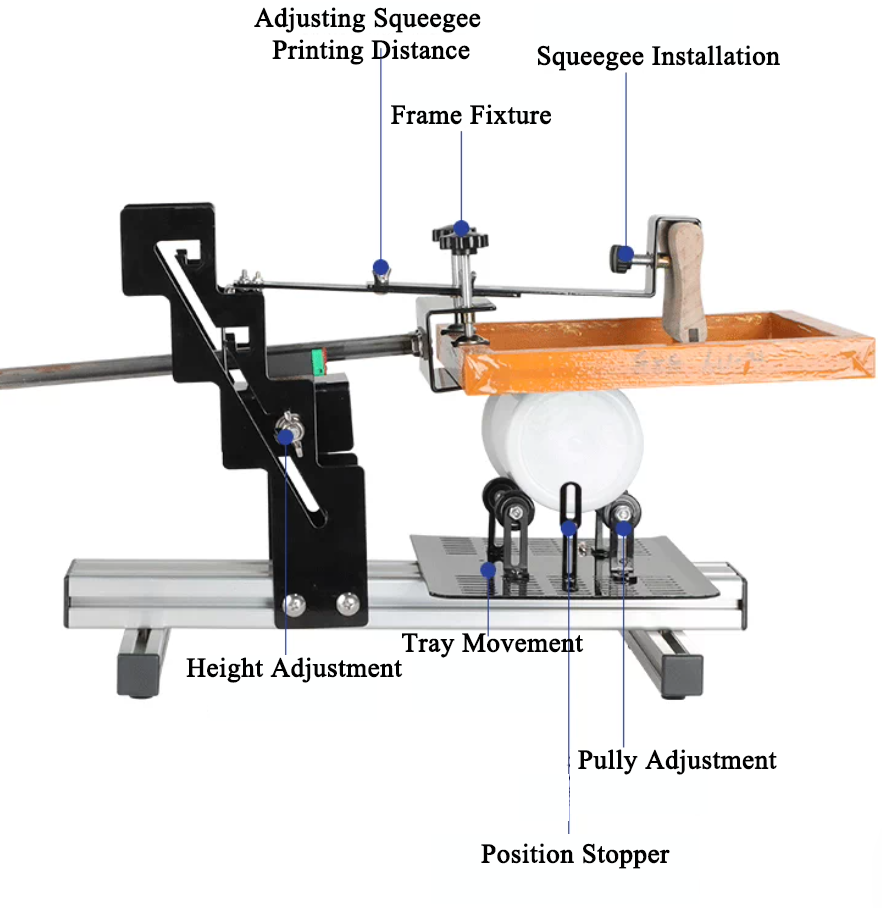

Manual curved (cylindrical) screen printers coat tubes, rods, and hollow fibers with a uniform circumferential layer. They are the standard tool for tubular SOFC/SOEC developers and for cylindrical electrochemical sensor formats, where flat-bed equipment cannot maintain contact around the radius.
If you are building planar SOFC/SOEC cells or thick battery electrodes, start with the semi-automatic flat-bed printers; for tubular cell architectures, see the curved-substrate models; for early-stage prototyping and teaching labs, the manual printers are the most flexible starting point. For related deposition methods, see Coaters.
