In a redox flow battery, the current collector is the silent partner that decides how much of your stack power survives the trip from electrode felt to external circuit. Because the electrolyte is liquid and aggressive — vanadium in concentrated sulfuric acid, bromine complexes, alkaline zinc, organic radicals — the collector cannot be chosen on conductivity alone. It has to resist anodic dissolution at the positive side, tolerate the pH of the negative side, and make low-resistance contact with the carbon felt or paper electrode pressed against it. This collection groups the metallic and carbon-based current collectors we stock for flow-cell research and short-stack pilot work.
Materials are organized by where they typically sit in the cell:
-
Corrosion-resistant valve metals — tantalum and titanium foils and foams. Tantalum is the reference standard for highly acidic positive half-cells and high-voltage screening; titanium foam adds 3D surface area for flow-through architectures and is widely used in aqueous zinc, aluminum, and vanadium-adjacent chemistries.
-

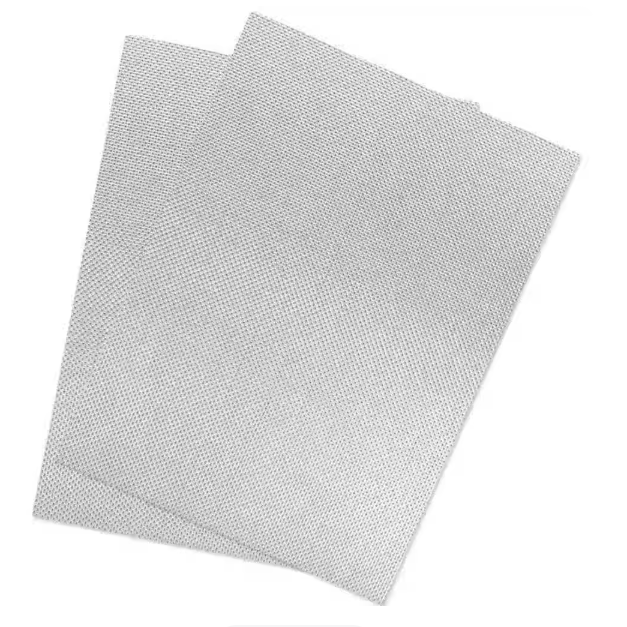

Noble and pseudo-noble metal meshes — woven silver mesh as a flow-through collector, valued for ultra-low resistance and stability where silver's electrochemical window is acceptable.
-

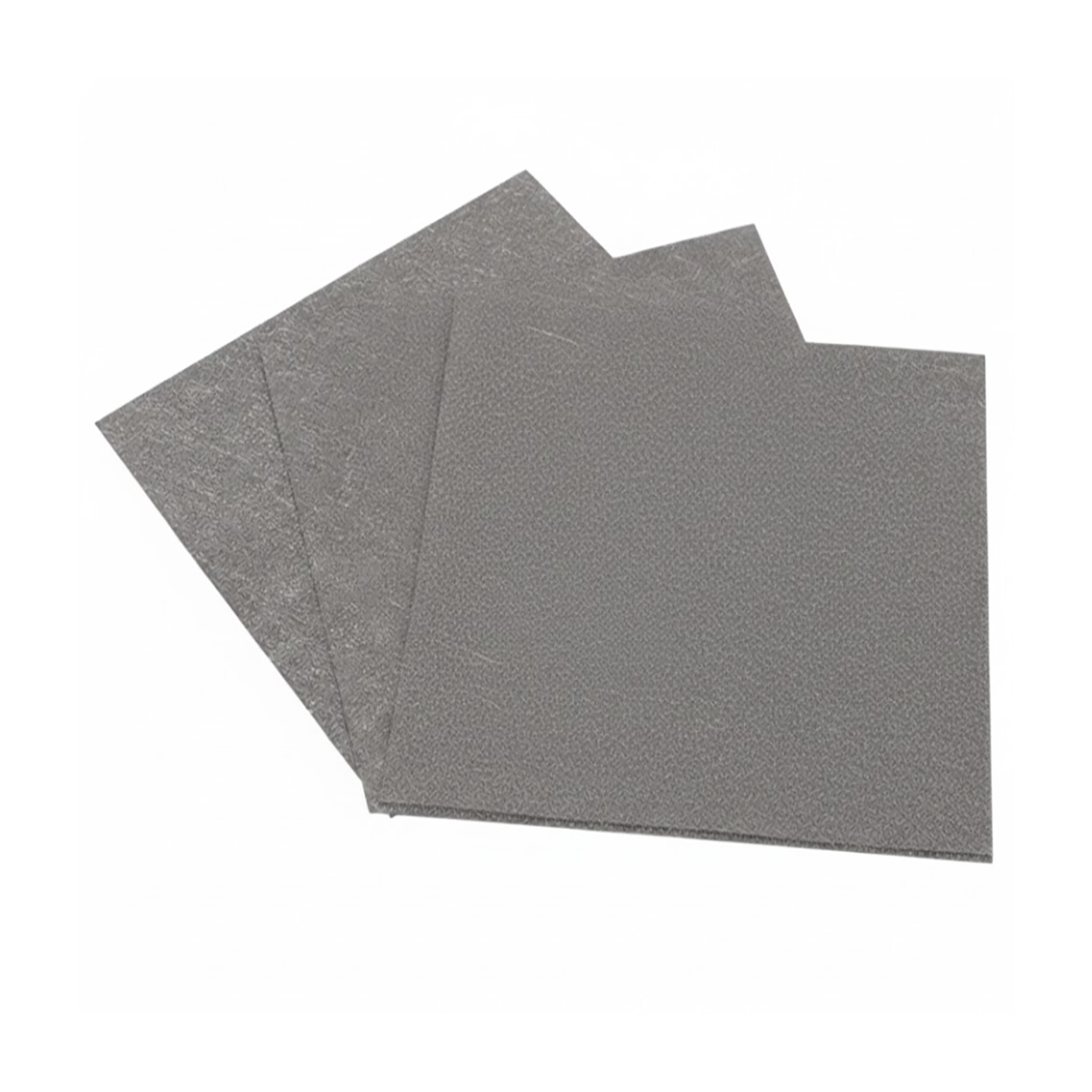

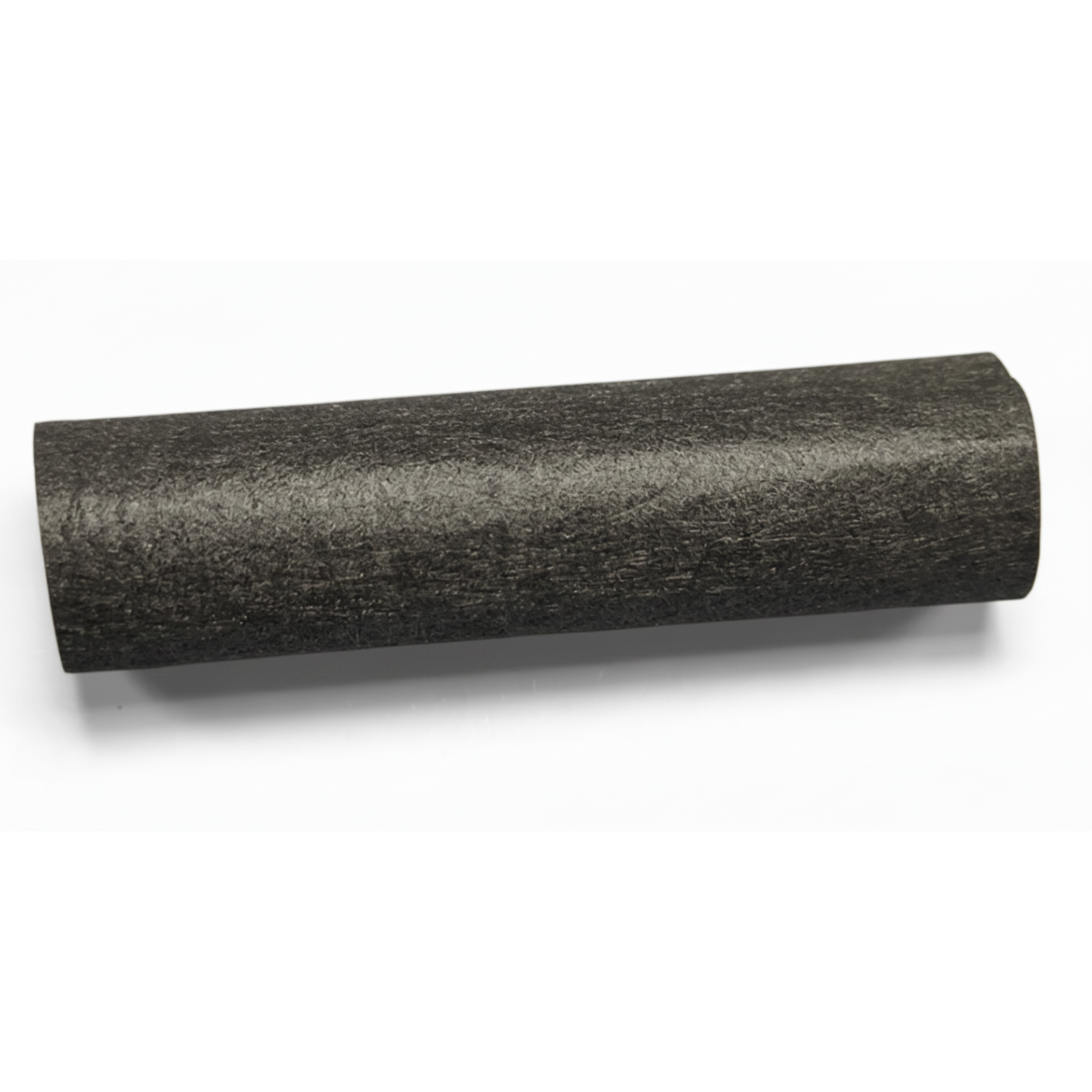

Stainless steel families — SS316L mesh and double-side carbon-coated SS316L foil. The carbon coating mitigates contact resistance and pitting, making SS316L viable on the negative side of milder aqueous chemistries where bare steel would corrode.
-
Nickel structures — sintered nickel felt for alkaline flow chemistries and any system where catalytic NiO surface modification is wanted on a 3D conductive backbone.
-
Carbon papers with gas-diffusion layers — hydrophobic carbon papers with integrated MPL/PTFE coatings, originally developed for fuel cells and electrolyzers but increasingly used as flow-through collectors in hybrid flow batteries (e.g. zinc-bromine, hydrogen-bromine, organic flow with gas evolution).
-
Self-standing nanocarbon electrodes — multi-wall carbon nanotube sheets that act as combined electrode and collector, removing binder and metal foil from the stack.
If your chemistry is the classic all-vanadium system, start with the valve metals and carbon-paper GDLs; for alkaline and zinc-based flows, look at nickel felt and carbon-coated stainless. For broader context, see Redox Flow Battery and the upstream Battery Current Collectors hub.
