Membranes for Col Redox Flow Battery

The membrane sets the efficiency ceiling of every redox flow battery — it must conduct charge-carrying ions while blocking the active species that store the energy. This collection groups the ion-exchange membranes we stock for vanadium, iron-chromium, all-iron, organic, and emerging aqueous flow chemistries, organized by polymer family so you can match selectivity, area resistance, and chemical stability to your stack.

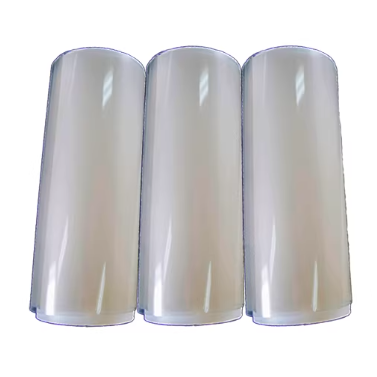

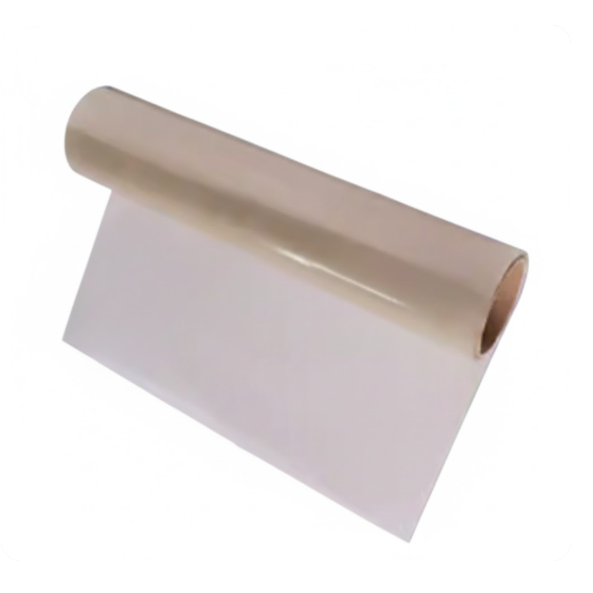

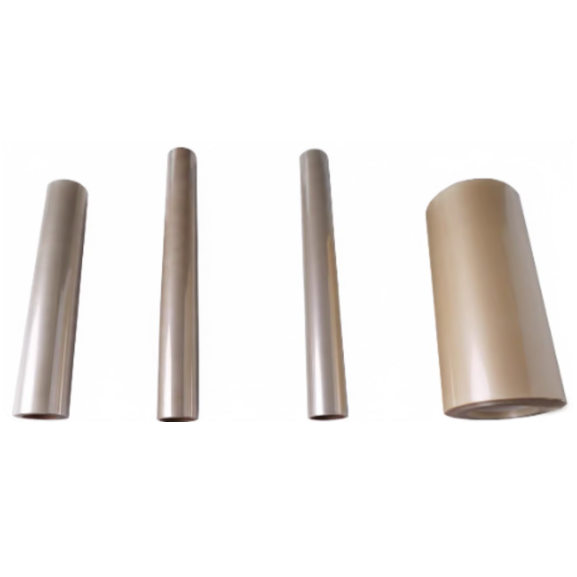

Perfluorinated cation-exchange membranes (PFSA). Sulfonated tetrafluoroethylene ionomers (the Nafion-class chemistry, including economic PFSA grades and thicker high-barrier variants around 100 to 180 micrometers) remain the workhorse for VRFB R&D. They give high proton conductivity and excellent oxidative stability against VO2+, at the cost of measurable vanadium crossover that scales with thickness and water uptake.

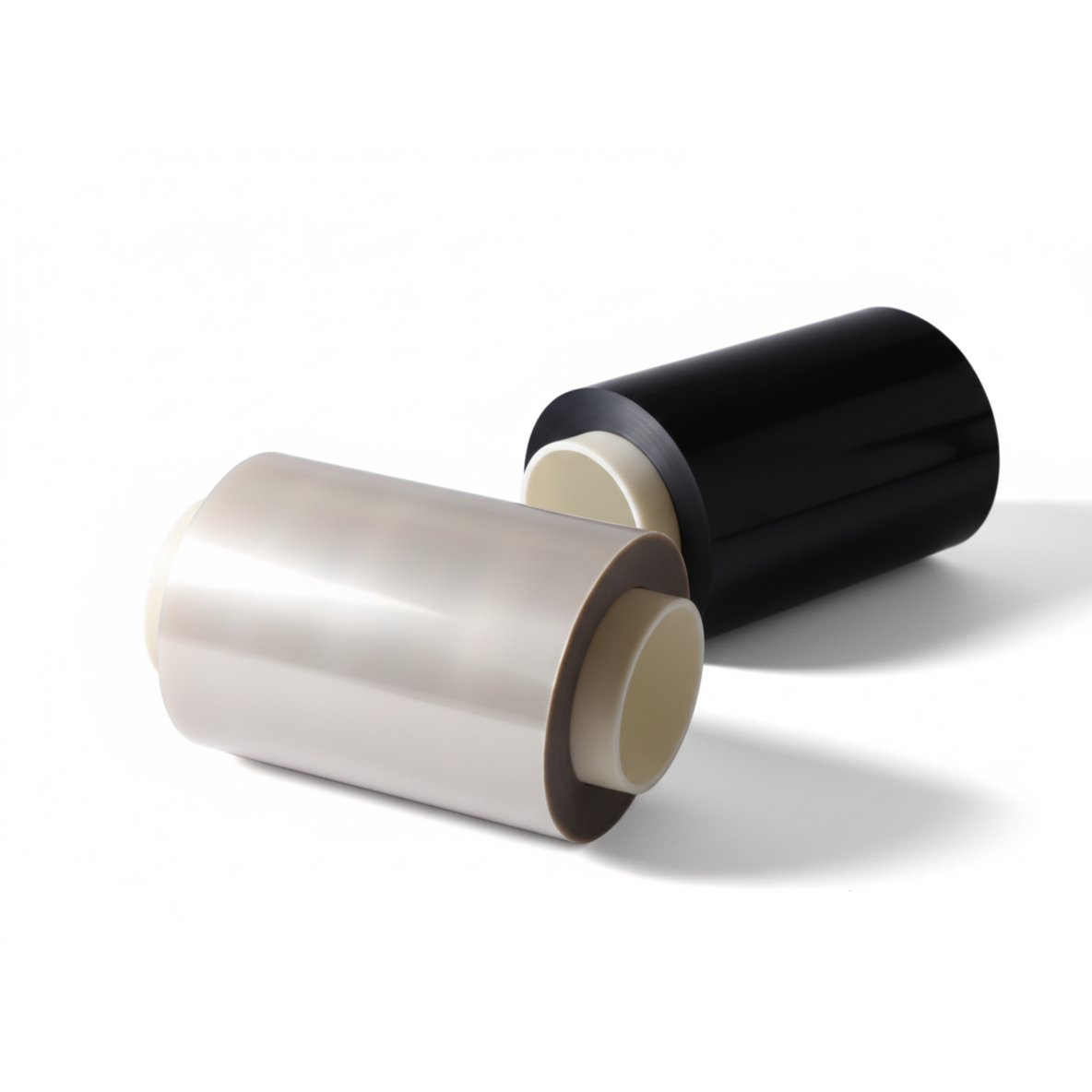

Reinforced PFSA with ePTFE scaffold. Composite membranes that laminate the PFSA ionomer onto an expanded polytetrafluoroethylene microporous skeleton allow much thinner active layers without sacrificing dimensional stability under wet/dry cycling. Useful when you want lower area resistance for high-current operation but cannot tolerate the swelling of unreinforced cast films.

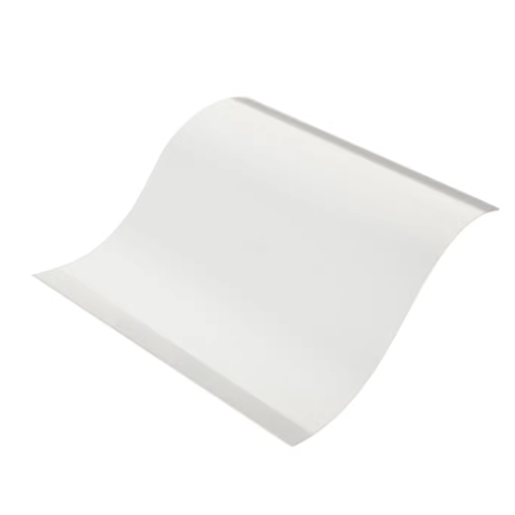

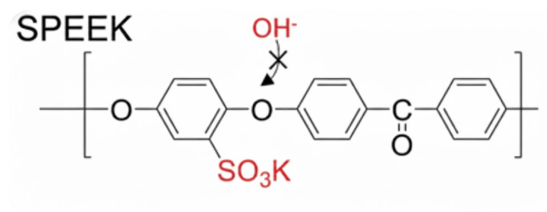

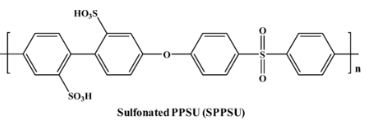

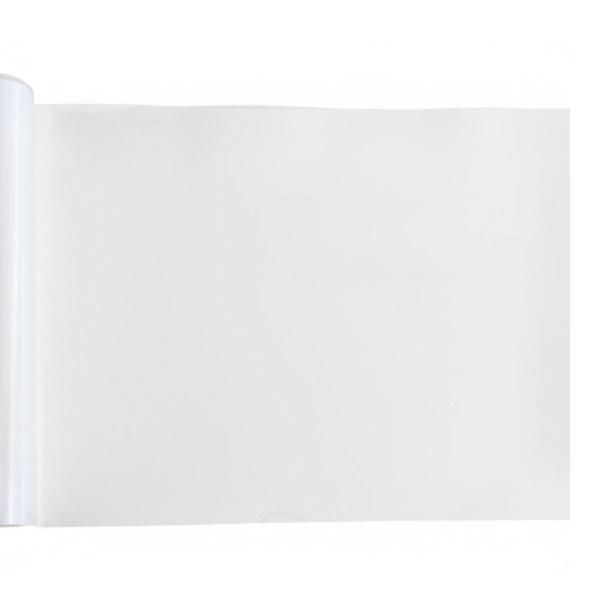

Hydrocarbon cation-exchange membranes. Sulfonated polyphenylsulfone (SPPSU) and other sulfonated aromatic backbones (polyetheretherketone, polysulfone families) offer higher proton-to-vanadium selectivity than PFSA because their narrower, less interconnected hydrophilic channels physically hinder bulky VO2+ and V3+ ions. Trade-off is reduced oxidative stability over very long cycling, so they are typically chosen when capacity-fade is the dominant figure of merit.

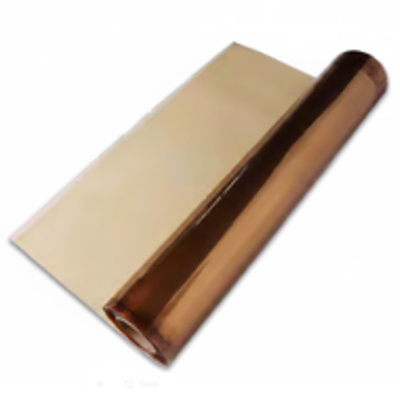

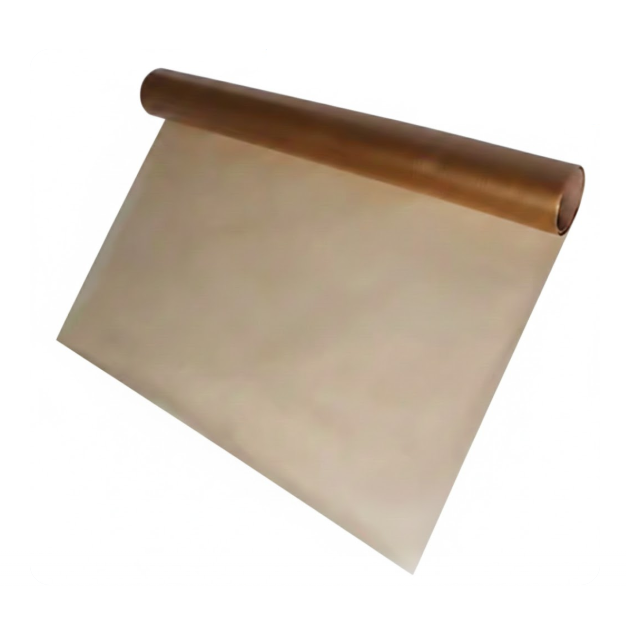

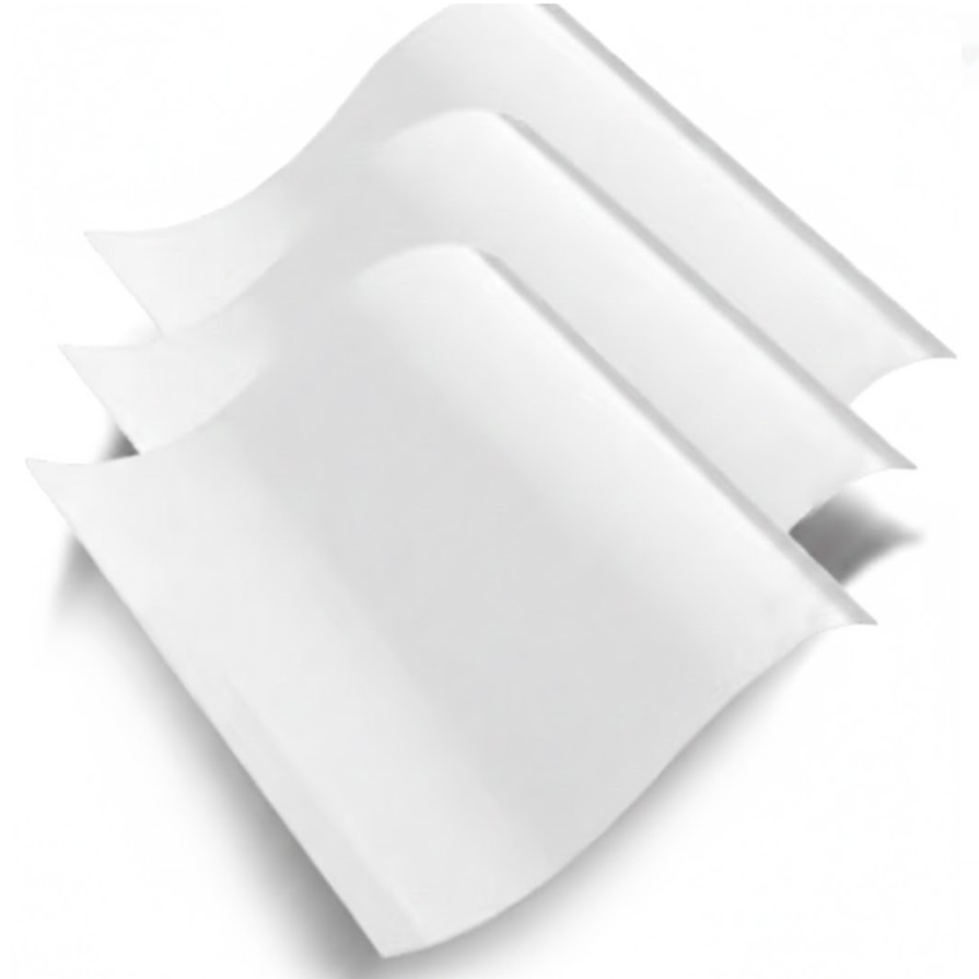

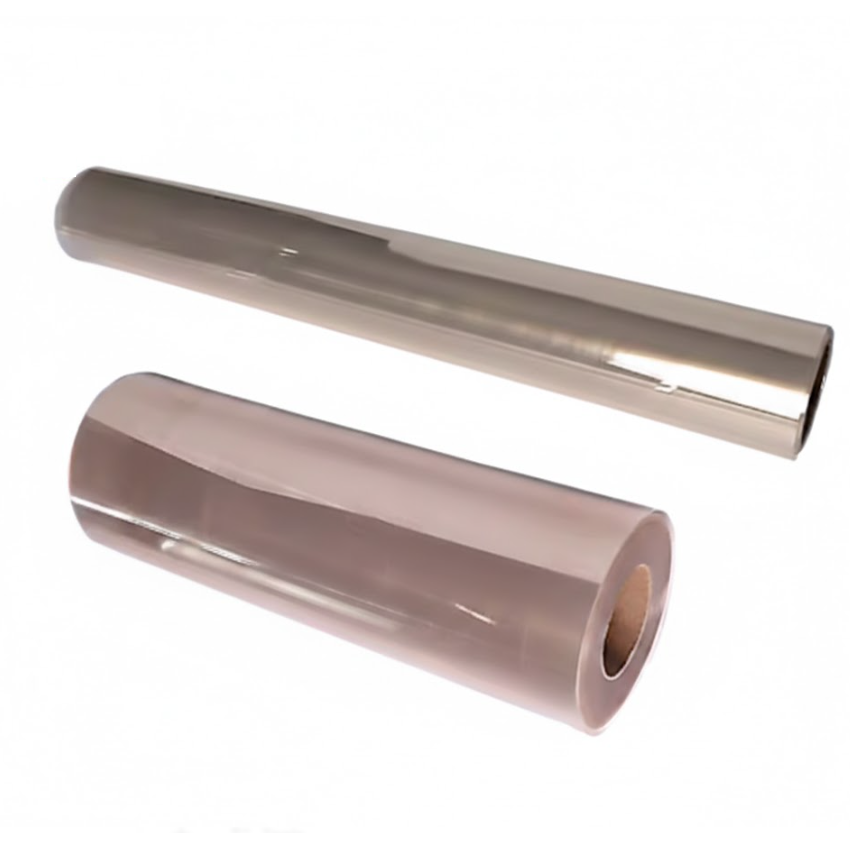

Anion-exchange membranes for flow chemistries. Quaternary-ammonium-functionalized AEMs designed with low proton crossover are used in acid-processing and bipolar-membrane stacks, and increasingly evaluated for iron-chromium and organic redox couples where transporting Cl- or supporting electrolyte anions is preferred over proton shuttling.

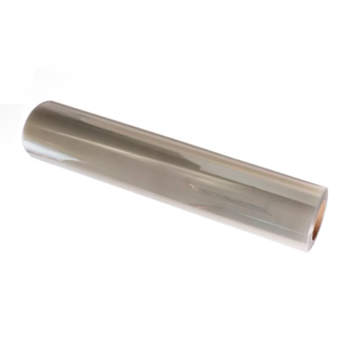

Specialty CEMs for organic and aqueous-organic flow batteries. Lower-resistance, high-selectivity CEMs developed originally for electrodialysis and capacitive deionization are a good starting point for ORFB chemistries based on viologens, quinones, or TEMPO derivatives, where the redox-active molecules are larger than vanadium ions and benefit from a tighter ion-exchange matrix.

If you are screening membranes for a vanadium stack, start with the PFSA and reinforced-PFSA grades; for organic or aqueous-organic chemistries, compare hydrocarbon CEMs and specialty low-resistance grades. For the broader separator picture across other electrochemical systems, see Membranes & MEA for Electrolyzers and Fuel Cells and Ion-Exchange Membranes for Separation.
