Dry mixers blend powders without solvents, which is exactly what you need when the next process step is dry electrode coating, sintering, or any workflow where introducing NMP, water, or other carriers would force an extra drying stage. Solvent-free mixing also keeps moisture-sensitive cathode and solid-electrolyte powders out of contact with protic media, which matters for nickel-rich layered oxides, sulfide electrolytes, and lithium metal precursors.
This collection covers two distinct mixing principles, and the right choice depends on whether you need gentle homogenization or active mechanical work on the binder.
-

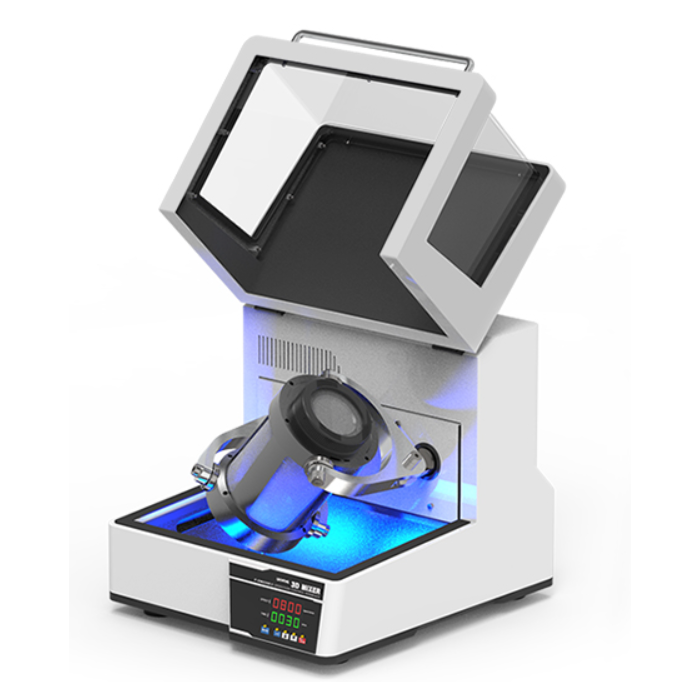

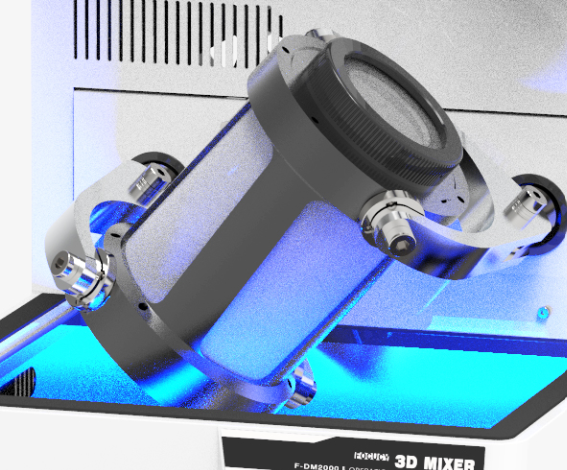

Three-dimensional shaker mixers use a Schatz-geometry basket that combines rotation, translation, and inversion in a figure-eight motion. Because there is no centrifugal pinning, particles stay mobile through the whole jar, which is well suited to homogenizing free-flowing powders, blending active material with conductive carbon and binder before slurry casting, or pre-mixing electrolyte salts and additives.
-
High-speed dry mixers with water-cooled jackets are designed for dry battery electrode (DBE) workflows. The high-shear impeller fibrillates PTFE binder into a microscopic web that holds the active material and conductive carbon together, so these units replace the conventional NMP-based planetary mixer rather than just blending powders. Jacket cooling controls the temperature rise that high-shear fibrillation otherwise drives into the PTFE.
A few practical points to keep in mind when choosing between them. Three-dimensional shakers are gentle by design and will not fibrillate PTFE; if your process needs a binder web, you need a high-shear unit. Conversely, high-shear mixing imposes mechanical and thermal stress that some sensitive powders (single-crystal NCM, brittle solid electrolytes) tolerate poorly, so a 3D shaker is often the safer first pass. Working volume also matters: small bench-scale jars favor short, repeatable cycles for screening, while larger jacketed vessels are aimed at producing enough fibrillated mass to actually run a dry coater.
For dry-electrode and PTFE-fibrillation work, start with the high-speed water-cooled units. For general powder homogenization, pre-mixing of NCM / LFP with conductive carbon, or solid-electrolyte blending where shear must be minimized, start with the three-dimensional shaker mixers. For wet slurry preparation instead, see Wet Mixers; for downstream particle-size reduction, see Mills.
