Vapor-Phase Synthesis

Vapor-phase synthesis is how electrochemists build the films, coatings, and nanostructures that solution routes cannot reach — atomically thin oxide protection on cathode powders, conformal current collectors on porous gas-diffusion layers, congruent transfer of layered and garnet ceramics, and graphene grown directly on metal foils. This section gathers the deposition platforms used in battery, fuel-cell, electrolyzer, and broader electrochemistry research, organized by the physics of how vapor reaches the substrate.

Pick the route that matches your film requirement:

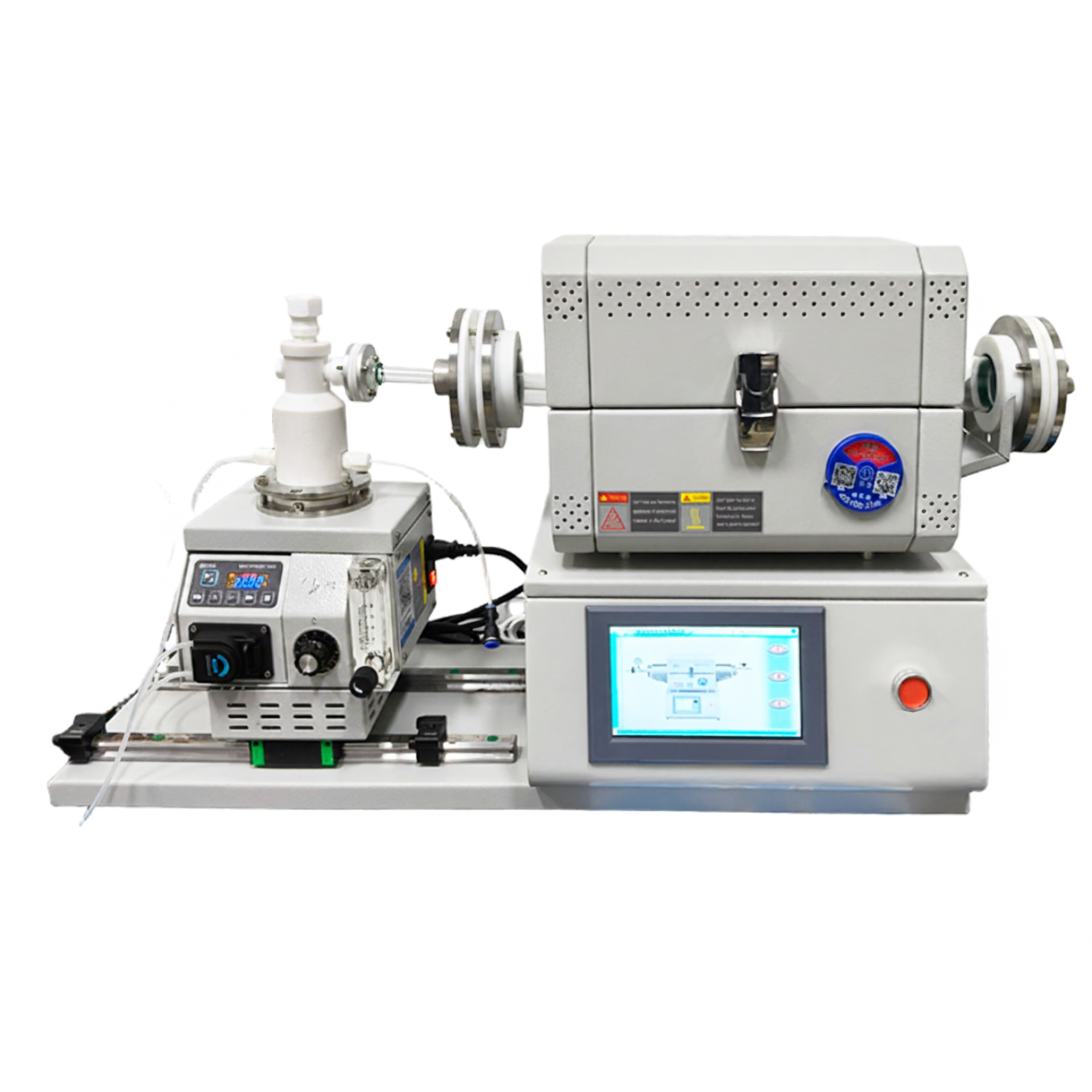

• Chemical Vapor Deposition — thermal reaction of volatile precursors at a heated substrate; the standard route for pyrolytic carbon shells on LFP and silicon, graphene and MoS2 / WS2 growth, and oxide or nitride overlayers on collectors and bipolar plates.
• Atomic Layer Deposition — self-limiting monolayer chemistry for pinhole-free Al2O3, ZrO2, and TiO2 on layered, spinel, and olivine cathode powders, plus conformal coatings on porous catalyst supports and lithium-metal anodes.

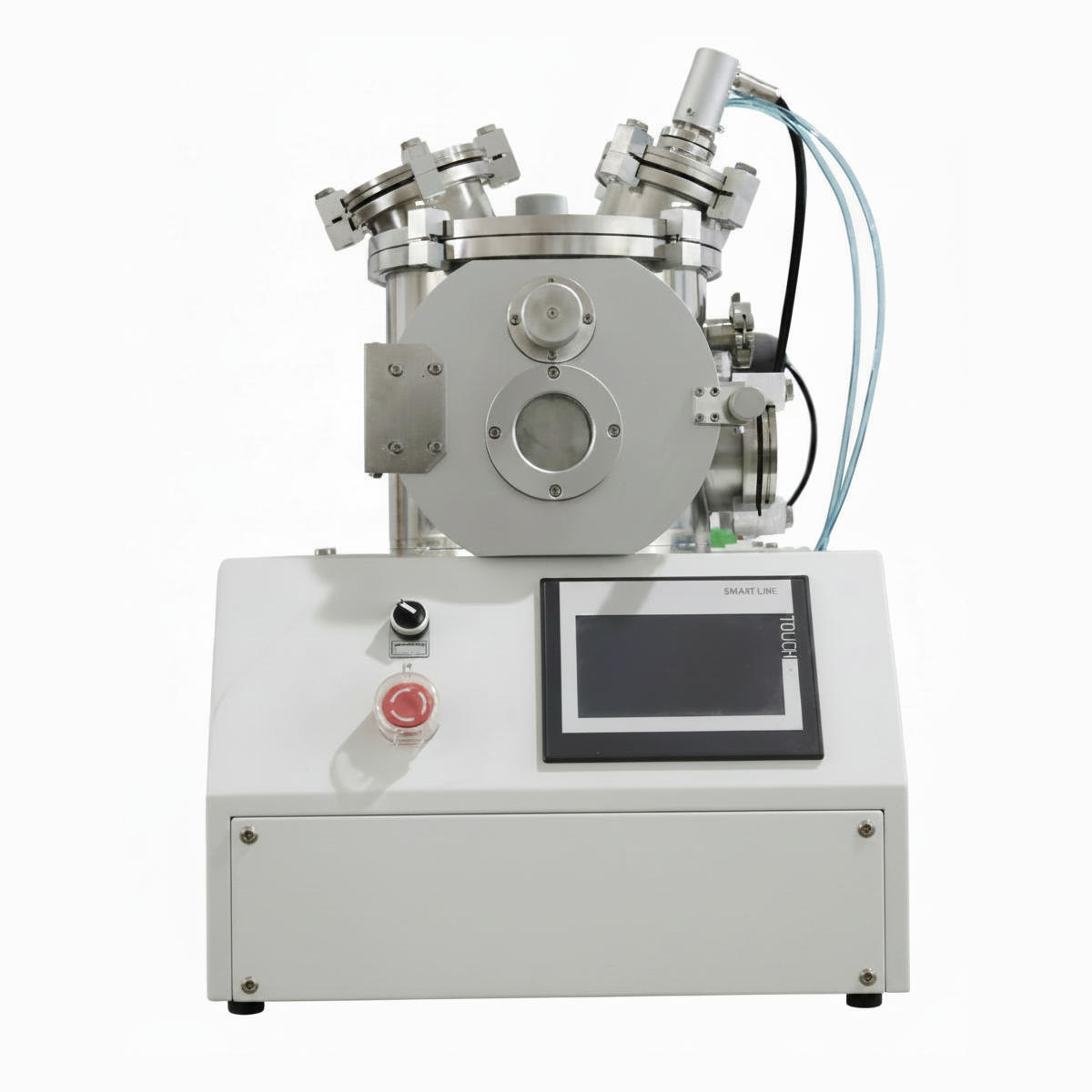

• Sputtering — momentum-driven PVD for dense metal, alloy, oxide, and nitride films; DC for conductive targets, RF for insulators such as LLZO and LiPON, reactive and co-sputtering for tuned stoichiometry.

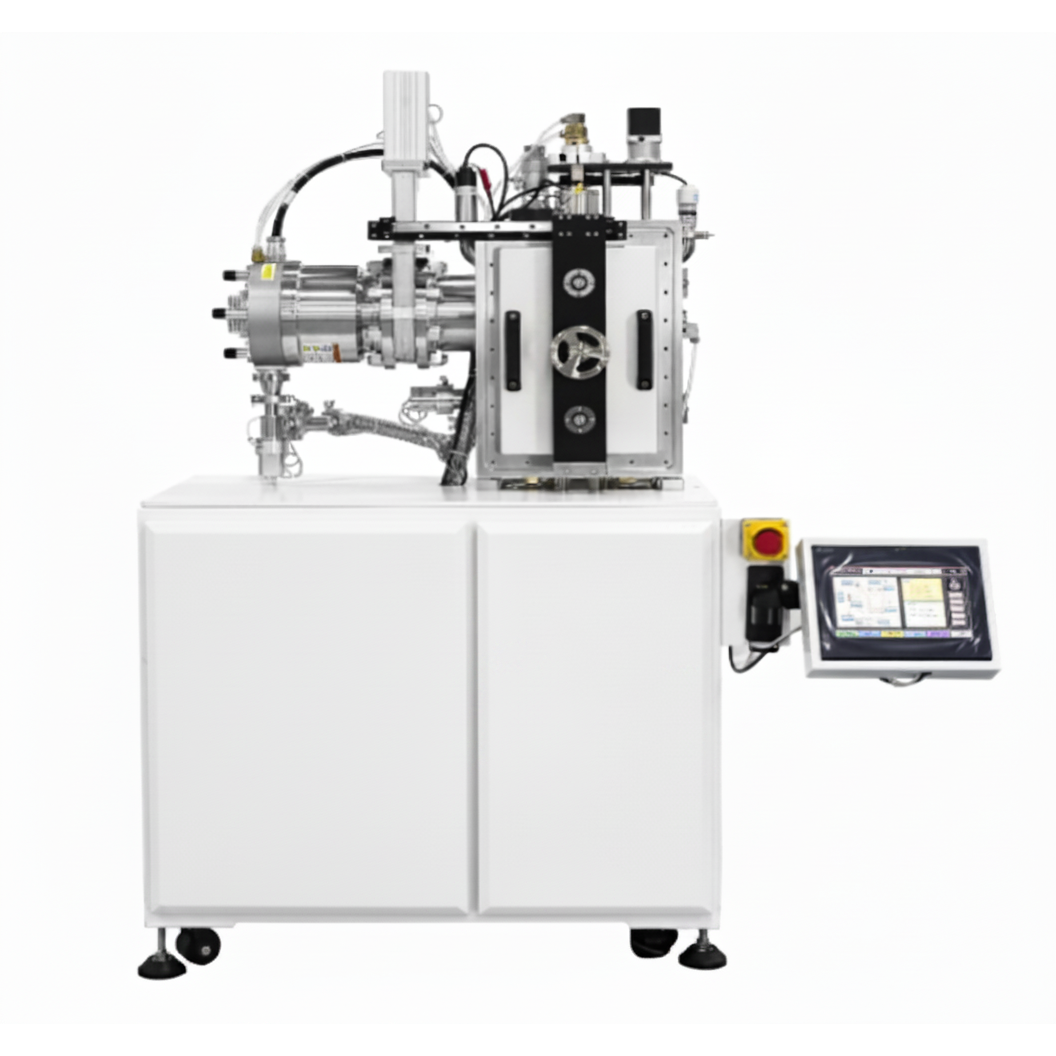

• Thermal Evaporation — low-energy, line-of-sight deposition of metal contacts, lithium counter-electrodes, and soft organic or halide-perovskite layers where substrate damage must stay minimal.
• Electron-Beam Evaporation — focused-beam heating for refractory metals (W, Mo, Ta, Pt, Ti) and stable oxides (Al2O3, SiO2, HfO2, ZrO2) that sit beyond resistive-source vapor pressures.
• Pulsed Laser Deposition — congruent ablation of dense ceramic targets for stoichiometric perovskite, layered-oxide, and garnet solid-electrolyte films, including epitaxial model electrodes.

If you need conformality on porous or particulate substrates, start with ALD or powder CVD. For dense planar films and current collectors, sputtering or thermal evaporation is usually the shortest path. For complex-stoichiometry oxides and solid electrolytes, PLD or e-beam is the right tool. For solution, mechanochemical, and furnace alternatives, step up to Synthesis Equipment.
