Ball Mills

Ball mills are the comminution backbone of an electrochemistry lab — the equipment that turns coarse precursor powders into the homogeneous, narrow-distribution particle sets that battery, fuel-cell, and electrolyzer workflows require. The format you choose determines whether energy reaches the charge as impact, shear, or steady cascade, and that choice in turn governs achievable particle size, contamination level, and tolerance for air-sensitive chemistries such as sulfide solid electrolytes and lithium-metal composites.

This collection groups the four mill formats EChem Supplies stocks for laboratory and pilot-line use:

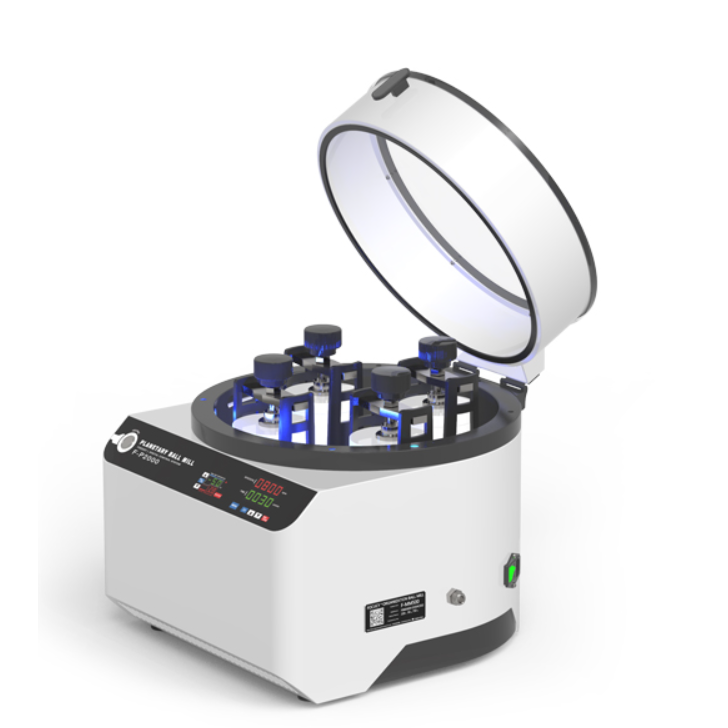

• Planetary Ball Mills — counter-rotating sun-wheel platforms that combine high impact and shear, covering standard, high-speed, ultra-high-speed, adjustable-ratio, 3D tilting, horizontal, cooled, cryogenic, photo, and glovebox-compatible variants for cathode, anode, and solid-electrolyte work.

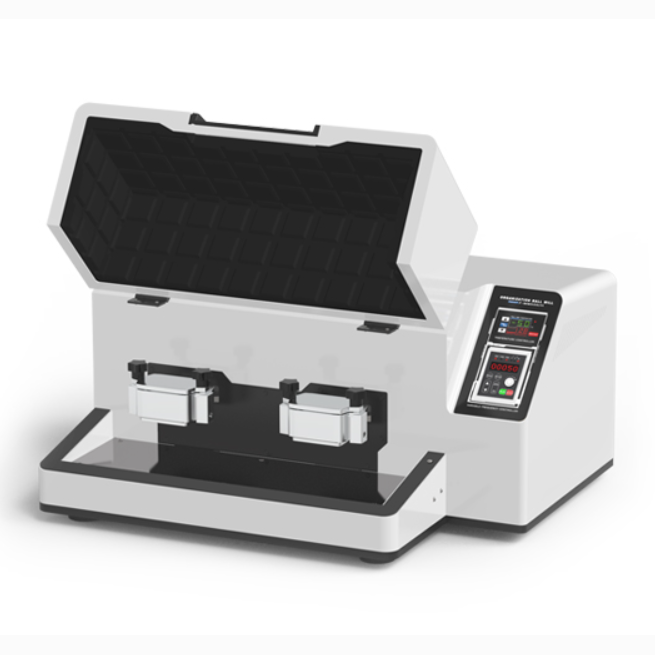

• Vibratory Ball Mills — high-frequency oscillating jars where impact dominates over friction, used for analytical-fineness sample preparation, mechanochemical synthesis of sulfide and oxide electrolytes, and nanoscale endpoint milling.

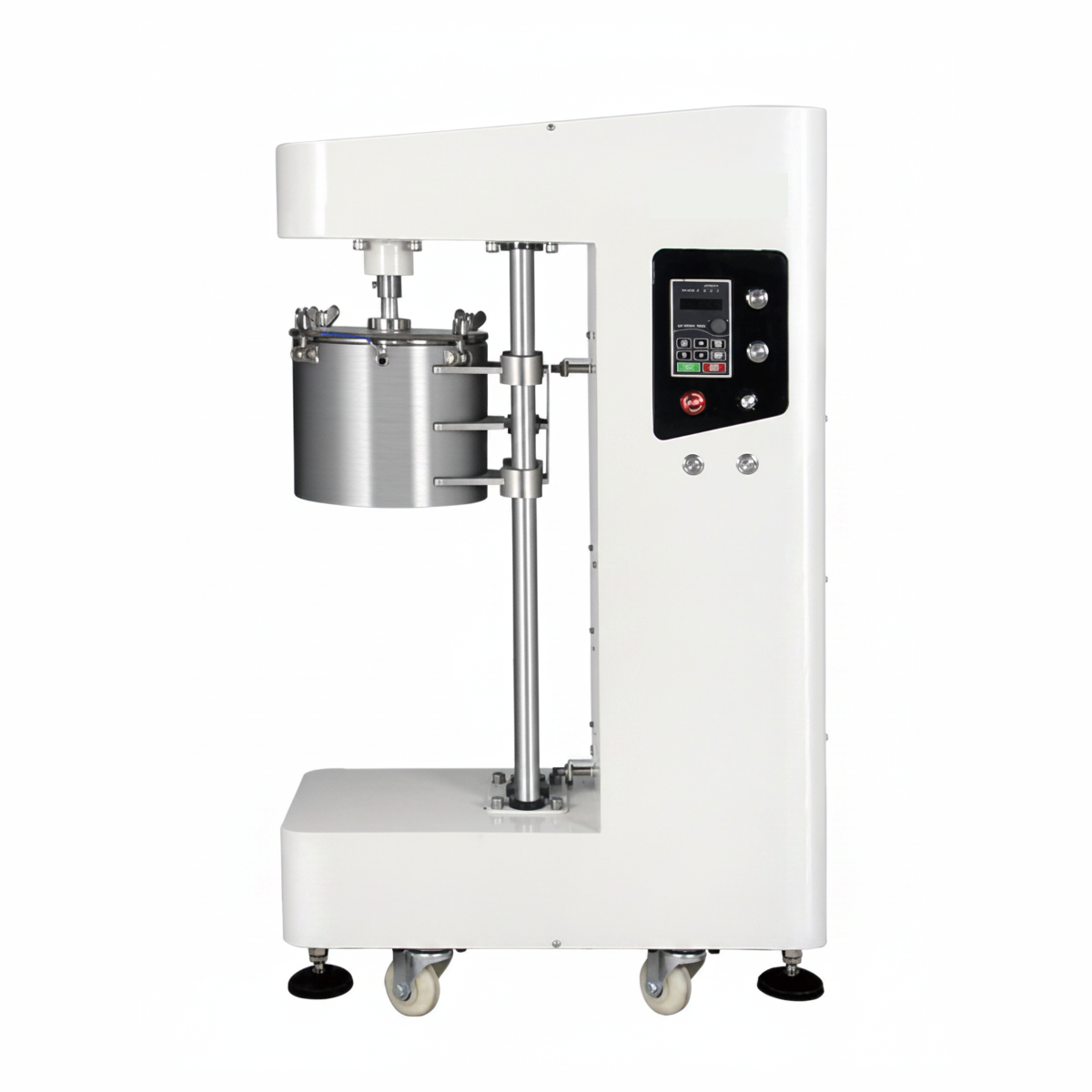

• Attrition Ball Mills — stationary stirred-media mills that drive intense, uniform shear and impact directly into the bead bed, reaching deep-submicron sizes on cathode actives, conductive carbon dispersions, and sulfur-carbon composites.

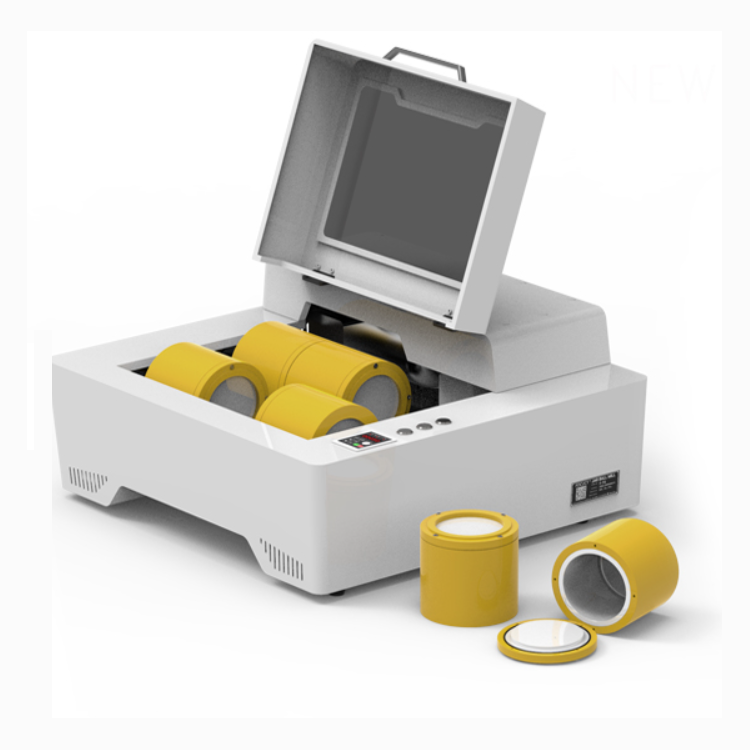

• Rolling Ball Mills — low-energy horizontal-jar rollers for long-duration, gentle homogenization with narrow size distributions and minimal media wear, well suited to slurry mixing and design-of-experiments work.

If you are reducing hard ceramics such as garnet LLZO, NASICON-type LATP/LAGP, or olivine LFP precursors, start with planetary or attrition mills. For mechanochemical synthesis of sulfide electrolytes and other reactive milling, see vibratory or planetary platforms, and pair them with glovebox-compatible variants for air-sensitive work. For routine slurry homogenization and parallel formulation screening, rolling mills are the lowest-contamination option. To select jars and media independently, see ball mill jars and grinding media; for the broader category, return to mixers and mills.
