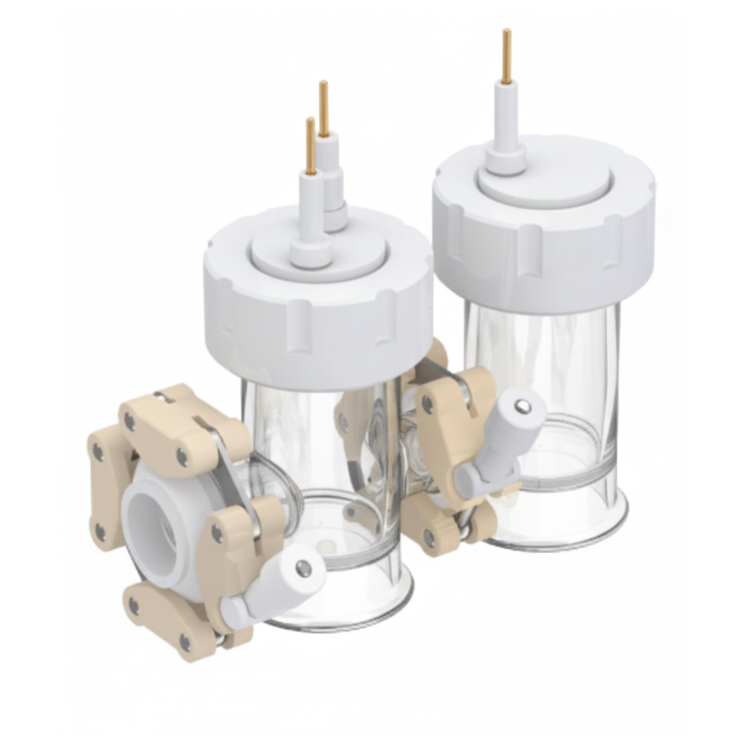

An H-Type Glass Cell with a Side-Illumination Quartz Window is a sophisticated reactor designed for photoelectrochemical (PEC) experiments that require both optical precision and chemical separation. By combining the dual-chamber design of an H-cell with a fused flat quartz window, this setup allows you to illuminate a photoelectrode while ensuring that the products formed at the anode and cathode never mix. This is essential for accurately measuring the efficiency of solar-fuel production, such as water splitting or CO2 reduction.

In photoelectrochemistry (PEC), the "H" geometry serves a different purpose than in standard electrolysis: (1) Quartz Window: A flat quartz window is fused into the side of the working chamber. This allows light from a solar simulator to hit the thin-film photoelectrode (e.g., TiO2 or BiVO4 on FTO glass) at a perpendicular angle. Unlike curved glass, the flat window prevents the "lensing effect" that would otherwise distort the light intensity (mW/cm2). (2) Product Isolation: In water splitting, the H2 produced at the cathode and the O2 produced at the anode must stay separated. If they mix, they can chemically recombine on the catalyst surface, leading to false efficiency data and potential safety hazards. (3) Membrane Bridge: A Nafion or Anion Exchange Membrane (AEM) is clamped between the two chambers. This allows protons or ions to complete the circuit while blocking the crossover of gaseous or liquid products.
