Aluminum Electrodes (Disc, Sheet, Roll) with A Thickness of 0.1 mm for Al-Ion Battery Anode, CAIBAE
Use your own shipping account?
We support FedEx, UPS, and DHL third-party billing for institutional customers.
Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.

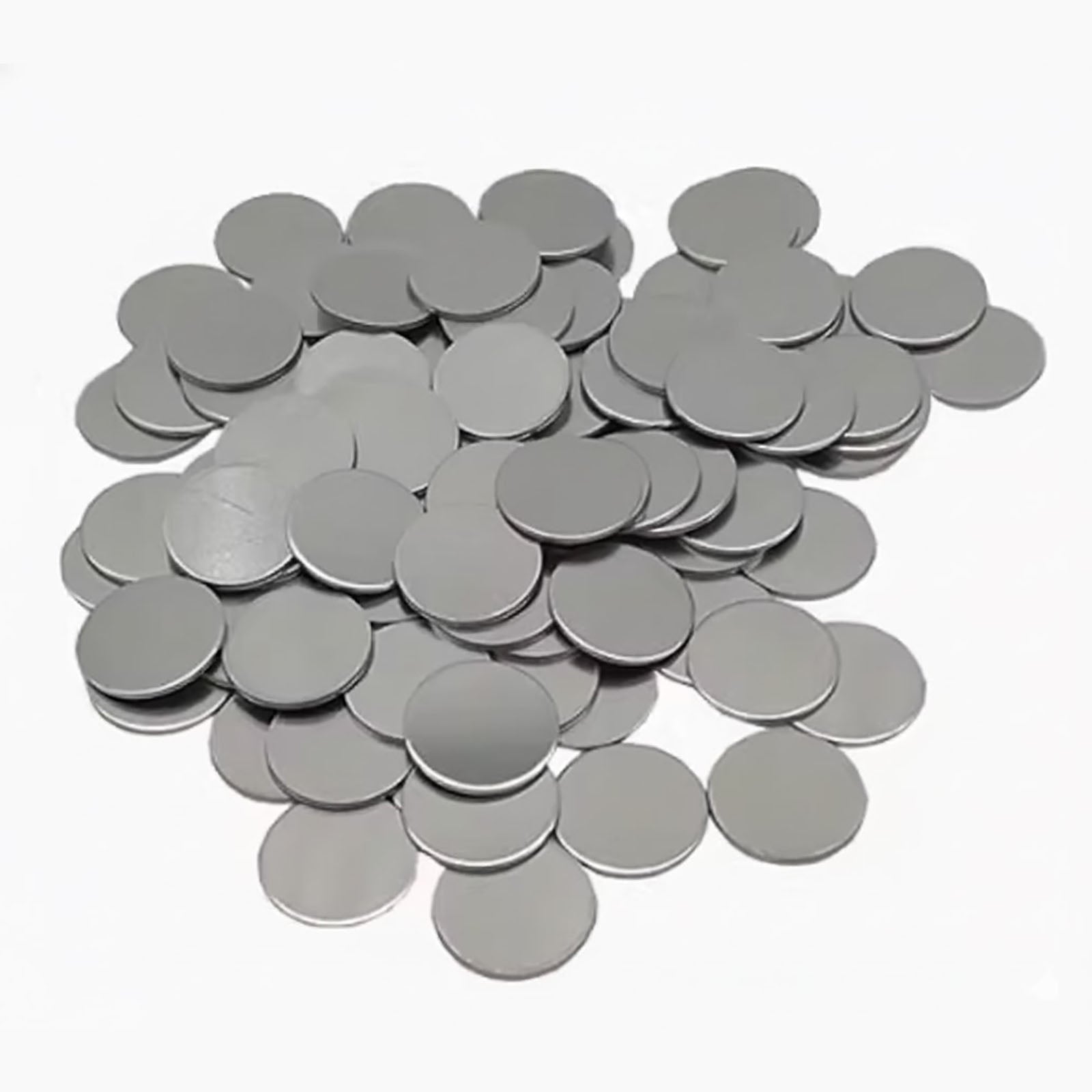

Aluminum metal is a highly promising anode material for aluminum-ion batteries (AIBs). The round disc shape is suitable for coin cell assembly and testing in aluminum-ion battery application (especially for CR20XX coin cell), while the sheet or roll shapes can be used for pouch cells.
The main features of AIBs are shown below:
-
The "Trivalent" character enable one aluminum ion (Al3+) carries three electrons, whereas lithium ion (Li+) only carries one. Theoretically, this allows for very high volumetric energy density (theoretical 8000 mAh/cm3).
-
It is the most abundant metal in the Earth's crust, making it far cheaper and more sustainable than lithium or copper.
| Part Number |
CAIBAE (C-AIB-AE) |
| Purity |
99.99% for aluminum content |
| Electrode Dimension |
The thickness for both disc and sheet is 0.1 mm (other thickness in the range of 0.01 to 0.3 mm is available upon request). Round disk D15 mm (50 pcs/pack) Rectangle sheet: 100 *100 mm (5 pcs/pack) Roll: W100 mm * L1 m |
References:
