Sustainion® X37-50 (developed by Dioxide Materials) is a commercial imidazolium-functionalized styrene-copolymer anion-exchange membrane (AEM) with a nominal dry thickness of 50um. It is designed for electrochemical CO2 reduction (CO2RR), anion-exchange membrane water electrolysis (AEMWE), and alkaline electrochemical flow reactors requiring high hydroxide/carbonate conductivity and alkaline chemical resistance.
The main features of the Sustainion, X37-50 AEM are: (1) Resistance to Alkaline Degradation: Traditional quaternary ammonium groups easily degrade via Hofmann elimination or SN2 nucleophilic attack. The steric hindrance of the tetramethylimidazolium functional headgroup stabilizes the positive charge against ring opening in high-pH environments. (2) Low Faradaic Polarization in CO2 Reduction: Exhibits high selectivity and high transport numbers for bicarbonate (HCO3^-) and carbonate (CO3^{2-}), facilitating CO2 conversion to CO, ethylene, or formic acid at high current densities (>200--500 mA/cm2). (3) High Alkaline Water Splitting Performance: Delivers low area-specific resistance (ASR) in 1 M KOH circulating electrolytes, achieving current densities exceeding 1.5-2.0 A/cm2 below 2.0 V in AEM electrolyzer cells.
| Part Number | CEAEMSX37 (C-E-AEM-SX37) |
| Backbone | Cross-linked Polystyrene with 1,2,4,5-tetramethylimidazolium |
| Thickness (um) | ~50 um |
| Hydroxide Conductivity | >100 mS/cm |
| Bicarbonate Conductivity | 20-45 mS/cm |
| Operation Temperature | RT-60°C |
| Grade Types & Applications |

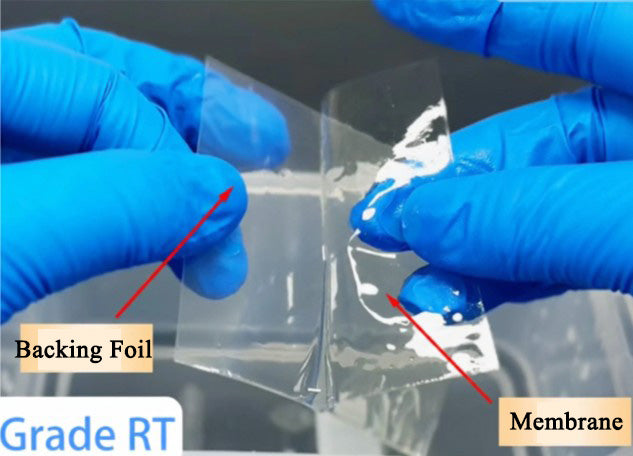

(1) Grade RT: Suitable for lab-scale CO2 & H2O electrolysis. It has a higher mechanical strength than Grade 60. (2) Grade FA: Specifically design for CO2 reduction to formic acid. (3) Grade 60: Suitable for CO2 & H2O electrolysis under strict requirement of ethylene glycol level. It has a higher mechanical strength compared to Grade-RT. (4) Grade T: It has the highest mechanical strength, especially suitable for industrial-scale ware electrolysis for long-term operation. |
| Pretreatment |
Immerse the membrane in 1 M KOH solution for 12-72 h at RT. |

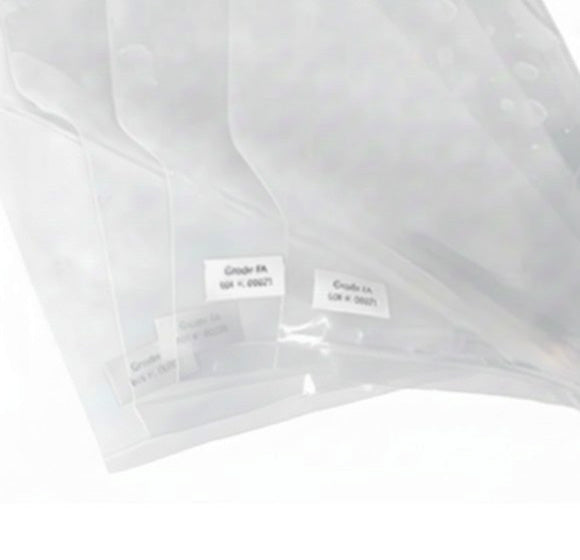

| Package Grade | 10cm*10cm or 20cm*20cm/pcs/pack (other sheet sizes also can be supplied upon request) |
