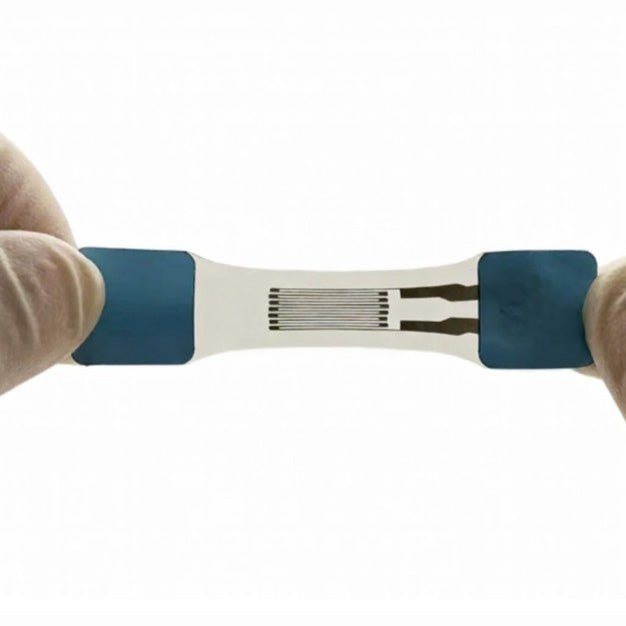

Highly Stretchable Strain Sensor for Flexible Bioelectronics (eg: Soft Robot, Electronic Skin, Wearable Electronics), CFBHSSS

A highly stretchable strain sensor for flexible bioelectronics bridges the mechanical gap between rigid electronics and human tissue. It transduces mechanical deformations—such as skin strain, pulse waves, respiration, and joint movement—into measurable electrical signals while accommodating large strains (> 50–500%).

For Piezoresistive Sensing: It is mainly used to measure resistance change (ΔR/R0) upon stretching. Tensile strain causes disconnection of conductive percolation pathways (e.g., carbon nanotubes, metallic nanowires, or conductive elastomers) or geometry changes in liquid metal micro-channels. It offers high gauge factors (GF), simple readout circuits, and broad detection ranges.

Part Number	CFBHSSS (C-FB-HSSS)
Sensor Type	Resistance Type
Measuring Strain Range	0-100% (resolution: ~0.01%)
Response Time	<0.1 ms
Young Modulus	10 MPa
Working Temperature	-15 ~ 80 °C
Tensile Fatigue Resistance	ΔR/R<1% after 10000 cycles at 50% strain
Sizes	(1) 15 mm * 45 mm (2) 15 mm * 80 mm
Operation Instructions	(1) Sensor to Adapter Board to Arduino.  (2) Single-Channel or 4-Channels data collecting box with Bluetooth function. For the single- or four- channel data collection board, the software is also included.
Primary Applications	(1) Wearable Electronics          (2) Soft Robot                                              (3) Electronic Skin & Sensor

References:

1. Z. Yang, et al., Graphene Textile Strain Sensor with Negative Resistance Variation for Human Motion Detection, ACS Nano (2018) 12 (9): 9134–9141.
2. S. Zhao. et al. Wearable Resistive-Type Stretchable Strain Sensors: Materials and Applications, Adv. Mater., 2025, 37, 2413929.
