The standard NextCell configuration is designed for stability and reproducibility, particularly in the 750°C – 850°C range.

• Support: 150 um thick Hionic™ (Scandia-Stabilized Zirconia). It is ~4x stronger than standard YSZ-8, allowing it to survive the mechanical clamping of test fixtures.

• Anode: Typically a multi-layer NiO-GDC / NiO-YSZ (~50 um).

• Cathode: Standard NextCells use LSM/LSM-GDC, while the "HP" (High Performance) versions often use LSCF or LSC for better low-temperature activity.

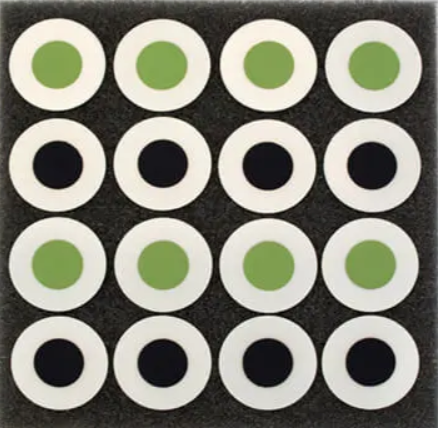

• Active Area: Usually 1.25 cm² on a 20 mm or 25 mm diameter disk.

Since the anode contains Nickel Oxide (NiO), it must be reduced to Nickel (Ni) to become electrochemically active.

1. Heat Up: Ramp at 2°C/min to 800°C in stagnant air or flowing N2 (on the anode side) and Air (on the cathode side).

2. Reduction: * Once at 800°C, introduce a dilute fuel mix (e.g., 5% H2 in N2).

   • Hold for 30–60 minutes.

   • Gradually increase to 100% H2 (typically humidified with 3% H2O via a bubbler at 25°C).

3. OCV Check: A healthy NextCell at 800°C with 100% wet H2 should yield an OCV of ~1.1 V.

Part Number	CSOFECESBCNC (C-aSOFEC-ESBC-NC)
Cell Composition	Anode: NiO-GDC/NiO-YSZ (D=12.5 mm, T=~130-170um) Electrolyte: SSZ (D=20 mm, T=3 um) Cathode: LSM/LSM-GDC (D=12.5 mm, T=~50 um)
Button Cell Size	(1) D=20 mm (2) D=25 mm
Package Grade	1 pcs/pack (bulk quantity can be supplied upon request and certain discount will be applied)

References:

1. Z. Drach, et al., Impedance spectroscopy analysis inspired by evolutionary programming as a diagnostic tool for SOEC and SOFC, Solid State Ionics, 2016, 288, 307-310.
2. N. Q. Minh, et al., Sputtered Thin-Film Solid Oxide Fuel Cells, ECS Trans., 2021, 103 67.
