Zero-Gap Flow Cell Testing System with Integrated Heating for Redox Flow Battery, Electrolyzer, and Fuel Cell, CZGFCTSIH

A Zero-Gap Flow Cell Testing System with Integrated Heating is a high-performance, versatile laboratory fixture engineered to evaluate electrochemical energy conversion and storage devices—including Redox Flow Batteries (RFBs), Water Electrolyzers (PEM/AEM), and Fuel Cells (PEMFC/AEMFC). By eliminating the inter-electrode gap and pressing the flow fields directly against the Membrane Electrode Assembly (MEA) or ion-exchange membrane with compressed carbon/metal felts, zero-gap architecture drastically minimizes ohmic resistance and mass transport polarization.

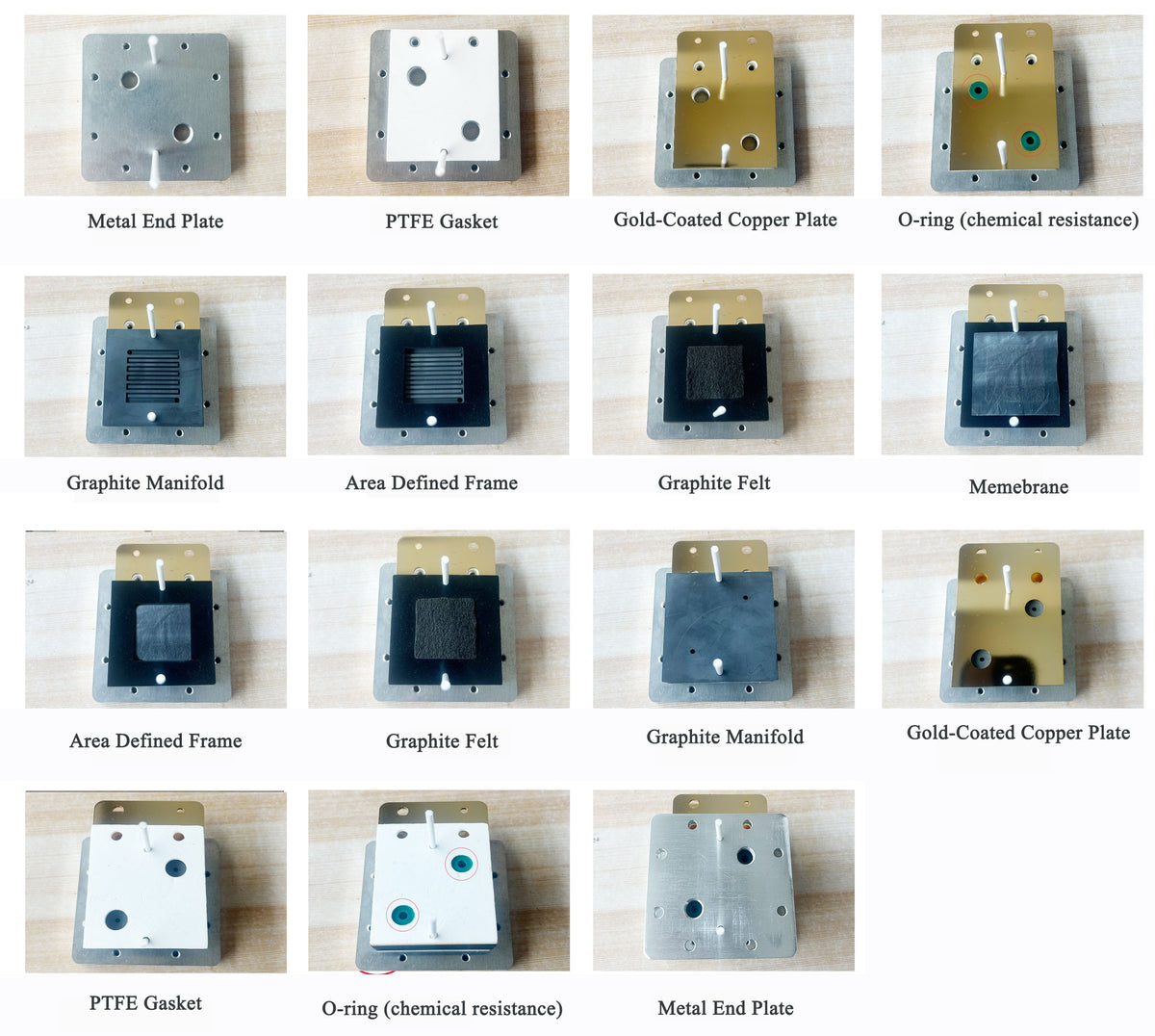

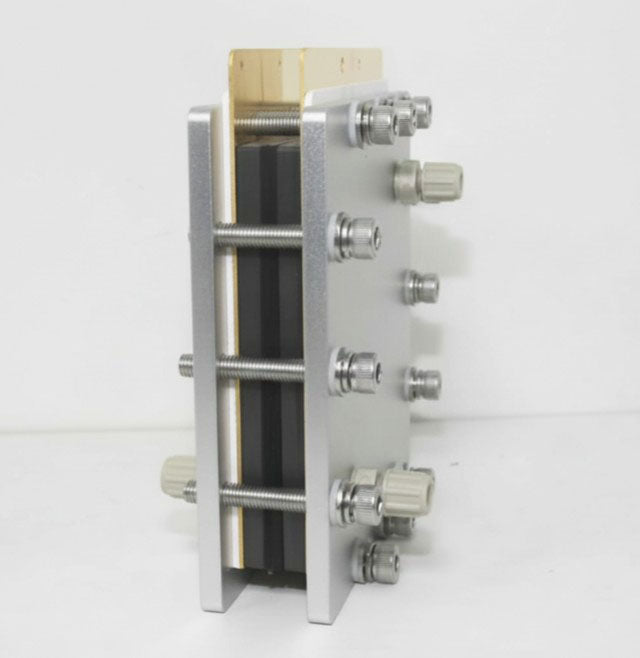

A robust zero-gap test cell fixture typically features a modular sandwich construction designed to withstand uniform compression, high temperatures, and aggressive chemical environments. (1) End Plates: Manufactured from corrosion-resistant metals (such as 316L stainless steel or titanium) or rigid insulating engineering plastics (PVDF, PEEK) to provide uniform mechanical clamping force and structural rigidity. (2) Current Collectors: Gold-plated copper, nickel, or titanium foil/plates positioned between the flow field and end plate to ensure low-resistance electronic contact. (3) Flow Field Plates: (i) For RFBs: Graphite or polymer-carbon composite plates featuring serpentine, parallel, or interdigitated channels to distribute liquid electrolytes evenly through porous carbon felt electrodes. (ii) For Electrolyzers & Fuel Cells: Titanium (anode/cathode) or graphite blocks with fine, laser-machined or etched flow channels optimized for gas-liquid two-phase flow. (4) Gaskets & Sealing: High-performance elastomers (PTFE, Viton, EPDM, or Kalrez) selected for chemical inertness against concentrated acids, alkaline solutions, or organic solvents across broad temperature ranges.

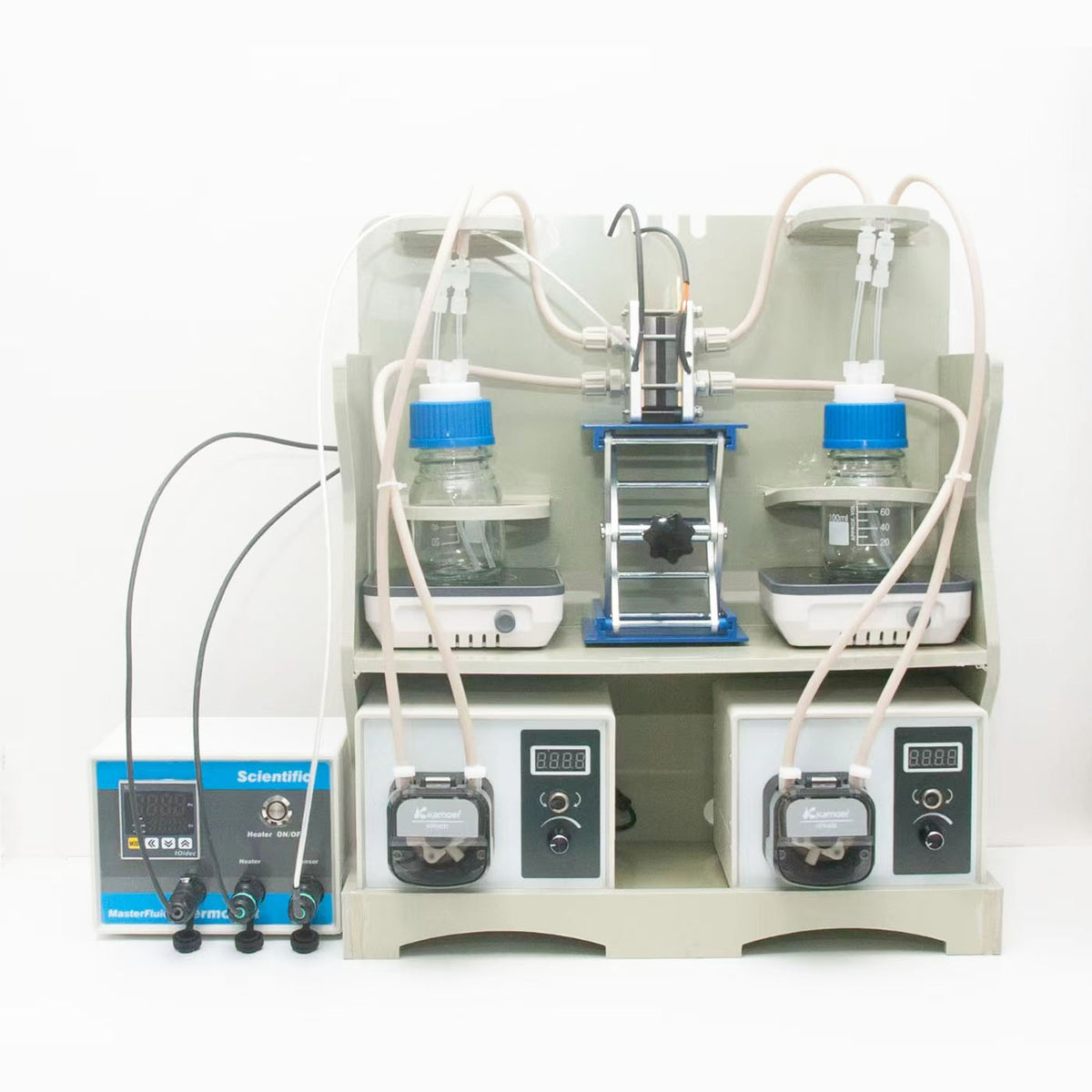

Controlling and maintaining precise thermal profiles is critical for studying activation kinetics, exchange current densities, and ionic conductivity under realistic operating conditions. (1) Embedded Cartridge Heaters: High-wattage stainless-steel cartridge heaters inserted directly into the perimeter of the metallic end plates, providing uniform conductive heat transfer into the active core. (2) Fluid-Circulating Jackets: Alternatively, internal or external liquid heating channels coupled with a recirculating thermal bath can be utilized for precise, isothermal long-term testing. (3) Sensor Placement & PID Control: K-type or PT100 thermocouples embedded within close proximity to the active window (rather than just the outer edge of the end plate) linked to a dedicated PID temperature controller to eliminate thermal overshoot and maintain stability (~ 0.5 °C) from ambient up to 90 °C–120 °C (or higher for specialized high-temperature systems. (4) Thermal Insulation: PEEK or Teflon thermal break plates positioned between the heated test fixture and the hydraulic/mechanical clamping frame to prevent heat loss to the ambient environment.
