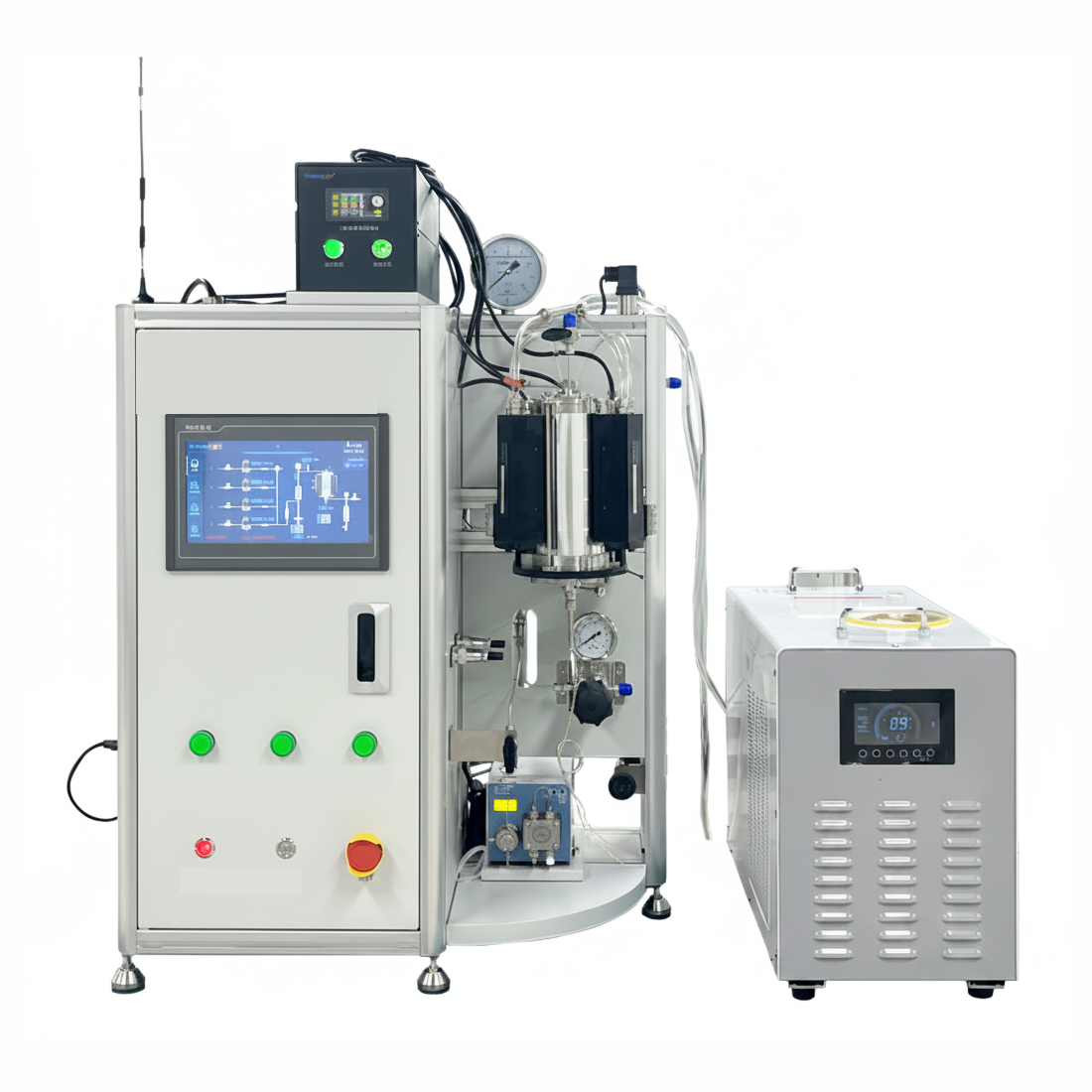

A Rapid-Heating Multi-Field Fixed Bed Reactor represents the cutting edge of process intensification. By integrating multiple external fields—such as electric, magnetic, or microwave—with ultra-fast thermal ramping, these systems can achieve heating rates exceeding 100°C/s. This allows researchers to access non-equilibrium chemical states, reduce catalyst sintering, and significantly improve energy efficiency in high-temperature processes.

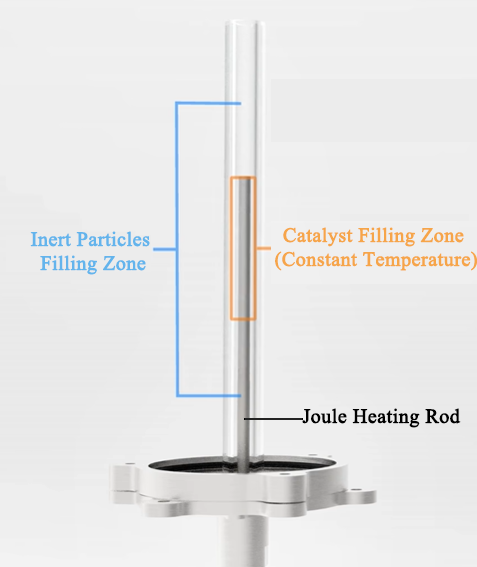

The "Multi-Field" designation refers to the application of non-thermal energy sources that interact directly with the catalyst or the reactants. (1) Electric Field Assisted (Flash Joule Heating): Passes a high-current pulse directly through a conductive catalyst bed (e.g., carbon-supported catalysts), which can achieves temperatures up to 3000 °C in milliseconds. It is ideal for synthesizing high-entropy alloy nanoparticles or graphene-based catalysts. (2) Microwave Field Integration: Uses microwave radiation to selectively heat "hot spots" within the catalyst bed, which enables volumetric heating bypasses the limits of thermal conductivity, allowing for a cold-wall reactor design while maintaining a high-temperature active zone. (3) Induction Heating (Magnetic Field): Uses a high-frequency alternating magnetic field to induce eddy currents in a susceptor or the catalyst itself.Benefit: Enables non-contact heating with extremely rapid response times, perfect for transient kinetic studies.

References:

R. Wang, et. al. Enhanced separation of photogenerated charge carriers and catalytic properties of ZnO-MnO2 composites by microwave and photothermal effect, Journal of Alloys and Compounds, 2019, 786, 418-427

H. He, et. al. Continuous Flow Photothermal Catalytic CO2 Reduction: Materials, Mechanisms, and System Design. ACS Catal. 2025, 15, 12, 10480–10520
