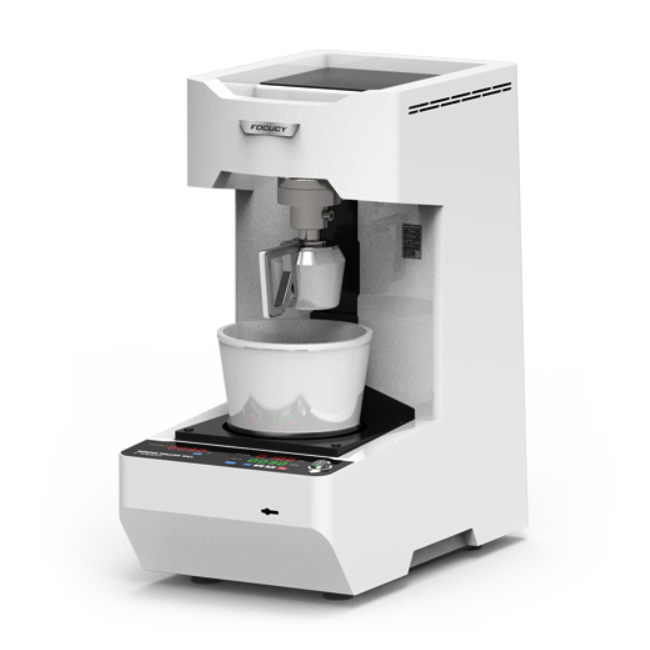

An Automatic Mortar Mill (also known as a motorized mortar and pestle or a "Granite/Alumina Mill") is the automated version of the classic manual grinding tool. It is designed to emulate the hand-grinding motion but with consistent pressure, speed, and duration. For a researcher in electrochemical materials, this tool is the bridge between simple mixing and high-energy ball milling. It is particularly valued for its ability to grind without introducing significant heat or structural damage to delicate powders like SPAN (Sulfurized Polyacrylonitrile) or solid-state electrolyte precursors.

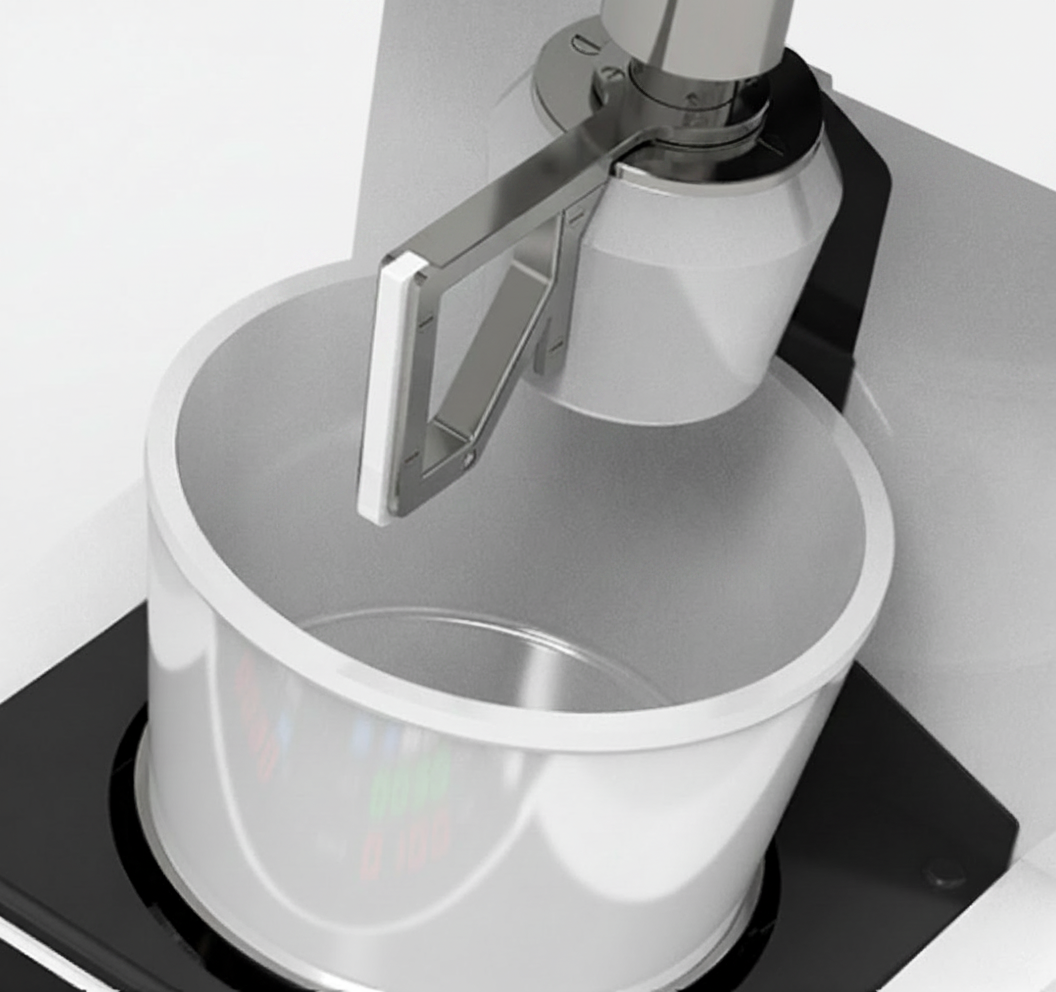

Unlike ball mills that rely on impact, the mortar mill uses trituration—a combination of pressure and friction. (1) The Motion: The mortar (bowl) rotates while the pestle (the grinding head) is driven by friction or a secondary motor. The pestle is positioned off-center so that the material is constantly pushed back into the grinding path by a scraper. (2) Adjustable Pressure: High-end models allow you to adjust the downward pressure of the pestle and the position of the scraper. This is critical when working with "sticky" battery binders or ductile powders that tend to clump.

References:

M. I. Mahadi, et al., Mechanochemical effect of dolomitic talc during fine grinding process in mortar grinder, International Journal of Mineral Processing, 2010, 94, 172-179

M. Tobaben, et al., Fine grinding of pyrometallurgical battery slag and its influence on lithium dissolution, Minerals Engineering, 2024, 216, 108879
