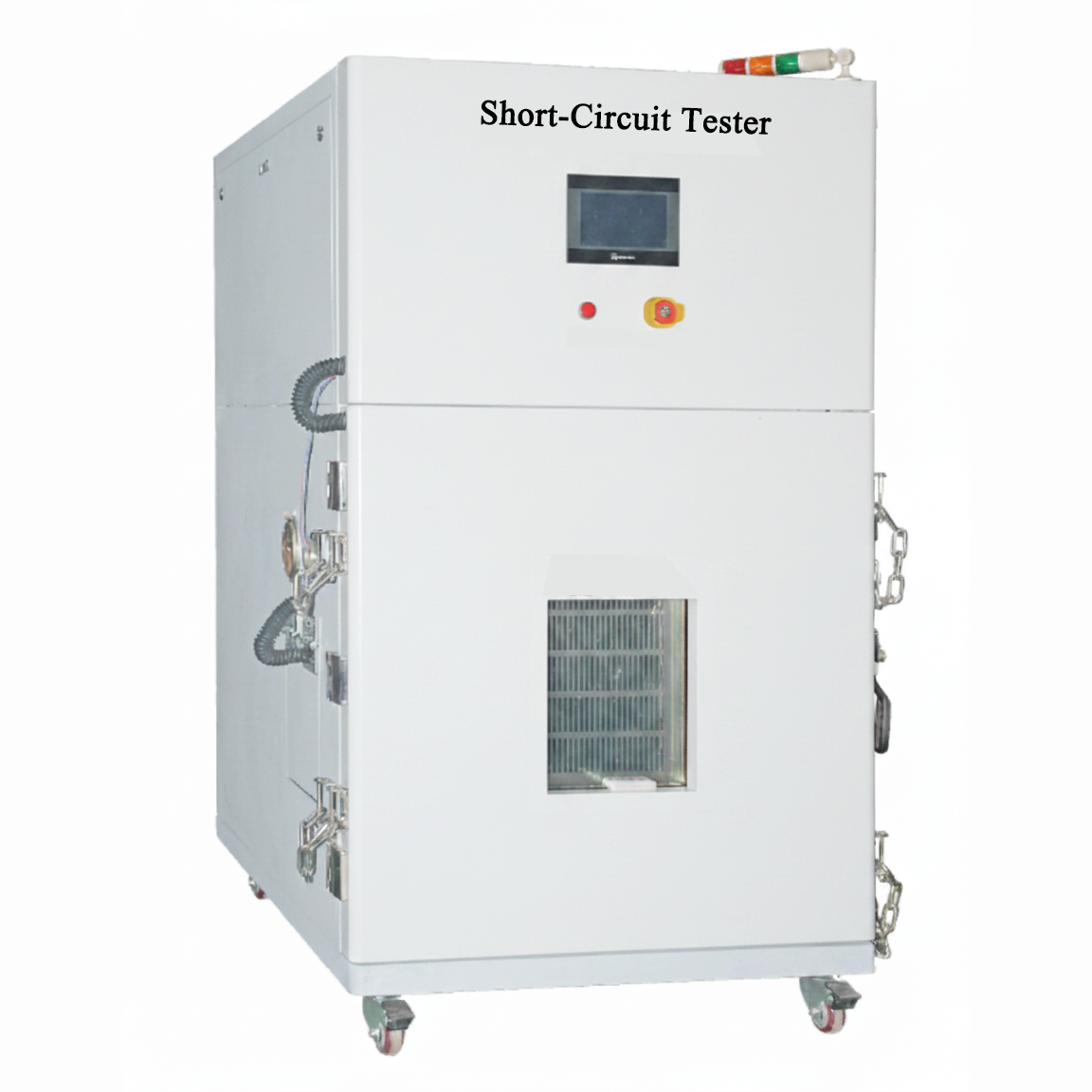

A Temperature-Control Short Circuit Test Chamber is an integrated safety evaluation platform used to simulate electrical abuse conditions on battery cells, modules, or packs under specific environmental temperatures. This system is a cornerstone for certifying energy storage devices against international safety standards such as UN 38.3, UL 1642, and IEC 62133. By combining a precision environmental chamber with a high-current external short-circuiting unit, researchers can observe how thermal stress influences the battery's internal resistance, electrolyte stability, and thermal runaway thresholds during a short-circuit event.

The platform is typically divided into two synchronized modules: the Environmental Chamber and the High-Current Short Circuit (SC) Module.

Environmental Chamber: (a) The Environmental Chamber Thermal Control: Most research-grade units offer a range of -70°C to +180°C. For standard safety testing, the ambient temperature is often held at 55°C (per UN 38.3) to simulate extreme real-world conditions. (b) Air Circulation: Vertical or horizontal forced-air systems ensure the battery case reaches a uniform temperature before the short-circuit is triggered. (3) Optical Access: A multi-layer, explosion-proof tempered glass window with a protective steel mesh allows for real-time visual monitoring or high-speed video recording of the test sample.

High-Current Short Circuit Module: (a) Contactors: High-power industrial DC magnetic contactors with copper terminals are used to handle massive current surges without welding or failing. (b) External Resistance: To meet maximum current requirements, the total circuit resistance (including cables and contactors) is strictly controlled, often to ≤ 5 mΩ or 80 ± 20 mΩ, depending on the target standard. (c) Current Capacity: Systems are rated from 1,000A for consumer cells to 24kA for heavy-duty EV battery packs.

References:

X. Kong, et al., Fault diagnosis and quantitative analysis of micro-short circuits for lithium-ion batteries in battery packs, Journal of Power Sources, 2018, 395, 358-368.

R. Zhao, et al., Simulation and experimental study on lithium ion battery short circuit, Applied Energy, 2016, 173, 29-39.
