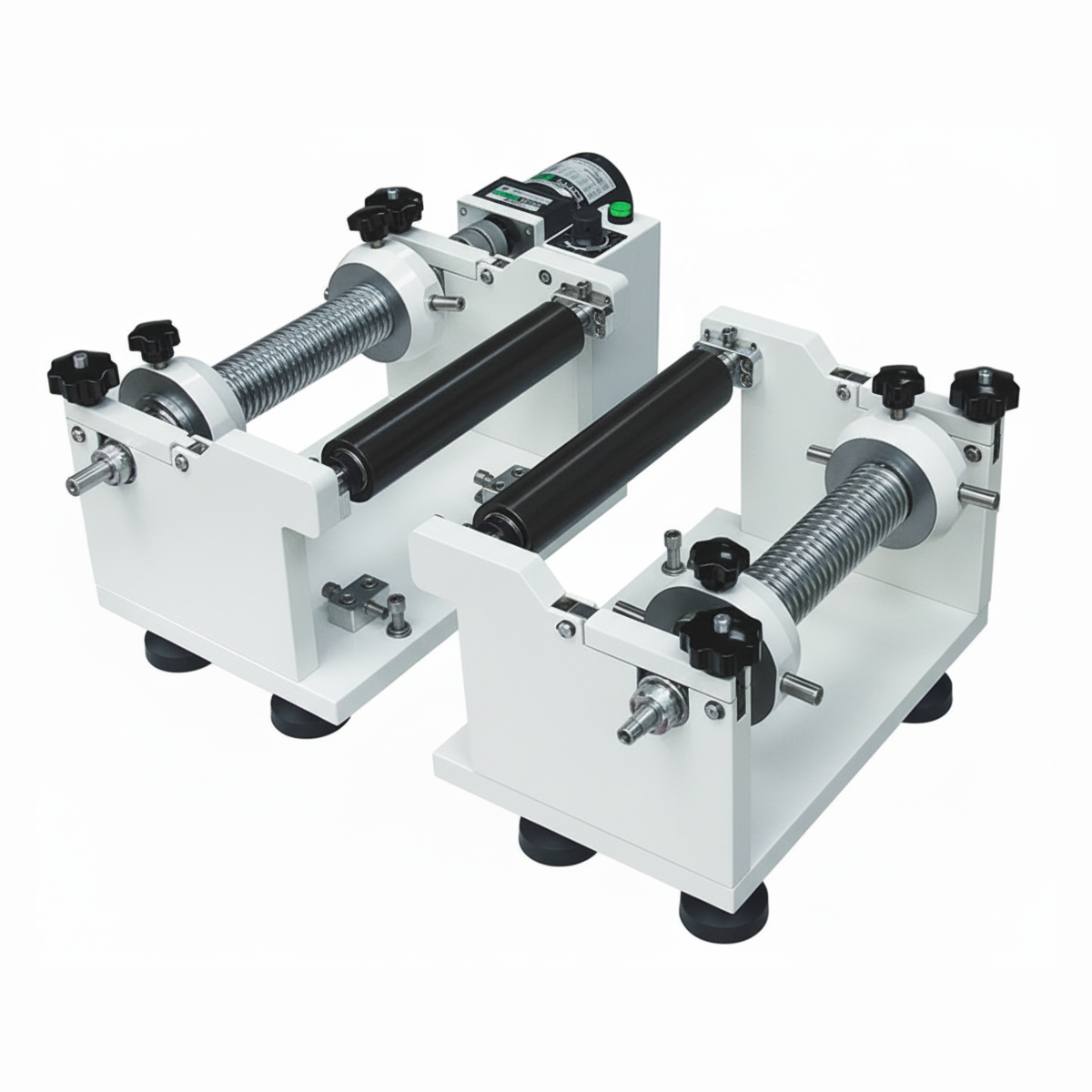

ECS-SS Roll-to-Roll Unit (W=150 mm) for Rolling Press, ESSARPR2R
  • ECS-SS Roll-to-Roll Unit (W=150 mm) for Rolling Press, ESSARPR2R
  • ECS-SS Roll-to-Roll Unit (W=150 mm) for Rolling Press, ESSARPR2R
ECS-SS Roll-to-Roll Unit (W=150 mm) for Rolling Press, ESSARPR2R

ECS-SS Roll-to-Roll Unit (W=150 mm) for Rolling Press, ESSARPR2R

$3,299.00 USD
In Stock SKU: ESSARPR2R
Use your own shipping account?

We support FedEx, UPS, and DHL third-party billing for institutional customers.

Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.

Review third-party shipping terms →

A Roll-to-Roll (R2R) Handling Unit is mainly designed to manage the tension and alignment of your foil as it passes through the high-pressure nip of the rollers.

Part Number
  • ESSARPR2R (ESS-A-RPR2R)
Power
  • AC220V±10%, single phase, 50/60Hz, ~100 W
Roller Features
  • Roller Width: 150 mm
  • Roller Diameter: 3"
Tension
  • Max. 20 N (tension resolution is ±1 N)
  • Motor is installed at the winding side, while the passive unwinding side is adjusted by knob friction.
Glovebox Compatibility
  • Ar-filled glovebox compatible since a brushless motor is adopted to avoid AC arc generation.
Application Note
  • It is paired with hot rolling press ESSECGCHRP for continuous rolling operation.



Dimension
  • L300 * W300 * H270 mm
Weight
  • 50 kg



References:

H. Zheng, et al., A comprehensive understanding of electrode thickness effects on the electrochemical performances of Li-ion battery cathodes, Electrochimica Acta, 2012, 71, 258-265

Y. Kuang, et al.,Thick Electrode Batteries: Principles, Opportunities, and Challenges, Adv Energy Mater. 2019, 9, 1901457
