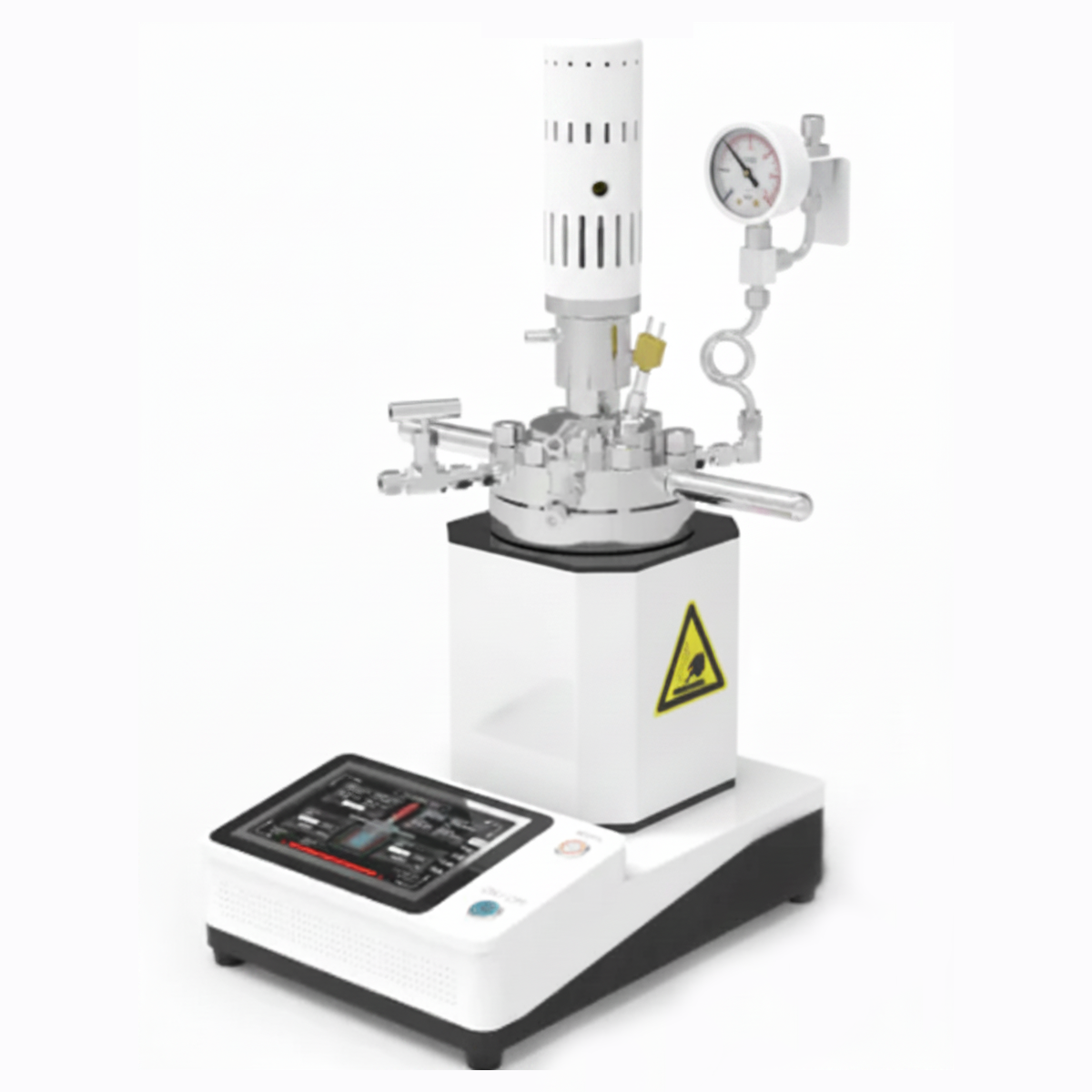

A Mini Batch Reactor (High Pressure, High Temperature) with mechanical shaft stirring is a cornerstone of laboratory synthesis for advanced materials, specifically for hydrothermal and solvothermal processes. The "Mini" designation (typically 25 mL to 500 mL) is ideal for R&D where precursor materials are expensive or only available in small batches.

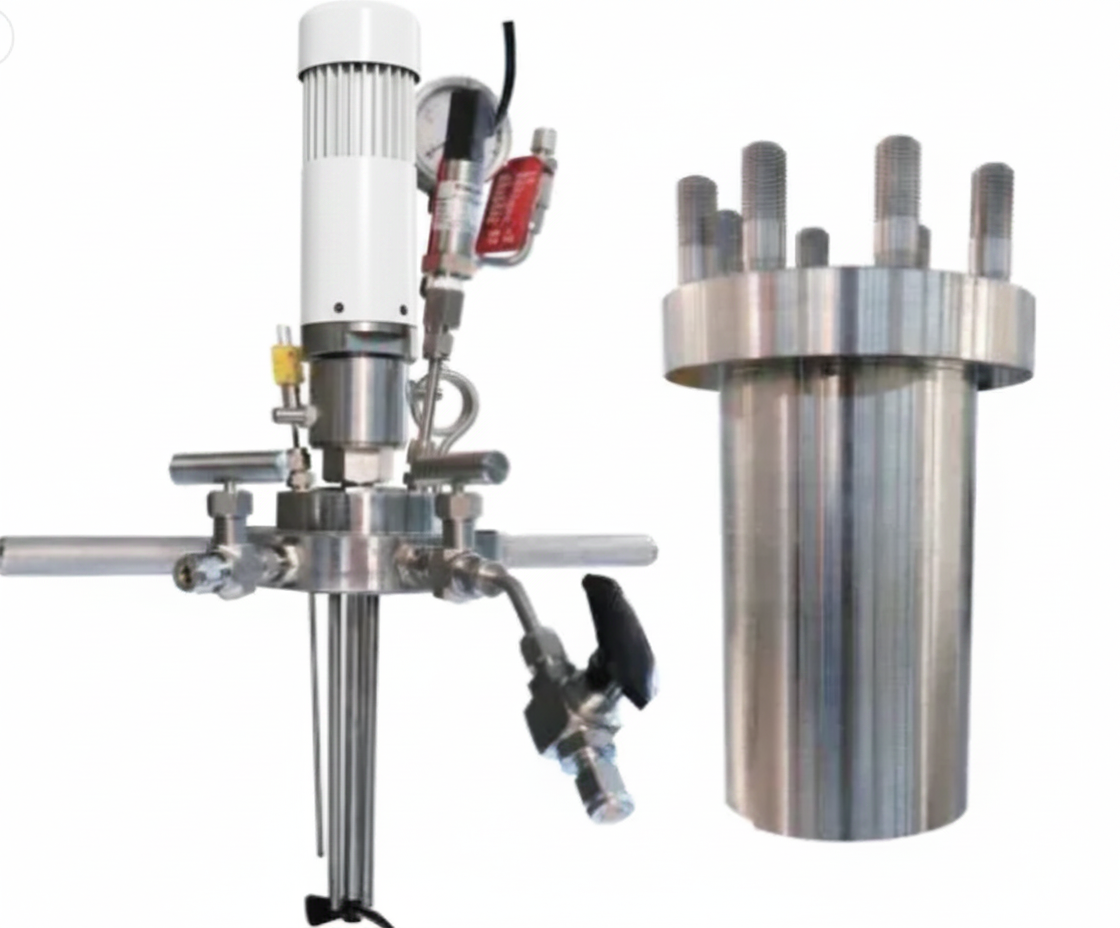

Unlike a standard beaker, these reactors are designed to withstand extreme internal pressures generated by vaporizing solvents (water, ethanol, or specialty organics). (1) Pressure Vessel: Usually forged from Grade 316 Stainless Steel or Hastelloy C-276 for superior corrosion resistance. (2) Liners: To prevent contamination and protect the steel from acidic or basic precursors, a PTFE (Teflon) liner (up to 230 °C) or a PPL (Polyphenylene) liner (up to 280 °C) is used. (3) Sealing: Uses a precision-machined "tongue and groove" or a metal-to-metal gasket seal, often reinforced with a high-torque bolt-down lid.

In liquid-phase synthesis, the reaction rate is often limited by mass transfer. (1) Coupling: A mechanical shaft drive system in the reactor to spin a "flea" (stir bar) or a turbine impeller inside the sealed vessel. (2) Slurry Suspension: For ceramic precursors, high-speed stirring (up to 1500 RPM) ensures that the solid particles stay suspended, preventing them from settling at the bottom and causing non-uniform crystalline growth.

References:

N. Gemo, et al., Mass transfer and kinetics of H2O2 direct synthesis in a batch slurry reactor, Chemical Engineering Journal, 2012, 207, 539-551

S. Yu, et al., Decoupled temperature and pressure hydrothermal synthesis of carbon sub-micron spheres from cellulose, Nature Communications, 2022, 13, 3616.
