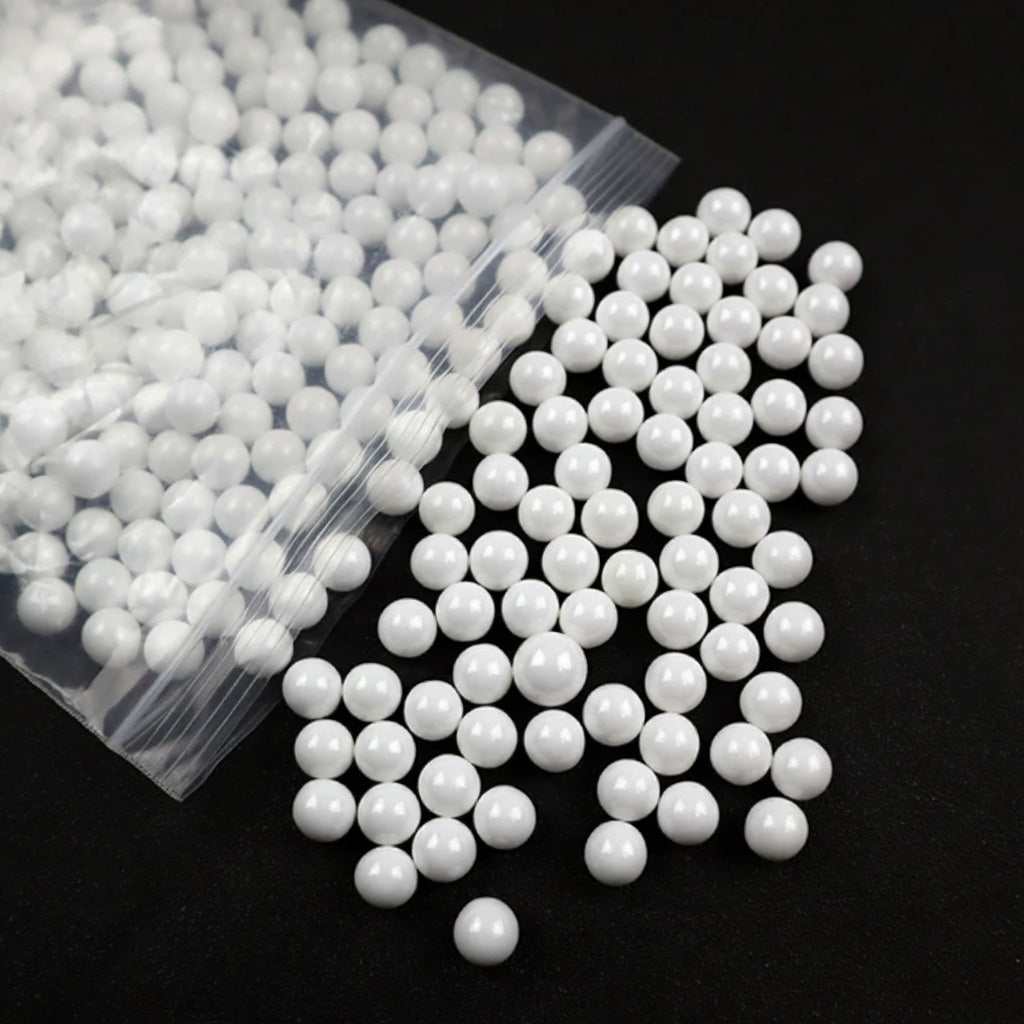

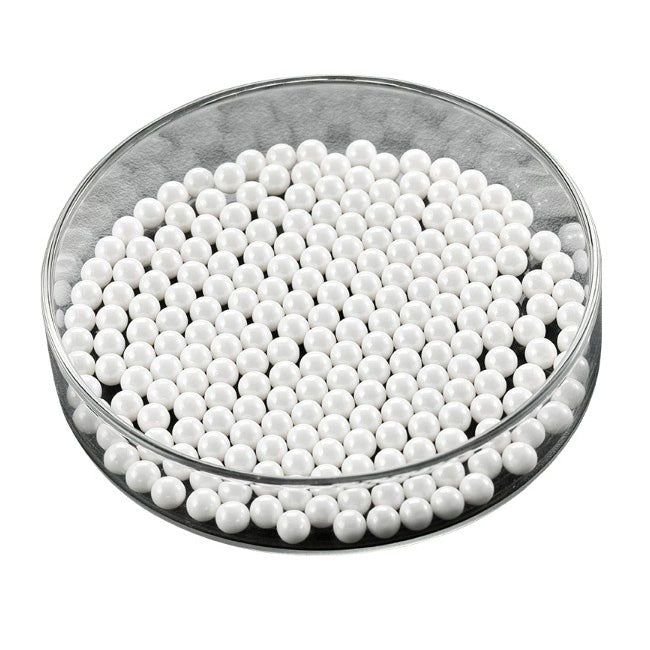

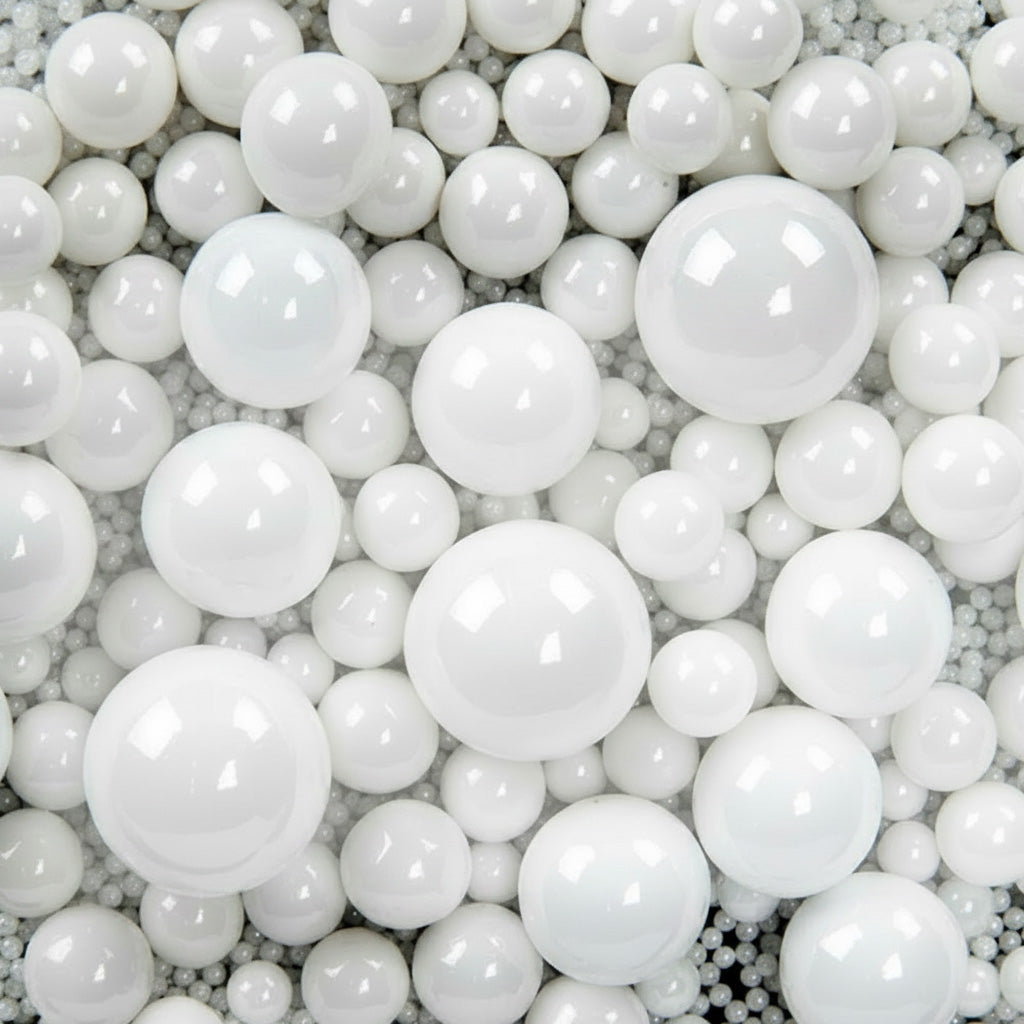

YSZ (95% Tetragonal Phase Purity) Milling Balls (0.1-25 mm), 1 kg/bag, MBYSZ

YSZ (95%) Milling Balls—chemically composed of approximately 95 wt% Zirconium Dioxide (ZrO2, including a natural fraction of HfO2) and stabilized with ~5 wt% Yttrium Oxide (Y2O3, equivalent to 3 mol%)—represent the absolute premier class of high-density ceramic grinding media for high-energy planetary ball milling, attritor mills, and vertical/horizontal bead mills.

The defining engineering feature of 95% YSZ is its exceptional resistance to cracking, driven by a phenomenon known as stress-induced transformation toughening. The 5 wt% yttria stabilizer locks the zirconia grains into a metastable tetragonal crystal phase at room temperature. When a high-energy impact creates a microscopic stress crack inside a milling ball, the localized stress triggers a phase transition from the tetragonal structure to a larger monoclinic structure. This crystal transformation causes a localized volumetric expansion of roughly 3–4%. The expanding crystal structure aggressively squeezes the crack shut, halting crack propagation in its tracks. This gives YSZ a fracture toughness unmatched by any other advanced structural ceramic.

References:

J. Zhang, et al., Crystal defects and phase transitions of nanocrystalline yttria-stabilised zirconia induced by high-energy ball milling, Ceramics International, 2021,47, 16432-16440

M. Bumrungpon, et al., Synthesis and thermoelectric properties of bismuth antimony telluride thermoelectric materials fabricated at various ball-milling speeds with yttria-stabilized zirconia ceramic vessel and balls, Ceramics International, 2020, 46, 13869-13876
