Chemical Vapor Deposition (CVD)

Chemical vapor deposition (CVD) builds conformal, high-purity films and powders by reacting volatile precursors at a heated substrate — the workhorse route for graphene, carbon nanotubes, transition-metal dichalcogenides, silicon-carbon composites, and protective coatings on battery and fuel-cell components. This collection brings together the tube furnaces, gas-handling hardware, and reactor accessories researchers reach for when moving a recipe from literature into a reproducible bench-scale or pilot run.

CVD work in electrochemistry labs typically falls into three buckets, and the equipment here is organized around them:

• Carbon coatings on active materials. Thin pyrolytic carbon shells on LFP, silicon, and silicon-oxide anodes are routinely deposited by thermal CVD from hydrocarbon precursors (acetylene, methane, ethylene). These improve electronic percolation and buffer volume change without the binder-load penalty of ex-situ carbon mixing.
• 2D and 1D nanomaterial growth. Graphene on copper or nickel foils, MoS2 / WS2 monolayers, and aligned carbon-nanotube forests are grown in horizontal tube reactors with controlled carrier-gas flow (Ar / H2) and metal-catalyst preparation upstream of the hot zone.
• Functional and protective films. SiOx, TiN, AlN, and metal-oxide overlayers are deposited on current collectors, separators, and bipolar plates to tune wetting, suppress side reactions, or improve corrosion resistance in fuel cells and electrolyzers.

A working CVD bench combines four things: a heated reactor (most often a single- or multi-zone horizontal tube furnace with a quartz or alumina process tube), a gas-delivery panel with mass-flow control for inert and reactive gases, a precursor source (gas cylinder, bubbler for liquid precursors, or solid-source boat), and a downstream exhaust train that captures unreacted feed and byproducts safely. Substrate temperature uniformity, partial-pressure control, and clean gas paths are the variables that decide whether a recipe transfers from one lab to another.

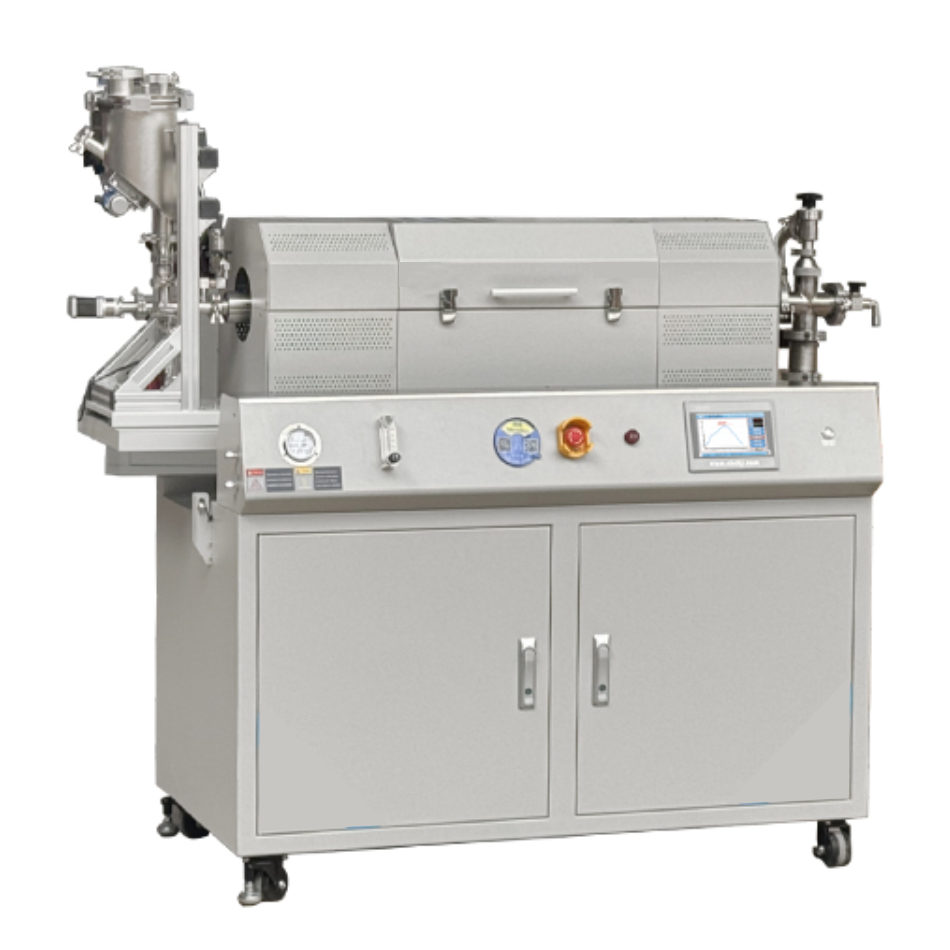

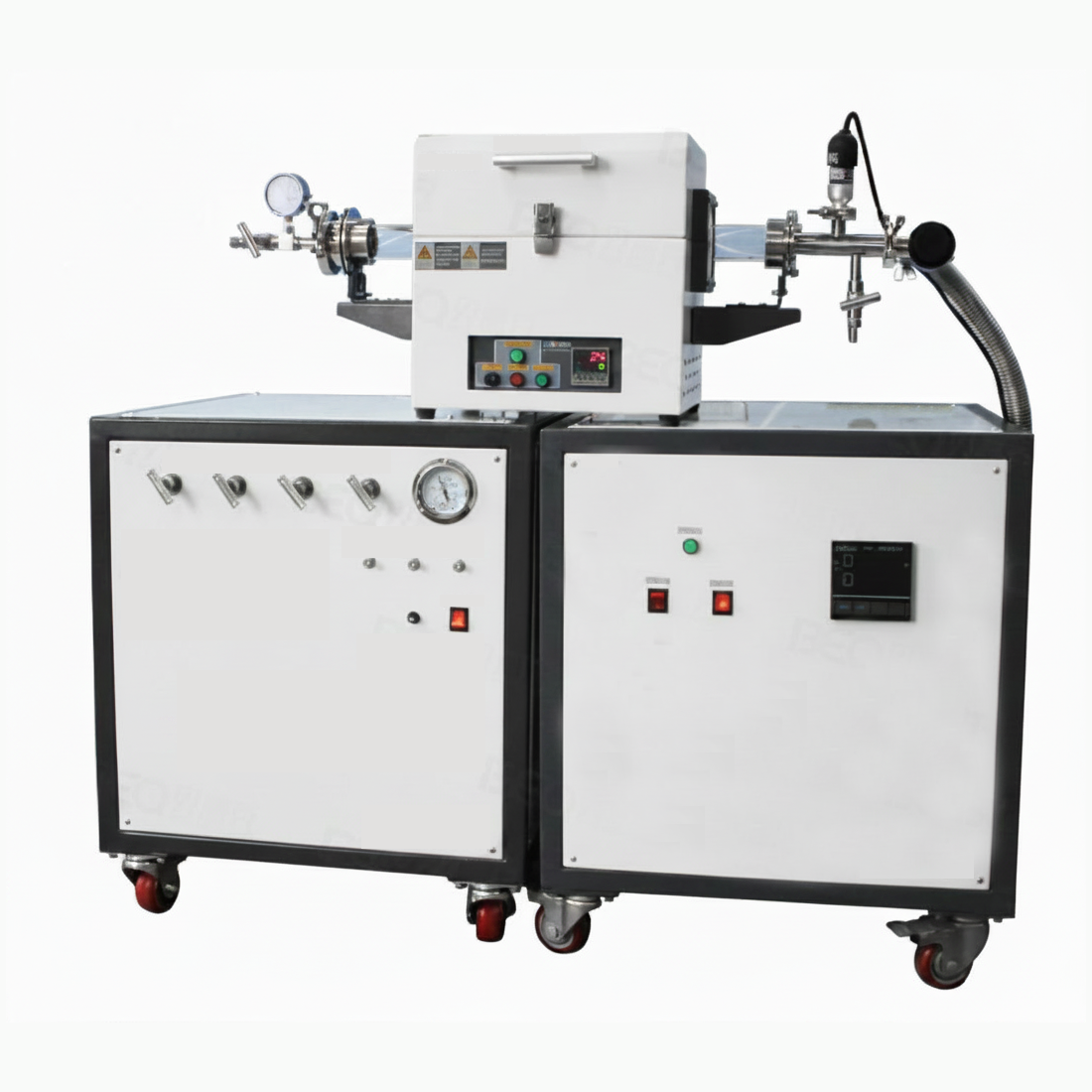

If you are coating active-material powders, look at rotary or fluidized-bed tube furnace configurations so the bed turns over during deposition. For 2D-material growth on planar substrates, single-zone or multi-zone horizontal tubes with precise ramp control are the standard. For higher-throughput or pilot-scale runs, see the broader Synthesis Equipment and Vapor-Phase Synthesis sections.
