A Roll-to-Roll (R2R) CVD Furnace is the industrial gateway to mass-producing 2D materials like Graphene, Hexagonal Boron Nitride (h-BN), and Transition Metal Dichalcogenides (TMDs). Unlike batch furnaces, R2R systems continuously move a flexible substrate—typically copper or nickel foil—through a multi-zone heating chamber, allowing for the synthesis of 2D materials at meters-per-minute scales.

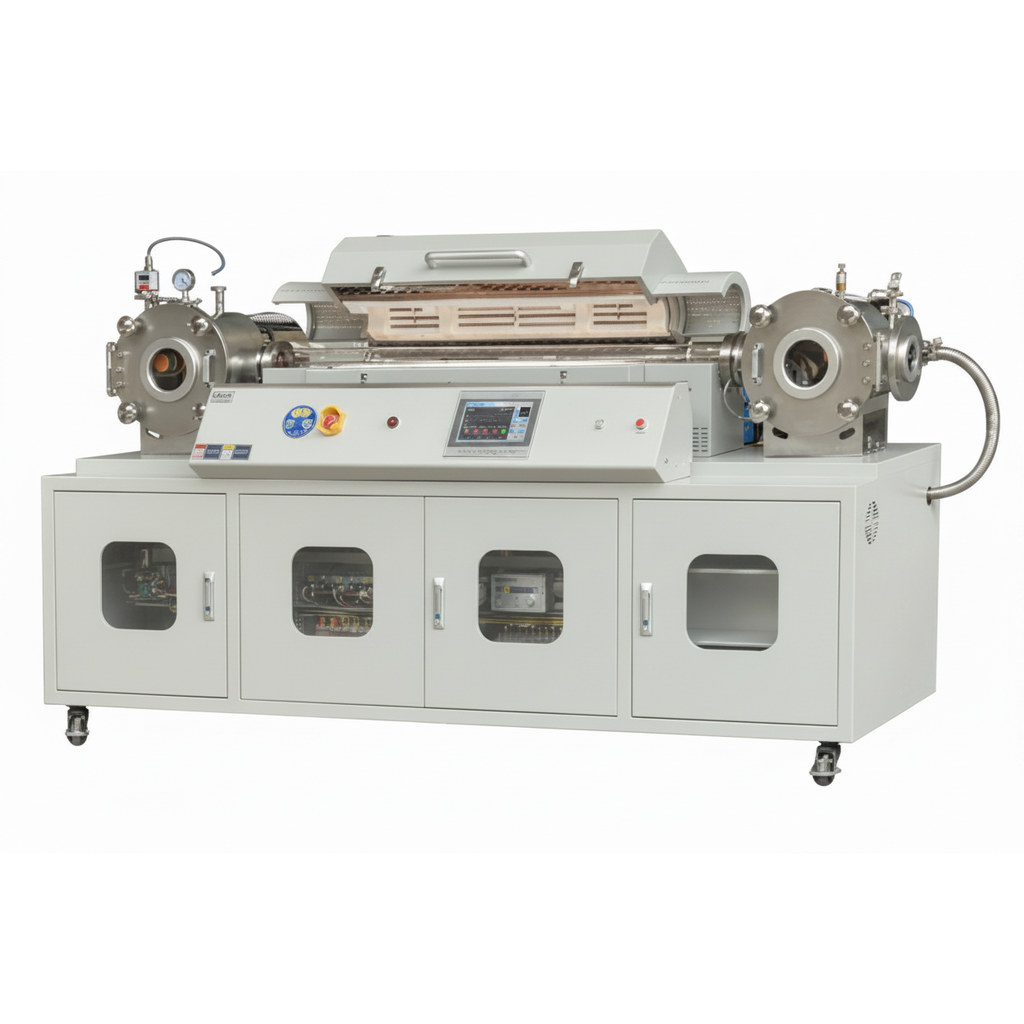

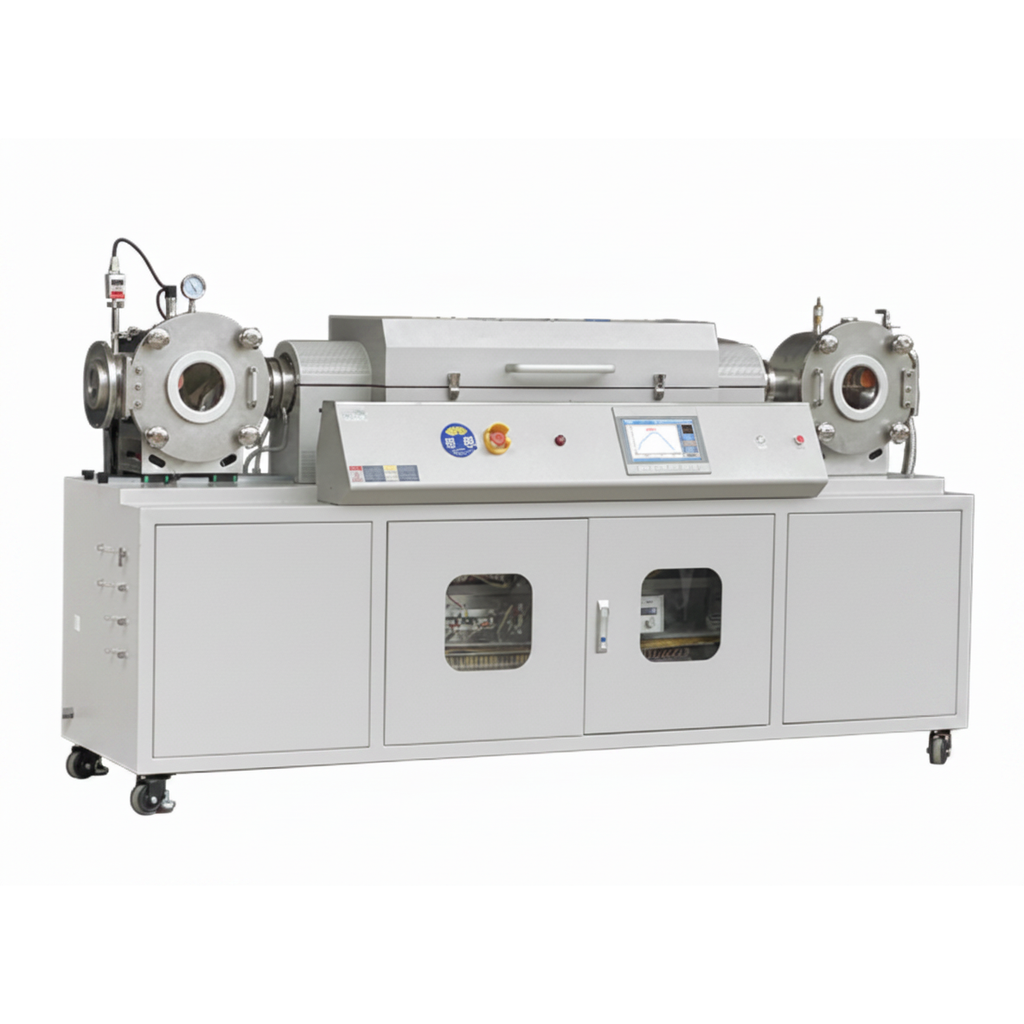

A professional R2R CVD platform consists of three integrated modules: (1) Unwinding Chamber: Holds the source roll (e.g., 25 um Copper foil). It features tension control to prevent the thin foil from wrinkling or tearing during high-temperature processing. (2) Multi-Zone Reaction Furnace: A long horizontal tube with multiple independent heating zones (1000℃ to 1200℃). This allows for a precise thermal profile: (a) Zone 1: Annealing/Pre-treatment (cleaning the foil surface). (b) Zone 2: Growth (introducing precursors like CH4 for graphene). (c) Zone 3: Controlled Cooling (crucial for maintaining crystal orientation). (3) Rewinding Chamber: Collects the finished material. In 2026 systems, this chamber is often vacuum-sealed or Ar-backfilled to prevent the freshly grown 2D layer from oxidizing.

References:

V. D. Santo, et al., Tailored supported metal nanoparticles by CVD: an easy and efficient scale-up by a rotary bed OMCVD device, J. Mater. Chem., 2009,19, 9030-9037.

S. Tu, et al., Parametric investigation of in-situ synthesis of carbon nanotubes on Al2O3 powder by the rotary chemical vapor deposition method, Ceramics International, 2022, 48, 28258-28267
