Dry mixers replace the slurry-and-NMP step in dry battery electrode (DBE) processing, turning active material, conductive carbon, and PTFE binder into a fibrillated dry powder ready for calendering into a free-standing film. The unit operations on this page are sized for laboratory and pilot-scale electrode development, where the goal is to dial in shear energy, residence time, and temperature control before scaling to a roll-to-roll line.
Dry mixing for DBE is fundamentally different from wet slurry mixing. It is not just blending — it is a controlled mechanical process that stretches PTFE particles into a microscopic 3D fibril network that holds NMC, LFP, or graphite particles together without solvent. Too little shear and the binder never fibrillates; too much shear or too much heat and the fibrils break, the binder smears, or the active material degrades. The mixer geometry, impeller speed, and cooling capacity together set the process window.
What you will find here
-

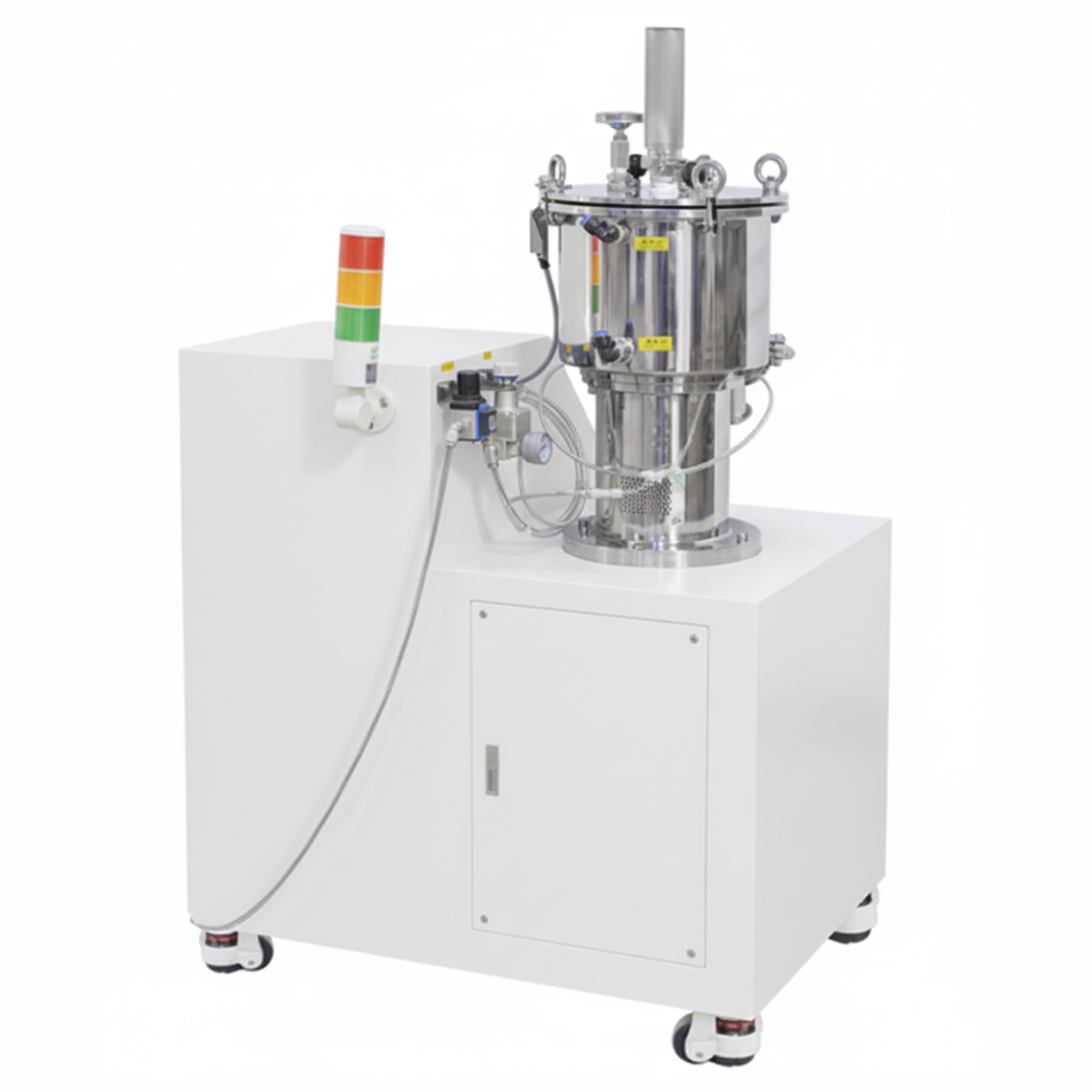

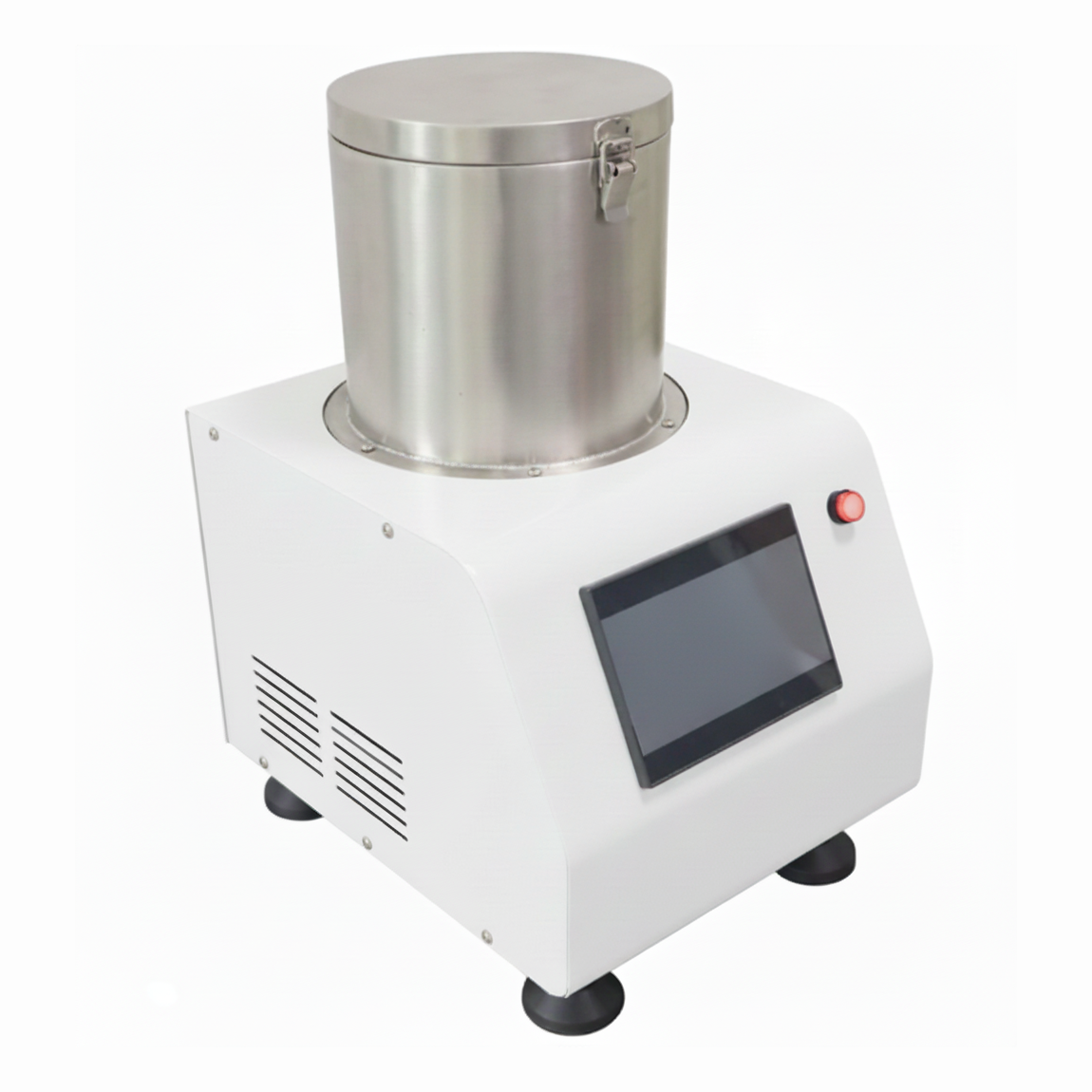

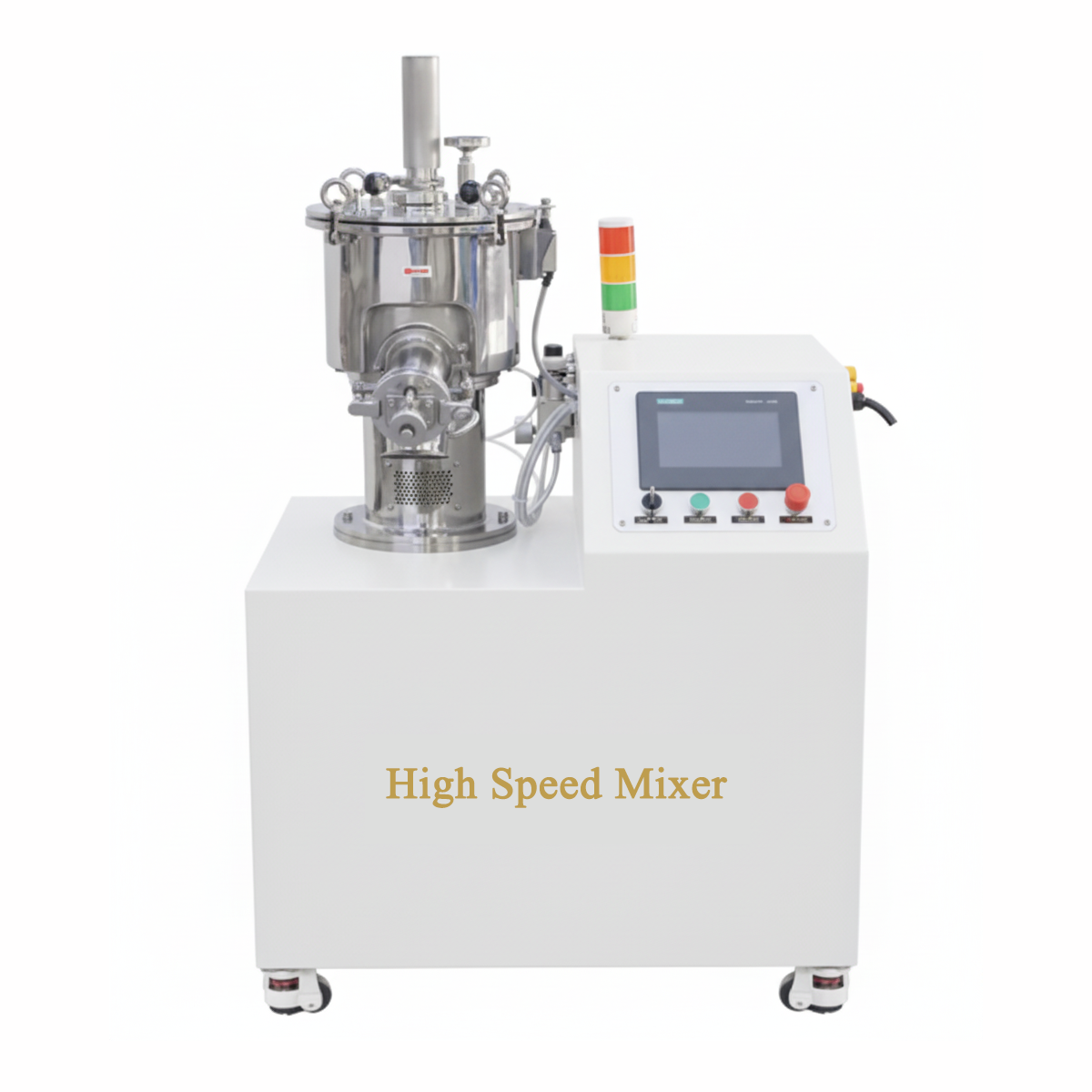

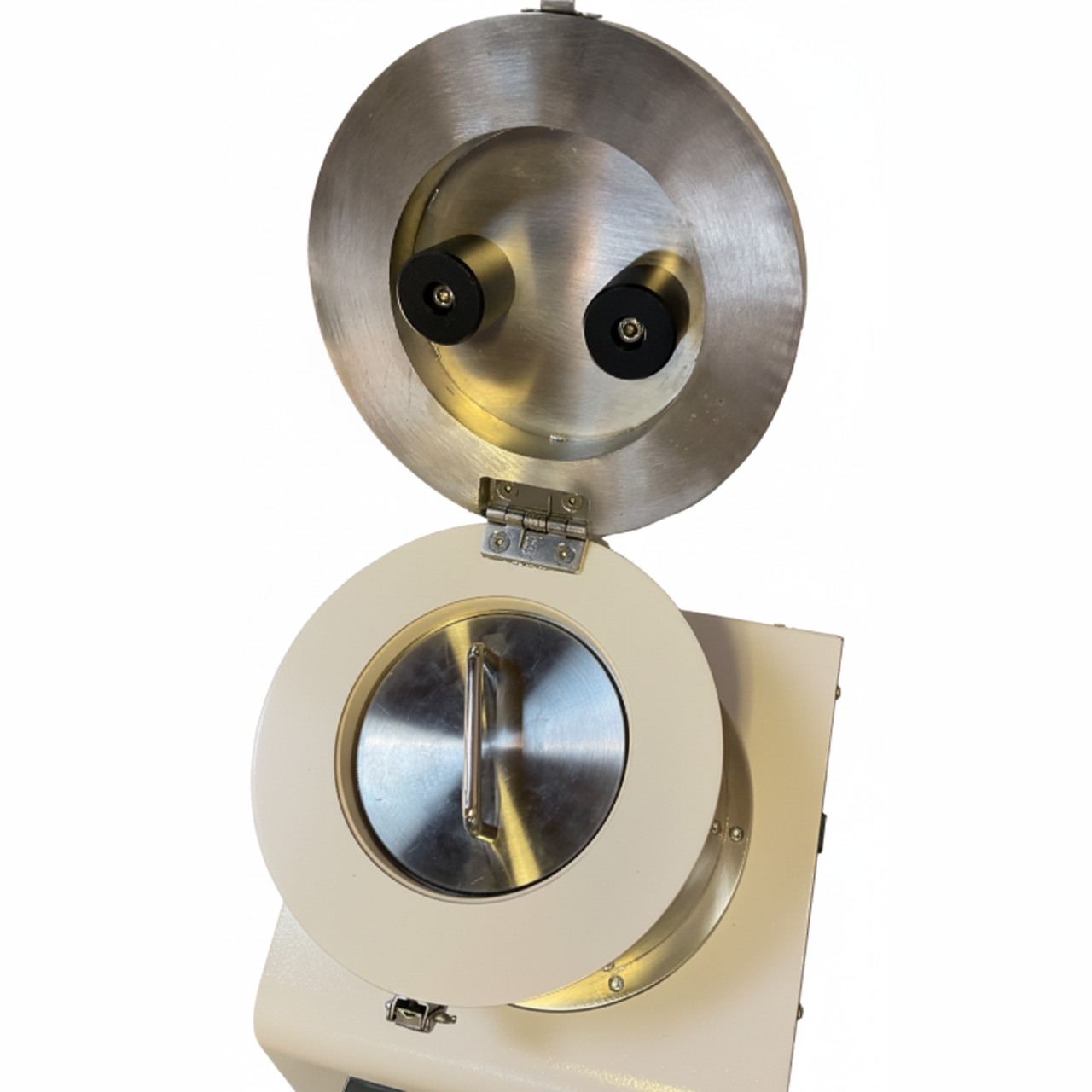

High-speed dry mixers with cooling jackets — high-shear impeller designs (typical operating range in the thousands of rpm) with water-cooled chambers, intended for PTFE fibrillation of NMC, LFP, and graphite-based dry electrode formulations. Available in bench volumes for formulation screening and larger volumes for pilot batches.
-
3D shaker mixers (Turbula-type) — multi-axis rotation, translation, and inversion based on the Schatz geometry. Used upstream of fibrillation for gentle homogenization of dry powder blends (active material plus conductive additive plus binder) without the centrifugal segregation seen in planetary mills. Suitable when you need a uniform pre-mix but do not yet want to fibrillate the binder.
When selecting a dry mixer, the main variables to match against your protocol are working volume, maximum impeller tip speed, jacket cooling capacity, and whether the chamber can be sealed or purged for moisture-sensitive chemistries. High-speed mixers do the fibrillation work; 3D shakers do the pre-blend.
If you are building a full DBE workflow, pair a mixer from this page with downstream calendering and lamination equipment under Dry Electrode Fabrication. For solvent-based slurry preparation instead, see planetary and wet mixers under Mixers and Mills. For the active materials that go into a DBE formulation, browse Cathode Materials and Anode Materials.
