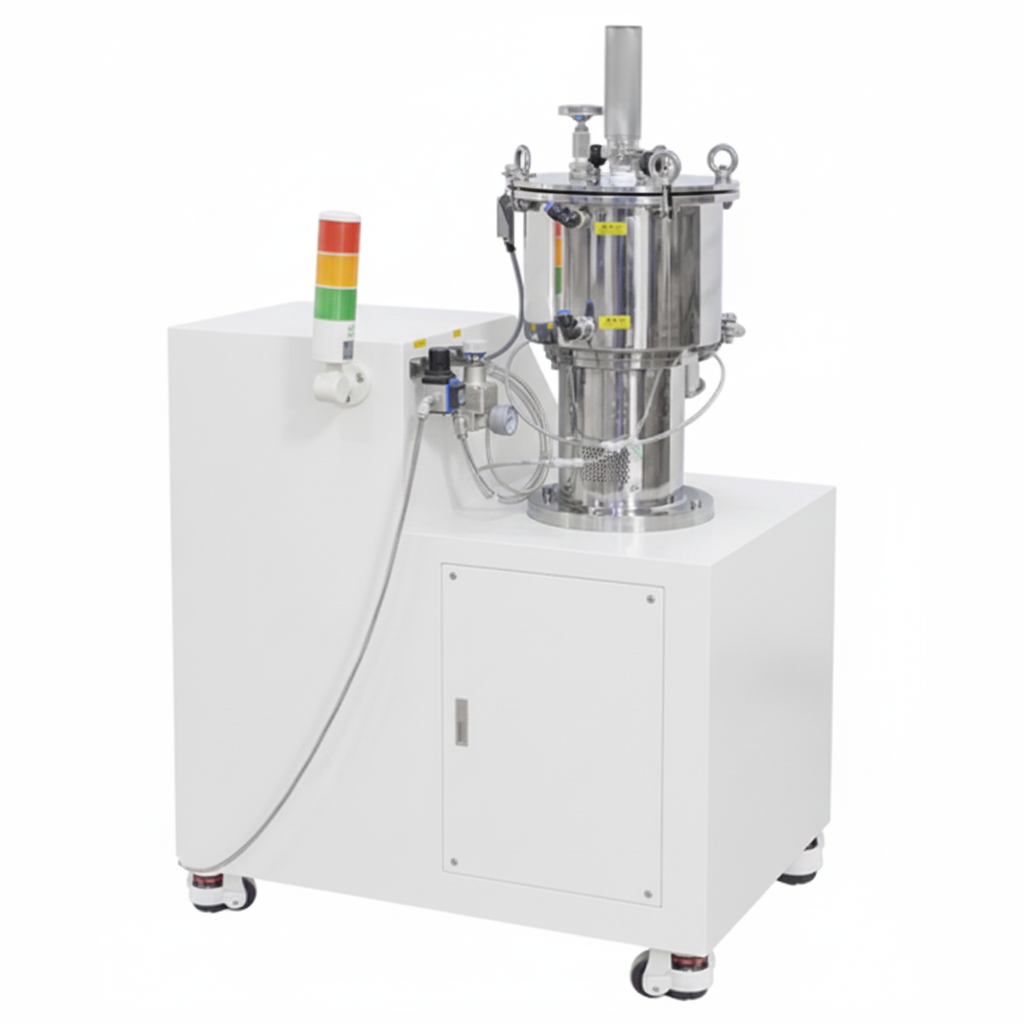

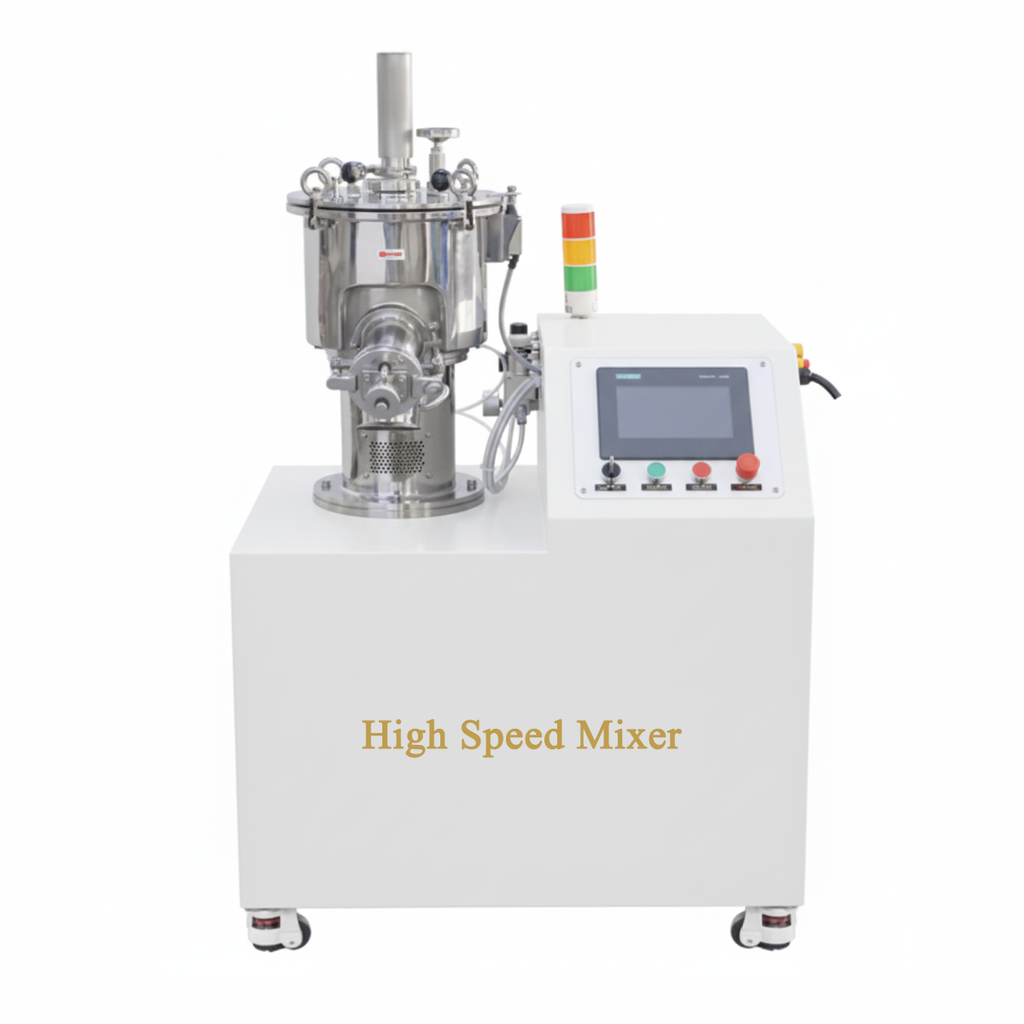

ECS-SL High-Speed Dry Mixer (Max. 6000 rpm, 5 L) with Water Cooling Jacket for Dry Battery Electrode- ESLDBEHSDM
  • ECS-SL High-Speed Dry Mixer (Max. 6000 rpm, 5 L) with Water Cooling Jacket for Dry Battery Electrode- ESLDBEHSDM
  • ECS-SL High-Speed Dry Mixer (Max. 6000 rpm, 5 L) with Water Cooling Jacket for Dry Battery Electrode- ESLDBEHSDM
ECS-SL High-Speed Dry Mixer (Max. 6000 rpm, 5 L) with Water Cooling Jacket for Dry Battery Electrode- ESLDBEHSDM

ECS-SL High-Speed Dry Mixer (Max. 6000 rpm, 5 L) with Water Cooling Jacket for Dry Battery Electrode- ESLDBEHSDM

In Stock SKU: ESLDBEHSDM
Use your own shipping account?

We support FedEx, UPS, and DHL third-party billing for institutional customers.

Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.

Review third-party shipping terms →

For Dry Battery Electrode (DBE) technology, the High-Speed Dry Mixer replaces the traditional NMP-based planetary mixer. Its primary function is no longer just "blending" but "Fibrillation"—the mechanical process of stretching PTFE (Polytetrafluoroethylene) binder particles into a microscopic 3D web that binds the active material together.

Dry electrode mixing relies on high-shear collision. (1) Dry Powder Loading: Active material (NMC/LFP), conductive carbon (Super P/CNTs), and PTFE binder are loaded as dry powders (typically 5–10% binder). (2) Shear Force: High-speed impellers (running at 3,000 to 10,000 RPM) create intense mechanical shear. (3) PTFE Activation: Under this shear and the heat generated by friction, the spherical PTFE particles undergo a phase transition, "uncoiling" into ultra-fine fibrils.

Part Number
  • ESLDBEHSDM (ESL-DBE-HSDM)
Power
  • AC220V±10%, three-phases, 50/60Hz, 3000 W
Mixing Features
  • Mixing Rotation Speed: Max. 6000 rpm (adjustable), which corresponds the line speed of 56 m/s
  • Mixing Time: 0-30 min (adjustable)
  • For automatic mode, the mixing speed and time can be programmed to set gradient operation.
Mixing Tank Features
  • Mixing Tank Volume: Max. 5 L (tank size: D200mm * H200mm)
  • Two sets of sharp blades are designed in the mixing tank. The powder amount should cover the blade surface to achieve high mixing quality.



  • A water chiller (eg: EADTCWC) with flow rate (≥60 L/min) should be connected with the cooling jacket to maintain10-15 °C for partial fibrillation of PTFE.



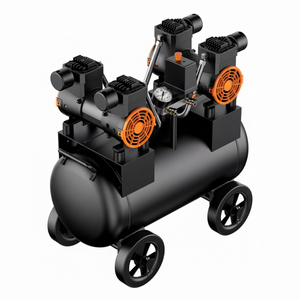

Gas Compressor (Optional)
  • A gas compressor (EUQOFGC) is required to provide a gas pressure of 60-80 psi for pneumatic sealing operation



Certification
  • CE certified
  • UL and CSA certification is available upon request at extra cost
Dimension
  • L800 * W600 * H1250 mm
Weight
  • ~160 kg



References:

A. Yonaga, et al., Effects of dry powder mixing on electrochemical performance of lithium-ion battery electrode using solvent-free dry forming process, J. Power Sources, 2023, 581, 233466

A. Gyulai, et al., Dry Electrode Manufacturing in a Calender: The Role of Powder Premixing for Electrode Quality and Electrochemical Performance, ACS Appl. Energy Mater. 2023, 6, 10, 5122–5134
