Joule heating drives current directly through the sample, turning the workpiece itself into the heating element and reaching temperatures that conventional resistance furnaces cannot touch. By dissipating electrical power inside the powder bed or pellet, this family of equipment delivers ramp rates of thousands of degrees per second, peak temperatures past 3000°C, and dwell times measured in milliseconds — a regime that opens up metastable phases, ultrafast sintering, and high-entropy compositions that decompose under slow conventional heating.
The systems on this page span the full Joule-heating workflow, from millisecond flash discharges to sustained tube-furnace operation. Choose by the synthesis question you are asking:
-

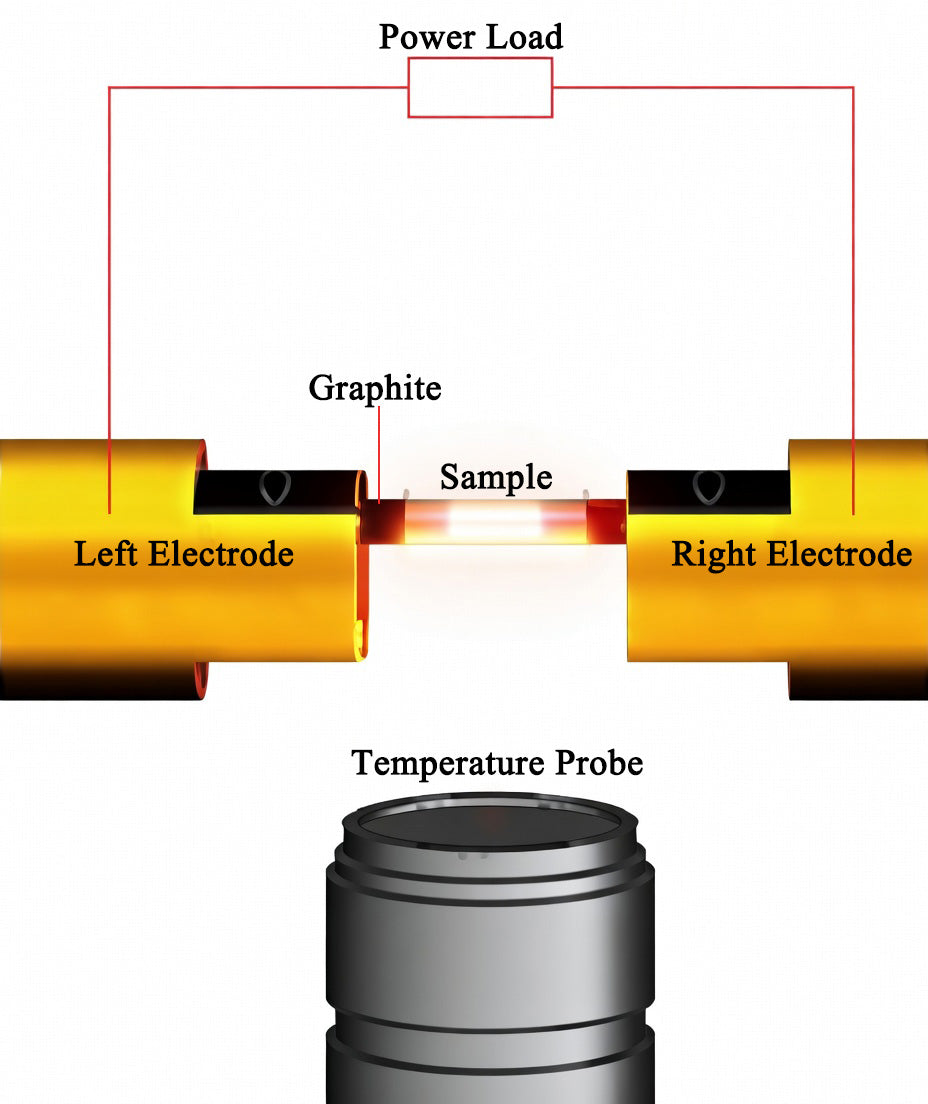

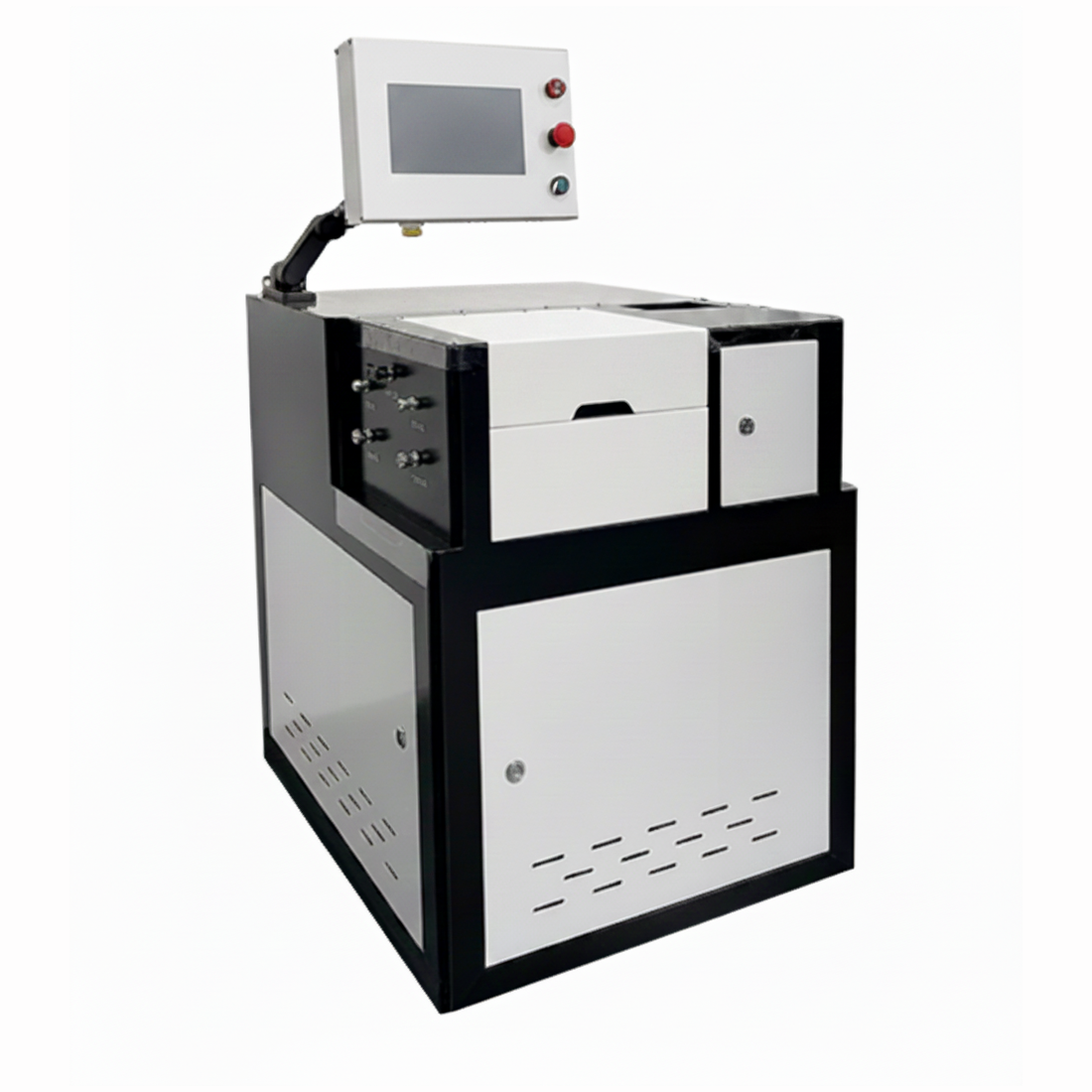

Flash Joule heating (FJH) machines — capacitor-bank discharge through a packed powder column between graphite or tungsten electrodes. Used for turbostratic graphene from carbon feedstocks, high-entropy alloys, and rapid carbothermic reduction.
-

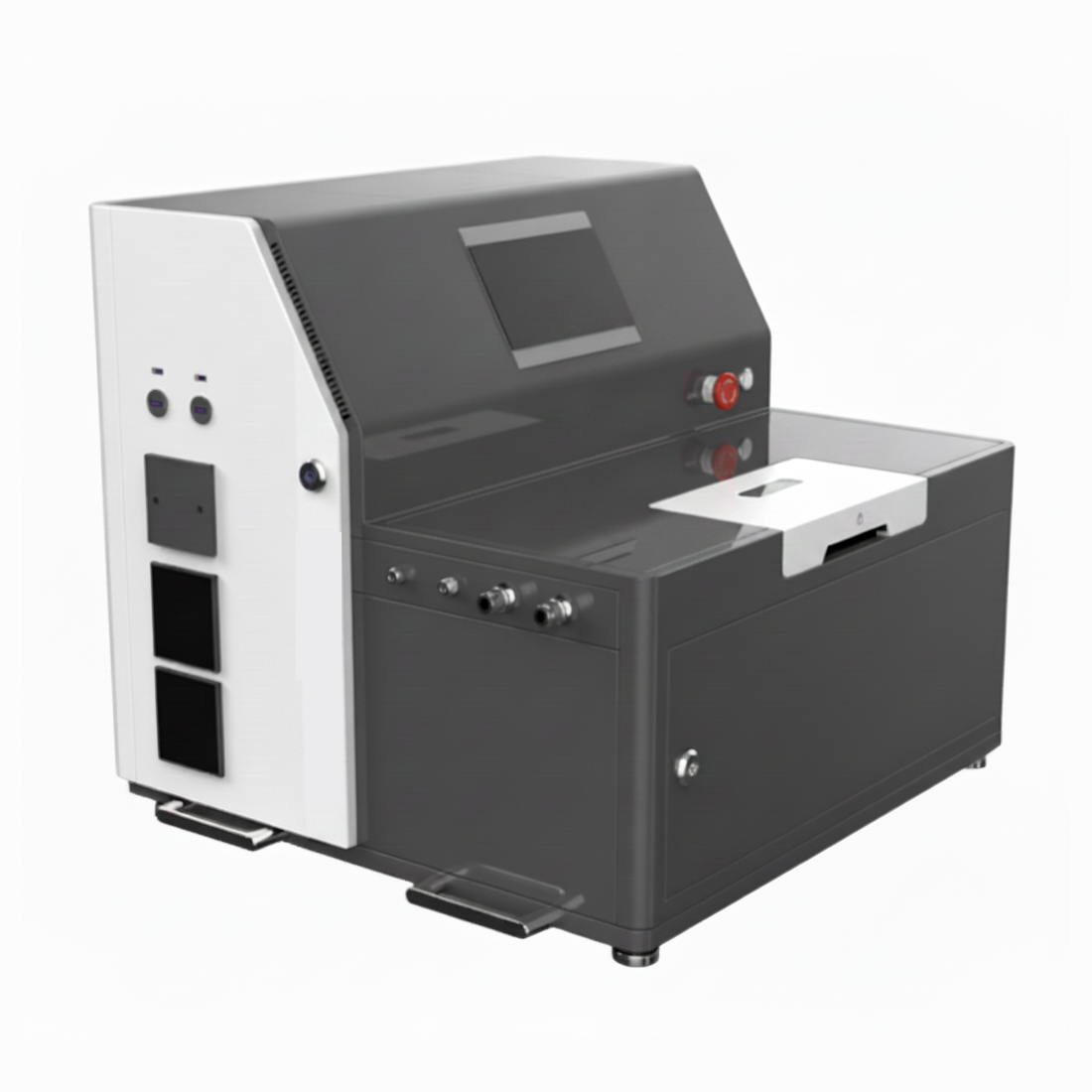

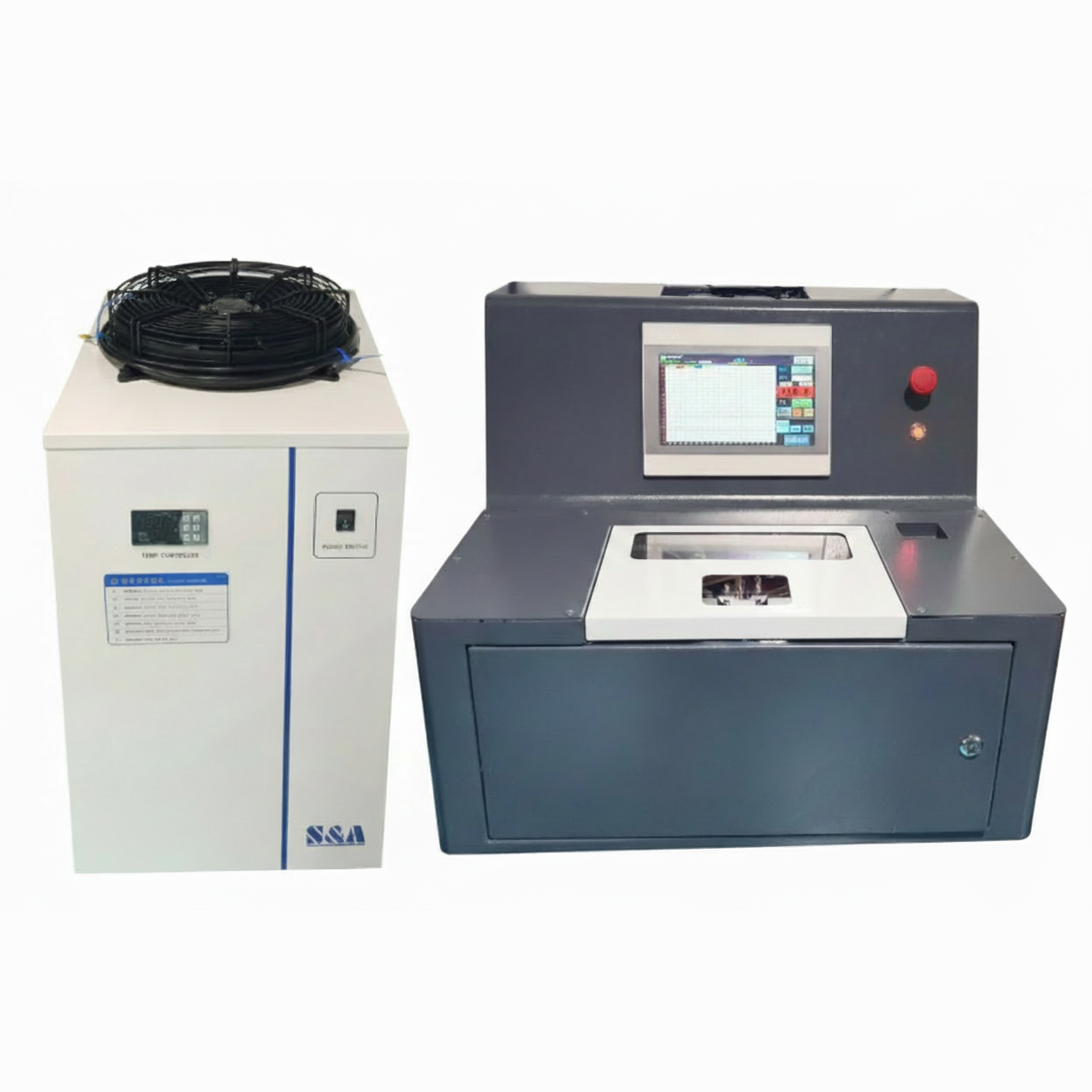

Benchtop FJH platforms — compact units sized for gram-scale screening of synthesis parameters, electrode geometry, and pulse profiles before scale-up.
-

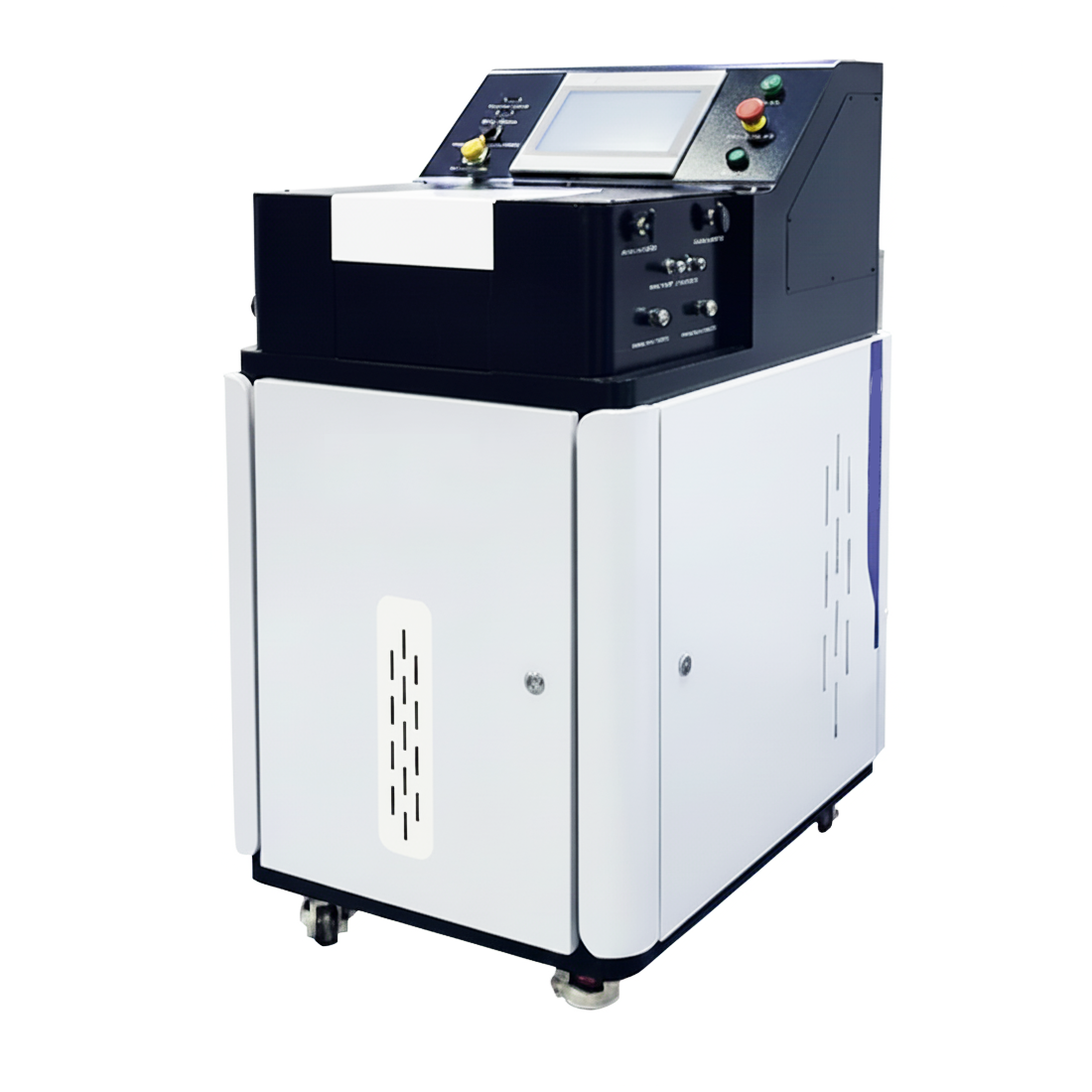

Professional ultrafast machines — higher-energy capacitor banks and reinforced electrode stages for larger sample volumes and tighter pulse-shape control on demanding compositions.
-

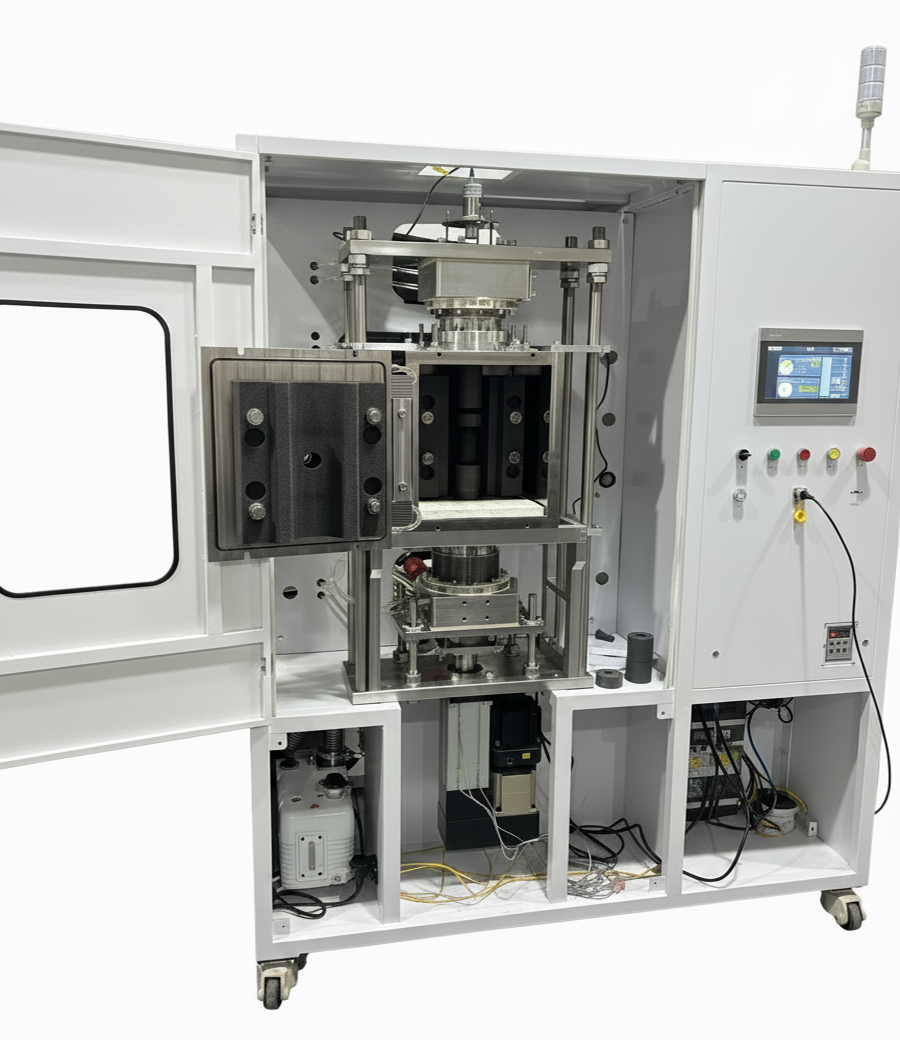

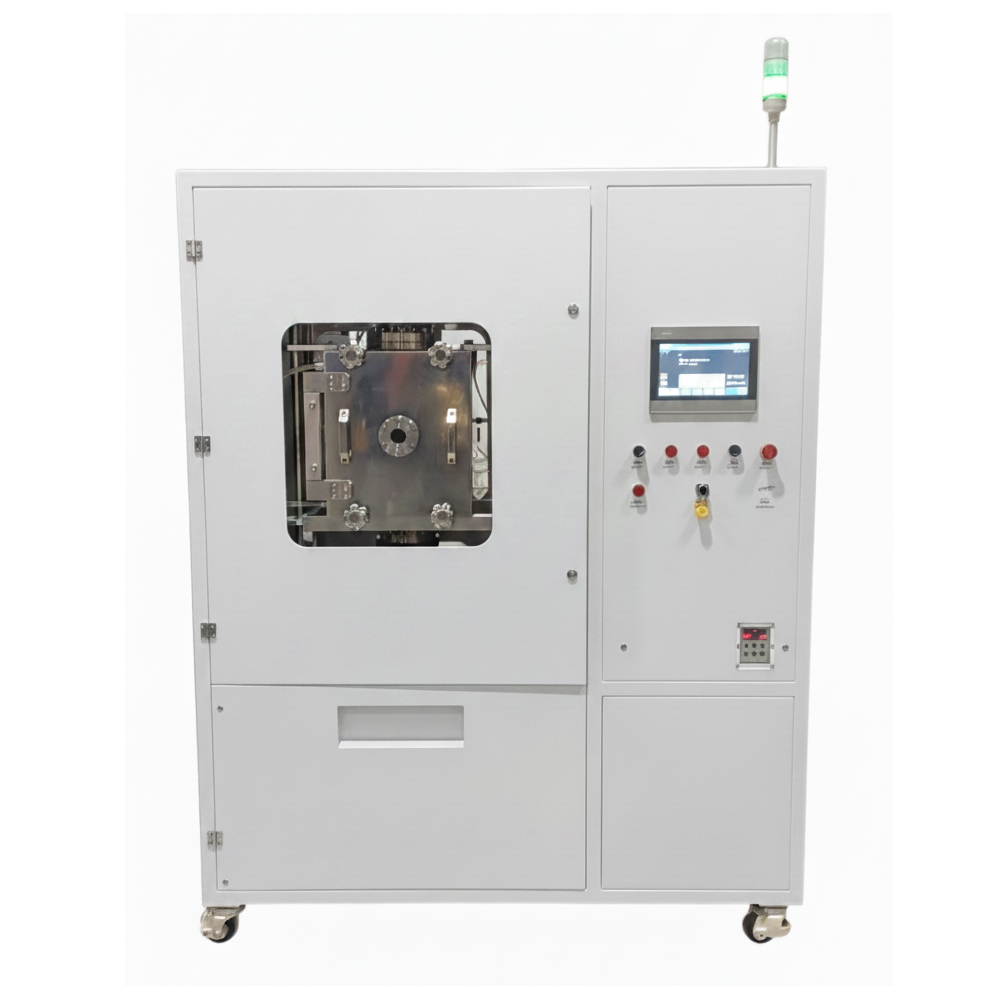

Hot-press Joule heating — uniaxial pressure applied during the discharge, related in principle to flash spark plasma sintering. Pressure closes pores while the pulse softens grain boundaries, producing dense pellets in a single shot.
-

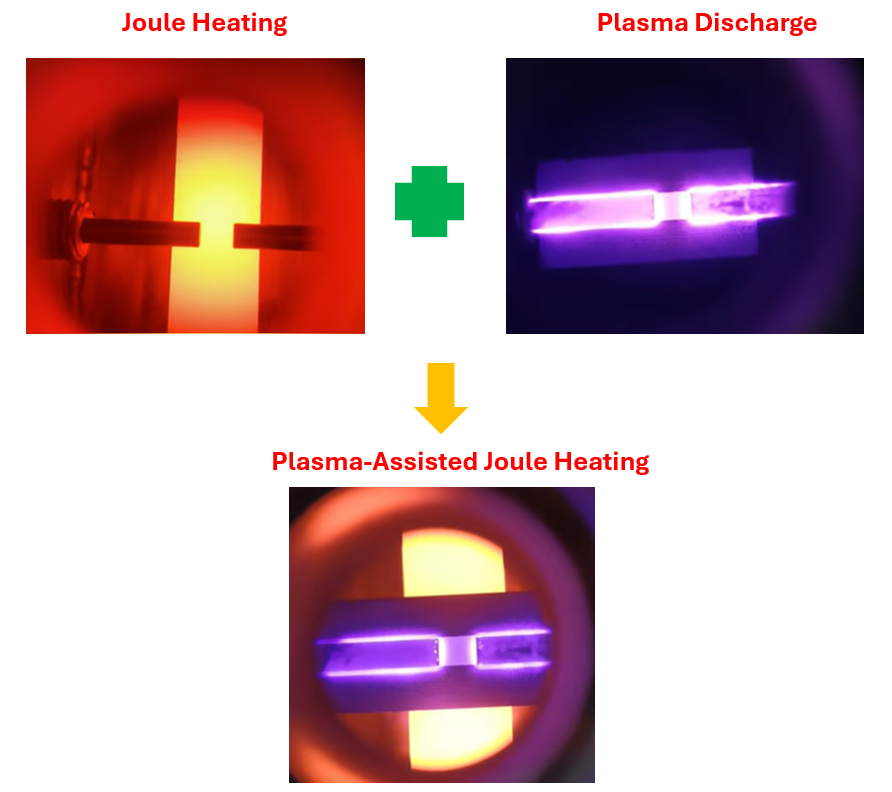

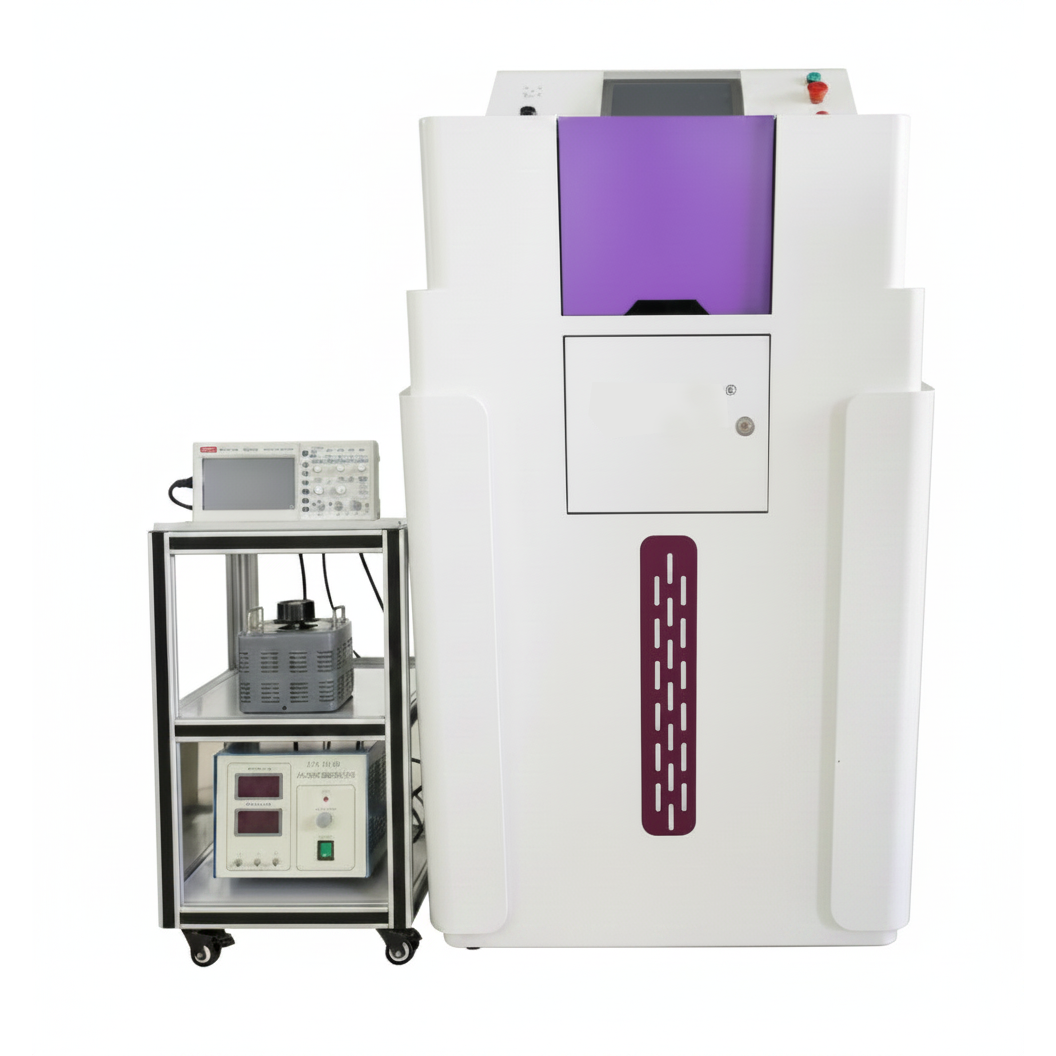

Plasma-coupled Joule heating — Joule discharge augmented by a plasma stage, extending the accessible temperature window and assisting reactions that benefit from activated species at the particle surface.
-

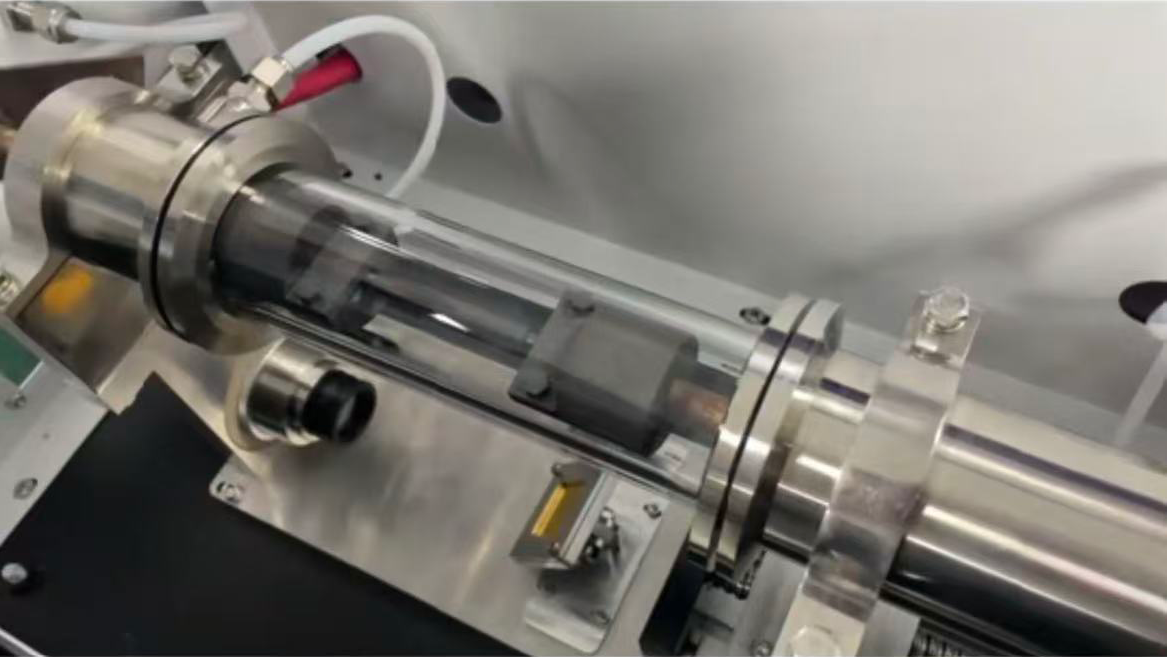

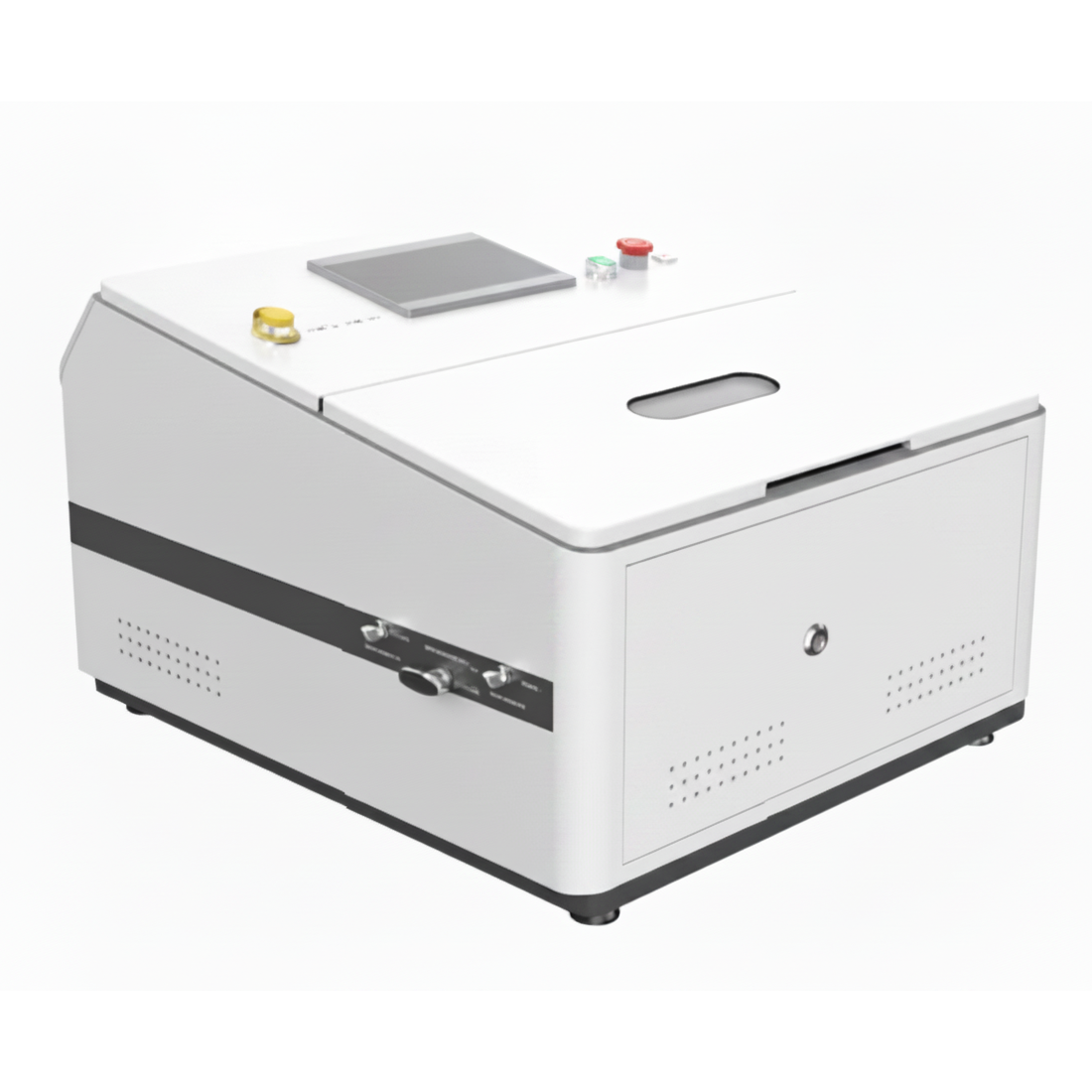

Joule heating tube furnaces — sustained-mode systems where current passes through a graphite susceptor or the sample itself inside a quartz or alumina tube under controlled atmosphere. Bridges the gap between flash pulses and conventional tube-furnace runs.
Across the family, the core hardware is the same: a high-voltage capacitor bank or DC supply, pressure-controlled graphite or tungsten electrodes, a vacuum or inert-atmosphere chamber, and instrumentation for pulse shape, current, and pyrometric temperature readback. The differentiators are pulse energy, mechanical loading, atmosphere control, and whether the system is built for single-shot flash work or sustained dwell.
If you are screening flash synthesis on small batches, start with the benchtop and standard FJH machines. For dense pellets in one step, see the hot-press variant. For longer dwells under controlled atmosphere, the JH tube furnace is the right entry point; for the highest-temperature or plasma-assisted work, see the professional and plasma-coupled platforms. Related equipment lives under Solid-State Synthesis and Synthesis Equipment.
