While the "Flash" Joule Heating machines we discussed are designed for millisecond pulses, a Joule Heating (JH) Tube Furnace is a more sustained thermal system. In these setups, the material itself (or a conductive crucible) acts as the heating element within a controlled atmosphere.

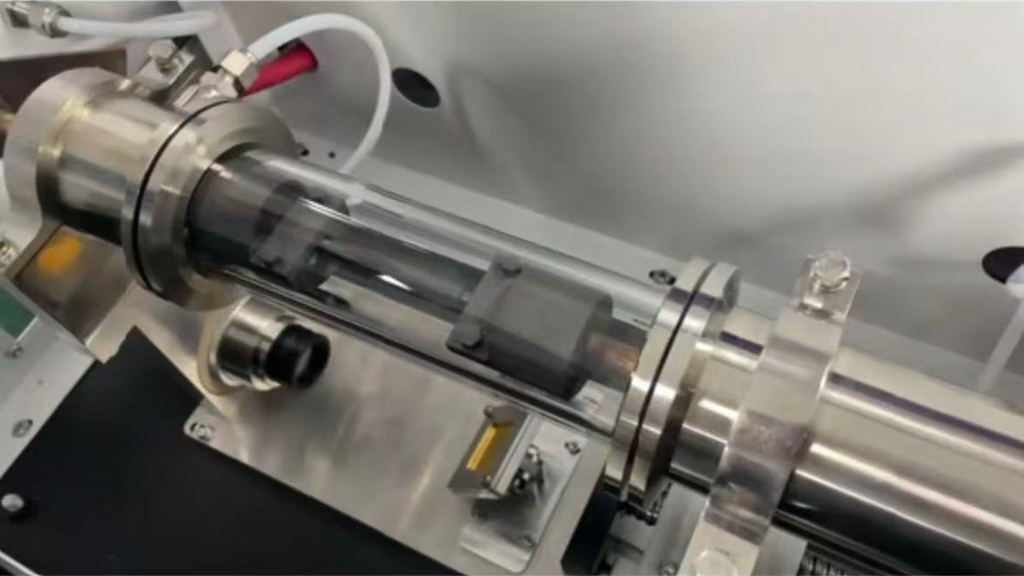

Unlike a standard muffle furnace that uses external Kanthal or MoSi₂ heating elements, a JH Tube Furnace passes current directly through the sample or a specialized graphite sleeve inside a quartz or alumina tube. The core components are (1) Reaction Tube: High-purity quartz (up to 1,200°C) or Alumina (up to 1,800°C). (2) Vacuum Flanges: Water-cooled stainless steel end-caps that house the electrodes. (3) High-Current Power Supply: Typically a low-voltage, high-amperage DC or AC supply (e.g., 10V–100V at 500A+). (4) Thermal Insulation: High-purity fibrous alumina surrounding the reaction zone to maintain efficiency.

References:

H. Wu, et al., Rapid Joule-Heating Synthesis for Manufacturing High-Entropy Oxides as Efficient Electrocatalysts, Nano Lett. 2022, 22, 16, 6492–6500

A. Griffin, et al., Design and Application of Joule Heating Processes for Decarbonized Chemical and Advanced Material Synthesis, Ind. Eng. Chem. Res. 2024, 63, 45, 19398–19417

J. Sheng, et al., Catalytic Joule heating synthesis of one-dimensional nanomaterials in seconds, Nature Synthesis, 2026, 5, 367–376.
