Rolling Presses for Col Wet Electrode Fabrication

Calendering decides the porosity, density, and ionic tortuosity of every wet-cast electrode you make — and the press you choose decides how reproducibly you can hit those targets. This collection covers benchtop and pilot-scale rolling presses sized for wet-electrode workflows where slurry-coated foils need controlled densification, lamination, or both before cell assembly.

The presses here split into three control philosophies and two thermal regimes:

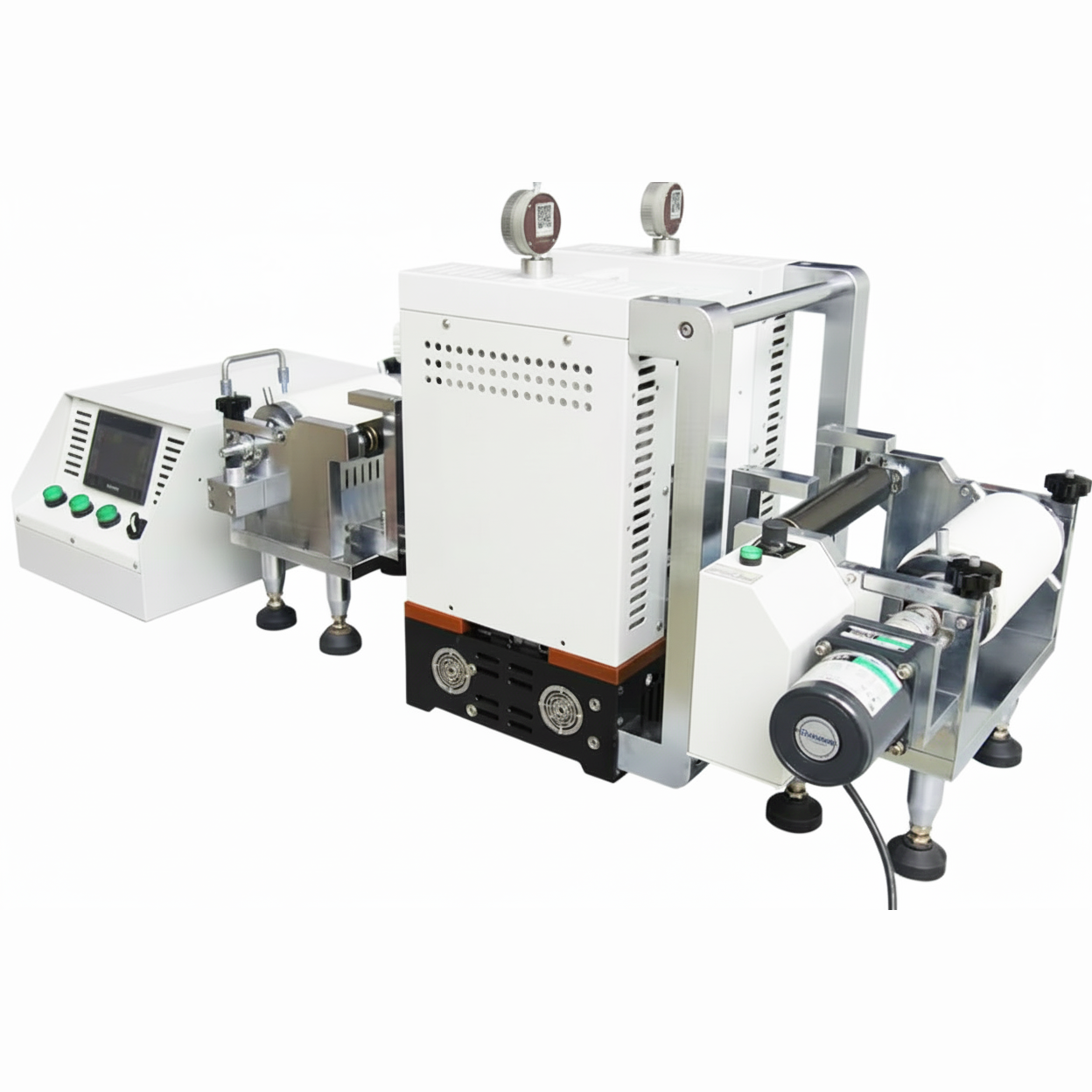

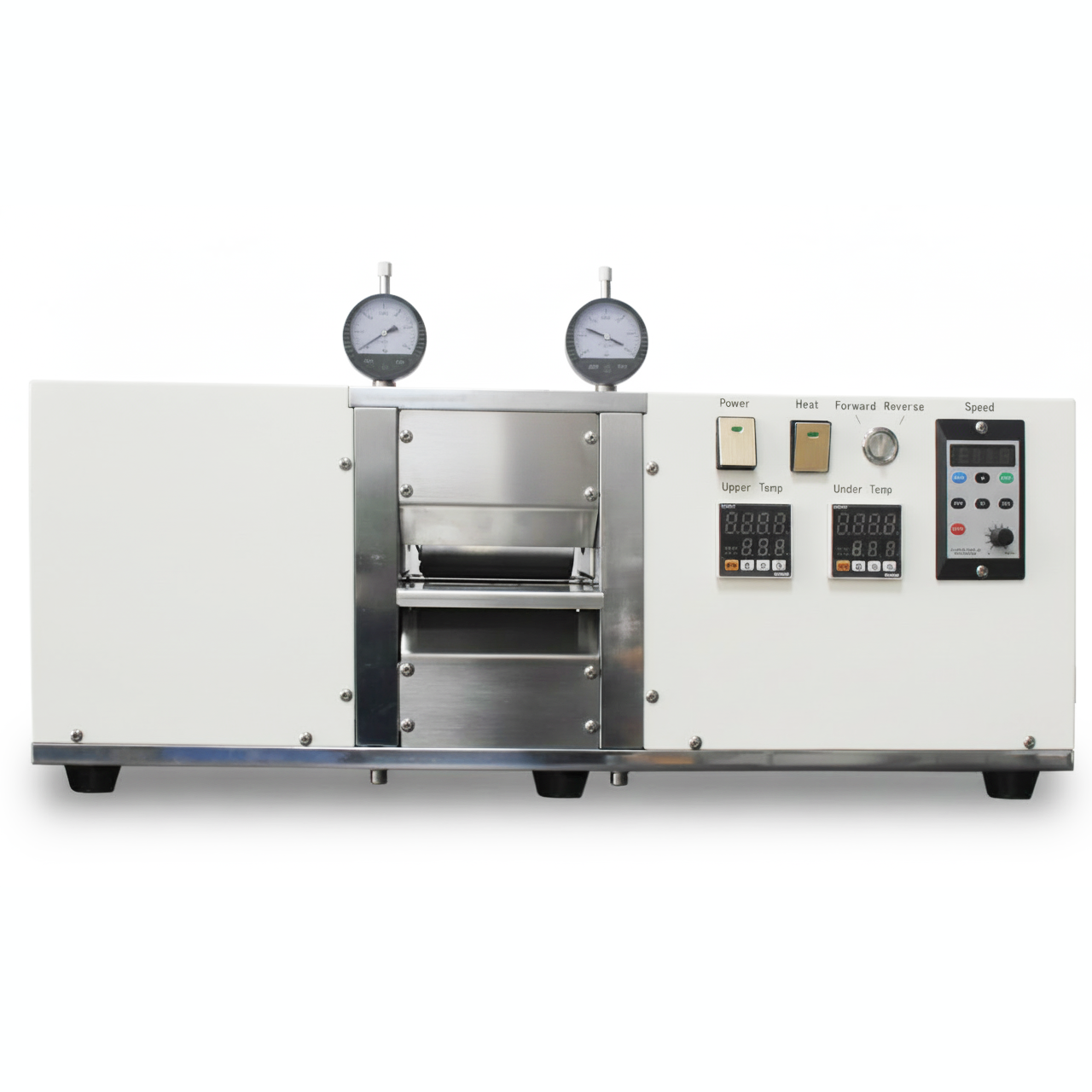

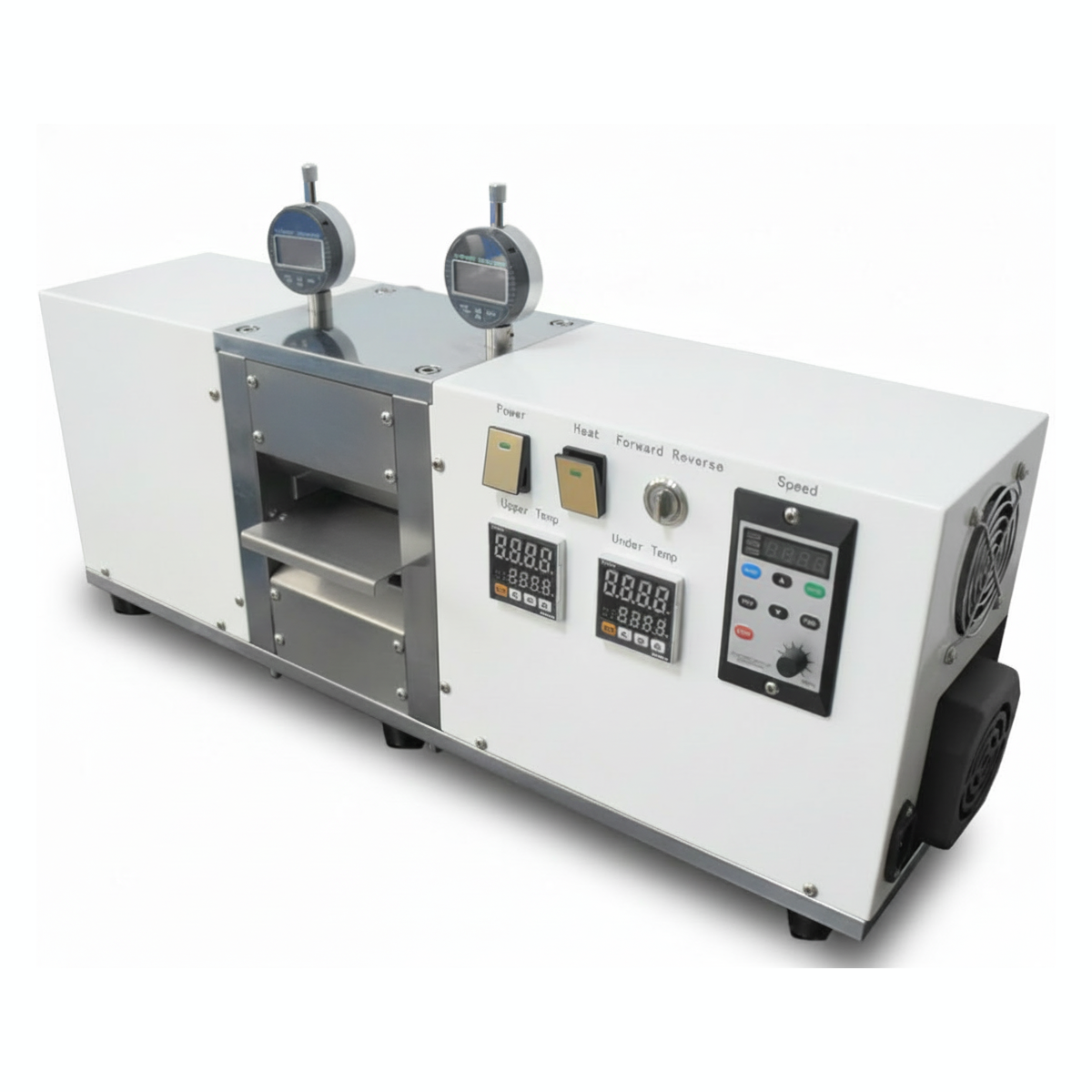

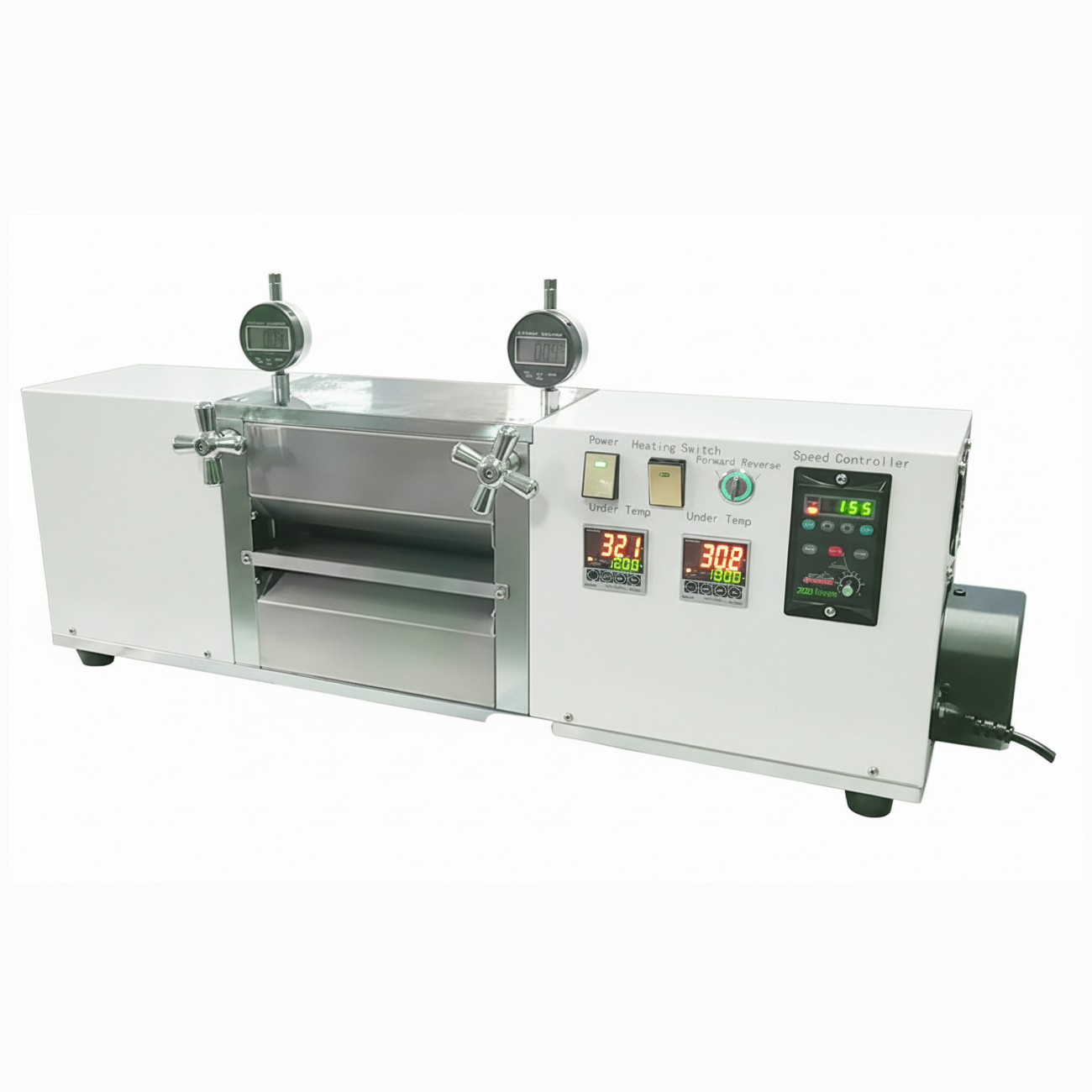

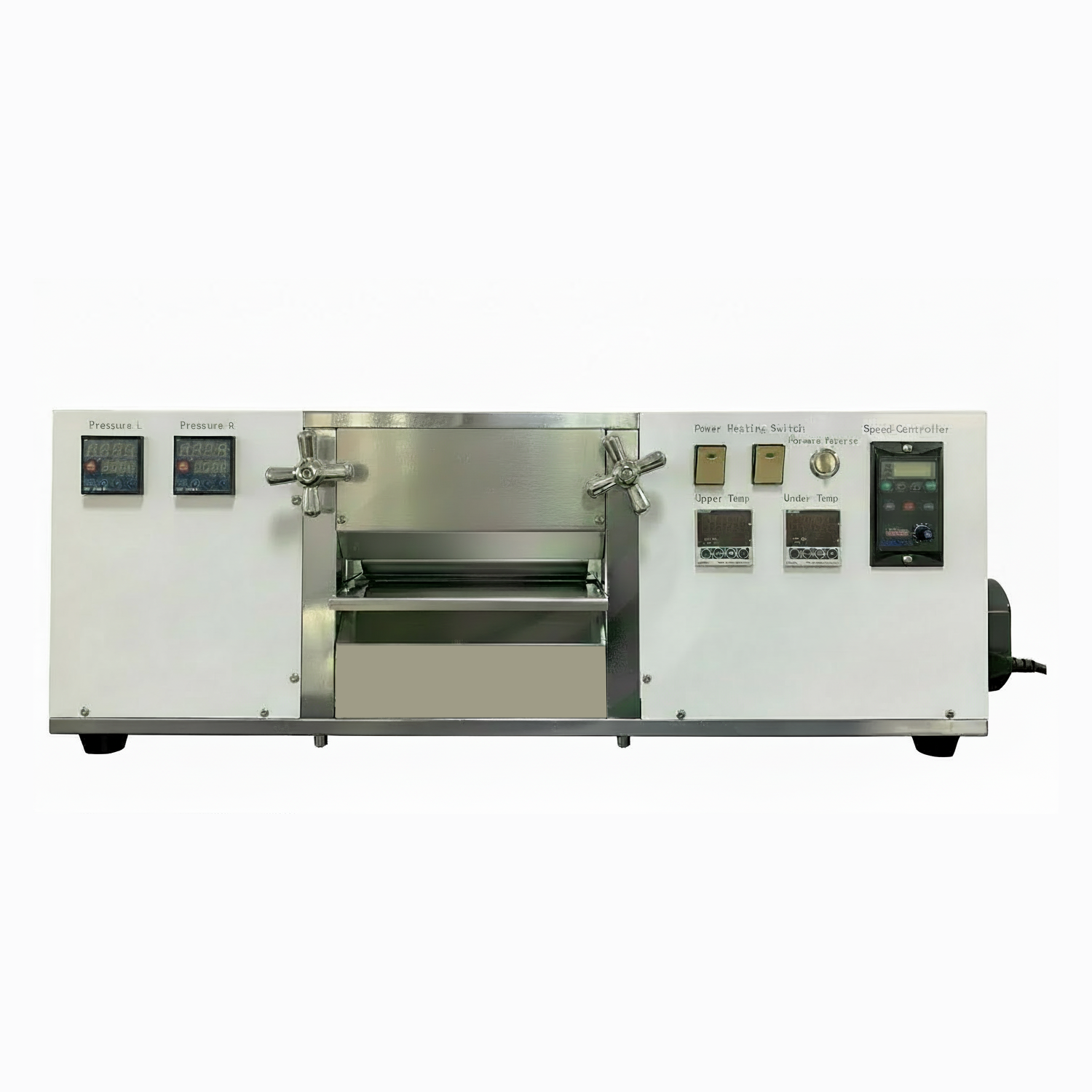

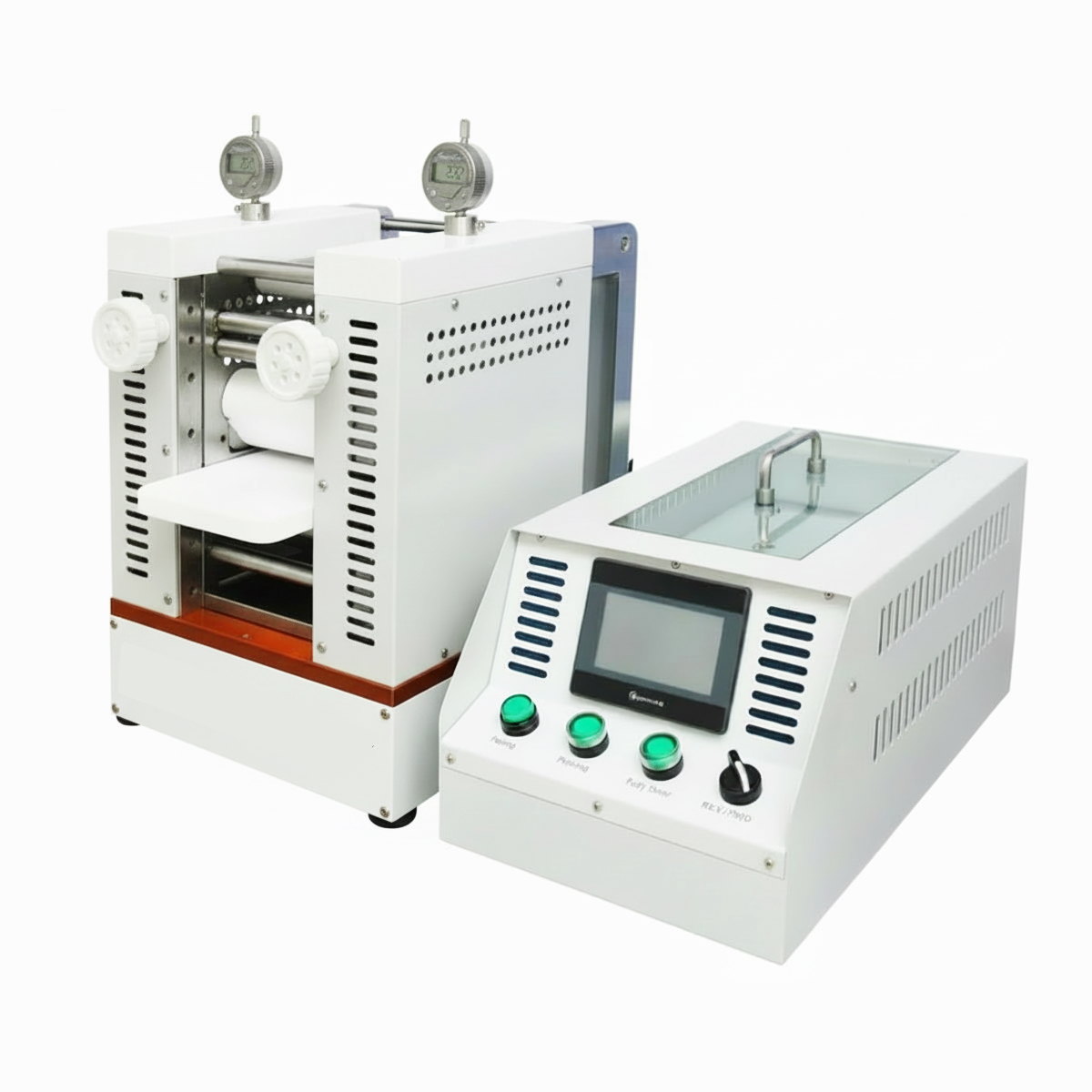

• Gap-control hot rolling presses set a fixed roller separation and warm the nip to soften PVDF binders. They are the simplest entry point for repeatable thickness on PVDF-bound NCM, LFP, or graphite electrodes.

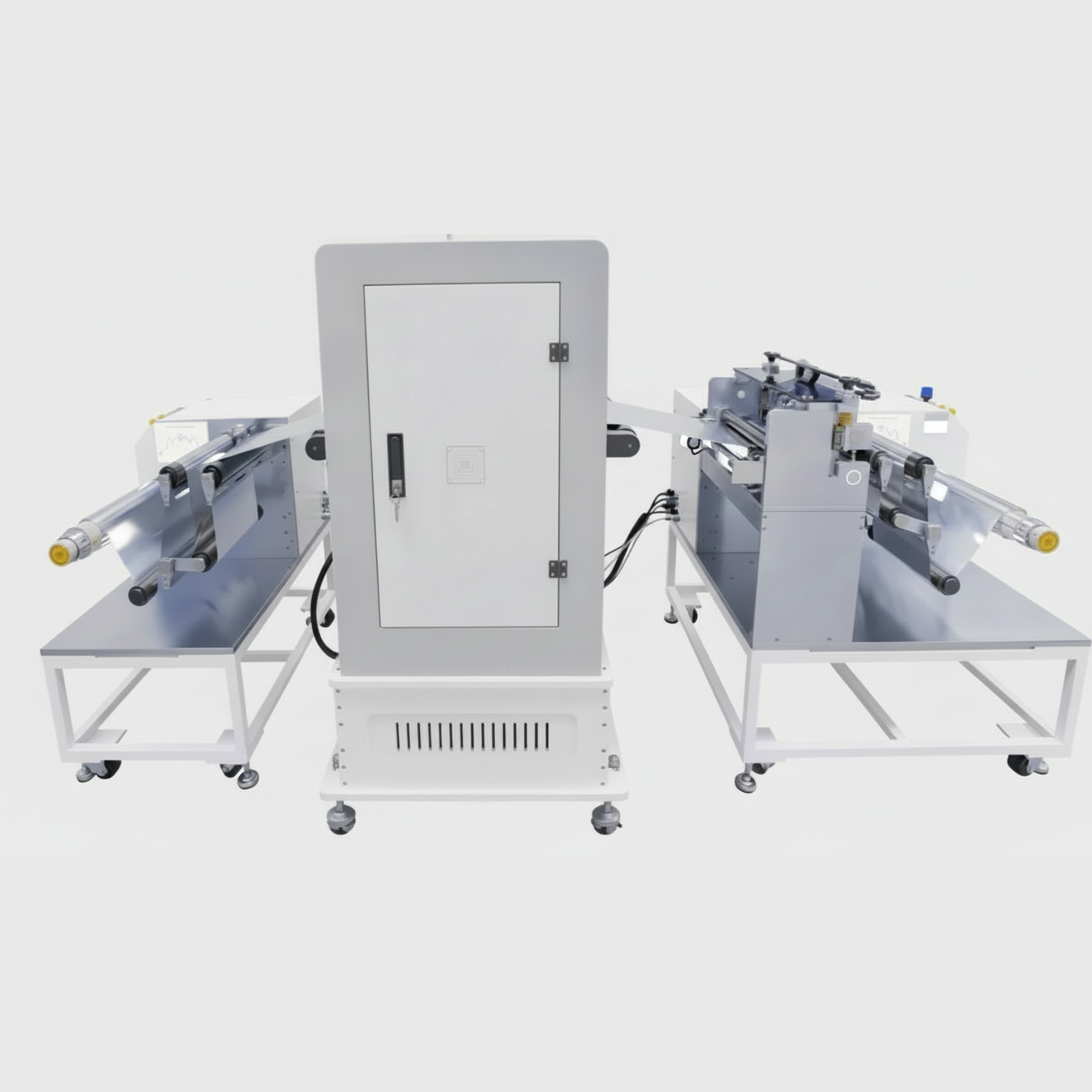

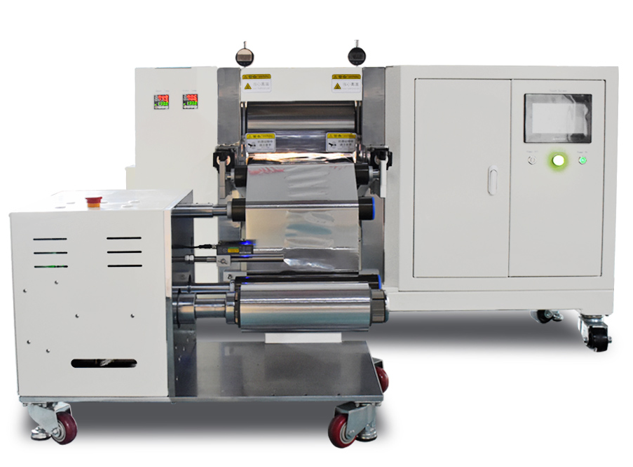

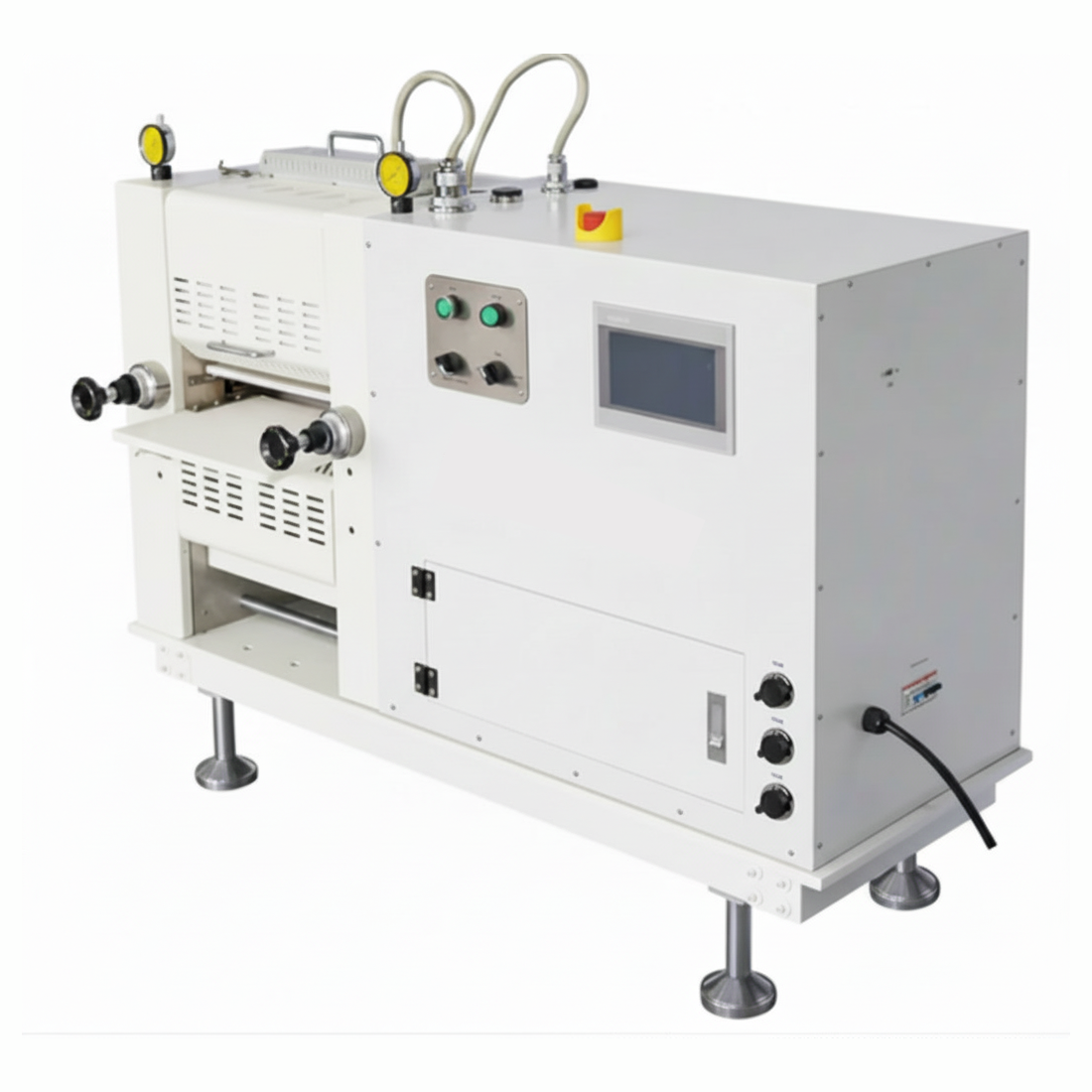

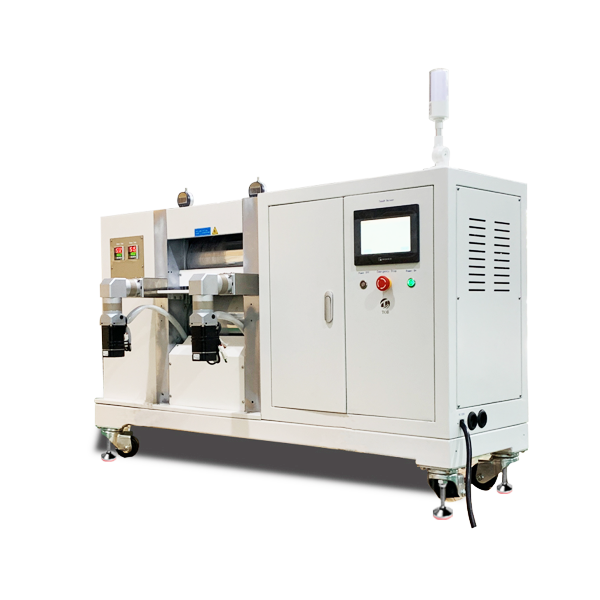

• Pressure-controlled hot rolling presses use hydraulic or servo actuators to apply a target linear force in tonnes regardless of small coating-thickness drift, which is what you want when packing density and porosity uniformity matter more than nominal gap.

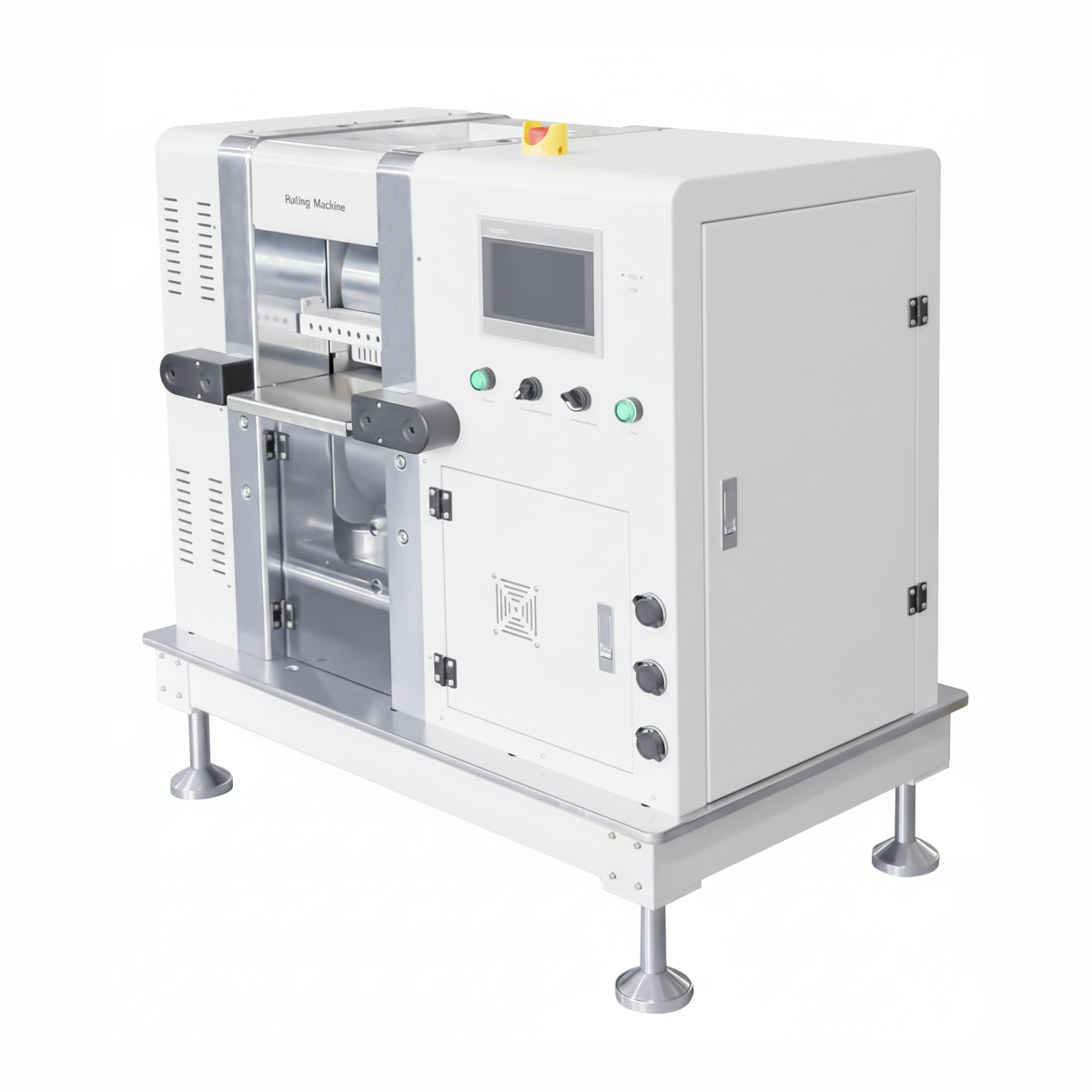

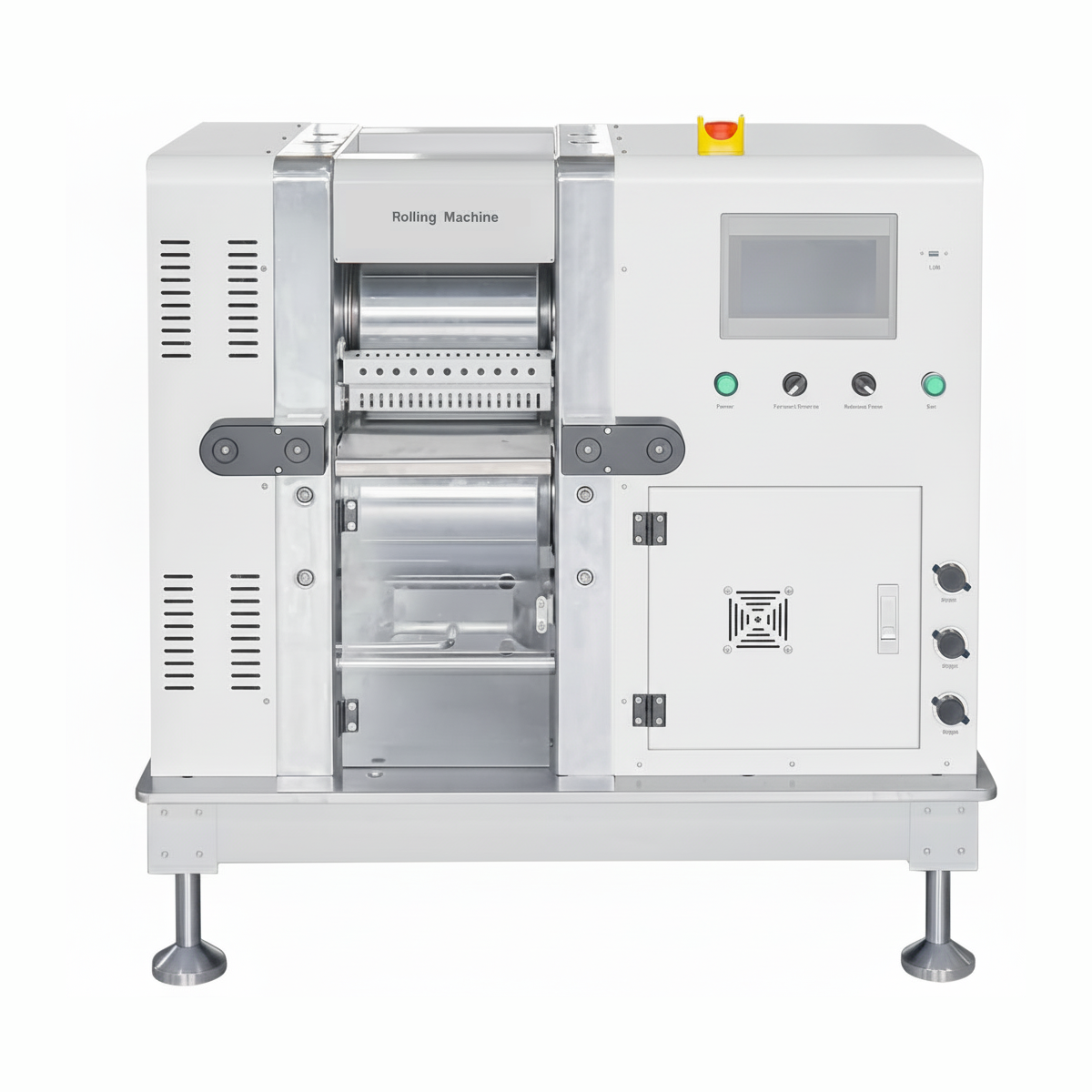

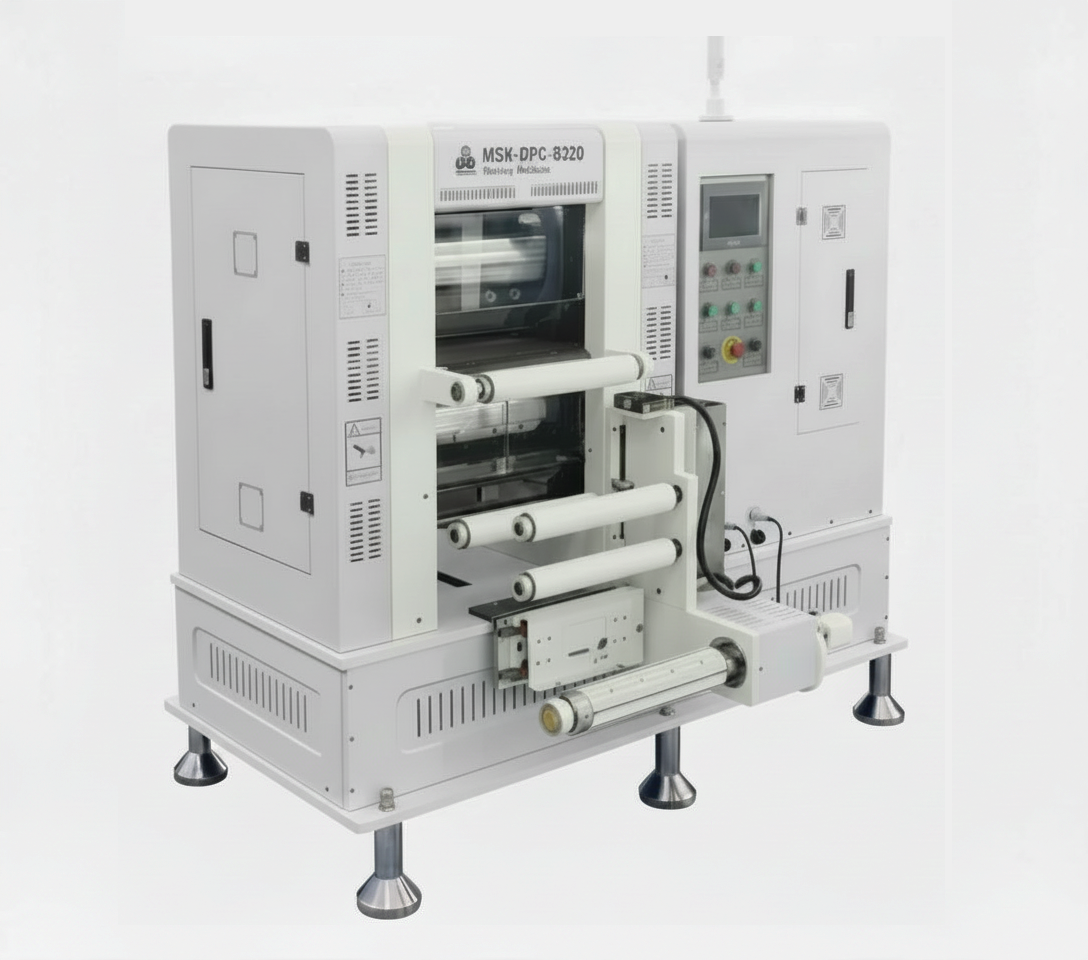

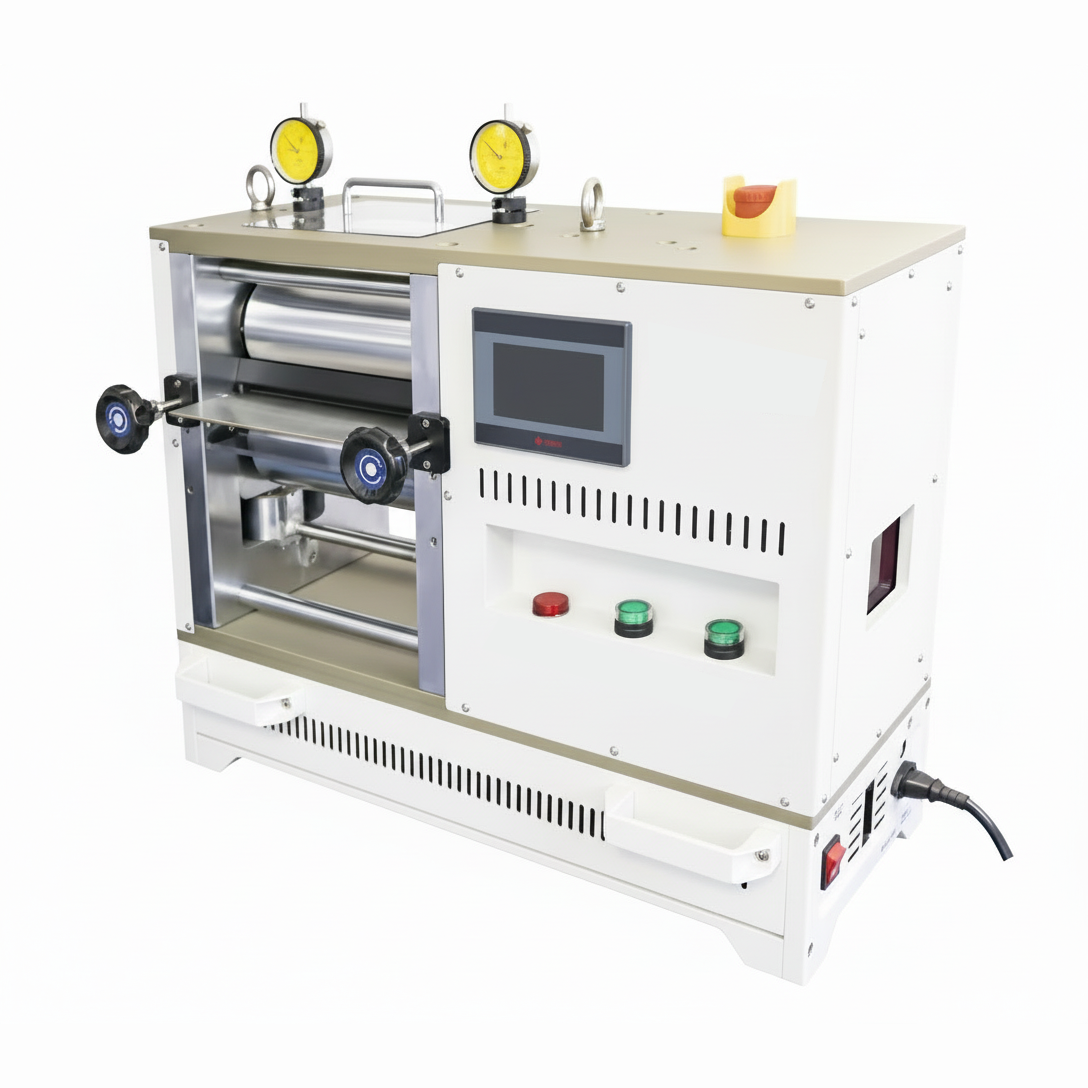

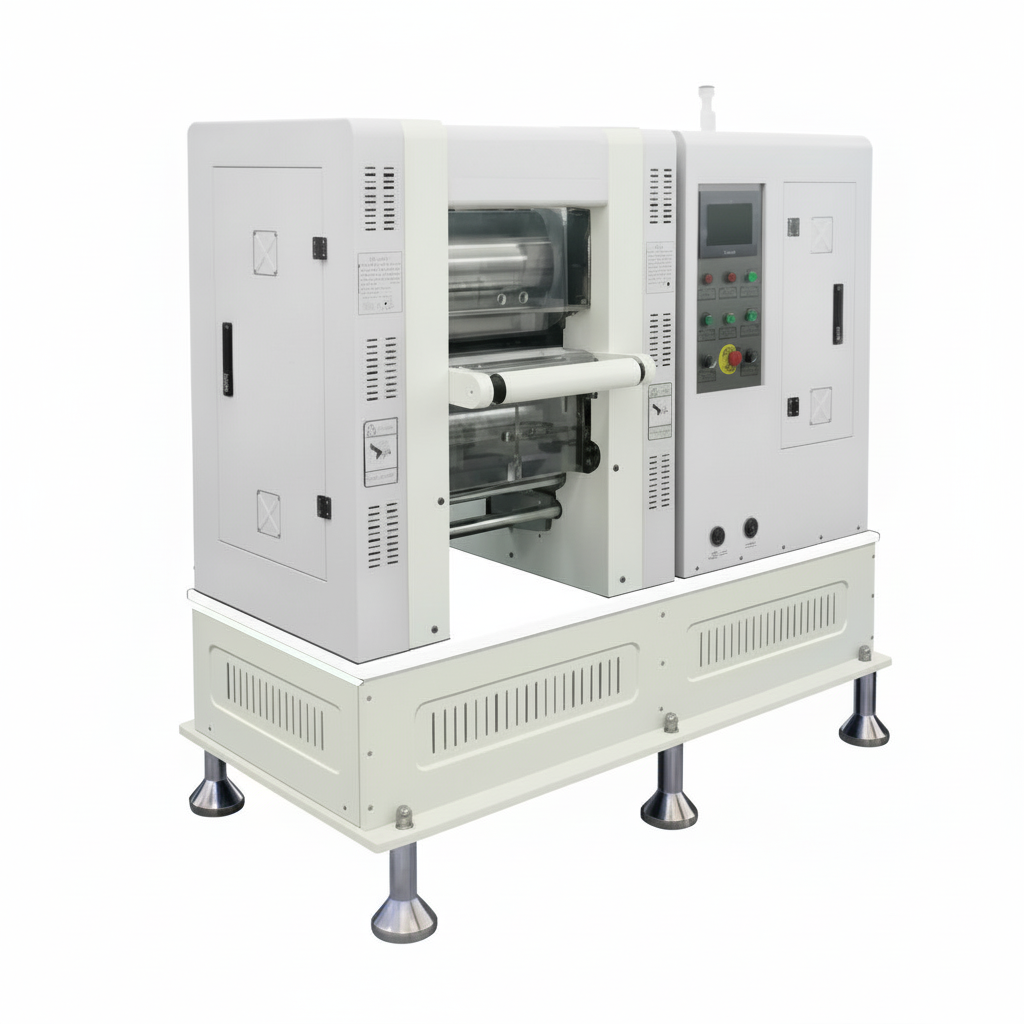

• High-pressure cold rolling presses rely on linear pressure alone, preserving the crystal structure of pressure-sensitive cathodes and avoiding heat-induced binder migration.

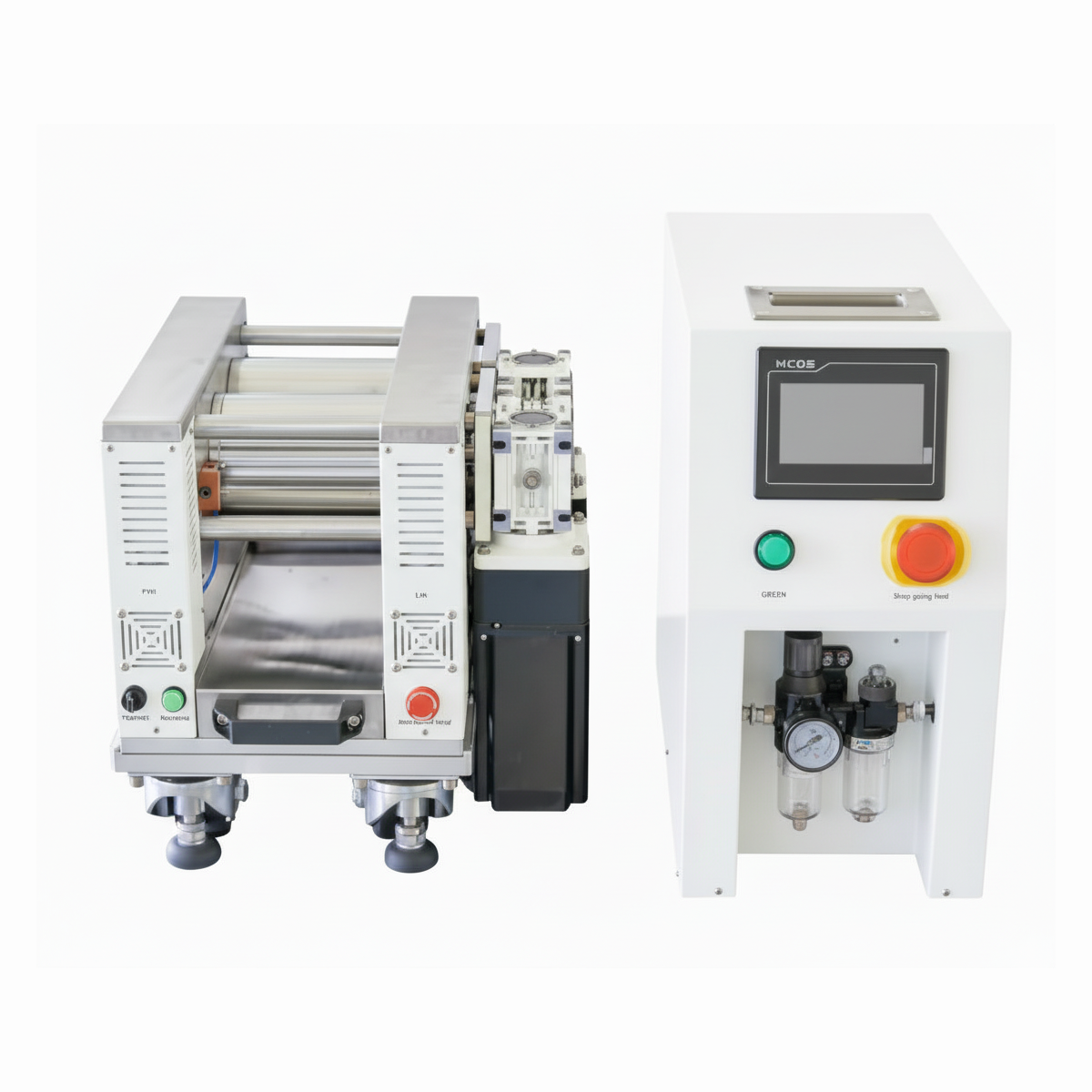

• Asynchronous-speed and roll-to-roll variants add a controlled top/bottom speed differential or continuous web handling for higher throughput and for dry-electrode crossover work.
• Soft-nip rubber-roller presses are reserved for laminating dissimilar layers — for example, an ion-exchange membrane onto a catalyst-coated electrode — where a conformable nip distributes pressure across thickness variation.

Working widths in this collection span roughly 100 mm to 350 mm, covering coin-cell research coupons through pouch-cell pilot foils. Several models are glovebox-compatible for air-sensitive chemistries such as lithium-metal, sulfide solid-state precursors, and sodium-ion electrodes. Roll-to-roll handling units are available as paired accessories for tension-controlled web feed.

If you are densifying wet-cast slurry electrodes for the first time, start with a gap-control hot press at your target foil width. If you are optimizing packing density for energy-density studies, move to a pressure-controlled press. For lamination of membranes, separators, or pre-coated tie-layers, choose a rubber-roll soft-nip configuration. For broader process equipment in this workflow, see Wet Electrode Fabrication; for upstream slurry preparation, see Battery Equipment.
