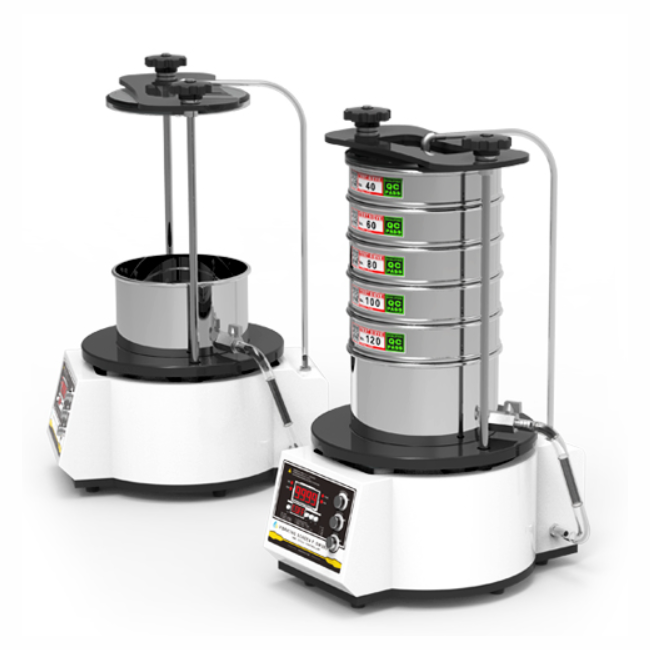

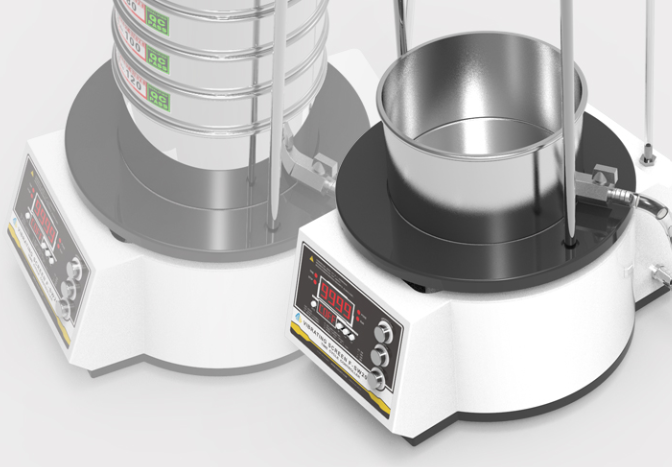

ECS-FS Three-Dimensional (3D) Vibratory Wet Sieving Machine, EFS3DVWSM

A 3D vibratory sieving machine (also known as a circular vibratory sifter or tumbler screen) is a high-precision separation tool used to classify, scalp, or de-dust powders and slurries. Unlike standard linear vibratory screens, a 3D sifter utilizes a unique three-dimensional motion—horizontal, vertical, and inclined—to move material across the mesh surface.

The 3D vibratory dry sieving machine is powered by a specialized vertical vibration motor with eccentric weights at both the top and bottom of the shaft. (1) Top Weight: Creates a horizontal circular motion, spreading the material from the center to the periphery of the screen. (2) Bottom Weight: Creates a vertical and inclined motion, causing the material to "jump" and tumble, which prevents the particles from blinding (clogging) the mesh holes. (3) Lead Angle: By adjusting the phase angle of the weights, you can control the spiral path of the material. A wider lead angle keeps the material on the screen longer for more precise grading.

References:

Y. Wei, et al., Design of Vibrating Screen Separation Equipment for Powder Materials, J. Phys.: Conf. Ser., 2022, 2235, 012028

M.O. Besenhard, et al., Accuracy of micro powder dosing via a vibratory sieve–chute system, European Journal of Pharmaceutics and Biopharmaceutics, 2015, 94, 264-272
