Vacuum ovens drive residual moisture out of active powders and coated electrodes before cell assembly, the single most consequential drying step in lithium-ion, sodium-ion, and solid-state R&D. Trace water hydrolyzes LiPF6, attacks lithium metal, degrades SEI quality, and inflates first-cycle gas generation; controlled vacuum drying at elevated temperature pulls bound water out of binder networks and porous coatings without oxidizing the active material. This collection covers ovens sized for everything from coin-cell-scale tape samples up to pilot-line jelly rolls.
Selection comes down to four axes:
-
Maximum temperature. 100-150 degC suits most graphite, NCM, LFP, and LTO electrodes; 200-250 degC is for harder-to-dry systems, polymer-bound separators, hygroscopic salts, and post-calendering bake-outs of thick electrodes.
-
Vacuum level. Standard ovens reach roughly -0.1 MPa (a few hundred Pa). High-vacuum models reach the low-Pa range, which matters for moisture targets below 50 ppm in finished electrodes and below 10 ppm in dry-room workflows.
-

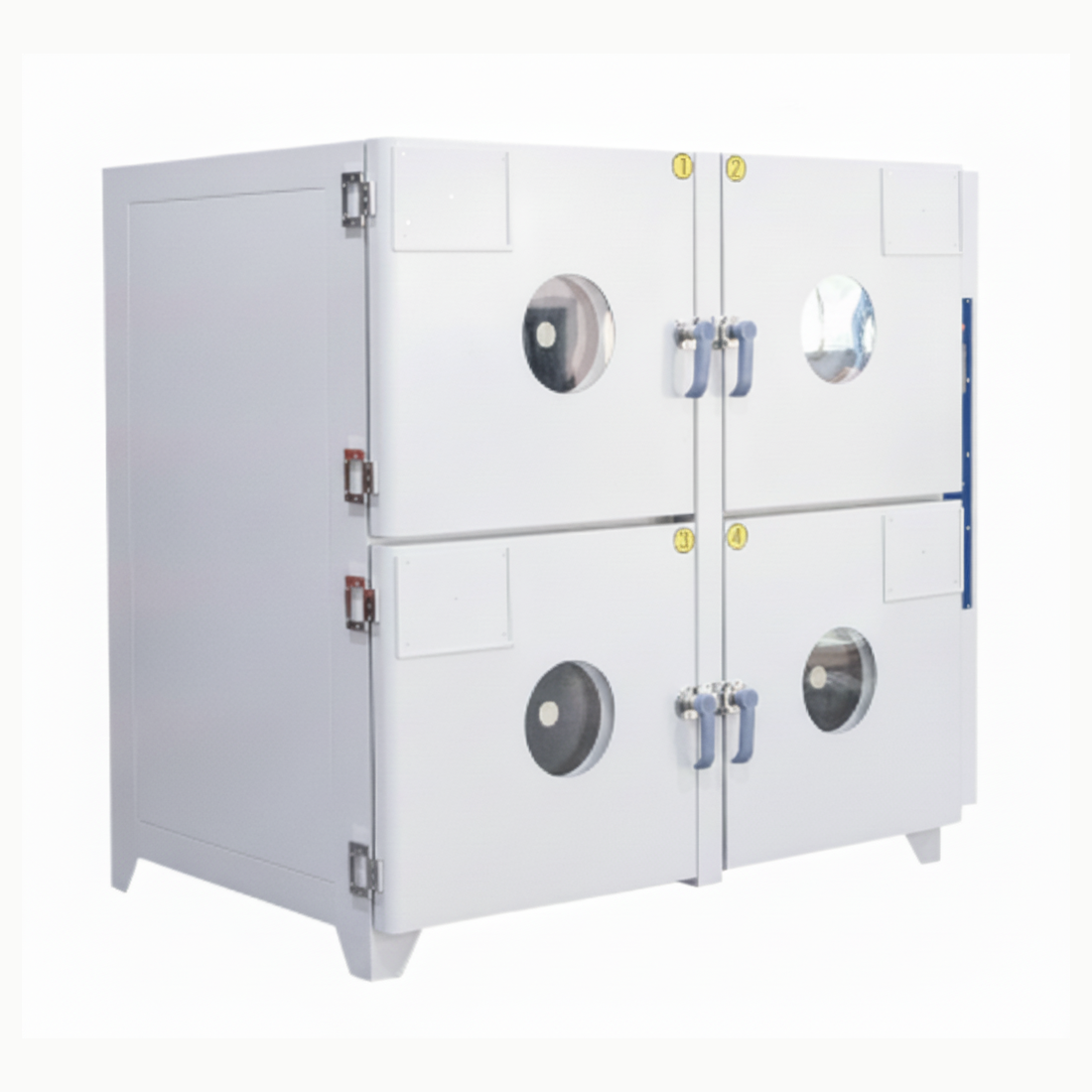

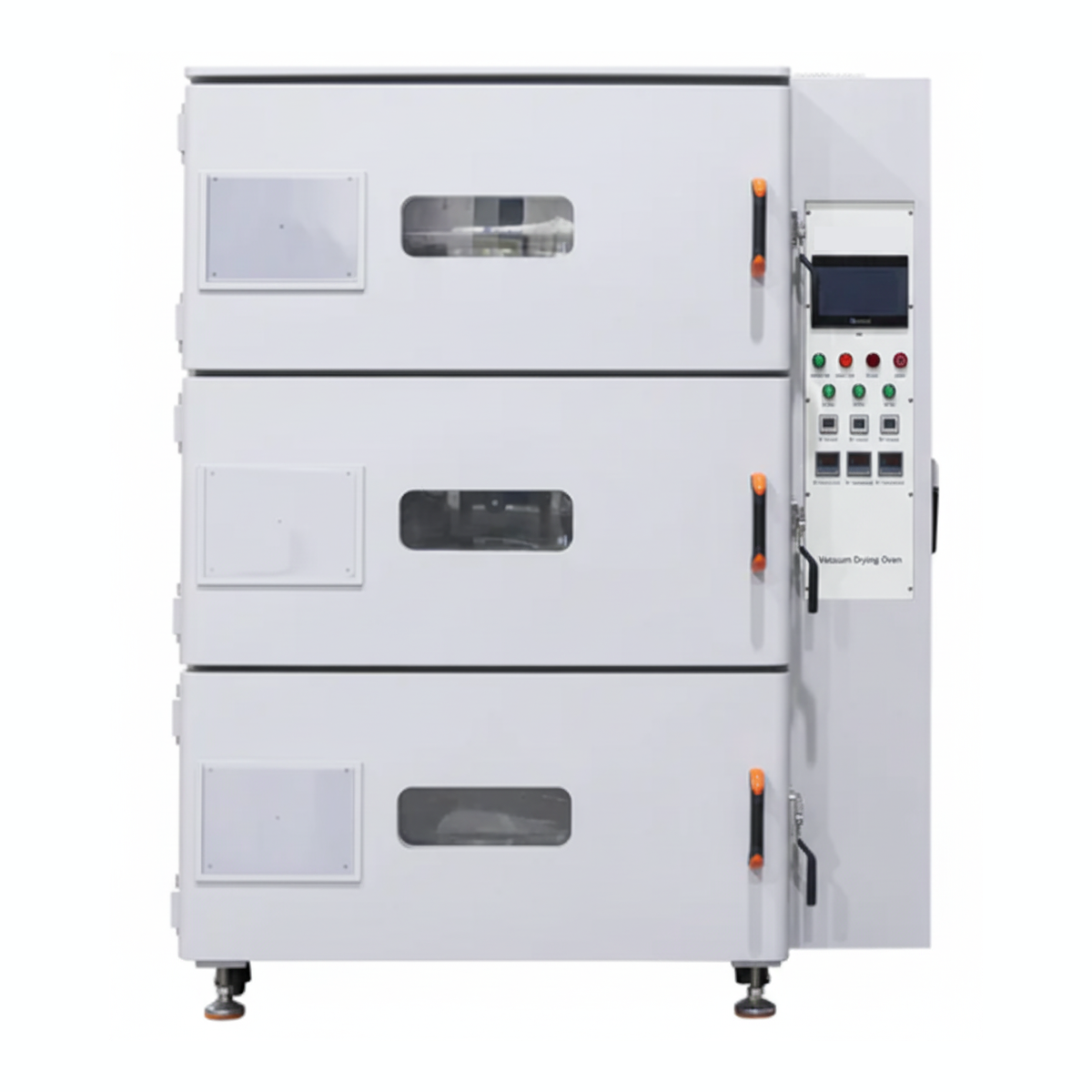

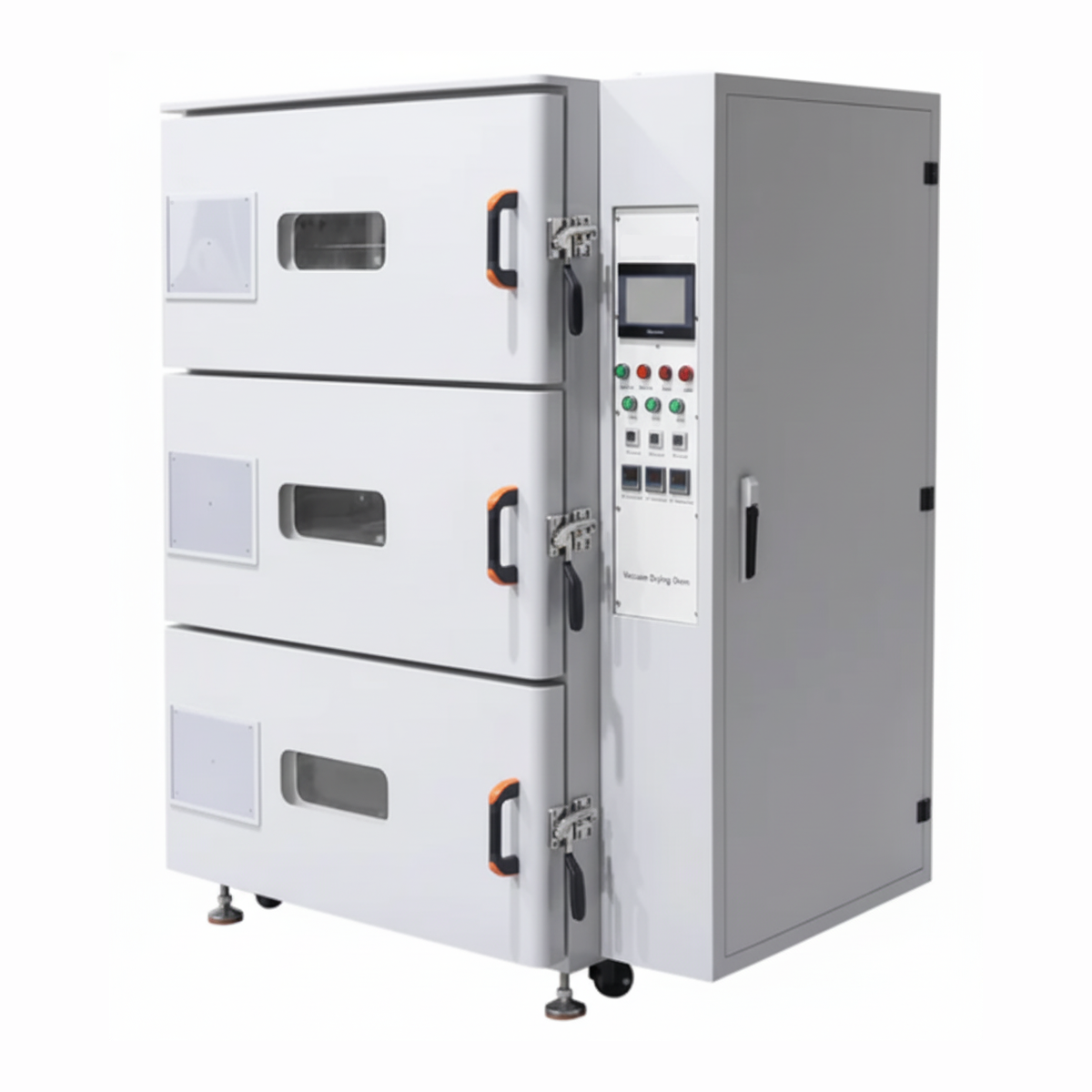

Chamber count and independence. Single-chamber ovens are simplest. Dual-, triple-, and quad-chamber ovens with independent temperature control let one team run several drying recipes in parallel — useful when you are screening cathode chemistries against anode formats simultaneously.
-
Total volume and electrical service. Bench units run on single-phase 110/220 V at one to a few kW. Multi-chamber pilot ovens require three-phase 380 V service and larger footprints; plan utilities before ordering.
A few practical notes for ordering. Some ovens ship without a vacuum pump — confirm whether your chosen unit includes one and whether the pump rating matches your throughput. For aggressive solvent removal (NMP, residual electrolyte, water from hygroscopic salts), pair the oven with a chemical-resistant pump and an inline cold trap to protect the pump oil.
If you are drying coated foils between coating and calendering, start with a 100-150 degC dual- or triple-chamber unit so you can run anode and cathode recipes simultaneously. If you are drying powders or final pre-assembly bake-out before glovebox transfer, look at the 200-250 degC single- or dual-chamber units with the lowest achievable vacuum. For the upstream wet-electrode workflow, see Wet Electrode Fabrication; for the broader equipment landscape, see Battery Equipment.
