Carbon Coated Aluminum Foil Sheet or Roll (Hydrophobic Binder) as Aqueous Battery Current Collector, CABCCCAF
Use your own shipping account?
We support FedEx, UPS, and DHL third-party billing for institutional customers.
Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.
Carbon-coated aluminum foil is a high-performance evolution of the standard cathode current collector. It consists of a high-purity aluminum foil (typically 12 um to 25 um thick) that is coated on one or both sides with a sub-micron layer (0.5 um to 2 um) of conductive carbon—typically a mix of carbon black, graphite, or graphene. The carbon coating acts as a "functional bridge" between the metal current collector and the active cathode material.
The carbon-coated aluminum foil is specially designed for aqueous battery electrode fabrication, such as PAA and SBR binder in aqueous slurry.
| Part Number |
CABCCCAF (C-ABCC-CAF) |
| Dimension |

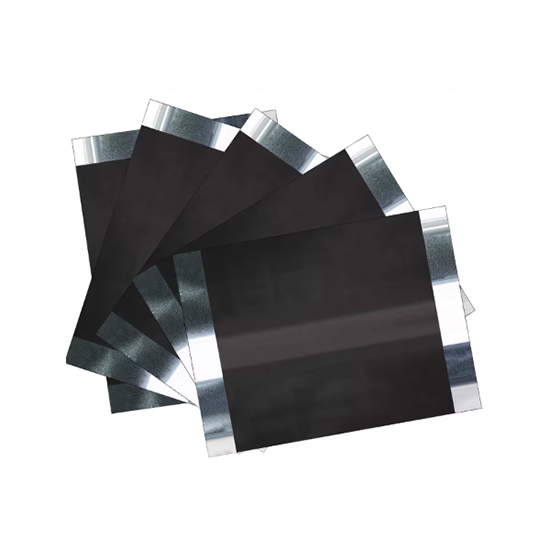

(1) Single-Side Coating Sheet, 5 pcs/pack T (12+1)um * W (10+220+10) mm * L 300mm (Al foil and carbon width: 240 mm and 220 mm, the empty area for each side is 10 mm. Al foil and coating thickness is 12 um and 1 um) (2) Double-Side Coating Sheet, 5 pcs/pack T (1+12+1)um * W (10+220+10) mm * L 300mm (Al foil and carbon width: 240 mm and 220 mm, the empty area for each side is 10 mm. Al foil and coating thickness is 12 um and 1 um (each side)). (3) Single-Side Coating Roll, 1 kg/roll T (12+1)um * W (10+220+10) mm (Al foil and carbon width: 240 mm and 220 mm, the empty area for each side is 10 mm. Al foil and coating thickness is 12 um and 1 um) (4) Double-Side Coating Roll, 1 kg/roll T (1+12+1)um * W (10+220+10) mm (Al foil and carbon width: 240 mm and 220 mm, the empty area for each side is 10 mm. Al foil and coating thickness is 12 um and 1 um (each side)). |
References:
- I. Doberdò, et al.,Enabling aqueous binders for lithium battery cathodes – Carbon coating of aluminum current collector, J. Power Sources, 2014, 248, 1000-1006.
- T. Li, et al., Carbon-coated Aluminum Foil as Current Collector for Improving the Performance of Lithium Sulfur Batteries, I. J. Electrochem., Soc., 2017, 12, 3099-3108.
