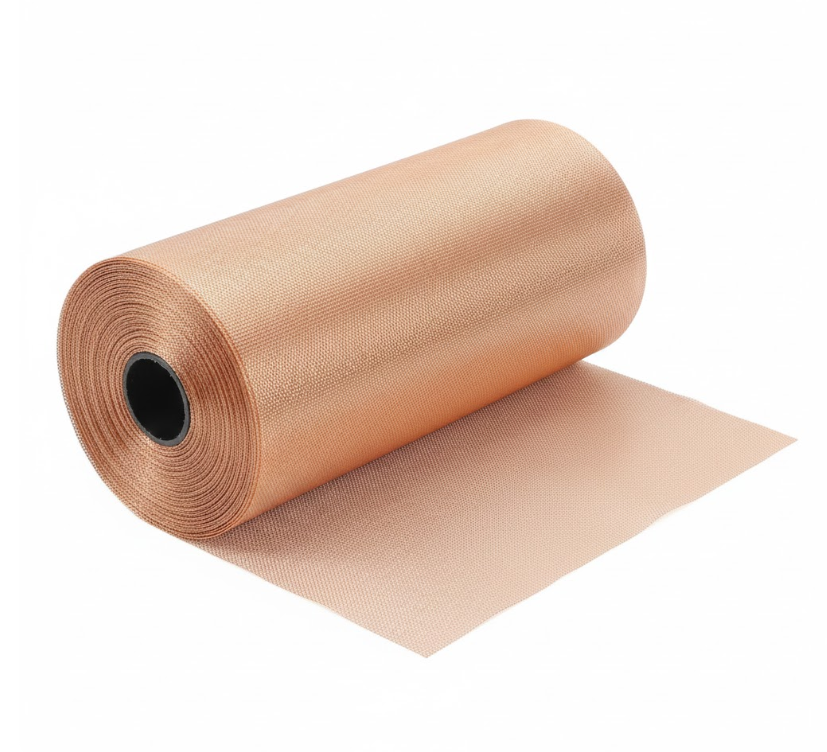

Woven Copper Mesh Roll (Mesh 50-300, W 200mm * L 5.0m) as Battery Anode Current Collector, CBACCWCMR
Use your own shipping account?
We support FedEx, UPS, and DHL third-party billing for institutional customers.
Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.
The copper mesh current collector with rhombic pores is a 3D structural substrate used primarily in high-power lithium-ion batteries and next-generation lithium-metal anodes.
The mesh design provides a "bridge-and-void" architecture that offers specific advantages over both solid and standard perforated foils:
(1) 3D Skeleton: The mesh pattern creates a three-dimensional framework that allows the active anode material (like graphite or silicon) to be embedded inside the mesh rather than just coated on top.
(2) High Opening Ratio: These meshes typically have a high "open area" (often 40%–70%), which drastically reduces the amount of inactive metal in the battery.
(3) Interlocking Diamonds: The geometry of the meshed openings provides superior mechanical interlocking, which is critical for preventing the electrode material from falling off during high-vibration use or rapid expansion.
Therefore, it brings the following advantages: (1) Volume expansion accommodation; (2) Enhanced ion pathways; (3) Heat dissipation; (4) Dendrite suppression.
| Part Number |
CBACCWCMR (C-BACC-WCMR) |
| Purity |
>99.98% |
| Dimension |
(1) Mesh 50 (T 0.18mm * W 200mm * L 5.0m) Wire diameter: 0.1 mm, Pore diameter: 0.4 mm (2) Mesh 100 (T 0.16mm * W 200mm * L 5.0m) Wire diameter: 0.08 mm, Pore diameter: 0.17 mm (3) Mesh 150 (T 0.13mm * W 200mm * L 5.0m) Wire diameter: 0.06 mm, Pore diameter: 0.11 mm (4) Mesh 200 (T 0.11mm * W 200mm * L 5.0m) Wire diameter: 0.05 mm, Pore diameter: 0.07 mm (5) Mesh 300 (T 0.065mm * W 200mm * L 5.0m) Wire diameter: 0.03 mm, Pore diameter: 0.055 mm |
References:
- S. Kim, et al., Promoting lithium electrodeposition towards the bottom of 3-D copper meshes in lithium-based batteries, J. Power Sources, 2020, 472, 228495.
- F. Wang, et al., Three-Dimensional Carbon Nanotube-Coated Copper Mesh as a Current Collector for Graphite Anodes in High-Performance Lithium-Ion Batteries, Processes, 2025, 13, 964.
