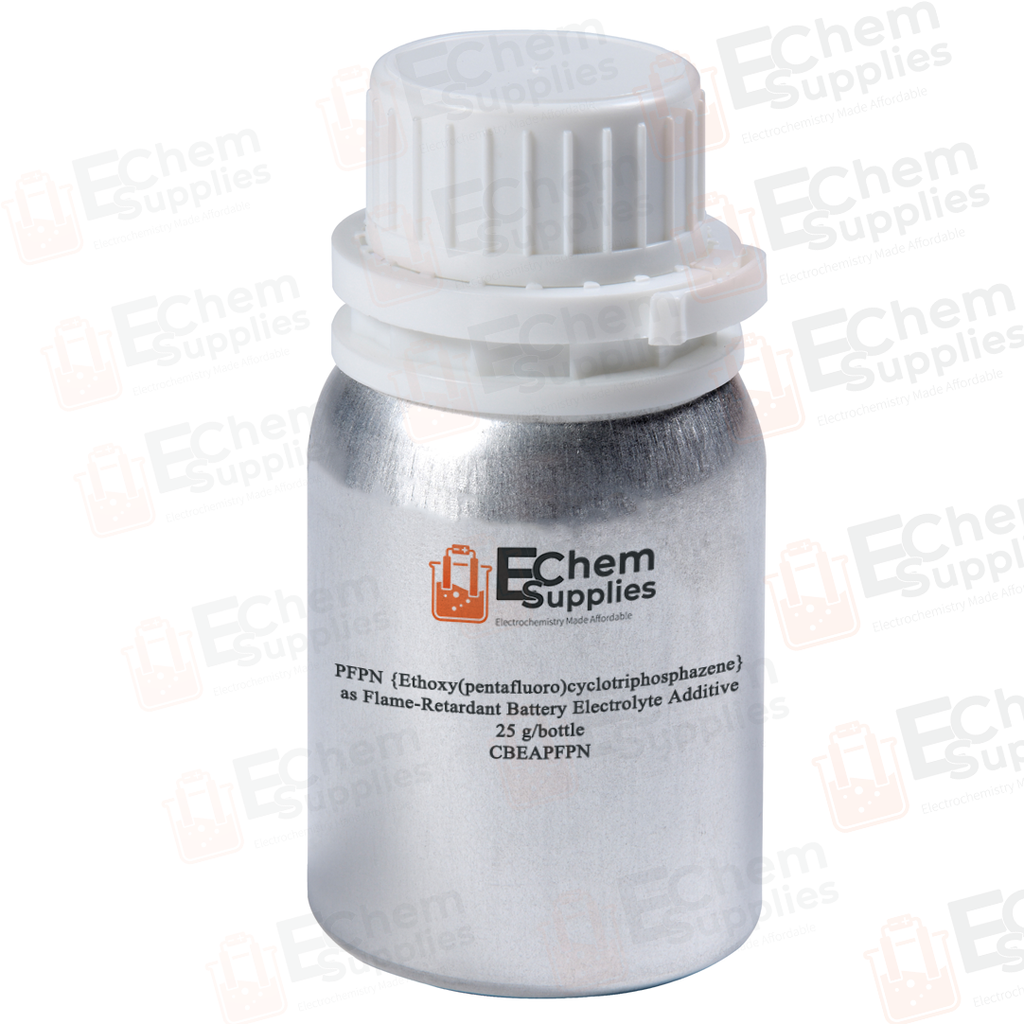

PFPN {Ethoxy(pentafluoro)cyclotriphosphazene, 99.9%} as Flame-Retardant Battery Electrolyte Additive, 25 g/bottle, CBEAPFPN
Use your own shipping account?
We support FedEx, UPS, and DHL third-party billing for institutional customers.
Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.
PFPN {Ethoxy(pentafluoro)cyclotriphosphazene} is a type of cyclotriphosphazene derivative that contains both phosphorus (P) and fluorine (F), making it an excellent candidate for enhancing both the safety and the electrochemical performance of the cell. Due to the presence of phosphorus (P) and fluorine (F), PFPN acts as a flame retardant. It decomposes at high temperatures to release non-flammable species that can capture highly reactive free radicals, effectively interrupting the combustion chain reaction of the highly flammable organic carbonate solvents (like EC, EMC, DEC, etc.). PFPN is a multi-functional additive that also improves the stability of the interfaces at both electrodes.
| Part Number |
CBEAPFPN (C-BEA-PFPN) |
| CAS |
33027-66-6 |
| Chemical Formula |
C2H5F5N3OP3  |
| Appearance |
Colorless liquid |
| Purity |
99.9% (Battery Grade) |
| Molecular Weight | 275.00 g/mol |
| Density | 1.56 g/cm3 |
| Boiling Point | ~358.5 °C (lit.) |
| Package Size | 25 g/bottle |
Notes: Please store the PFPN liquid in the dry and cold place (glovebox fridge (0-10 degrees) is the best).
References:
- X. Li, et al. Ethoxy (pentafluoro) cyclotriphosphazene (PFPN) as a multi-functional flame retardant electrolyte additive for lithium-ion batteries, J. Power Sources, 2018, 378, 707-716.
- Y. Zhang, et al. Multifunctional Electrolyte Additive for High-Nickel LiNi0.8Co0.1Mn0.1O2 Cathodes of Lithium-Metal Batteries, Energy Fuels 2023, 37, 15, 11388–11396.
.
