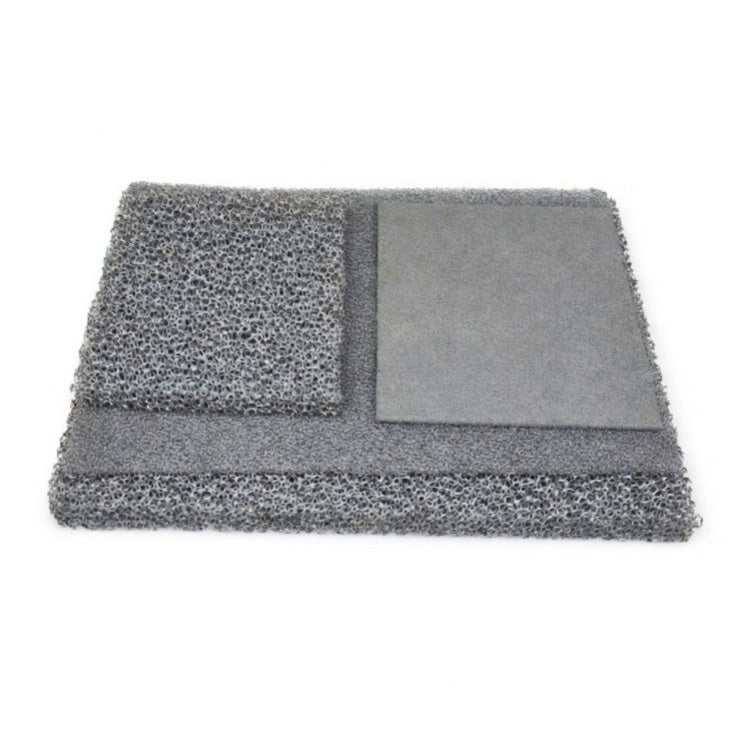

Nickel-Iron (Ni-Fe) Foam Sheet (T 0.05-2.0 * W 100 * L 100 mm) for Battery, Electrolyzer, and Fuel Cell, CBEFCNFFOS
Use your own shipping account?
We support FedEx, UPS, and DHL third-party billing for institutional customers.
Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.
Add-Ons
Nickel-Iron (Ni-Fe) foam is a 3D porous metallic alloy substrate widely utilized as a high-surface-area electrode backbone, current collector, and catalyst support across water electrolyzers, advanced batteries, and solid oxide fuel cells (SOFCs). By alloying iron into a 3D interconnected nickel web, the foam combines high electrical conductivity, bimetallic electrocatalytic synergy, and tunable open macroporosities (70–95%), while significantly reducing material costs relative to pure noble-metal substrates.
Advanced Batteries & Supercapacitors: (1) Iron-Air & Nickel-Iron Batteries: Serves directly as the conductive porous matrix for active material loading (Fe/Fe-oxide negative electrodes or Ni-Fe layered double hydroxide cathodes), offering high cycle stability and high-rate capability. (2) Sodium-Ion & Lithium-Ion Current Collectors: Functions as a 3D current collector for high-loading conversion or alloy-type anodes, accommodating large volumetric expansion during cycling without electrode pulverization.
Water Electrolyzers (AEMWE & Alkaline Water Electrolysis): Ni-Fe foam is considered a benchmark electrocatalyst substrate for the Oxygen Evolution Reaction (OER) in alkaline media: (1) Intrinsic Synergistic Catalysis: Incorporating Fe(3+) into the Ni(OH)2/NiOOH lattice optimizes the adsorption energy of oxygen intermediates (O*, OH*, OOH*), lowering OER overpotential to ~ 200–250 mV at 10 mA/cm2. (2) 3D Bubble Detachment: The open reticulated strut structure facilitates micro-bubble release (O2 and H2), suppressing gas-film blockage and mass-transport overpotential at high operating current densities (>1 A/cm2).
Solid Oxide Fuel Cells (SOFC) & Solid Oxide Electrolysis Cells (SOEC): Ni-Fe alloy foams matching the thermal expansion coefficient (TEC) of ceramic electrolytes serve as porous current collectors and gas distribution layers on the fuel (reducing) side.
| Part Number |
CBEFCNFFOS (C-BEFC-NFFOS) |
| Purity |
>99.99% |
| Dimension & Composition |
(1) T 0.5 * W 100 * L 100 mm (Ni : Fe = 30% : 70%) (2) T 0.5 * W 100 * L 100 mm (Ni : Fe = 50% : 50%) (3) T 0.5 * W 100 * L 100 mm (Ni : Fe = 70% : 30%) (4) T 1.0 * W 100 * L 100 mm (Ni : Fe = 30% : 70%) (5) T 1.0 * W 100 * L 100 mm (Ni : Fe = 50% : 50%) (6) T 1.0 * W 100 * L 100 mm (Ni : Fe = 70% : 30%)
(7) T 2.0 * W 100 * L 100 mm (Ni : Fe = 30% : 70%)
(8) T 2.0 * W 100 * L 100 mm (Ni : Fe = 50% : 50%)
(9) T 2.0 * W 100 * L 100 mm (Ni : Fe = 70% : 30%)
Other customized dimensions (eg: T= 0.3 mm, or W200*L300 mm) can be supplied upon request.
|
| Pore Size |
110 PPI (the customized pore sizes in 5-110 ppi can be supplied upon request) |
| Area Density |
800-10000 g/m2 |
| Main Application Fields |
1. Aqueous Battery (eg: aqueous ZIB) |
| Package Grade |
1 pcs sheet/pack |
