Temperature-Sensitive Carbon Coated Copper Foil Sheet or Roll as Dry Electrode Battery Anode Current Collector, CDEBACCTSCCF
Use your own shipping account?
We support FedEx, UPS, and DHL third-party billing for institutional customers.
Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.
Carbon-coated copper foil is a high-performance evolution of the standard anode current collector. It consists of a high-purity electrolytic copper foil (typically 6 um to 12 um thick) that is coated on one or both sides with a sub-micron layer (0.5 um to 2 um) of conductive carbon—typically a mix of carbon black, graphite, or graphene. The carbon-coated current collector is the "bridge" that makes this transition possible by ensuring that the dry-processed film doesn't delaminate or lose electrical contact during the thousands of expansion/contraction cycles a car battery undergoes. The temperature-sensitive properties are suitable for dry electrode fabrication under mild temperature range (~60-80 °C).
| Part Number |
CDEBACCTSCCF (C-DEBACC-TSCCF) |
| Dimension |

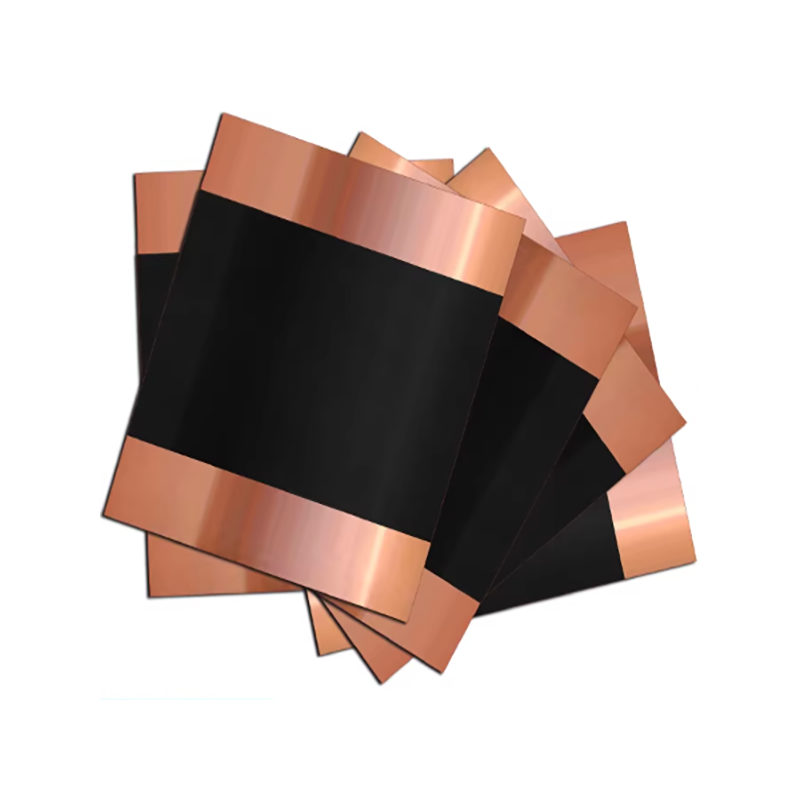

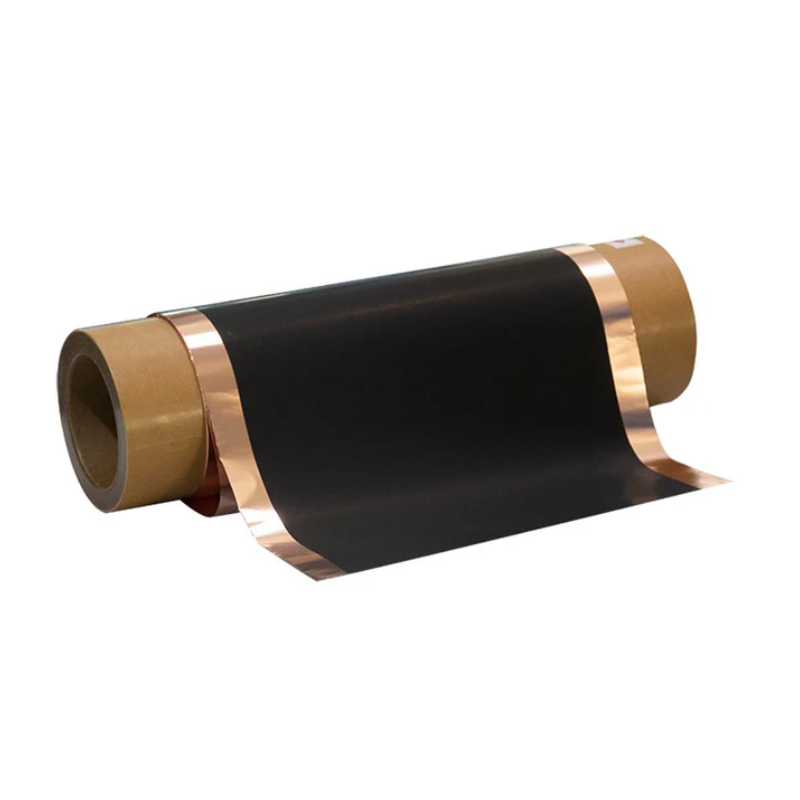

(1) Double-Side Carbon Coating Sheet: T (1+6+1)um * W (15+150+15)mm * L 200 mm, 5 pcs/pack {Cu foil and carbon width: 180 mm and 150 mm, the empty area for each side is 15 mm. Cu foil and coating thickness is 6 um and 1 um (each side} (2) Double-Side Carbon Coating Roll: T (1+6+1)um * W (15+150+15)mm, 1.0 kg/roll {Cu foil and carbon width: 180 mm and 150 mm, the empty area for each side is 15 mm. Cu foil and coating thickness is 6 um and 1 um (each side} |
References:
- W. Qin, et al., Enhanced Li-ion battery performance of TiO2 nanoparticle-loaded Li4Ti5O12 nanosheet anode using carbon coated copper as current collector, J. Power Sources, 2020, 479, 229090.
- X. Shen, et al., Study on the Application of Carbon-coated Copper Foil as Negative Current Collector for Silicon-based Lithium-ion Batteries, I. J. Electrochem., Soc., 2020, 15, 9013-9023.
