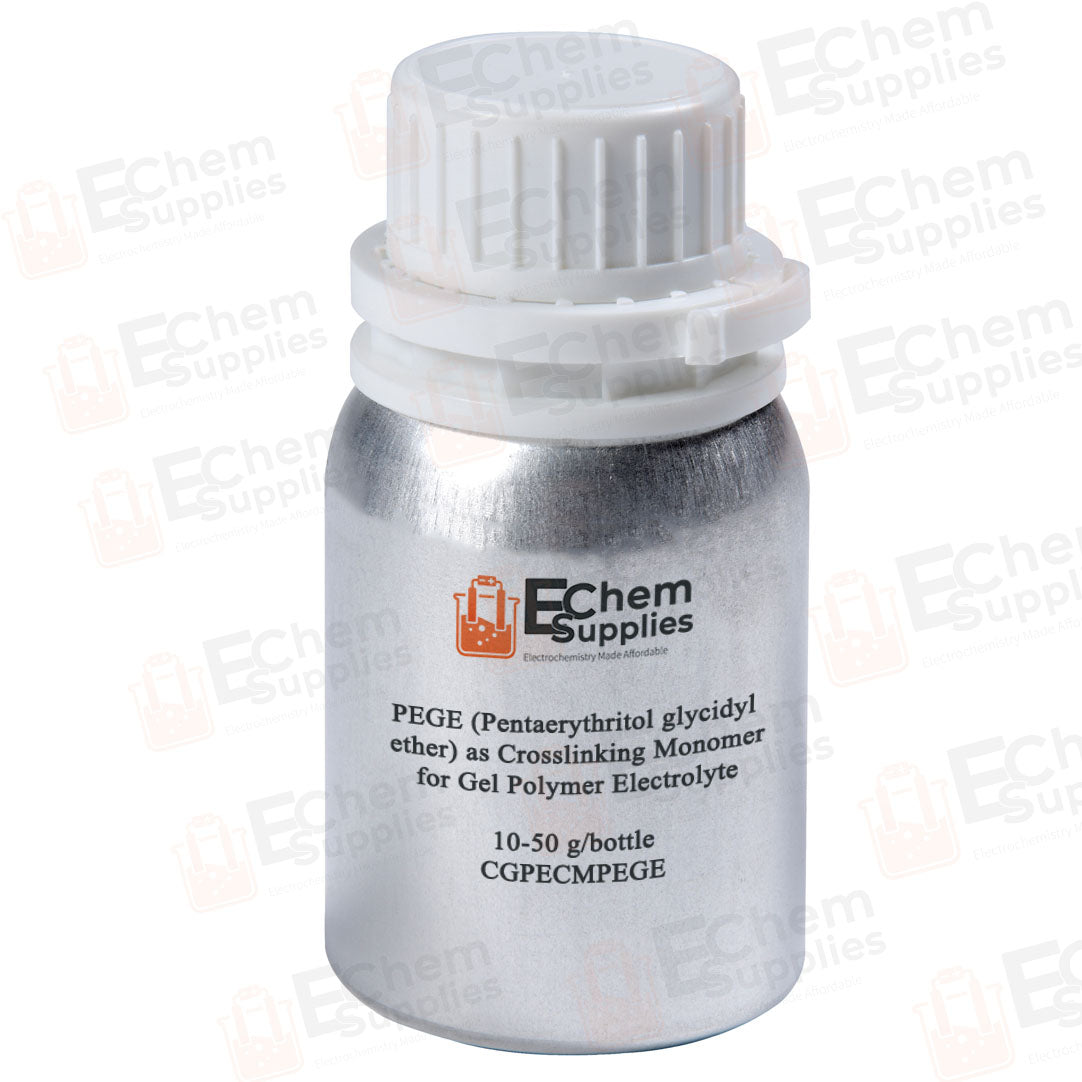

PEGE (Pentaerythritol glycidyl ether, PEE or PGE} as Crosslinking Monomer for Gel Polymer Electrolyte, 10-50 g/bottle, CGPECMPEGE
Use your own shipping account?
We support FedEx, UPS, and DHL third-party billing for institutional customers.
Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.

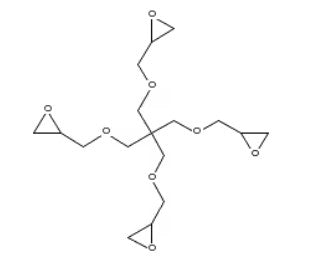

Pentaerythritol glycidyl ether (PEGE, also named as PEE or PGE) is a high-functionality multi-epoxy monomer featuring four reactive terminal oxirane (epoxy) rings radiating from a central pentaerythritol core. In advanced energy storage research, PEGE is utilized as a robust tetrafunctional crosslinking agent for Gel Polymer Electrolytes (GPEs) and solid-state polymer systems, delivering high crosslink density, exceptional thermal resistance, and superior mechanical rigidity for high-energy lithium and sodium metal batteries.
The main functional roles of PEGE in GPEs are: (1) Dense 3D Network & Liquid Immobilization: Upon ring-opening crosslinking with multi-functional curing agents (such as polyetheramines like Jeffamine, dicarboxylic acids, or amino-terminated prepolymers), PEGE rapidly establishes a dense 3D polymer mesh. This permanently traps and immobilizes organic liquid electrolytes, eliminating free-flowing leakage and enhancing thermal safety. (2) Suppression of Dendrite Penetration: The high crosslink density and elastic rigidity imparted by PEGE's tetrafunctional nodes create a mechanically robust barrier that resists sharp lithium or sodium dendrite propagation during fast-charging cycles, significantly reducing internal short-circuit risks in metal anode batteries. (3) Enhanced Interfacial Adhesion and Cohesion: The polar epoxy-derived hydroxyl groups formed during ring-opening curing promote strong wetting and adhesion to both separator matrices and current collectors, minimizing interfacial resistance.
| Part Number |
CGPECMPEGE (C-GPE-CM-PEGE) |
| CAS |
3126-63-4 |
| Chemical Formula |
C17H28O8  |
| Appearance |
Colorless and clear liquid |
| Viscosity |
300-800 cP (25℃) |
| Molecular Weight |
360.4 g/mol |
| Boling Point |
412.43 C at 760 mmHg |
| Package Size | 10 g, 20, and 50 g/bottle |
Notes: Please try to store the PEGE monomer in a dry and dark place.
References:
- Z. Zhu, et al. Tuning the solvation structure of ether-based polymer electrolytes for lithium metal batteries at low-temperature, Chemical Engineering Journal, 2025, 524, 169557
- J. Zhu, et al. In situ 3D crosslinked gel polymer electrolyte for ultra-long cycling, high-voltage, and high-safety lithium metal batteries, Energy Storage Materials, 2023, 57, 92-101
