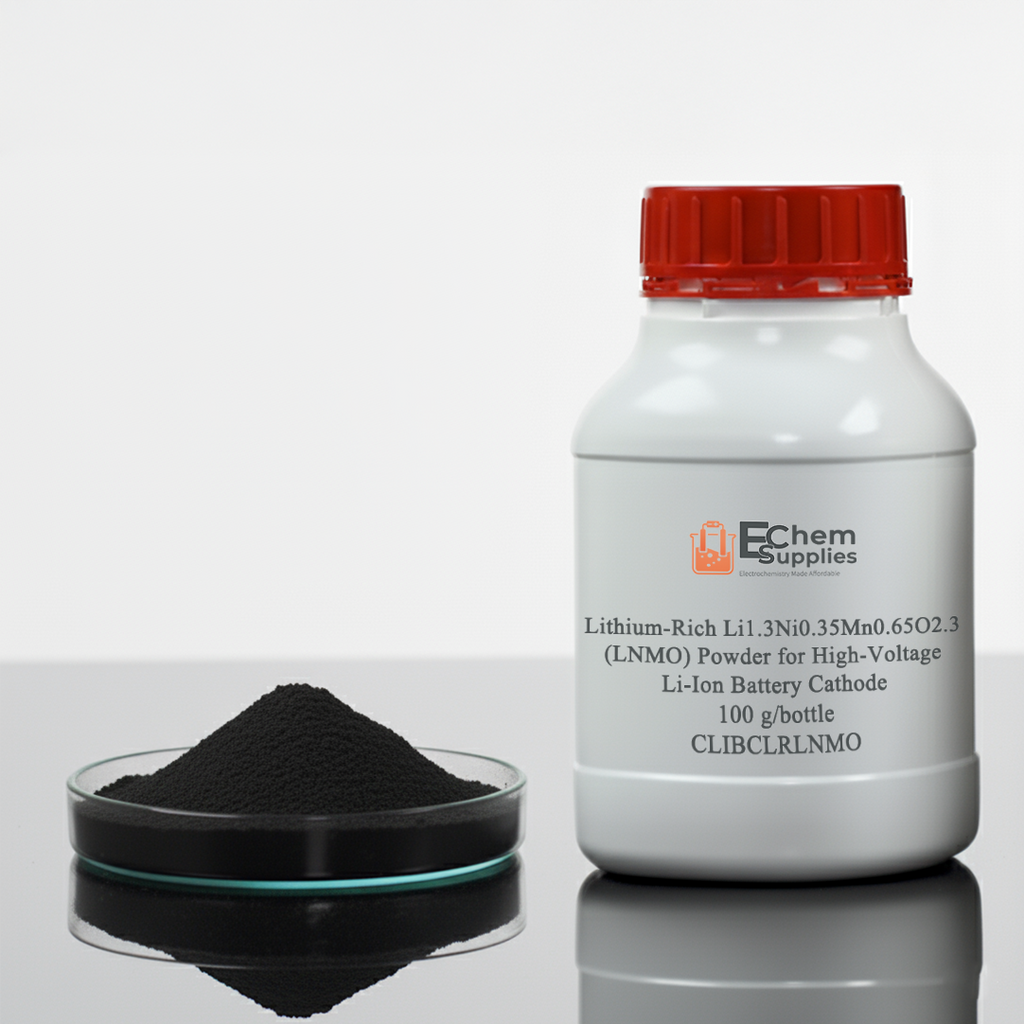

Lithium-Rich Manganese-Based Li1.3Ni0.35Mn0.65O2.3 (LNMO) Powder for High-Voltage Li-Ion Battery Cathode, 100 g/bottle, CLIBCLRLNMO
Use your own shipping account?
We support FedEx, UPS, and DHL third-party billing for institutional customers.
Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.
Li1.3Ni0.35Mn0.65O2.3 (LNMO) is a lithium-rich, cobalt-free cathode material that is highly significant in battery research because it belongs to a class that offers ultra-high specific capacity—potentially exceeding 250 mAh/g—which is well beyond the limits of conventional cathodes like NCM811.
The formula's unique stoichiometry indicates that it is a composite material structurally composed of two intergrown phases: 0.3 Li2MnO3 * 0.7 LiNi0.5Mn0.5O2. (1) Active Component (0.7): A layered LiNi0.5Mn0.5O2 (similar to NCM) that provides the initial high-voltage capacity. (2) Lithium-Rich Component (0.3): The Li2MnO3 component, which acts as the excess lithium reservoir and the source of the ultra-high capacity.
The advantage of the Li1.3Ni0.35Mn0.65O2.3 (LNMO) includes: (1) Ultra-High Specific Capacity; (2) High Energy Density; (3) Low Cost.
| Part Number |
CLIBCLRLNMO (C-LIB-C-LRLNMO) |
| Chemical Composition |
Li: 9,7 wt%, Ni: 34.2 mol%, Mn: 65.7 mol% |
| Particle Size Distribution |
D10 = 7.7 um; D50 = 9.2 um; D90 = 11.1 um |
| Tap Density | 2.34 g/cm3 |
| Specific Area | 1.73 m2/g |
| First Discharging Capacity |
~206 mAh/g |
| First Columbic Efficiency |
86.8% |
Notes: (1) Please store the LRLNMO powder in a dry area (glovebox is preferred); (2) The battery powder is highly recommended to be dried at 80-100°C in a vacuum oven for 6-12 h before use.
