LLZGO (Li6.4La3Zr2Ga0.2O12) Powder as Solid-State Electrolyte for Lithium-Ion Battery, 25-100 g/bottle, CLIBSSELLZGO

Li6.4La3Zr2Ga0.2O12 (LLZGO) is a gallium-doped cubic garnet-type solid-state electrolyte (SSE). Gallium substitution Ga^{3+} on Li+ sites) stabilizes the high-conductivity cubic garnet phase at ambient temperatures while creating lithium-site vacancies that unlock high bulk ionic conductivity (Li > 10^{-3} S/cm at 25°C). It is widely deployed as a ceramic powder for fabricating dense sintered ceramic separators, as an active ion-conducting inorganic filler in composite polymer electrolytes (CPEs), and as a protective coating on high-voltage cathode active materials.

Un-doped Li7La3Zr2O12 (LLZO) stabilizes in a thermodynamically favored tetragonal phase at room temperature, which has ordered lithium sublattices and poor ionic conductivity (~ 10^{-6} S/cm). (1) Site Occupancy: Ga^{3+} preferentially substitutes at the tetrahedrally coordinated 24d =Li+ positions. (2) Sintering Aid Behavior: Beyond phase stabilization, gallium acts as an internal sintering aid. During high-temperature sintering (1050–1150°C), gallium-rich liquid transient phases lower the activation barrier for densification, allowing relative pellet densities >95–98% without excessive lithium volatilization compared to un-doped or standard Al-doped LLZO.

Part Number	CLIBSSELLZGO (C-LIB-SSE-LLZGO)
Chemical Formula	Li6.4La3Zr2Ga0.2O12
Appearance	White Powder
Purity	>99.9%

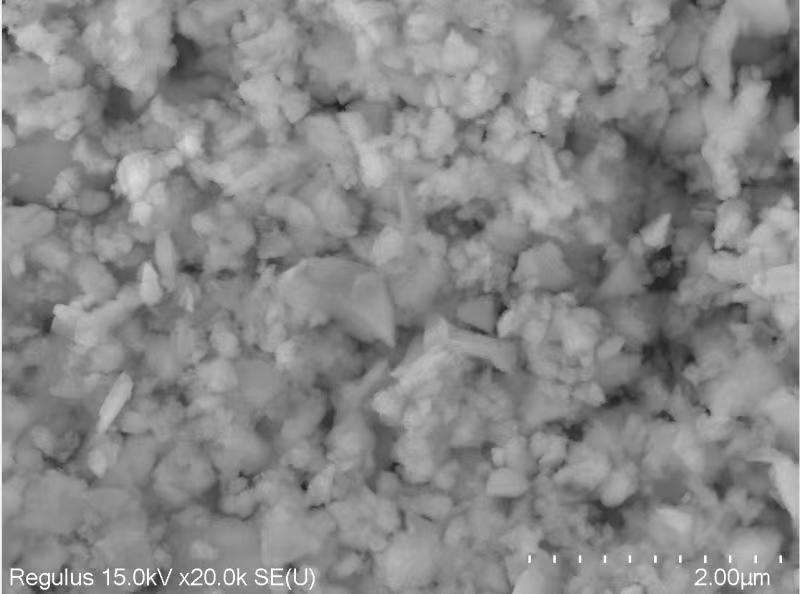

Size Distribution	D50= 300 nm
Ionic Conductivity	4.6 x10-4 S/cm at 25 °C
Package Size	25 g, 50 g, and 100 g/bottle

Notes: Please try to store the LLZGO powders in a dry place (glovebox is best) and please vacuum dry it before use.

References:

1. S. Song, et al. Gd-doped Li7La3Zr2O12 garnet-type solid electrolytes for all-solid-state Li-Ion batteries, Electrochimica Acta, 2018, 270, 501-508.
2. E. K. Yadzo, et al. A blueprint for high‑performance Gd doped LLZO: From site-selective doping to enhanced lithium transport, Electrochimica Acta, 2026, 570, 149001.
