Flow Electrolyzer with Visual Quartz Window for Operando Characterizations, COCFEVQW
Use your own shipping account?
We support FedEx, UPS, and DHL third-party billing for institutional customers.
Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.

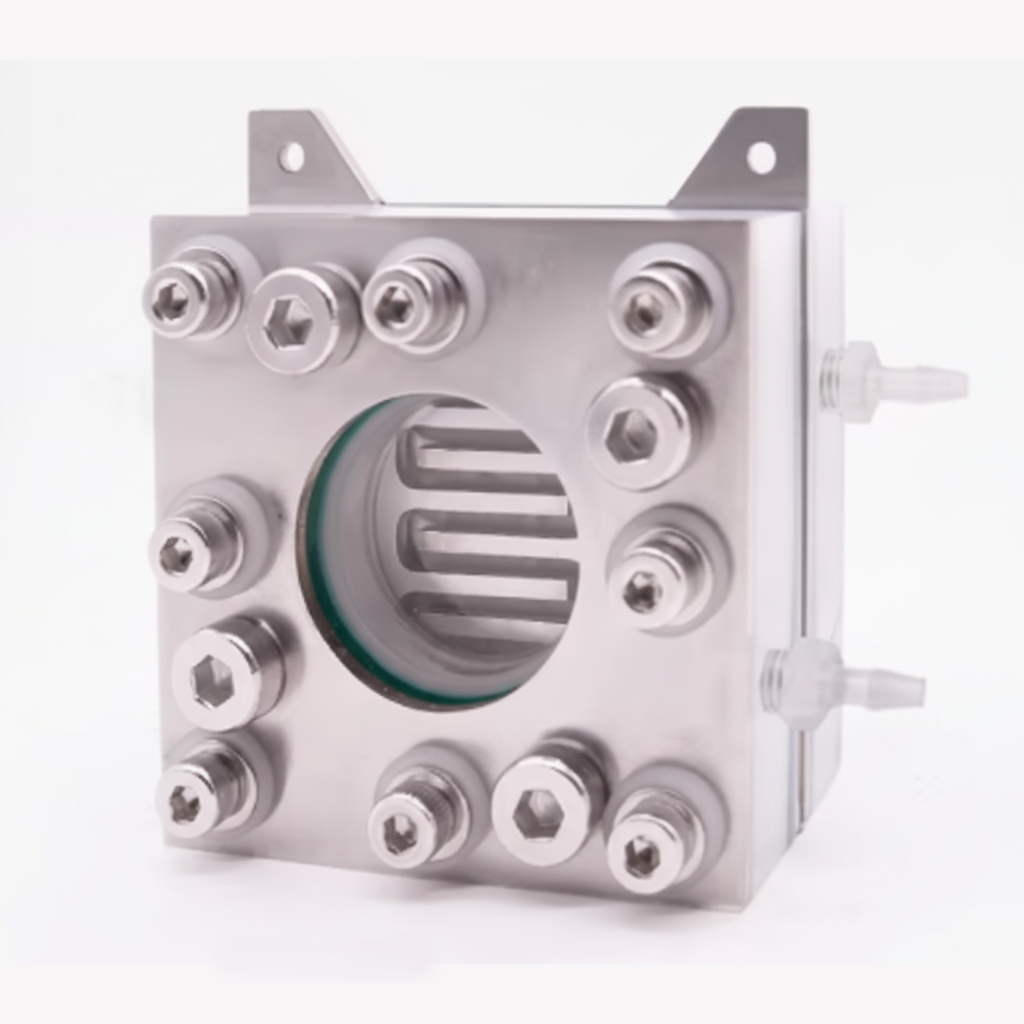

A flow electrolyzer equipped with a visual quartz window is a specialized piece of hardware, often referred to as an operando or in-situ optical cell. Unlike standard, opaque industrial stacks, these cells are custom-designed for research and diagnostics. By integrating a transparent window directly into the flow field or end plate, researchers can directly observe and quantify the complex physical and chemical phenomena occurring at the electrode surface in real-time while the cell is operating under continuous flow.
To accommodate optical access without destroying the electrochemical functionality of the cell, several components must be heavily modified compared to a standard flow stack: (1) Quartz Window: Fused quartz is the material of choice due to its exceptional optical transmission across a broad spectrum (from UV to near-infrared), its chemical inertness to harsh electrolytes, and its mechanical strength to withstand pressurized flow. (2) Modified Current Collectors: In a standard cell, a solid metal or carbon bipolar plate presses against the gas diffusion layer. In a visual cell, this must be replaced with a transparent or highly perforated current collector. This is often achieved using a fine titanium or gold mesh, a patterned interdigitated metal grid, or sometimes transparent conductive oxides (like FTO or ITO) deposited directly on the quartz, though these have lower conductivity. (3) Specialized Flow Fields: The flow channels are often machined directly into a transparent acrylic/polycarbonate housing that backs the quartz, or the quartz itself acts as the boundary of a single, open flow channel to ensure an unobstructed view of the catalyst layer. (4) Sealing: Creating a leak-proof seal between hard quartz and the other cell components requires precision-cut PTFE or Viton gaskets, taking care not to crack the quartz under the compression required to assemble the stack.
Visual flow electrolyzers are critical for troubleshooting mass transport limitations and optimizing cell designs in several complex electrochemical systems. (1) Bubble Dynamics in Gas-Evolving Reactions: In reactions where gases are produced—such as water electrolysis or the electrochemical reduction of CO₂—managing the gas-liquid-solid interface is the biggest engineering hurdle. The quartz window allows high-speed cameras to track: Bubble Nucleation and Growth: Where and how quickly bubbles form on the catalyst surface. Detachment and Sweeping: How effectively the flowing liquid electrolyte sweeps bubbles away. If bubbles linger, they block active catalyst sites (the "bubble overpotential"), drastically reducing cell efficiency. (2) Flow Distribution in Liquid Systems: For systems relying on liquid reactants, such as redox flow batteries, the window allows for the visualization of fluid dynamics across the porous transport layers. It can be used to identify dead zones: Dyes or the natural color changes of active species (e.g., vanadium in different oxidation states) can be tracked to see if the electrolyte is distributing evenly or if there are stagnant areas in the flow field. (3) In-Situ Spectroscopy: Beyond simple optical cameras, the quartz window acts as a portal for advanced spectroscopic techniques. Lasers can be fired through the window to perform operando Raman or UV-Vis spectroscopy, identifying intermediate chemical species forming on the catalyst surface in real-time.
| Part Number |
COCFEVQW (C-OC-FE-VQW) |
| Structure/Components |
|
| Cell Sizes |
|
| Flow Channels |
|

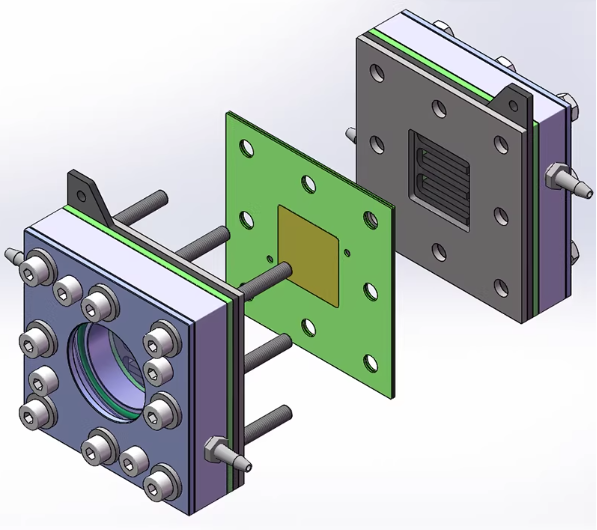

| Assembling Diagram |
|
| Flow Pump (Optional) |
|
| Note | The cell components should be thoroughly cleaned and dried after use. |
