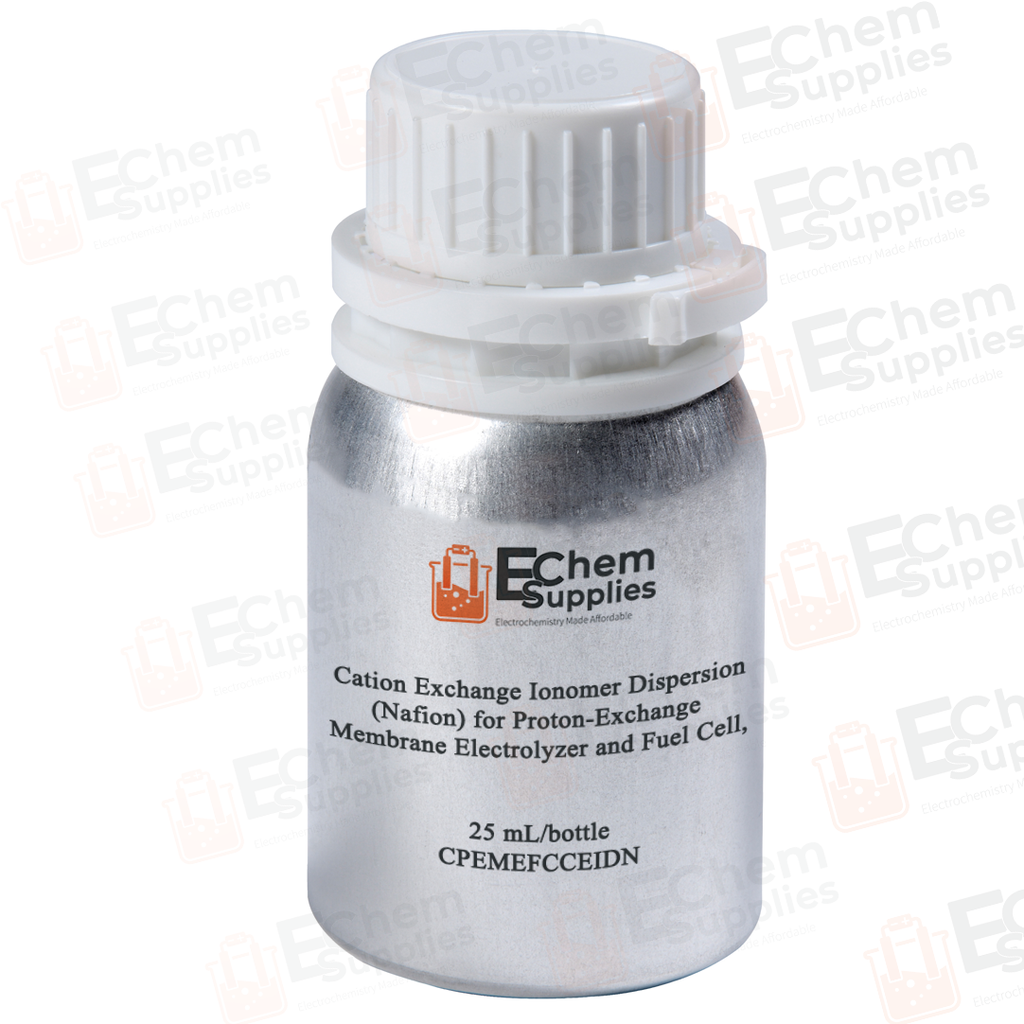

Cation Exchange Ionomer Dispersion (Nafion) for Proton-Exchange Membrane Electrolyzer and Fuel Cell, 25 mL/bottle, CPEMEFCCEIDN

Nafion™ dispersions are typically categorized by their Equivalent Weight (EW), polymer concentration, and solvent system. While they all share the same perfluorinated sulfonic acid (PFSA) chemistry, these variations determine the ionomer's viscosity, film-forming ability, and final ionic conductivity. It serves primarily as the "ionic glue" that binds catalyst particles together in Proton Exchange Membrane (PEM) fuel cells and electrolyzers.

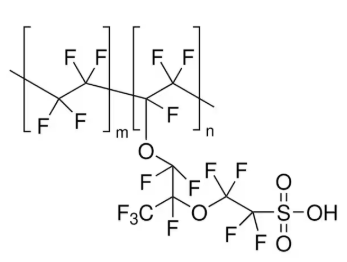

Nafion is mainly synthesized by the copolymerization of two specific monomers: (1) Tetrafluoroethylene (TFE): This is the same monomer used to make PTFE (Teflon). It forms the backbone of the polymer. (2) Perfluoro(3,6-dioxa-4-methyl-7-octene) sulfonyl fluoride: This long-winded name refers to the side chains that branch off the backbone. (3) PTFE Backbone (Hydrophobic): This section is entirely fluorinated (CF2-CF2). Like a non-stick pan, it is extremely hydrophobic and chemically inert. It provides the "skeleton" that allows the membrane to stay solid even when soaked in water. (4) Sulfonic Acid Side Chain (Hydrophilic): Branching off the backbone are ether-linked perfluorinated chains ending in a sulfonic acid group (-SO3H) with high water affinity.

General Steps for Making Electrode (D520 as an example): (1) I/C Ratio Optimization: In PEM fuel cell research, the weight ratio of Nafion (dry) to Carbon (I/C ratio) typically falls between 0.6 and 1.0. Too much D520 ionomer will block gas pores (flooding); too little will lead to high ohmic resistance. (2) Dispersion/Mixing: D520 should be added to catalyst slurries under stirring or sonication. To prevent "clumping," it is often recommended to add the water/alcohol solvents first to wet the catalyst before adding the D520. (3) Annealing (Heat Treatment): Once the ink is dried, the electrode must be heated to approximately 130°C–140°C for 30–60 minutes. This temperature is near the glass transition temperature (Tg) of the Nafion polymer, allowing the polymer chains to "interlock," making the layer mechanically robust and insoluble in water.

References:

1. G. F. Li, et al. Defining Nafion Ionomer Roles for Enhancing Alkaline Oxygen Evolution Electrocatalysis, ACS Catal. 2018, 8, 12, 11688–11698.
2. M. Bernt, et al. Influence of Ionomer Content in IrO2/TiO2 Electrodes on PEM Water Electrolyzer Performance, J. Electrochem. Soc., 2016, 163 F3179.
