Polyethylene glycol dimethyl ether (PEGDME) is a versatile "end-capped" polyether. Unlike standard Polyethylene Glycol (PEG), which has reactive hydroxyl (-OH) terminal groups, PEGDME replaces these with chemically inert methyl (-CH3) groups. In the battery application, this makes it an exceptional candidate for both solid-state electrolytes (SSE) and liquid electrolyte additives, particularly in Lithium-Sulfur (Li-S) and Lithium-Metal batteries.

PEGDME is rarely used as a standalone rigid solid; instead, it is used to create Plasticized Polymer Electrolytes or Gel Polymer Electrolytes (GPEs). (1) Ion Conduction Mechanism: The oxygen atoms in the polyether chain coordinate with Li+ ions. These ions "hop" from one ether oxygen site to another as the polymer chains move (segmental motion). (2) Plasticization: Adding low-molecular-weight PEGDME to a rigid polymer matrix (like PEO) acts as a lubricant. It breaks down the crystallinity of the host polymer, increasing chain flexibility and boosting ionic conductivity at room temperature. (3) The "End-Cap" Advantage: Because it lacks -OH groups, it does not react with the Lithium metal anode. This creates a much more stable interface compared to standard PEG, reducing the "dead lithium" formation.

In liquid or "semi-solid" systems, PEGDME is added to tune the physical properties of the electrolyte. (1) Viscosity and Conductivity: It has a low viscosity and high boiling point. Adding it to carbonate-based electrolytes can improve the "wetting" of the separator and electrodes, ensuring better ion access to the active material. (2) Solvent for Lithium-Sulfur (Li-S): PEGDME is a premier solvent for Li-S batteries because it has a high solubility for Lithium Polysulfides (Li2Sn). It helps manage the "shuttle effect" by stabilizing these intermediates during the charge/discharge cycle. It has a significantly lower vapor pressure and higher flash point than traditional solvents like DMC or DEC, making the battery less prone to fire during a short circuit.

In electrochemical CO2 reduction, PEGDME is a specialized electrolyte additive or co-solvent. Its primary role is to overcome the twin challenges of aqueous CO2RR: the low solubility of CO2 in water and the dominance of the competing Hydrogen Evolution Reaction (HER). (1) Enhancing CO2 Solubility and Mass Transport: PEGDME has a significantly higher physical affinity for CO2 than water. Using it as an additive or co-solvent increases the local concentration of CO2 near the catalyst surface. This allows the system to reach much higher partial current densities for carbon products before becoming mass-transport limited. (2) Suppression of the Hydrogen Evolution Reaction (HER): PEGDME molecules adsorb onto the cathode surface, creating a "water-lean" or "water-starved" micro-environment. By physically displacing water molecules from the active sites, the additive starves the HER pathway, drastically increasing the Faradaic Efficiency (FE) for products like CO or Ethylene. (3) Stabilization of Intermediates: The ether oxygens can stabilize the *CO2'- radical anion or the *COOH intermediate through dipole interactions. This stabilization can lower the onset potential (the energy required to start the reaction), making the process more energy-efficient.

Part Number	CSSBELEAPEGDME (C-SSBELEA-PEGDME)
CAS	24991-55-7

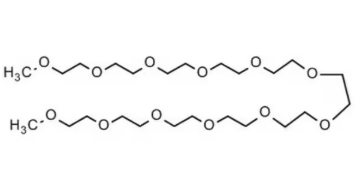

Chemical Formula	CH3O(CH2CH2O)nCH3
Appearance	Colorless liquid
Molar Mass	530.65
Boiling Point	>250 °C/1013 hPa
Viscosity	15 cSt (40 °C)
Package Size	100 or 500 g/bottle

Notes: Please try to store the PEGDME in a dry place.

References:

1. L. Carbone, et al. Polyethylene glycol dimethyl ether (PEGDME)-based electrolyte for lithium metal battery, J. Power Sources, 2015, 299, 460-464.
2. R. A. Tong, et al. In-Situ Polymerization Confined PEGDME-Based Composite Quasi-Solid-State Electrolytes for Lithium Metal Batteries, Adv. Funct. Mater., 2024, 34, 2315777
3. K. K. Meng, et al., Mechanistic Insights into the Roles of Electrolyte Additives in Enhancing CO2 Electroreduction Efficiency, J. Am. Chem. Soc. 2026, 148, 2, 2139–2147.
