In solid-state battery (SSB) research, maintaining a specific stack pressure (typically between 0.1 MPa and 50 MPa) is critical because the lack of a liquid electrolyte means the interface between the solid electrolyte and the electrodes can easily lose contact as the battery expands and contracts. A pressure sensor kit for this application typically consists of a specialized test cell, a high-precision force sensor, and a data acquisition (DAQ) unit to track pressure changes in real-time (operando). The pressure sensor kit can measure the pressure spike during charging. As Lithium atoms plate onto the anode, the volume increases; if the cell is rigid, the pressure will skyrocket. This data is used to calculate the Young's Modulus and structural health of the solid electrolyte.

Part Number	CSSBTPSK (C-SSBT-PSK)
Load Sensor	Load Sensor Range: Max. 1 T  Pressure Resolution: 0.1 kg

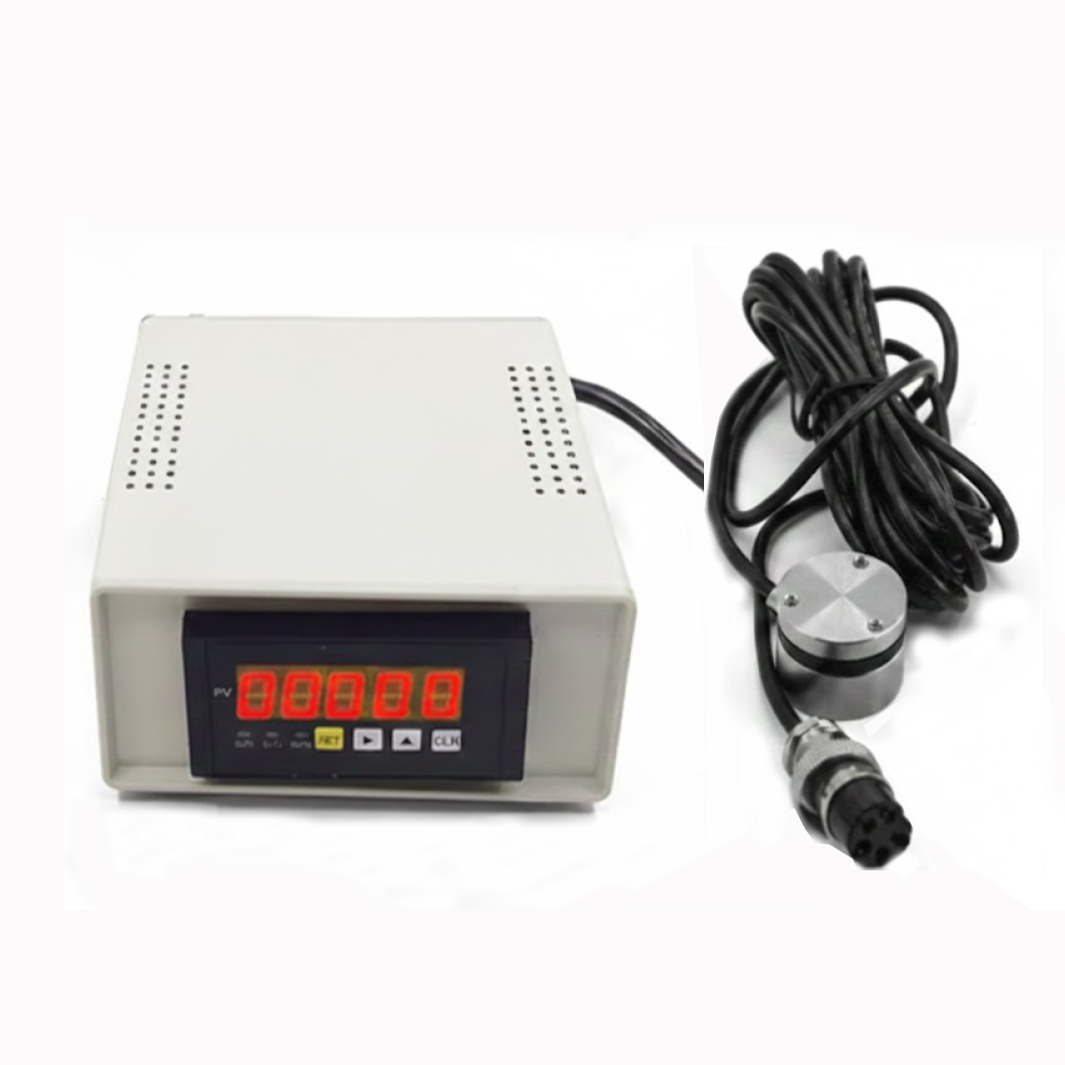

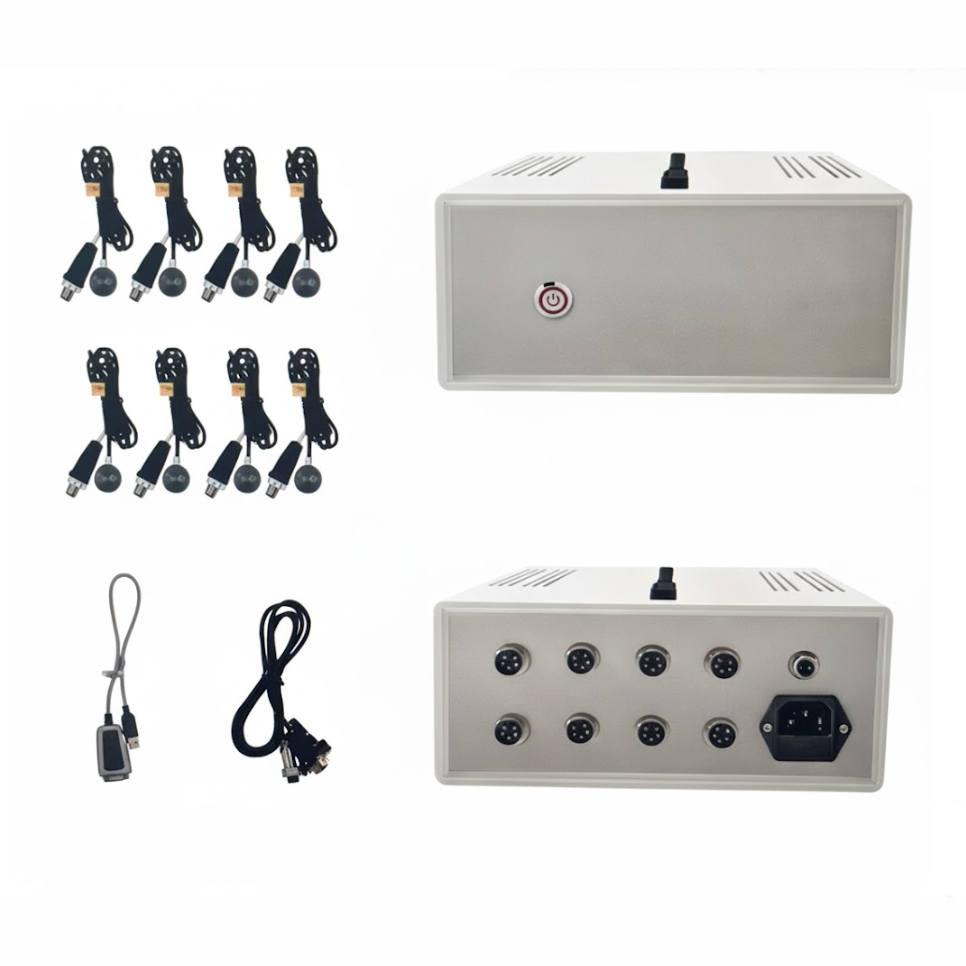

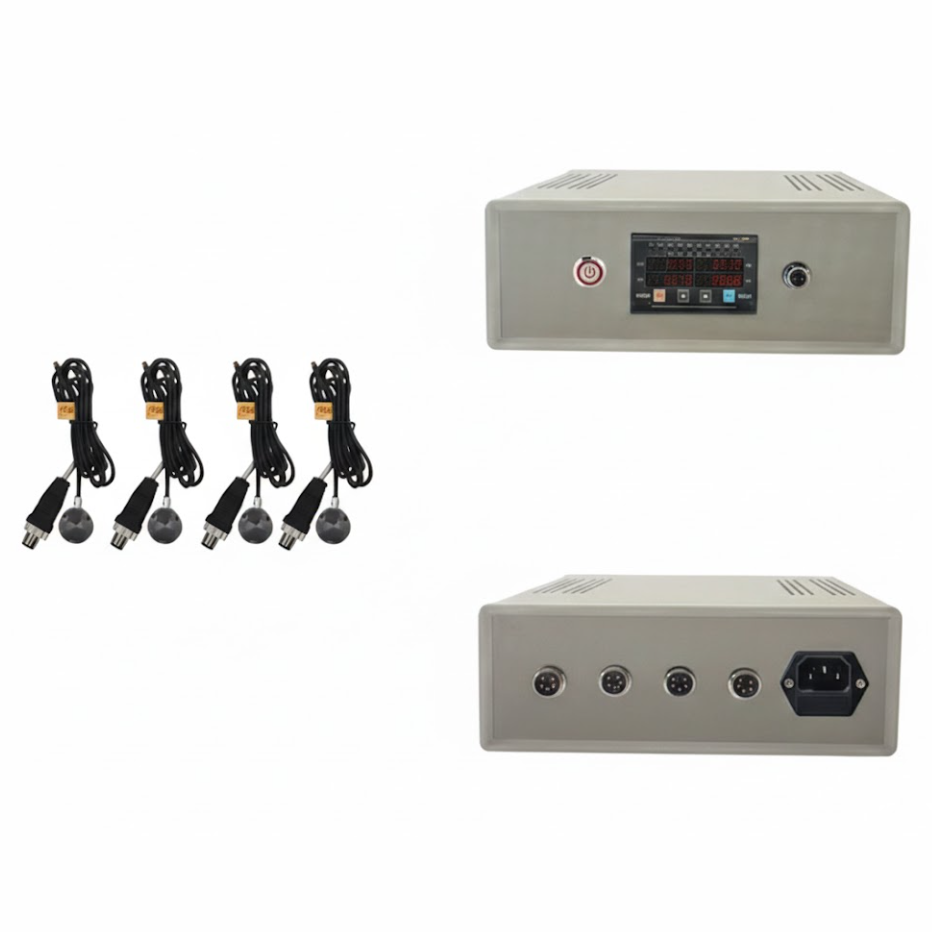

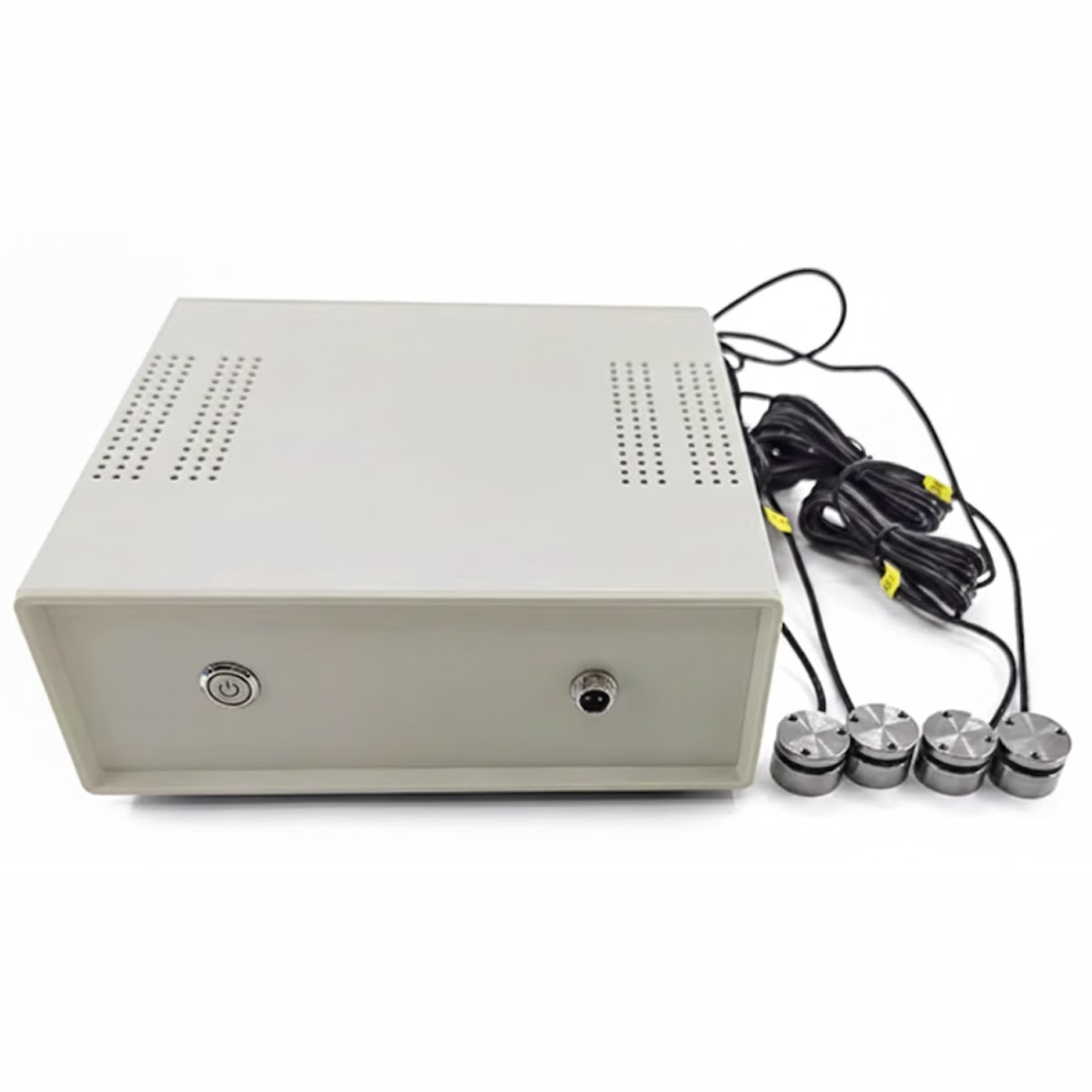

Digital Display	The real pressure will be appeared on the digital display and customer can manually record the date. Beside the single channel with one load sensor, the four-channel or eight-channel version is also available.

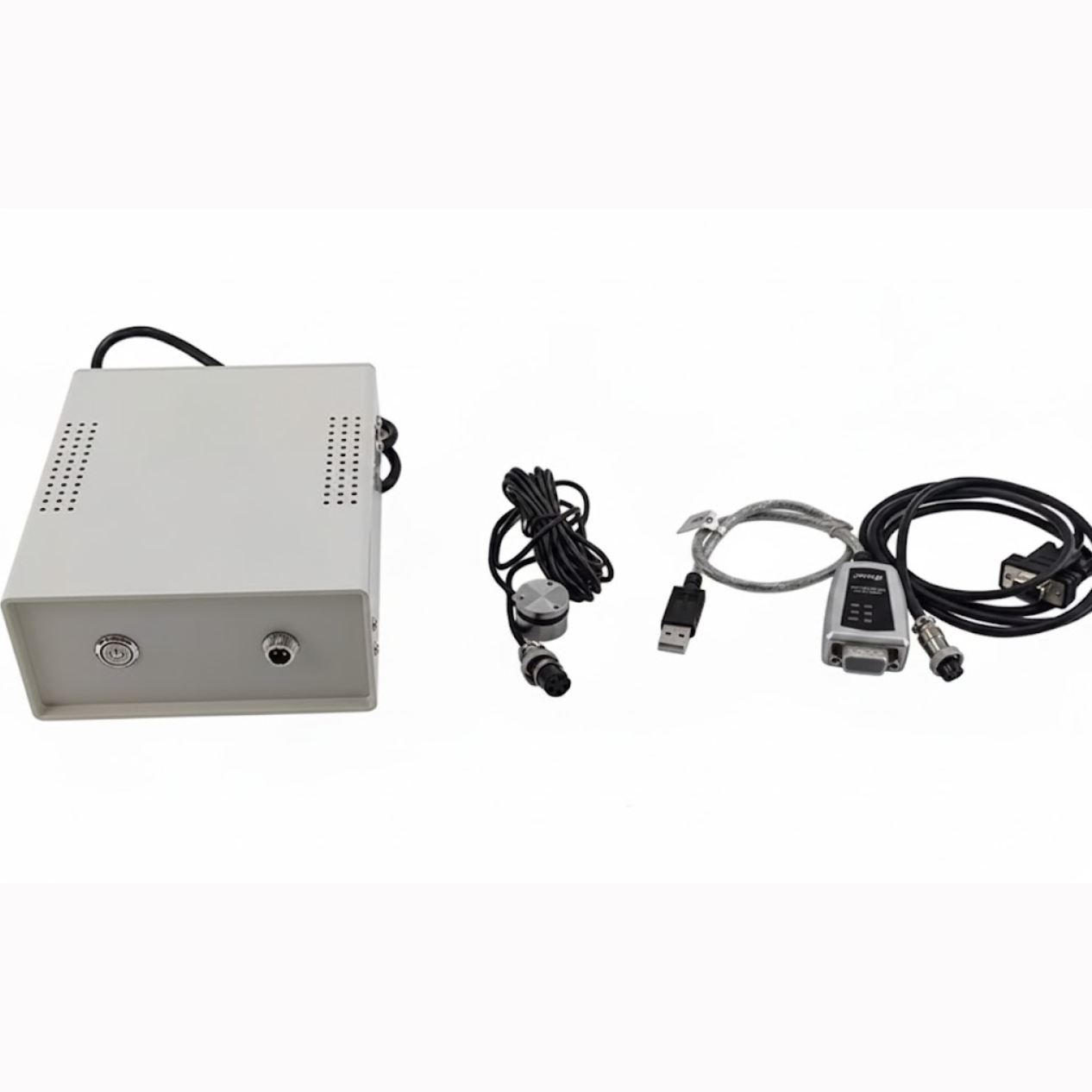

Software Display	The record data can be exported and displayed on the PC with excel version.

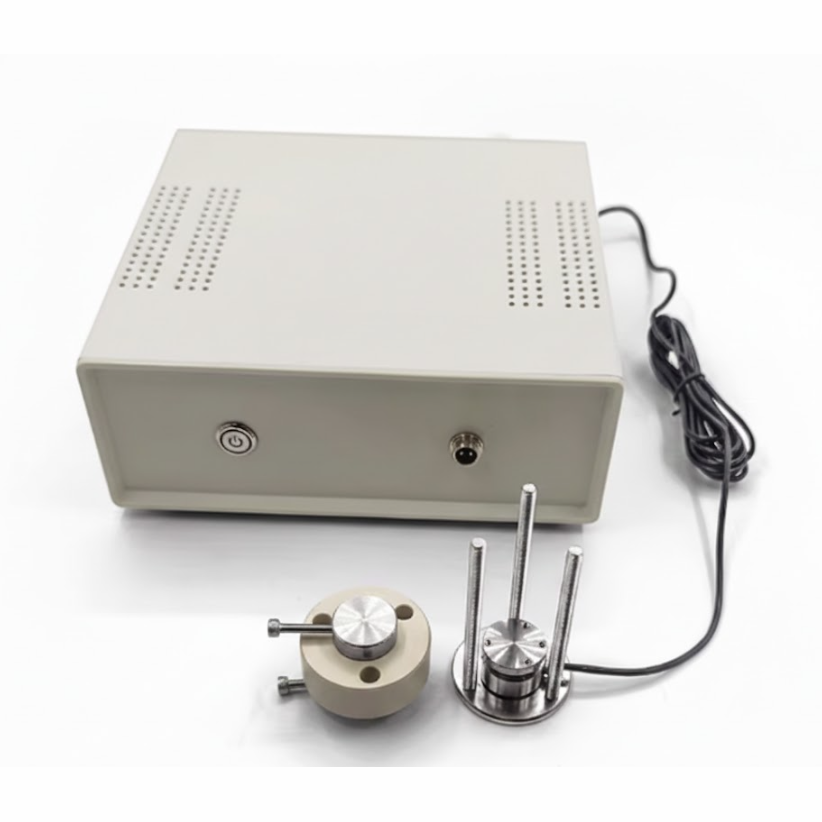

Combination Options	The pressure sensor kit can be combined the solid-state battery testing cells, such as CSSBT2ESCJF, CSSBTUA2ESCJF, CSSBTCP2ESCHJF
Note	The cell components should be thoroughly cleaned and dried after use.
