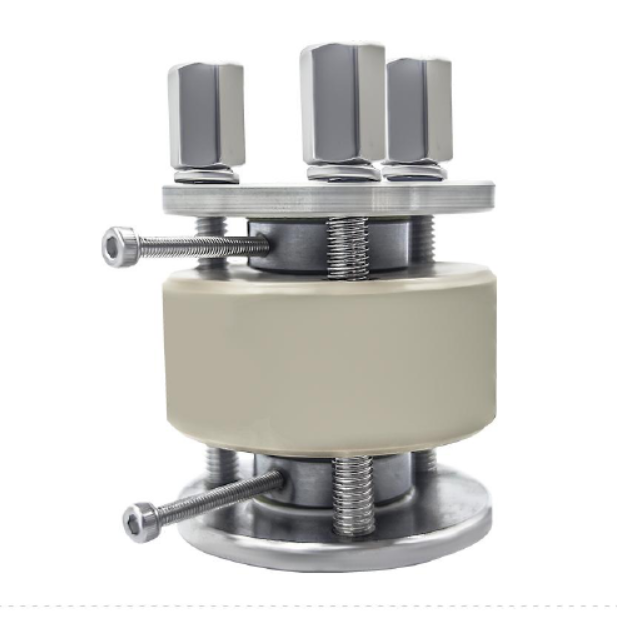

Economic Two-Electrode Split Cell (I.D.= 10 mm) with Jig Fixture for Solid-State Battery Testing, CSSBT2ESCJF
Use your own shipping account?
We support FedEx, UPS, and DHL third-party billing for institutional customers.
Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.
In solid-state battery (SSB) research, a split cell is a specialized electrochemical testing device designed to evaluate solid electrolytes and electrode materials without the need for traditional coin cell crimping. Unlike standard liquid-based battery cells, split cells are engineered to apply and maintain significant mechanical pressure, which is critical for ensuring proper ionic contact at solid-solid interfaces.
| Part Number |
CSSBT2ESCJF (C-SSBT-2ESCJF) |

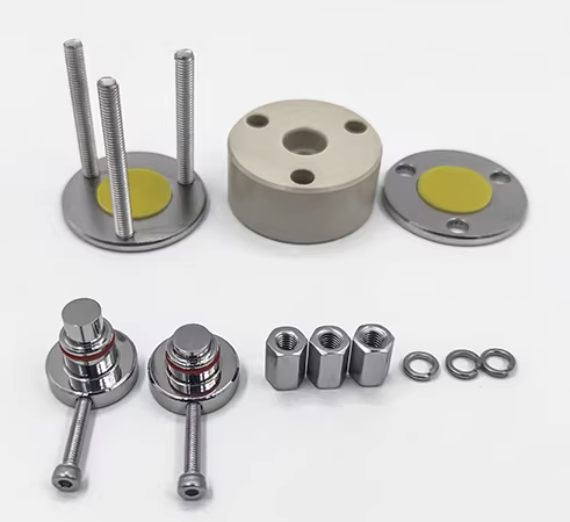

| Structure/Components |
Top/Bottom Metal Part: Special #4 Stainless Steel (corrosive-resistant to most solid-state electrolytes)
Sleeve or cell body: PEEK
O-rings: Silicone Rubber
Jig Fixture: Stainless Steel
|
| Cell Sizes |
Standard I.D: 10 mm (Any other sizes, such as 12 mm, 14 mm, 16 mm, 18 mm, 20 mm are available upon request) |
| Max. Operation Pressure |
≤500 MPa
|
| Max. Operation Temperature |
250 ºC under tightening pressure
|
| Customized Options |
(1) The ceramic-type sleeve (better testing result) can be supplied upon request.
 (2) The top/bottom stainless steel plunger with Au coating can be supplied upon request
(3) The split cell can be integrated with the pressure sensor kit (CSSBTPSK) to display and track real pressure.
 |
| Note | The cell components should be thoroughly cleaned and dried after use. |
