Deposition-Type Testing Cell with Serpentine Flow Channels for Zn-X (X=Br2/I2/Fe) Redox Flow Battery, CZXRFBDTCSFC

A deposition-type redox flow battery (often called a hybrid flow battery) is a system where one of the active chemical species is deposited as a solid layer onto an electrode during the charging process, rather than remaining dissolved in the liquid electrolyte. While traditional "all-flow" batteries (like the Vanadium Redox Flow Battery) keep all chemicals in a liquid state at all times, deposition-type batteries involve a phase transition (Liquid to Solid).

The working principle for the deposition-type redox flow battery testing cell is shown below: (1) The Liquid Side (Catholyte): Acts like a standard flow battery. The redox species stays dissolved in the electrolyte as it changes oxidation states (e.g., Fe^{2+} to Fe^{3+}). (2) The Deposition Side (Anolyte): During charging, metal ions in the electrolyte receive electrons and plate (deposit) as a solid metal onto the surface of the negative electrode.2 During discharge, this solid metal is "stripped" back into the liquid.

Part Number	CZXRFBDTCSFC (C-ZXRFB-DTCSFC)

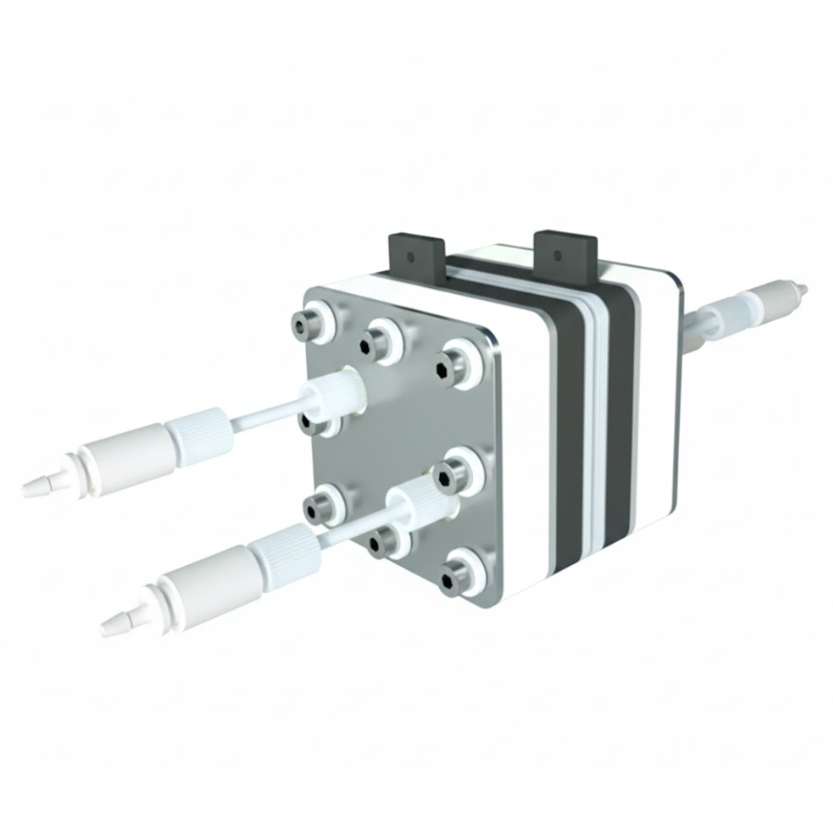

Structure/Components	End Plates: PEEK material Current Collector: Graphite plate with serpentine flow channels Electrode: Graphite felt (T=3 mm) Electrode Gasket: PTFE Membrane Frame: Silicone Tubing Connection: Barbed hose fitting  Max. Cell Voltage: 1.5-1.7 V
Cell Sizes	Default effective area is 2.0 cm * 2.0 cm (4 cm2) Other types of active areas, such as (1.6cm * 1.6cm), (3.2cm * 3.2cm), (5 cm * 5cm) are also available upon request.   Cell size: W60×H70 mm
Flow Channels	Standard flow channel is Serpentine                 Other flow channel types: such as interdigital, parallel serpentine are also available upon request.
Assembling Diagram/Parts
Real Case Demo

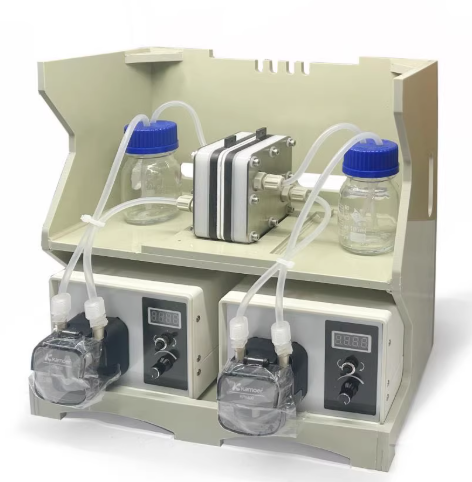

Complete Testing System (Optional)	The complete testing system with split cell, two peristaltic pumps, two bottles (100 mL), connecting tubing (I.D. 2mm, O.D. 4mm), and a stack for host all parts, is available upon request.
Application Field	Zn-Br2 Redox Flow Battery Zn-I2 Redox Flow Battery  Zn-Fe Redox Flow Battery
Note	The cell components should be thoroughly cleaned and dried after use.
