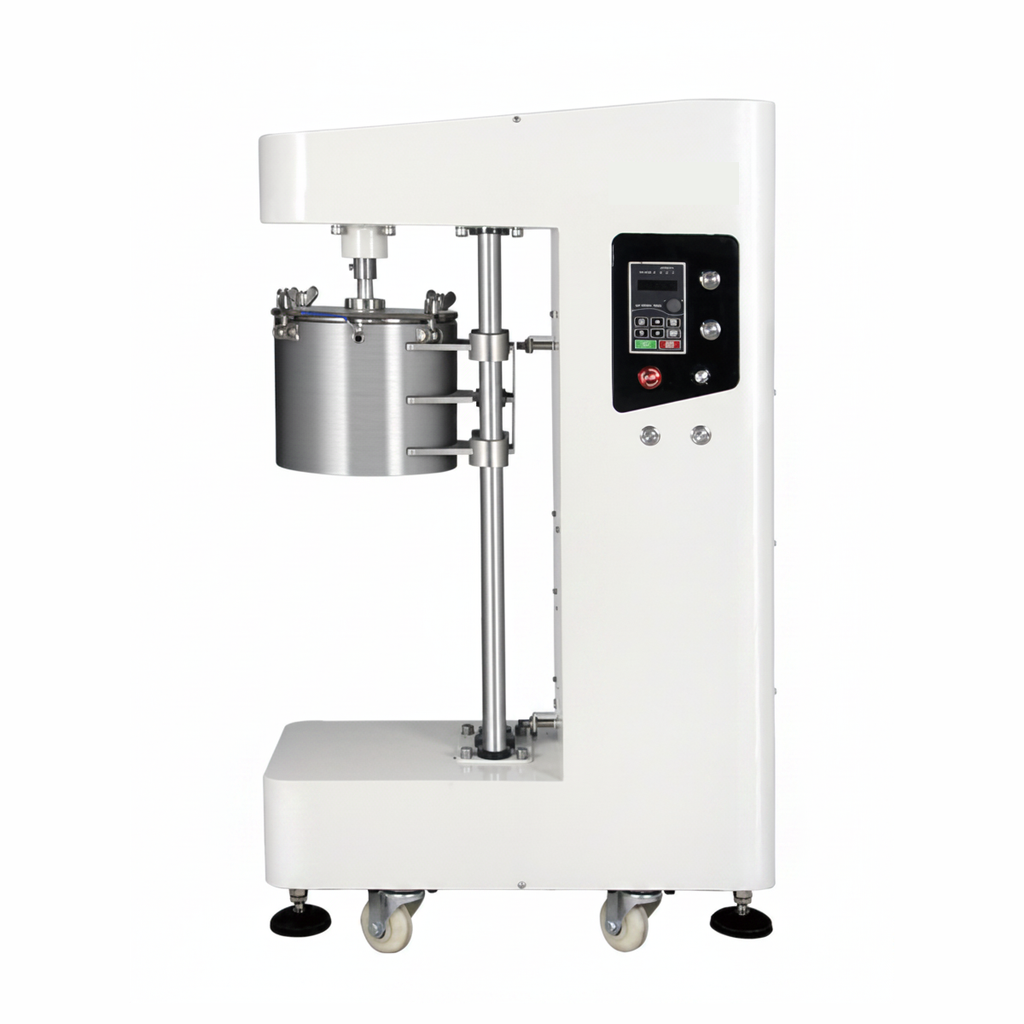

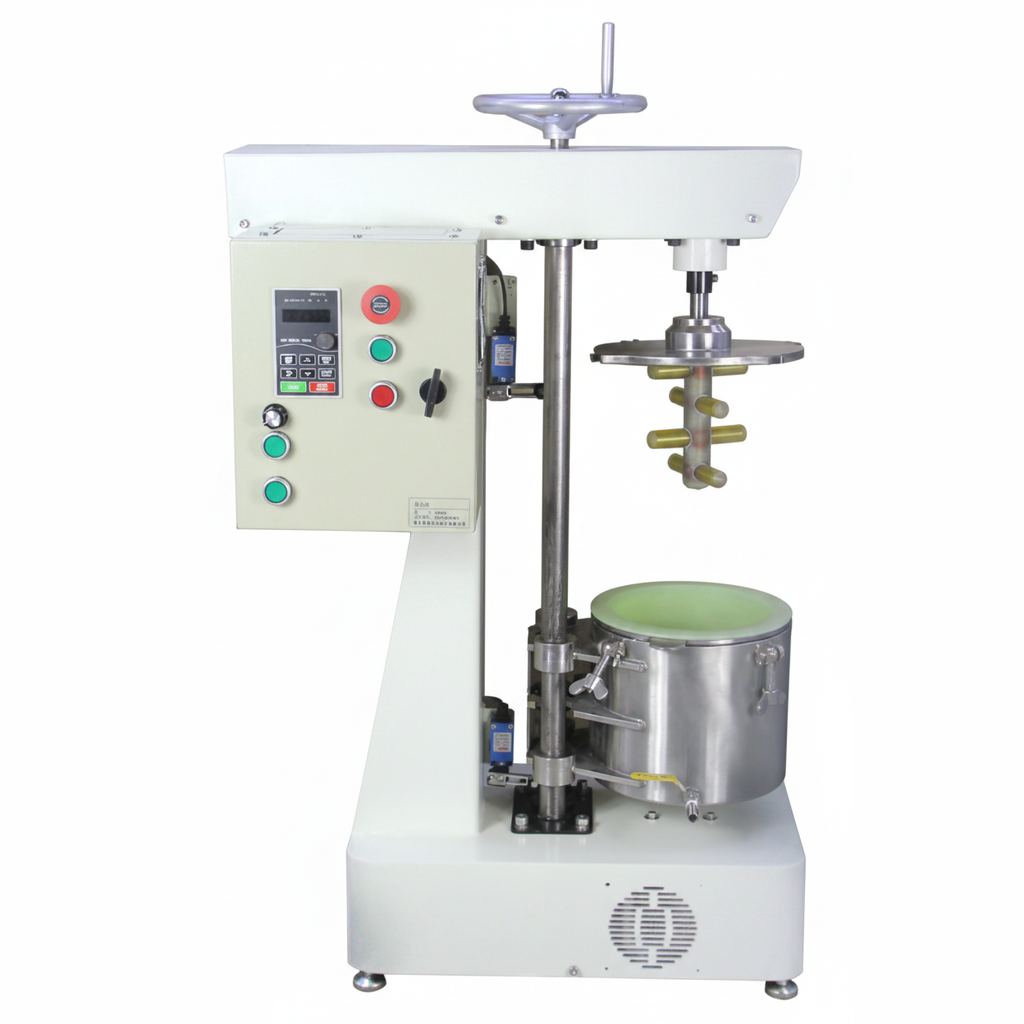

An Attrition Ball Mill (also commonly known as an Attritor or Stirred Media Mill) is a high-efficiency grinding system where the grinding energy is focused entirely on the media charge, rather than the entire vessel. Unlike a standard ball mill that rotates the drum, an attritor features a stationary vertical tank and a central rotating shaft with arms (agitators) that stir the grinding beads at high speeds.

In an attritor, the power is applied directly to the media via the internal agitator. (1) Agitator Motion: The central shaft spins at speeds typically ranging from 100 to 1,500 RPM. The attached arms (or disks) stir the media (usually 1–10 mm balls) in a constant, high-energy vortex. (2) Shear and Impact: Grinding occurs through a combination of high-velocity impact (as beads strike each other) and intense shear/attrition (as beads rub against each other and the tank wall). (3) Energy Density: Attritors have an energy density roughly 10 to 50 times higher than a conventional ball mill, meaning what takes 10 hours in a drum mill can often be achieved in 30 minutes in an attritor.

References:

P. R. Santhanam, et al., Real time indicators of material refinement in an attritor mill, AICHE J., 2013, 59, 1088-1095

A. Shrivastava, et al., A statistical approach for estimation of significant variables in wet attrition milling, Powder Technology, 2011, 211, 46-53
