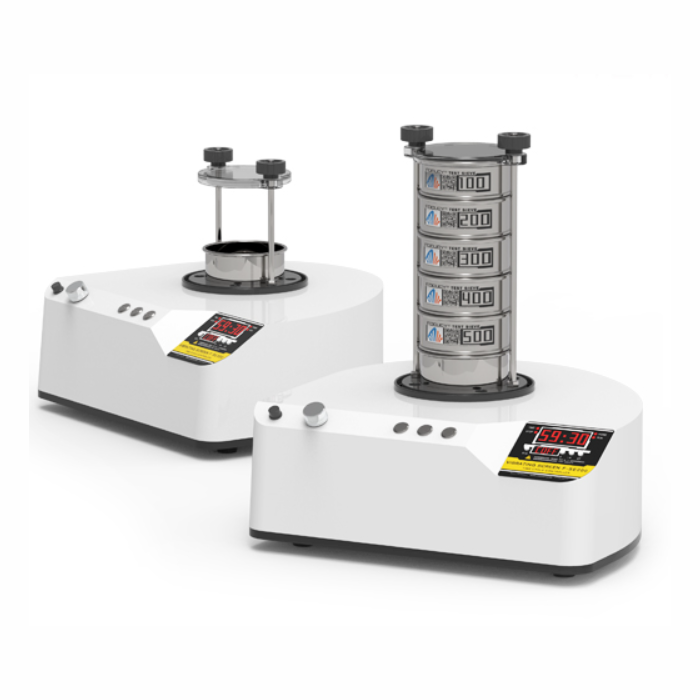

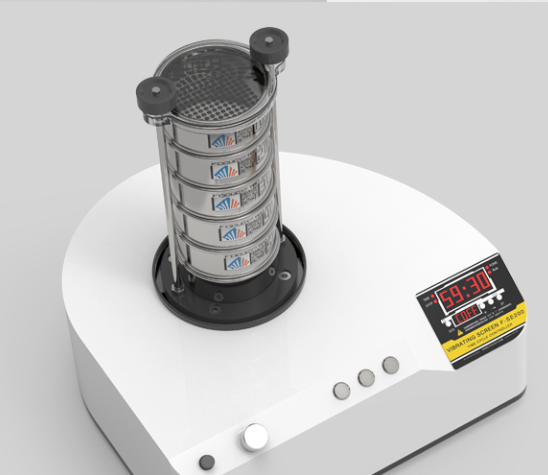

A 3D electromagnetic vibration dry sieving machine represents the peak of precision for laboratory-scale particle size analysis. Unlike motor-driven sifters that rely on eccentric weights and mechanical parts, this machine uses an electromagnetic drive to create a controlled, high-frequency vibration.

The core of the machine is an electromagnetic coil and a spring system. (1) The Pulse: The electromagnet is pulsed at high frequencies (typically 3,000 to 3,600 vibrations per minute). (2) 3D Motion: The spring arrangement converts the vertical electromagnetic pulse into a specialized 3D movement. The sample doesn't just bounce; it spirals and tumbles across the mesh. (3) Maintenance-Free: Because there are no rotating motors, belts, or bearings, these units are incredibly quiet and require virtually no maintenance compared to mechanical 3D sifters.

References:

Y. Wei, et al., Design of Vibrating Screen Separation Equipment for Powder Materials, J. Phys.: Conf. Ser., 2022, 2235, 012028

M.O. Besenhard, et al., Accuracy of micro powder dosing via a vibratory sieve–chute system, European Journal of Pharmaceutics and Biopharmaceutics, 2015, 94, 264-272
