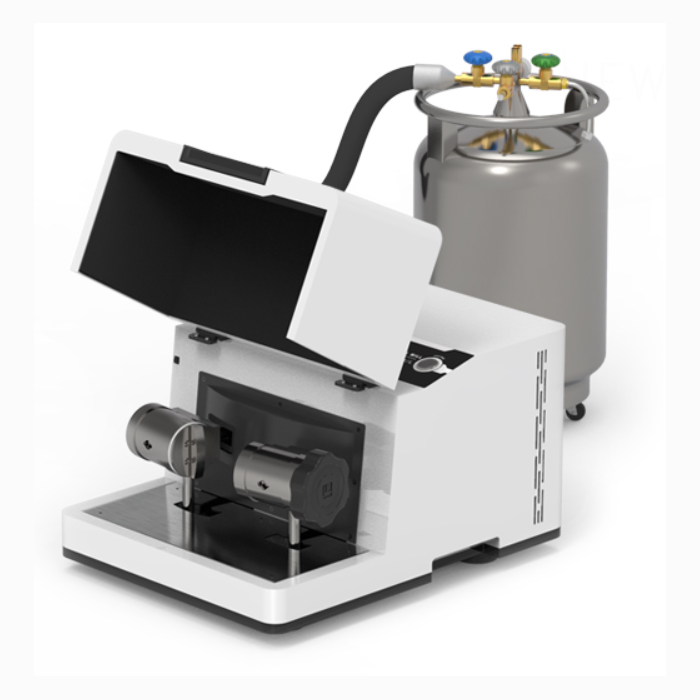

For reaching the nanometer scale with thermally sensitive or ductile materials—such as sulfur-based composites (SPAN), polymers, or biological samples—a Cryogenic High-Energy Vibratory Ball Mill is the definitive tool. Cryomilling prevents the "cold-welding" and thermal degradation that typically occur during high-energy impact, keeping the sample brittle and facilitating efficient fracture into the 10–100 nm range.

In standard milling, the kinetic energy of the grinding media is converted into heat upon impact. For materials with a low glass transition temperature (Tg), this causes the particles to soften, deform, or agglomerate rather than shatter. (1) Embrittlement: Liquid nitrogen (LN2) cools the sample to approximately -196°C. At these temperatures, even ductile polymers and soft metals become brittle, allowing for rapid size reduction. (2) Structural Preservation: For electrochemical materials like SPAN (Sulfurized Polyacrylonitrile), maintaining the chemical bond integrity is crucial. Cryomilling prevents the localized "hot spots" that could trigger premature desulfurization. (3) Prevention of Agglomeration: By suppressing the surface energy increases caused by heat, particles are less likely to fuse back together during the process.

References:

T. Yoshida, et al., Vibration characteristics of an operating ball mill, J. Phys.: Conf. Ser., 2019, 1264, 012016

H. Lee, et al., Using the discrete element method to analyze the breakage rate in a centrifugal/vibration mill, Powder Technology, 2024, 36, 14, 6748–6764
